Connector Identification

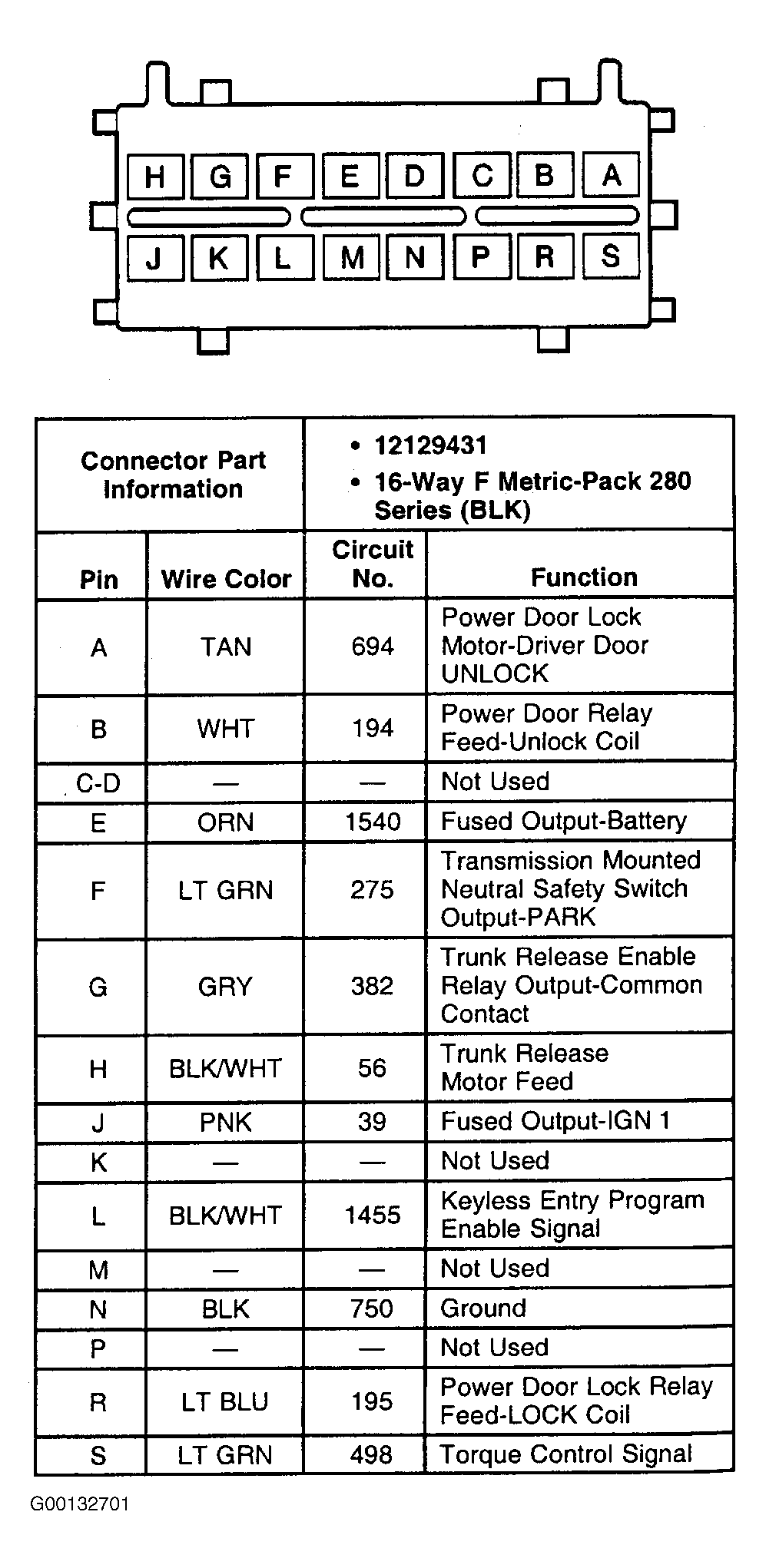

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Connector

Courtesy of GENERAL MOTORS CORP.

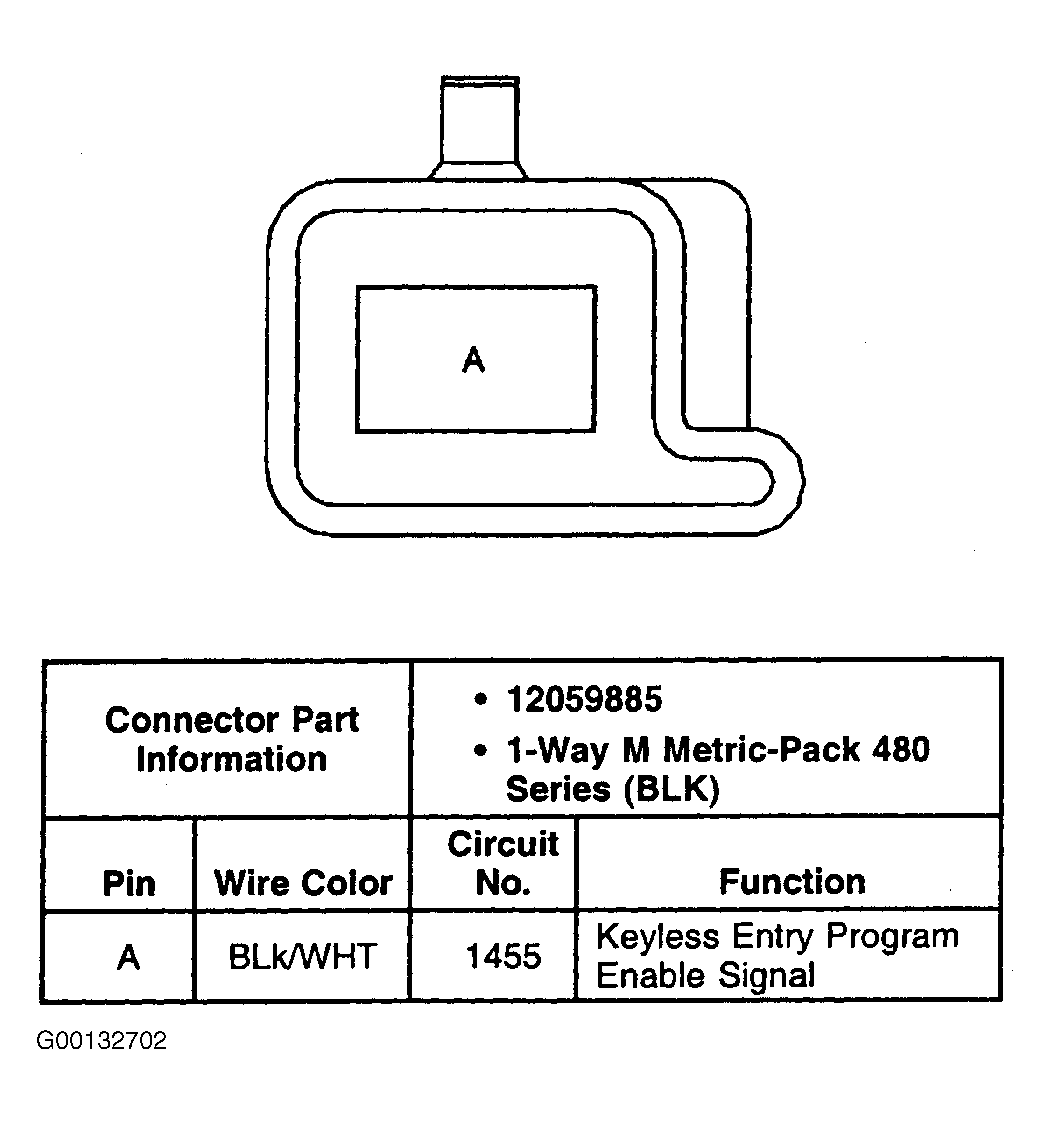

Fig 2: Remote Keyless Entry Programming Connector

Courtesy of GENERAL MOTORS CORP.
