Installation (Front)
- Position the regulator (4) by inserting the bottom through the access opening.
- Rotate the top through the opening while lowering the regulator in order to clear the top of the access opening.
- Align the holes in the door inner panel.

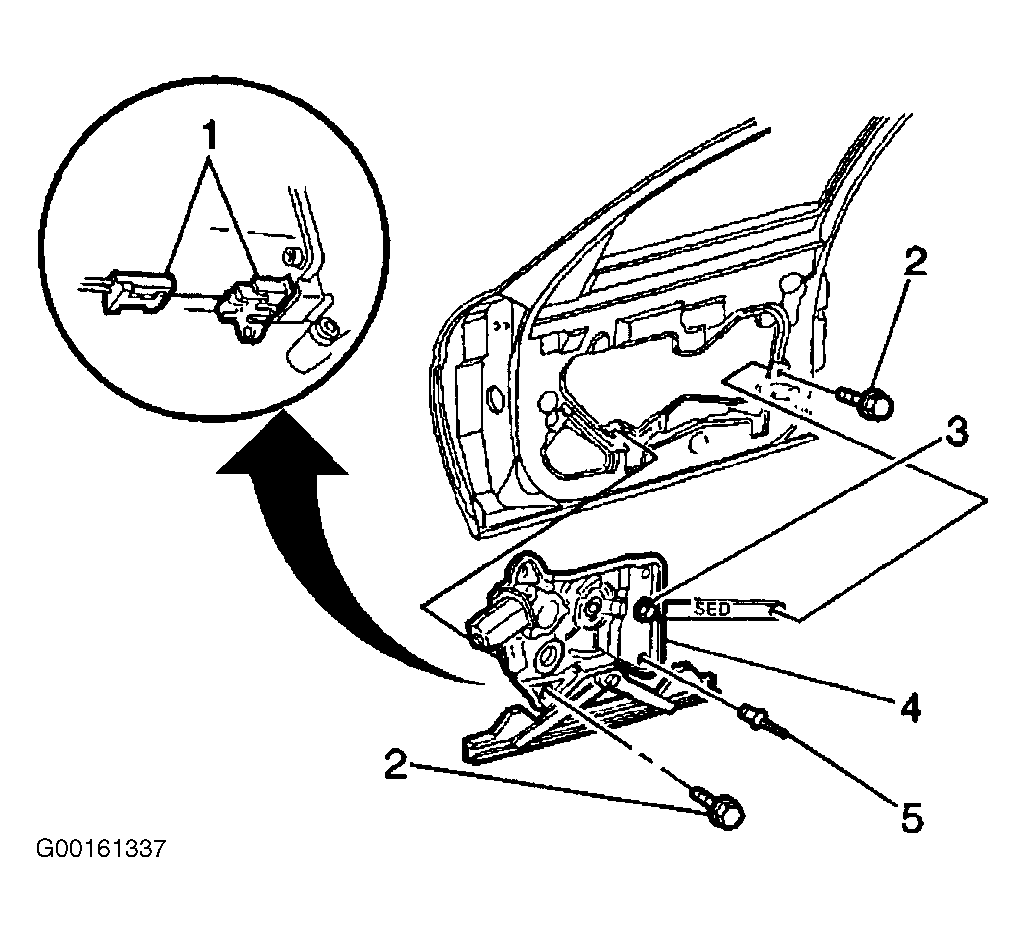

- Install the door window regulator bolts (2). Tighten the bolts to 89 INCH Lbs. (10 N.m). See Fig 1
.
- Install the upper left rivet.
- Install the lower right rivet.
- Install the door window regulator cam bolt. Tighten the nut to 89 INCH Lbs. (10 N.m).
- Connect the electrical connector, if equipped.
- Install the window. See SIDE DOOR WINDOW
.
- Install the water deflector. See WATER DEFLECTOR
.
- Install the energy absorber pad (coupe only). See ENERGY ABSORBER PAD
.
- Install the trim panel. See DOOR TRIM PANEL
.
