Removal Procedure

  1. Remove the engine cover. Refer to Engine Cover Replacement  .
  2. Remove the bolts that retain the engine cover guide assembly to the vehicle.
  3. Remove the engine cover guide assembly.

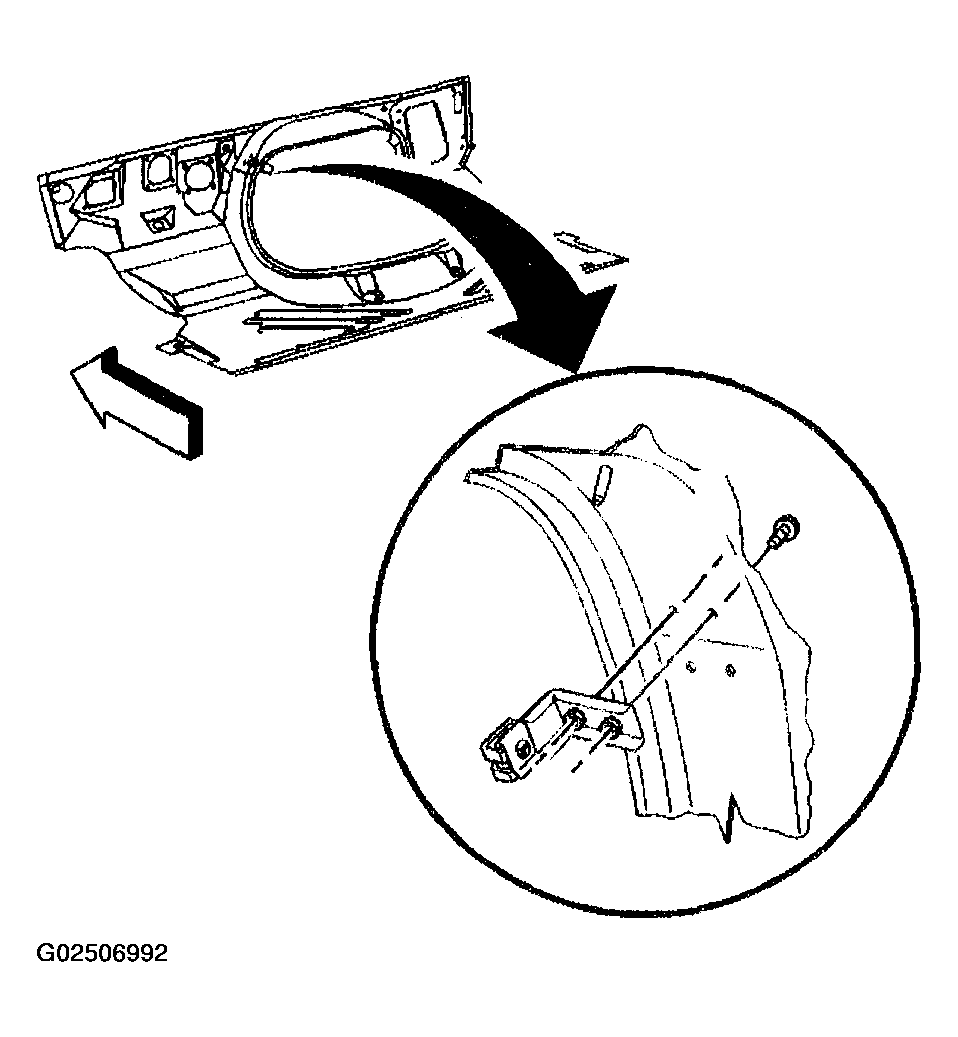

    Fig 1: Removing Engine Cover Guide
    G02506992Courtesy of GENERAL MOTORS CORP.
