Installation Procedure

Install the engine cover.

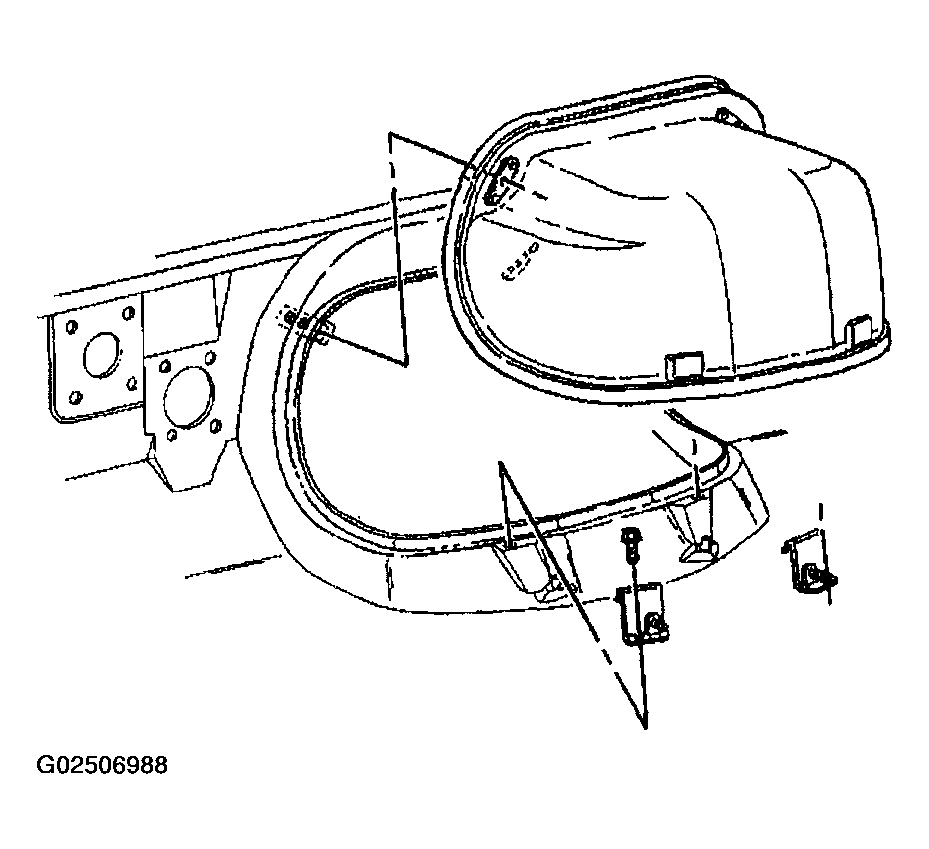

Fig 1: Installing Engine Cover
Courtesy of GENERAL MOTORS CORP.
Install the screws to the engine cover.
Do not fully tighten the screws.

Fig 2: Installing Engine Cover Screws
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
Install the latch screws.
Tighten

Tighten the latch screws to 4 N.m (35 in. lb.).

Fig 3: Installing Latches
Courtesy of GENERAL MOTORS CORP.

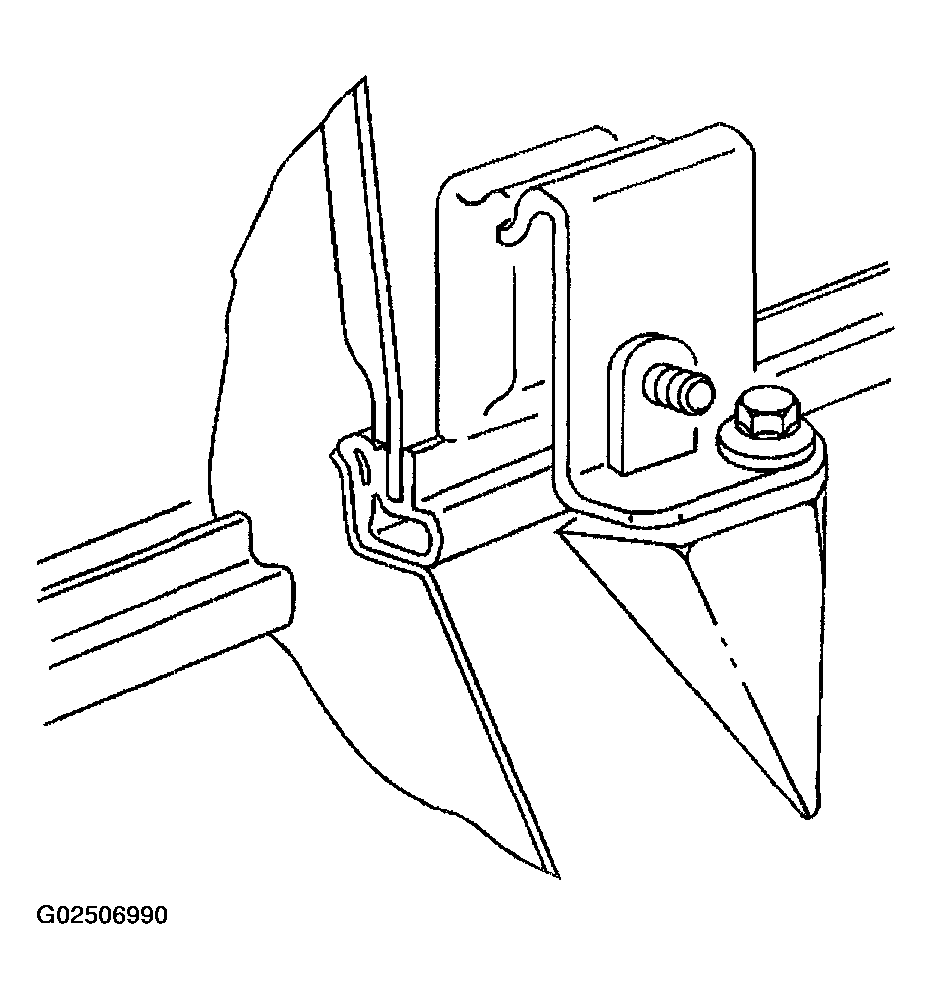

Install the engine cover bolts to the brackets.
Tighten

Tighten the engine cover bolt to 25 N.m (18 ft. lb.).
Insert the floor air outlet duct. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .

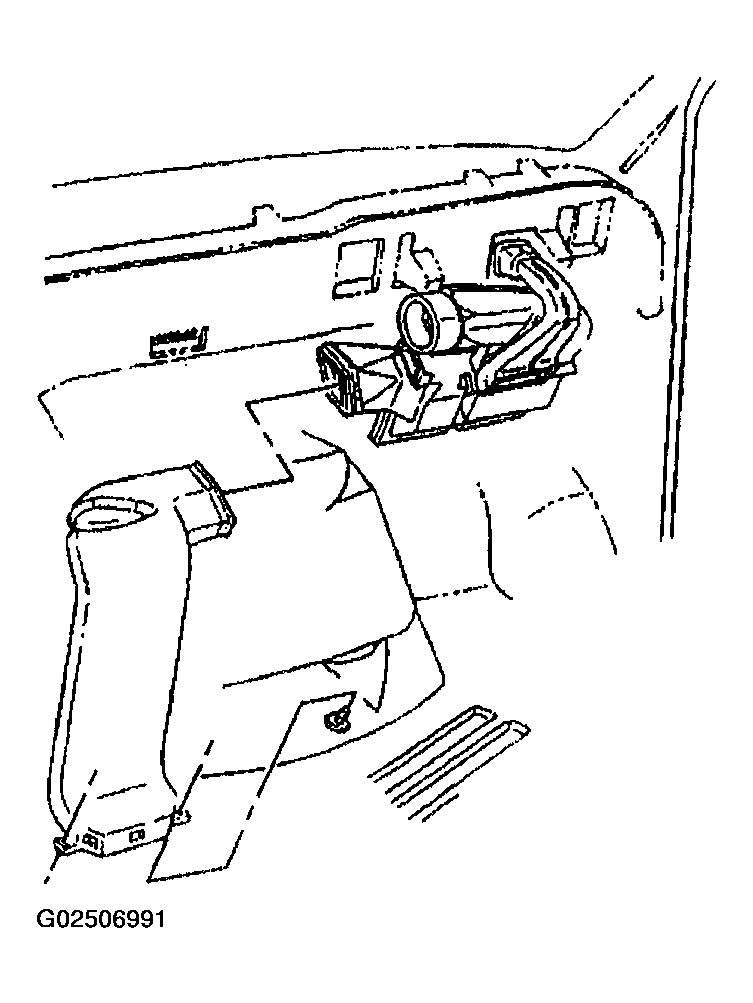

Fig 4: Installing Floor Outlet Duct
Courtesy of GENERAL MOTORS CORP.
Insert the instrument panel extension. Refer to MANUAL A/C-HEATER SYSTEMS .
