Installation Procedure

Install the step panel cover.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
Install the step panel cover screws.
Tighten

Tighten the step panel cover screws to 2 N.m (18 in. lb.).

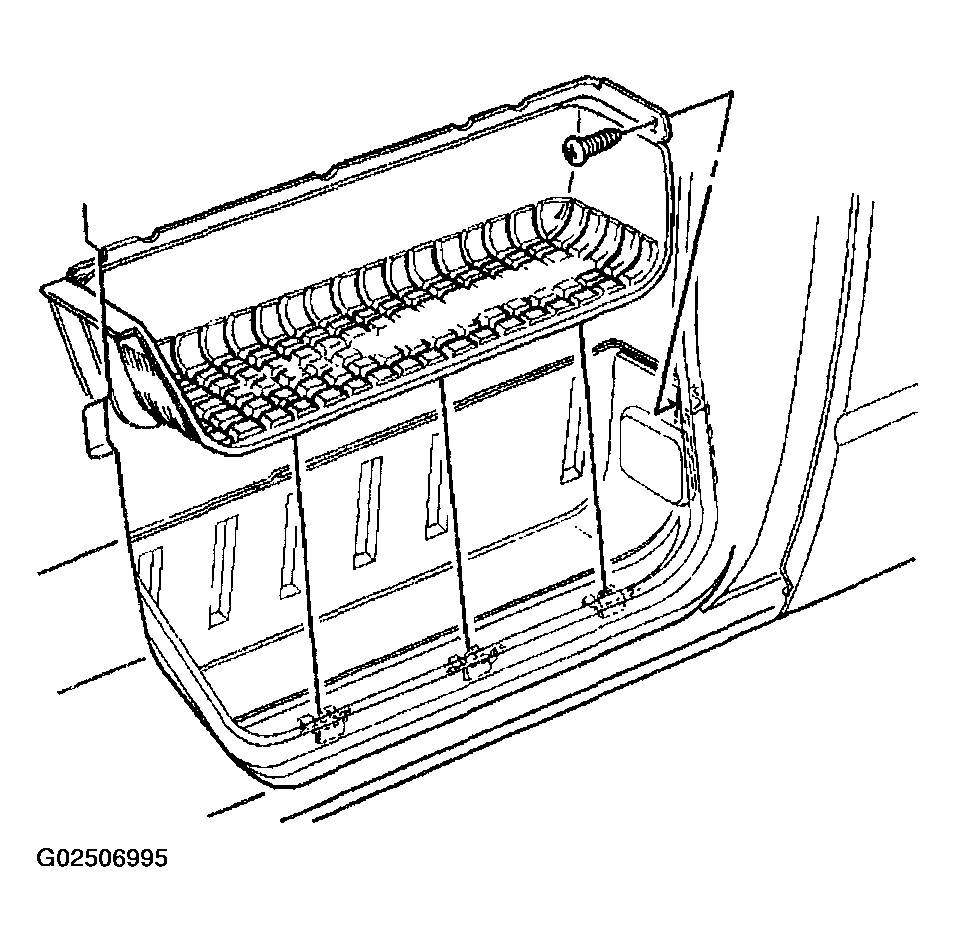

Fig 1: Installing Step Panel Cover & Screws
Courtesy of GENERAL MOTORS CORP.
