Installation Procedure

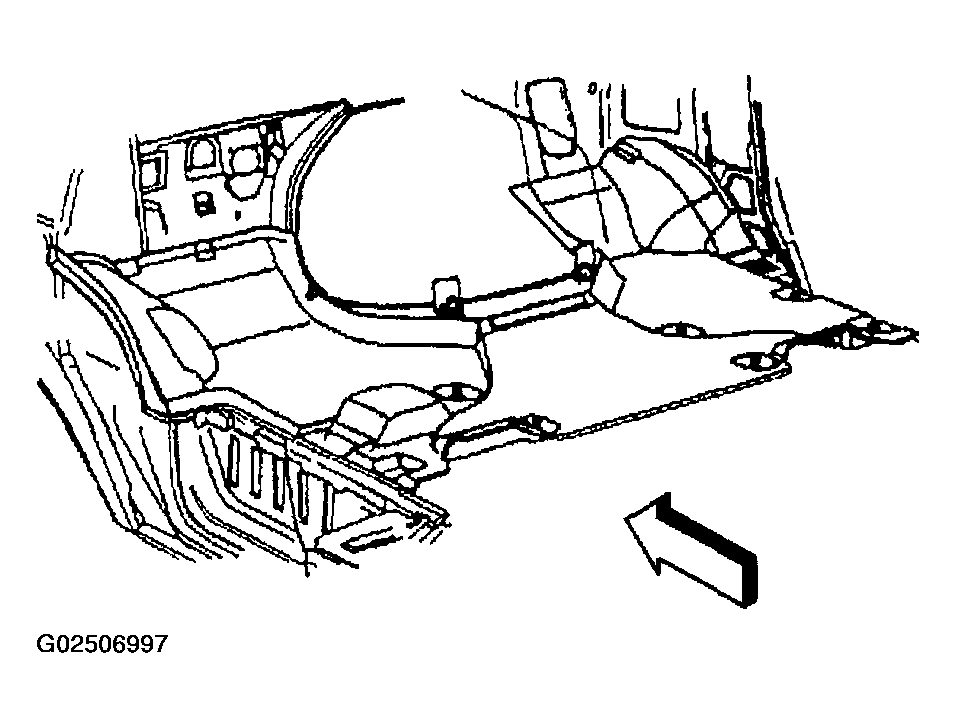

- Install the carpet/mat to the vehicle.
- Install the center floor air duct.NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
- Install the screws to the center floor air duct.
Tighten
Tighten the screws to the center floor air duct to 2 N.m (18 in. lb.).
- Install the front side door lock pillar garnish molding. Refer to Garnish Molding Replacement - LF Lock Pillar .
- Install the trim plates to the front door openings. Refer to Carpet Retainer Replacement .
- Install the cowl side panel trim. Refer to Trim Panel Replacement - Cowl Side .
- Install the engine cover. Refer to Engine Cover Replacement .
- Install the seats and the risers. Refer to SEAT REPLACEMENT - BUCKET .
