Component Locations

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT LOCATIONS

Component	Location
Auxiliary Heater Blower Motor	In Auxiliary Heater Housing, Left Center Floor
Auxiliary Heater Fan Switch	Center Of Instrument Panel, Above Radio
Auxiliary Heater Housing	Left Center Floor
Front Blower Motor	Under Insulator, In Engine Compartment, Right Side
Front HVAC Control Assembly	Center Of Instrument Panel, Above Radio
Hot Water Bypass Valve	Under Evaporator Housing

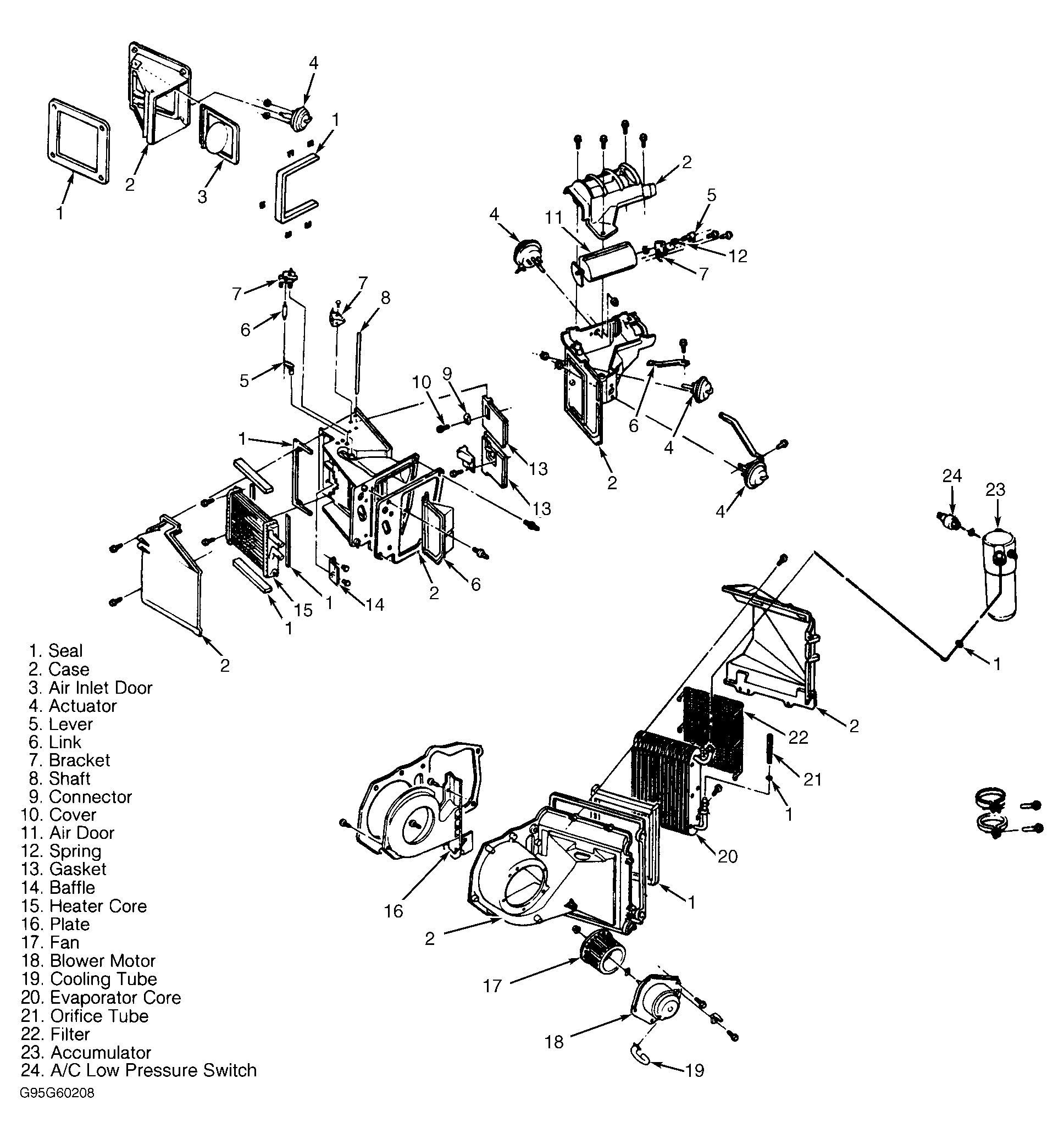

Fig 1: Exploded View Of HVAC Assembly

Courtesy of GENERAL MOTORS CORP.

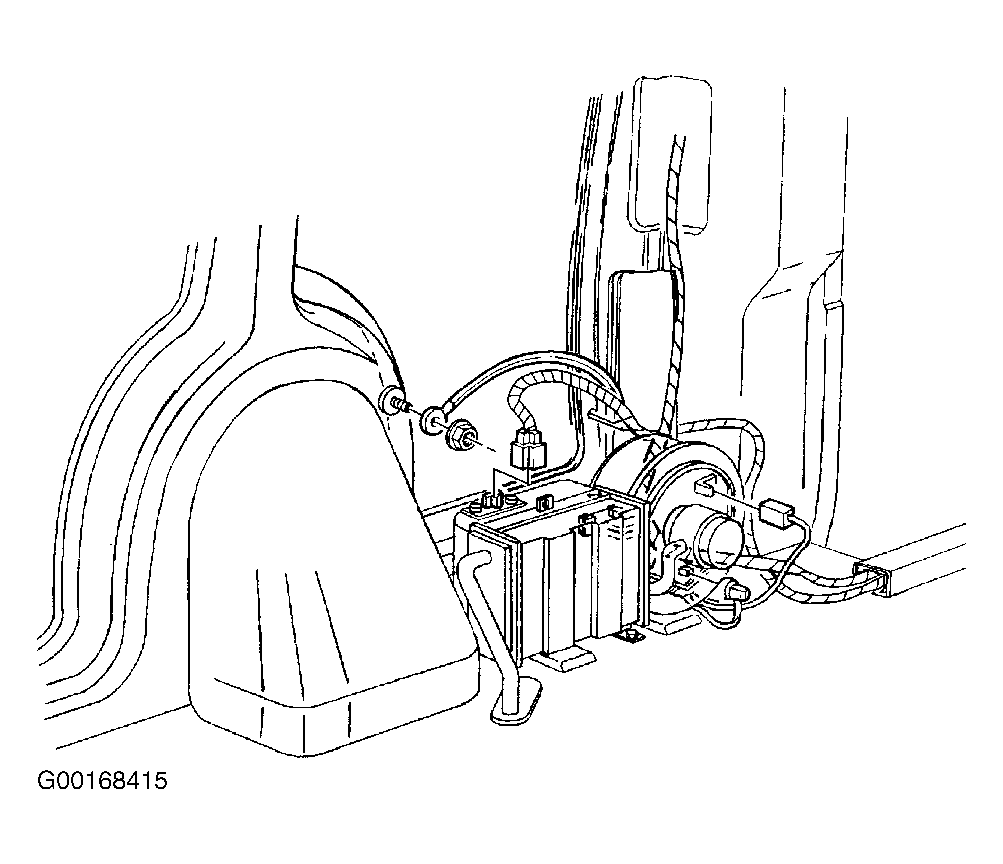

Fig 2: Exploded View Of Auxiliary Heater Assembly

Courtesy of GENERAL MOTORS CORP.

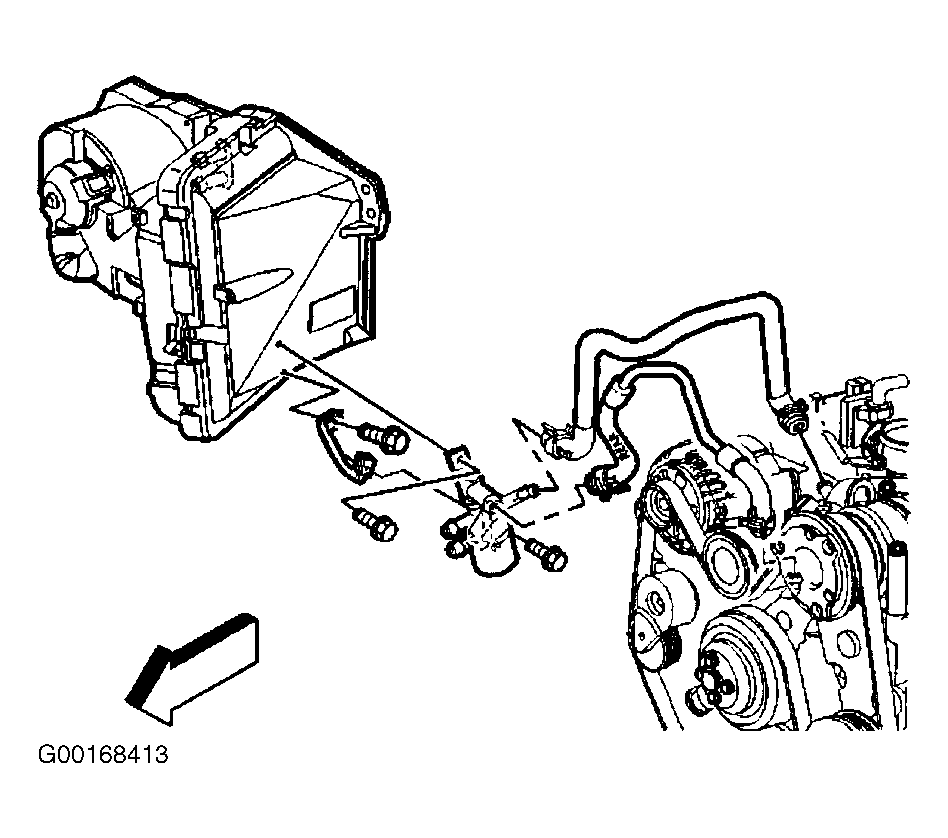

Fig 3: Identifying Coolant Bypass Valve (W/O Auxiliary Heater)

Courtesy of GENERAL MOTORS CORP.

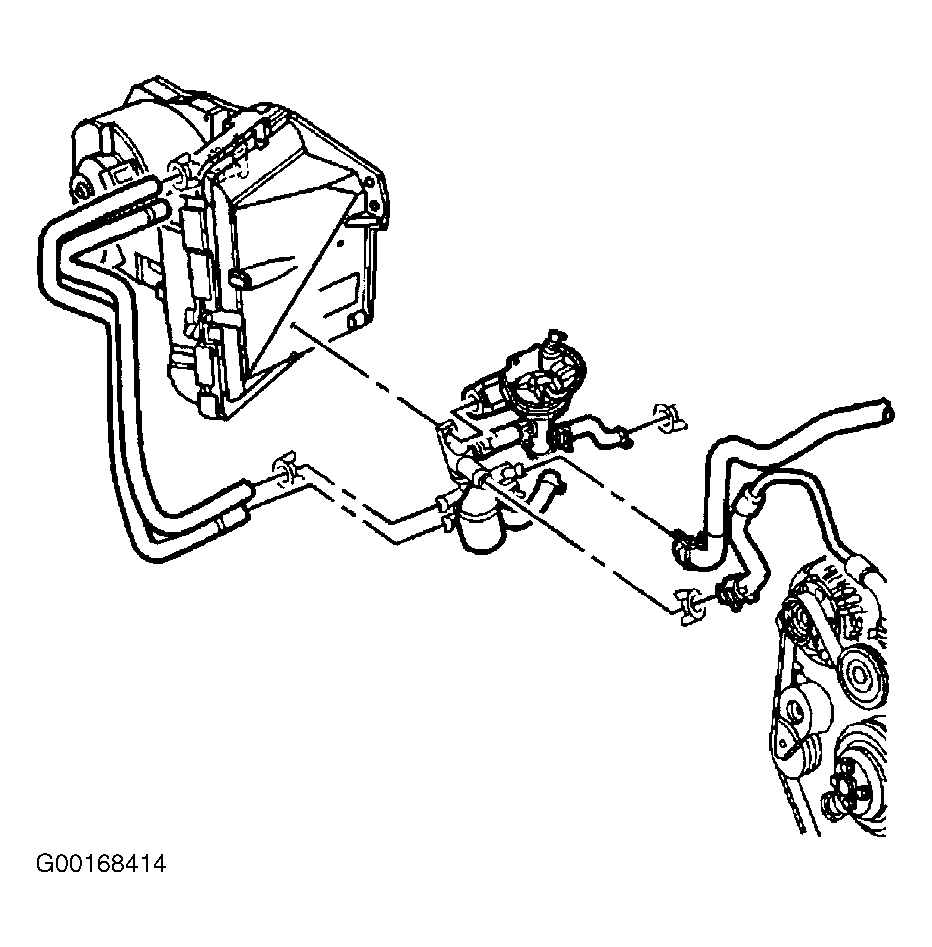

Fig 4: Identifying Coolant Bypass Valve (With Auxiliary Heater)

Courtesy of GENERAL MOTORS CORP.
