Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

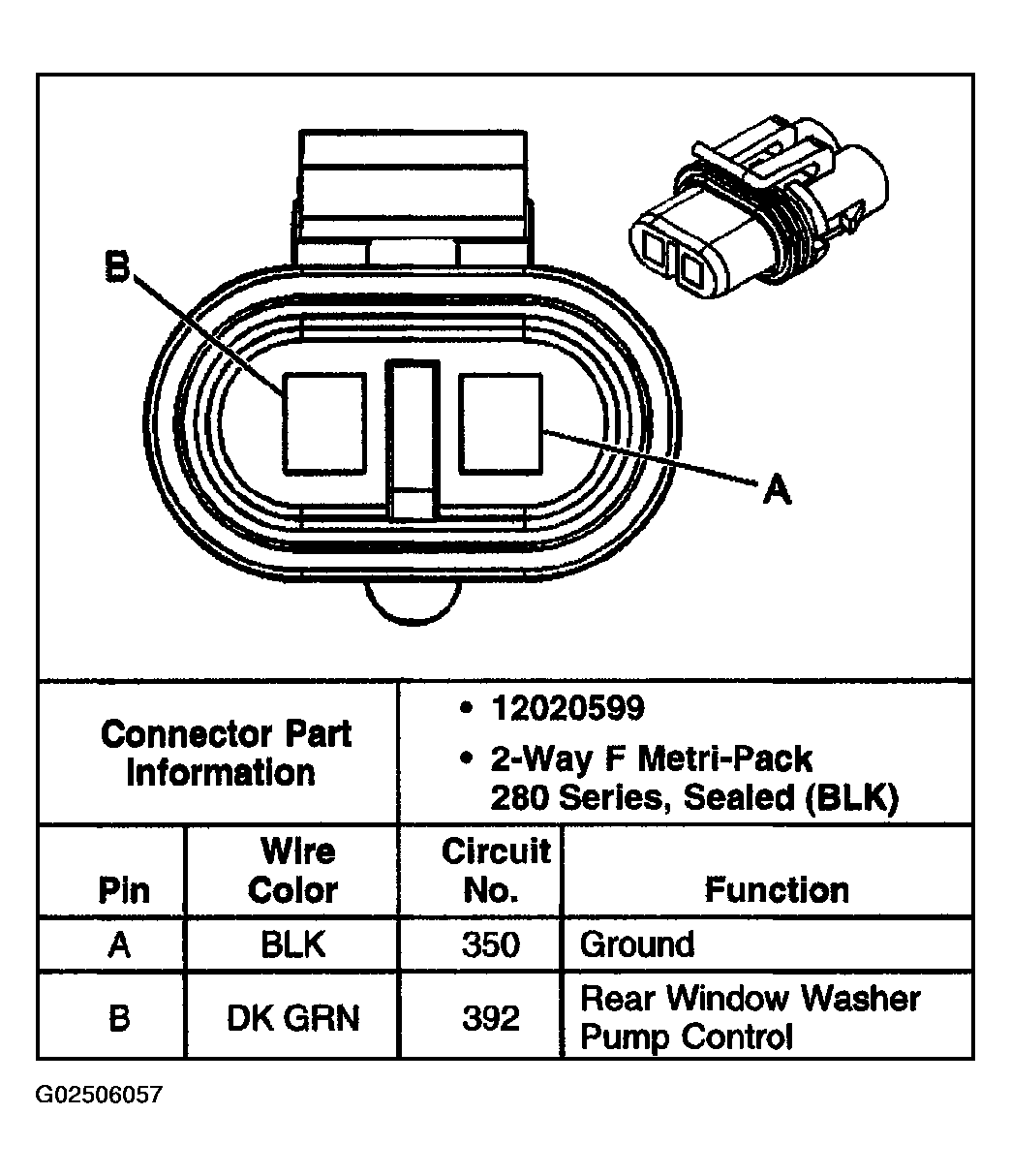

Fig 1: Identifying Rear Window Washer Fluid Pump Connector Terminals

G02506057

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Rear Window Wiper/Washer Module Connector Terminals

G02506058

Courtesy of GENERAL MOTORS CORP.

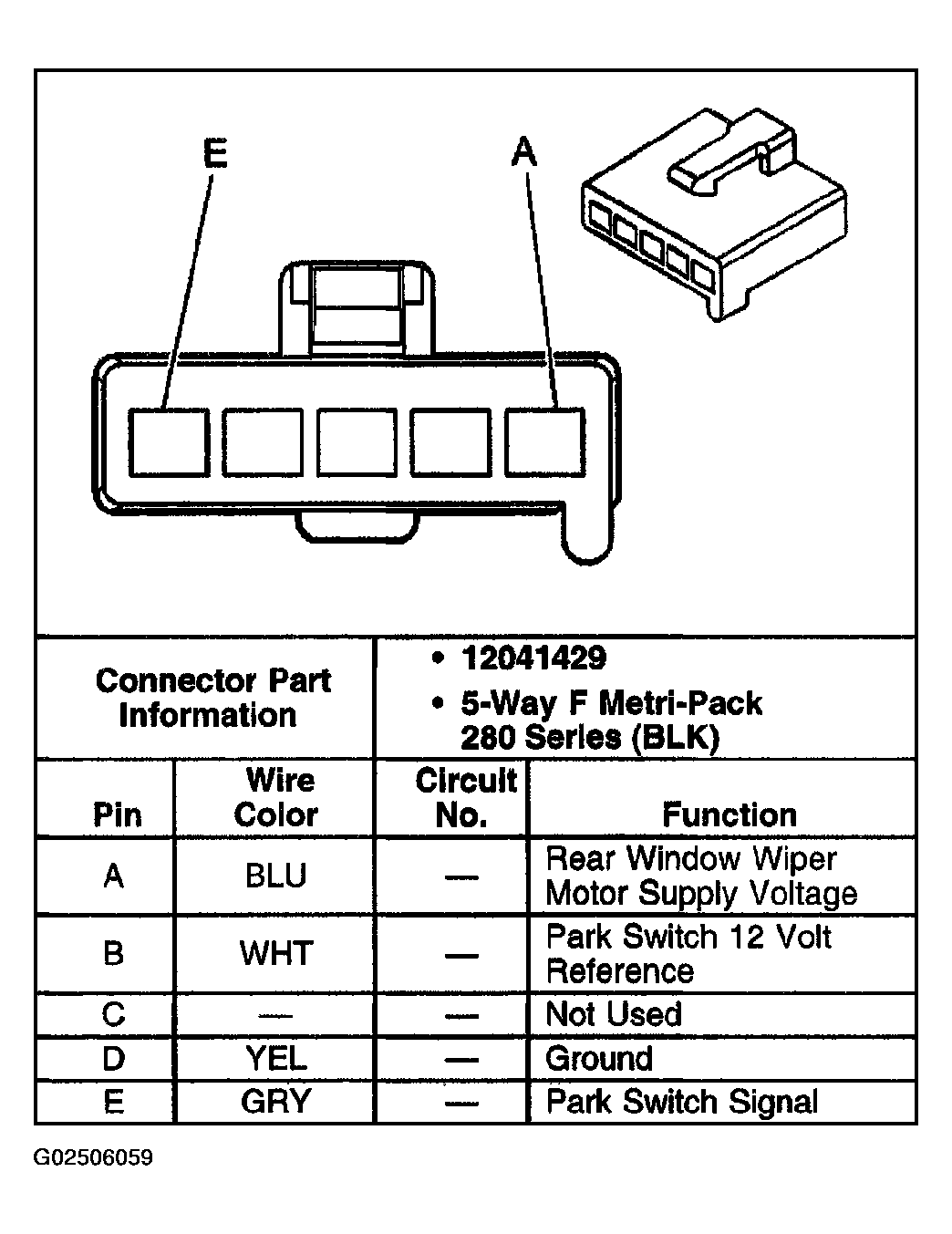

Fig 3: Identifying Rear Window Wiper Motor Connector Terminals

G02506059

Courtesy of GENERAL MOTORS CORP.

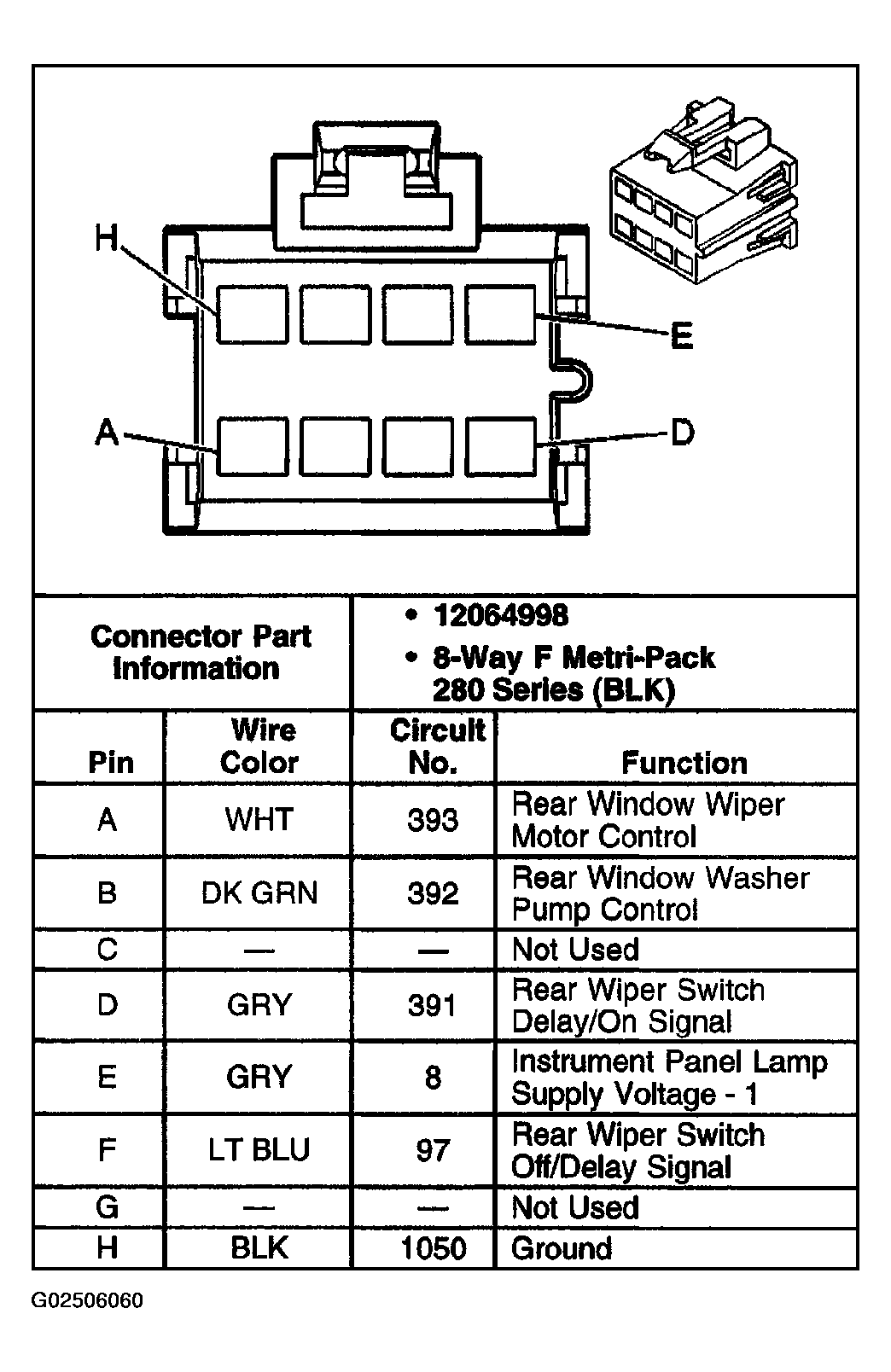

Fig 4: Identifying Rear Window Wiper Washer Switch Connector Terminals

G02506060

Courtesy of GENERAL MOTORS CORP.

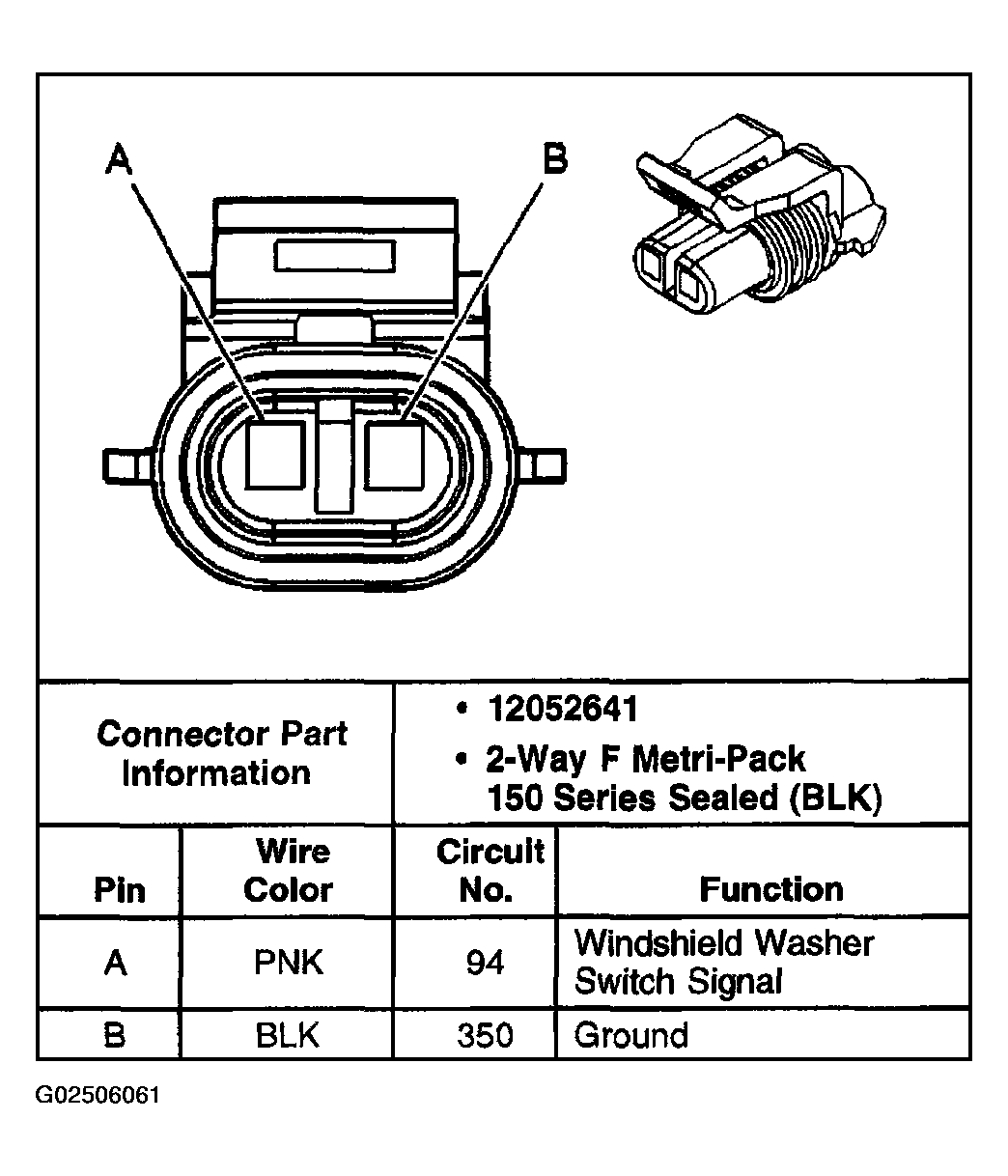

Fig 5: Identifying Windshield Washer Fluid Pump Connector Terminals

G02506061

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Windshield Wiper Motor and Module Connector Terminals

G02506062

Courtesy of GENERAL MOTORS CORP.
