Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

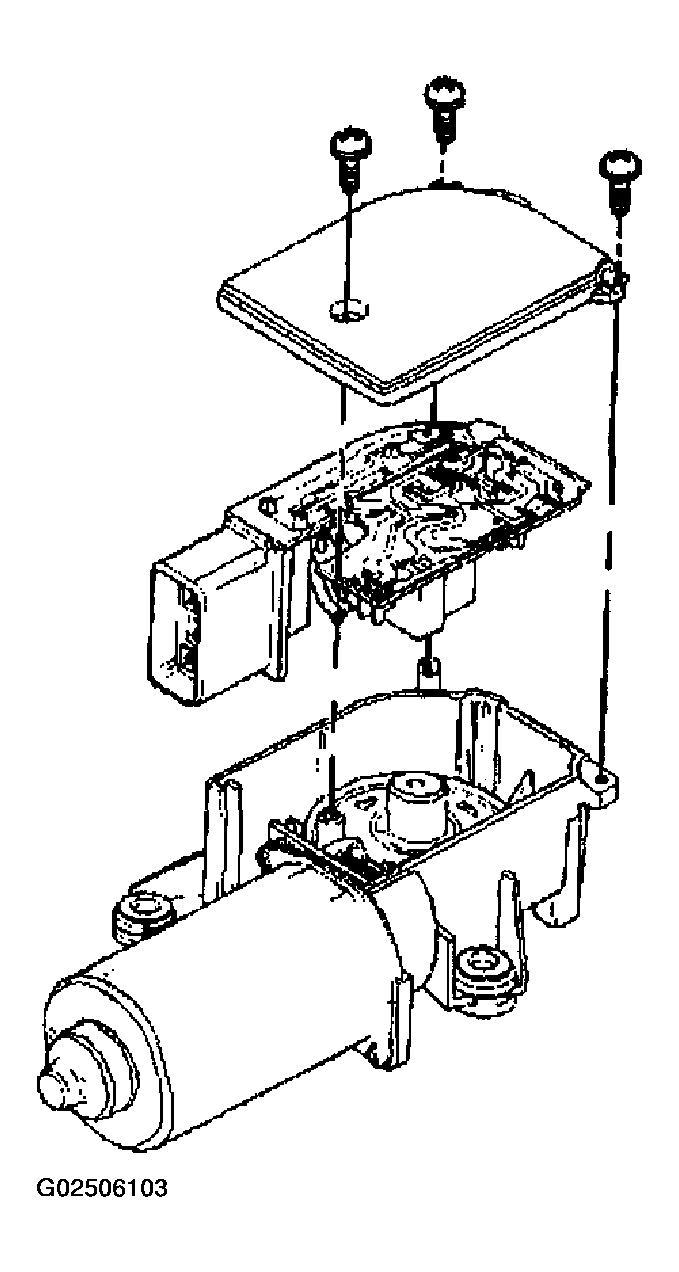

- Remove the wiper motor electrical connector.
- Remove the cover screws.
- Remove the cover.
- Remove the circuit board and terminal module by lifting up on the terminal.
Courtesy of GENERAL MOTORS CORP.
