Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

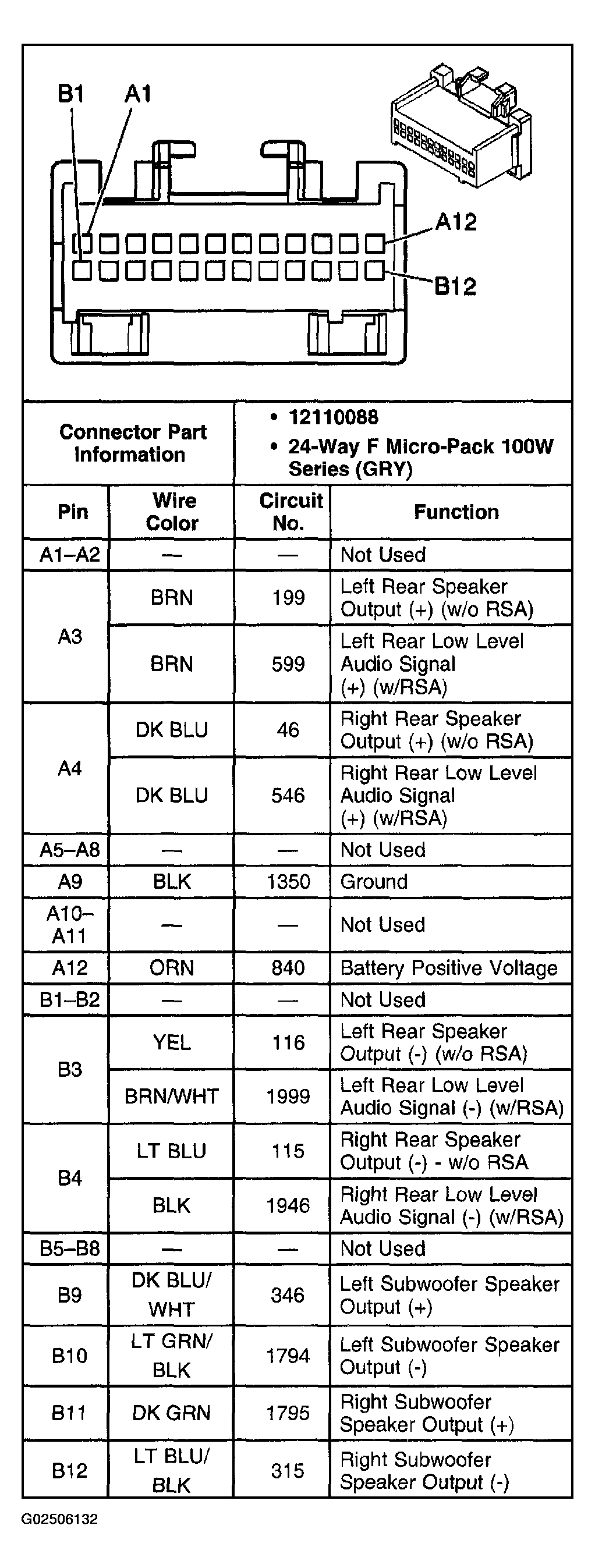

Fig 1: Audio Amplifier Connector Terminals

G02506132

Courtesy of GENERAL MOTORS CORP.

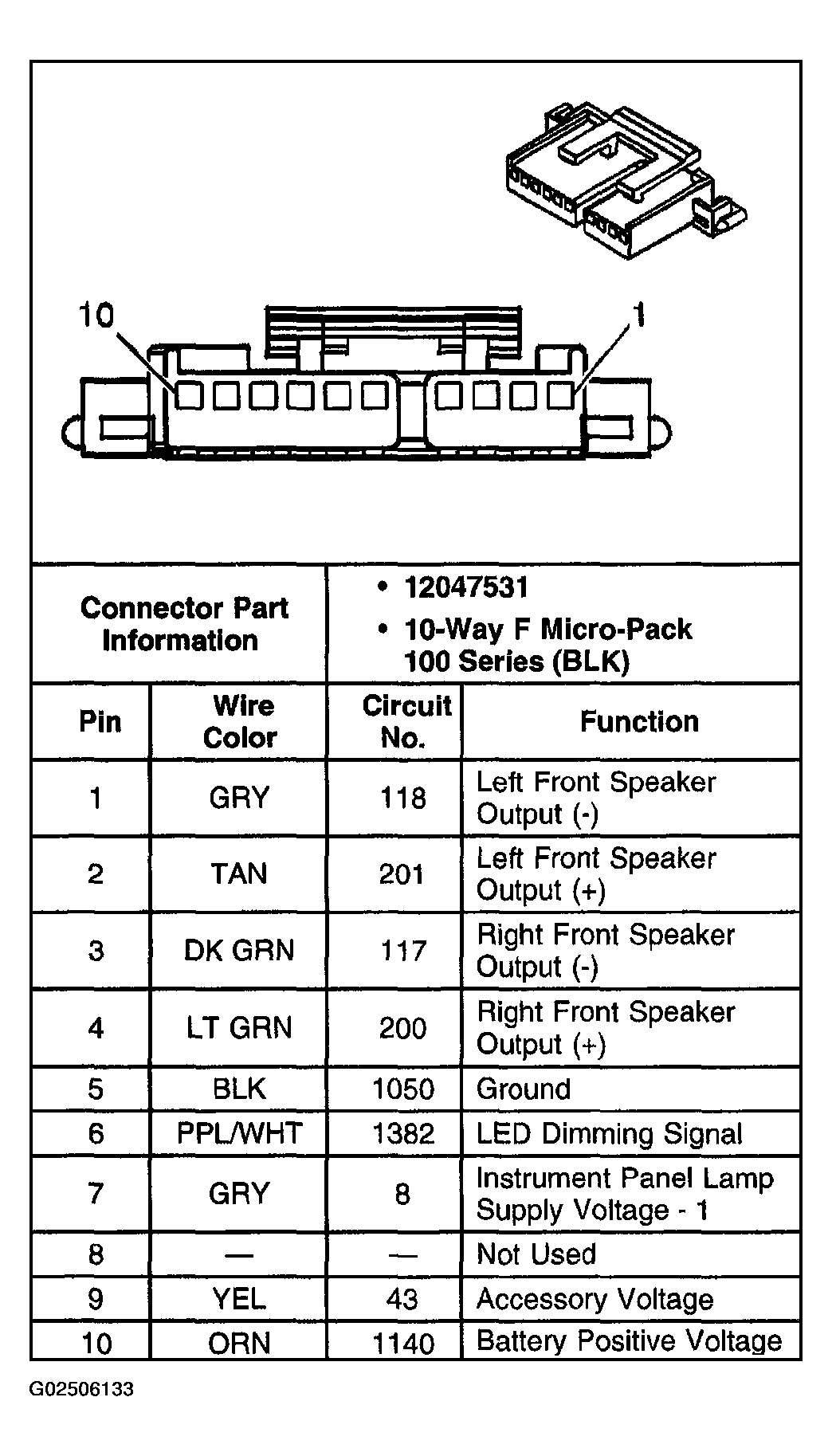

Fig 2: Radio C1 Connector Terminals

G02506133

Courtesy of GENERAL MOTORS CORP.

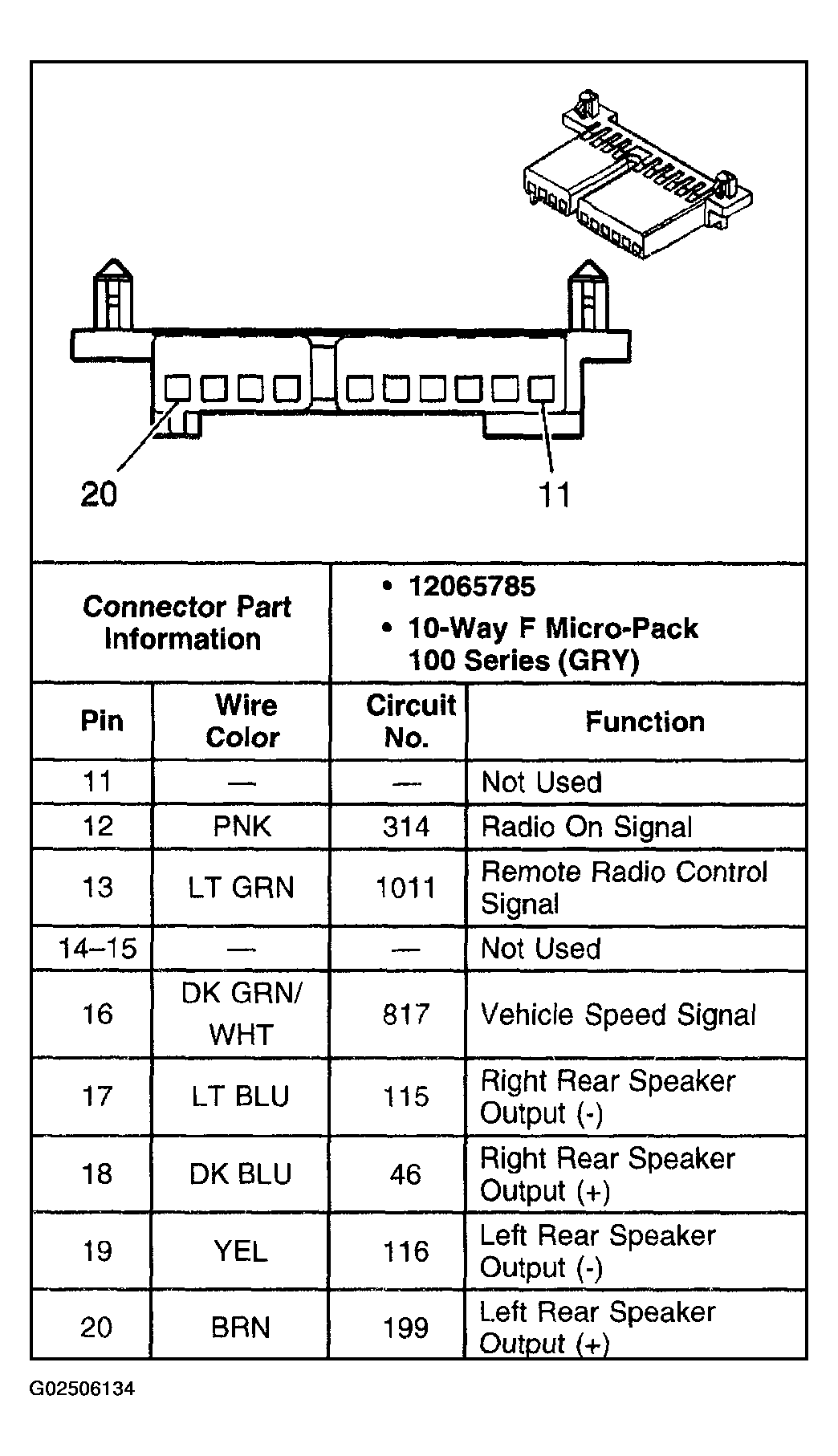

Fig 3: Radio C2 Connector Terminals

G02506134

Courtesy of GENERAL MOTORS CORP.

Fig 4: Radio C3 Connector Terminals

G02506135

Courtesy of GENERAL MOTORS CORP.

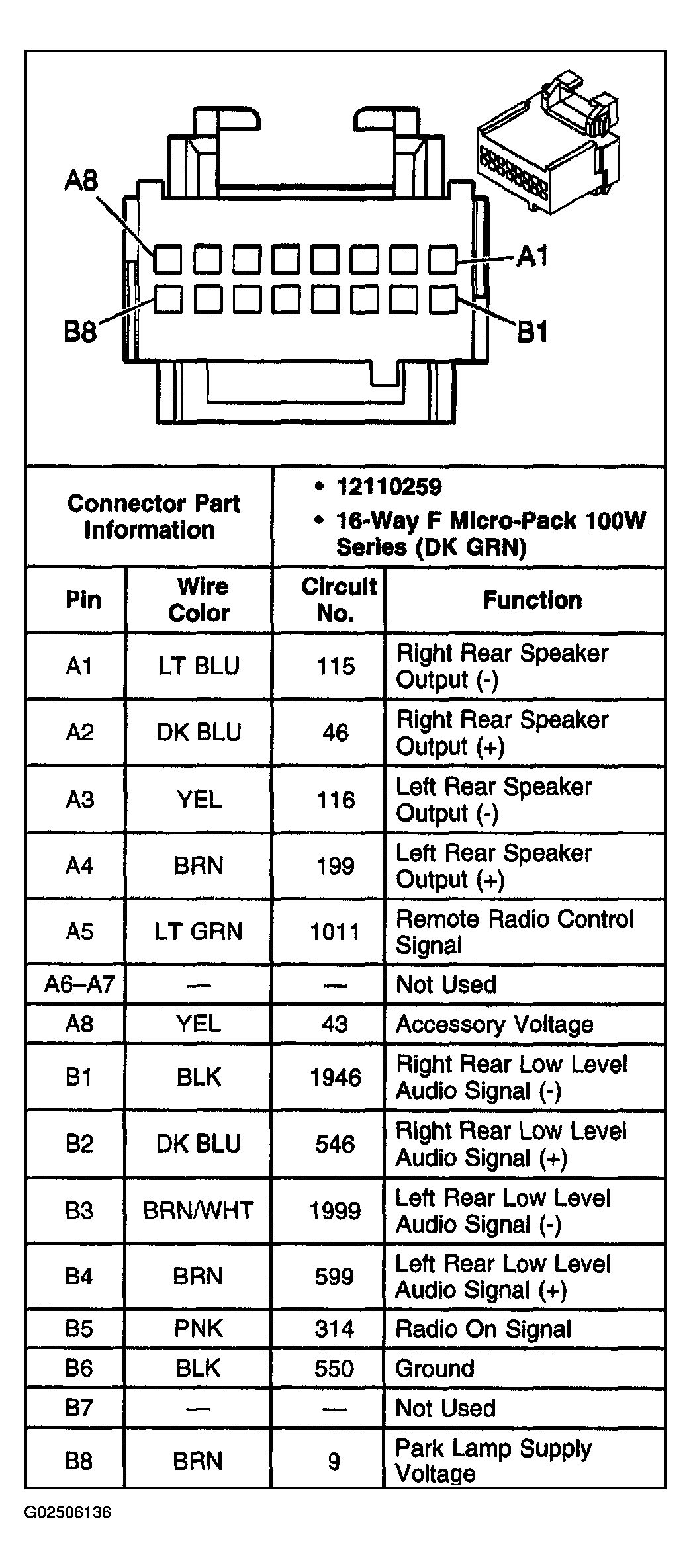

Fig 5: Rear Seat Audio (RSA) Controller Connector Terminals

G02506136

Courtesy of GENERAL MOTORS CORP.

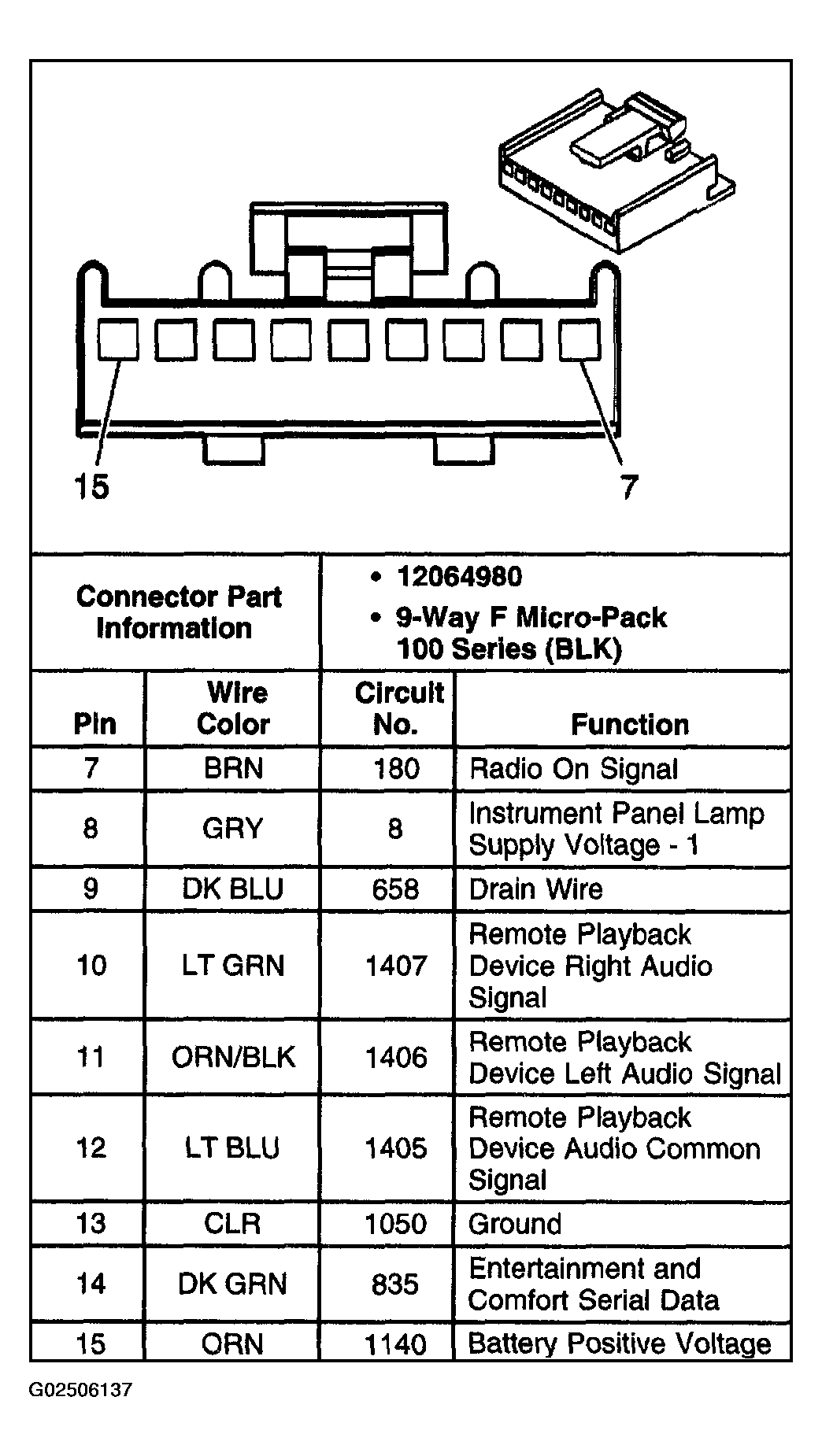

Fig 6: Remote Playback Device Connector Terminals

G02506137

Courtesy of GENERAL MOTORS CORP.

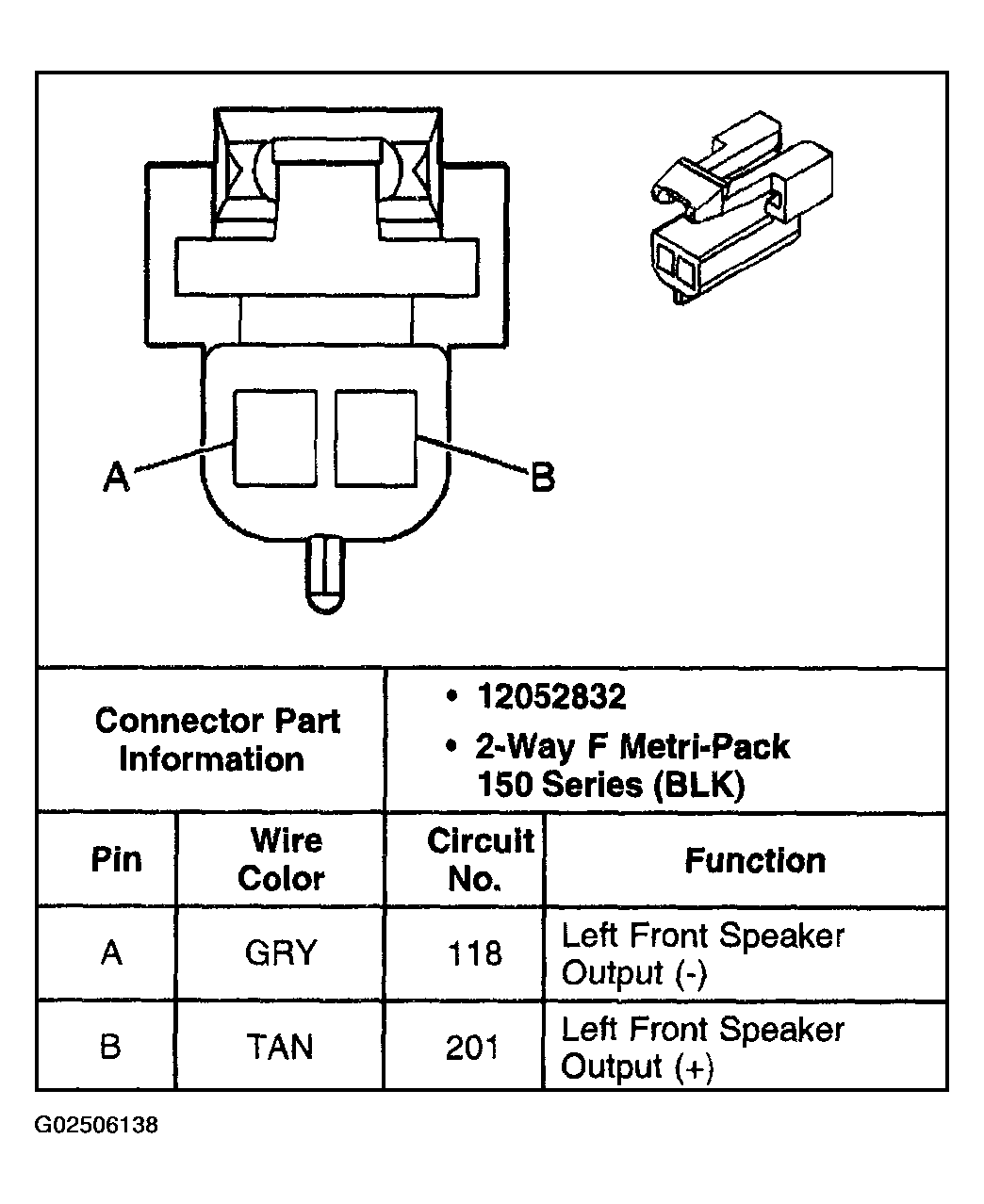

Fig 7: Speaker - LF Door Connector Terminals

G02506138

Courtesy of GENERAL MOTORS CORP.

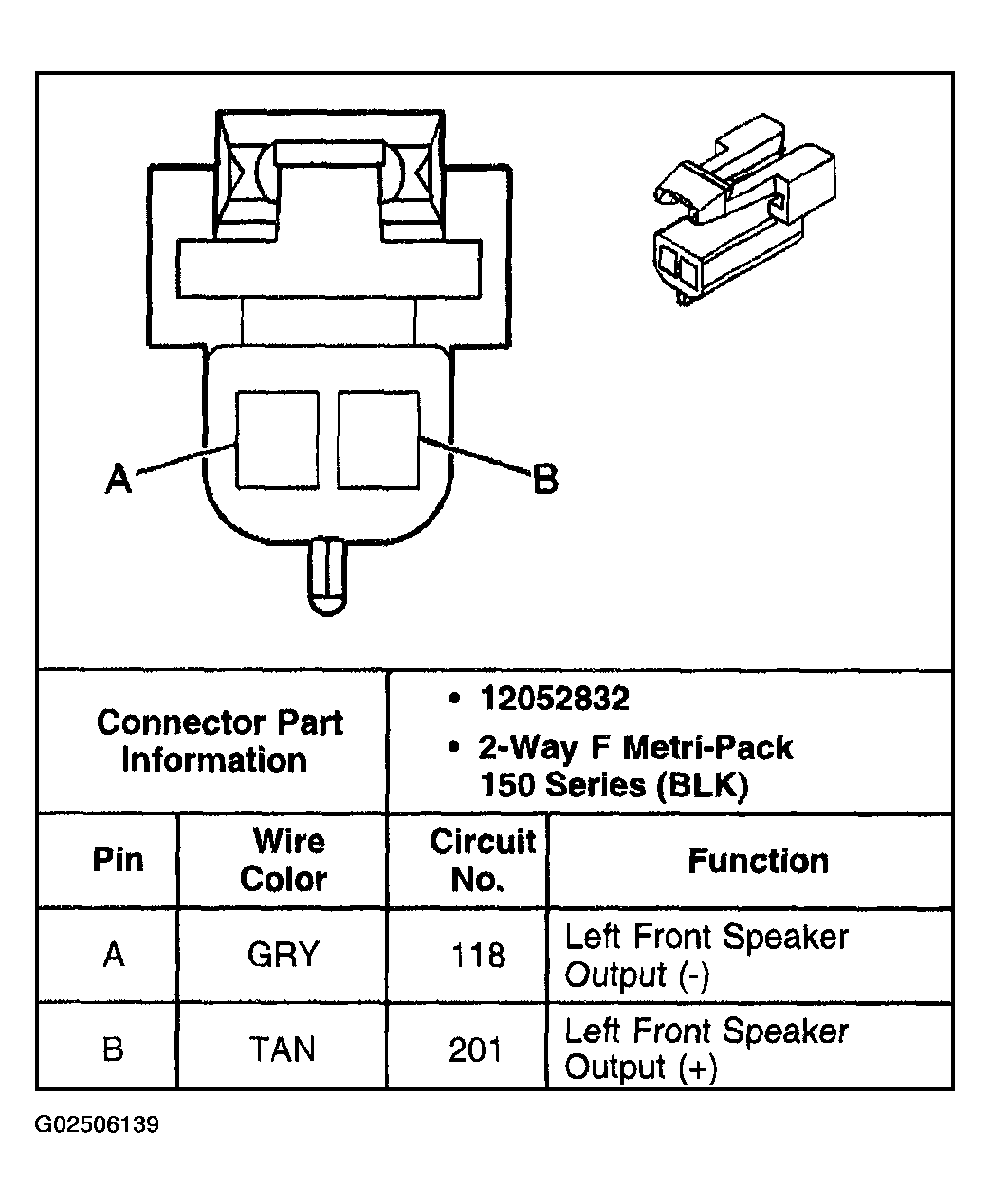

Fig 8: Speaker - LF Door Tweeter Connector Terminals

G02506139

Courtesy of GENERAL MOTORS CORP.

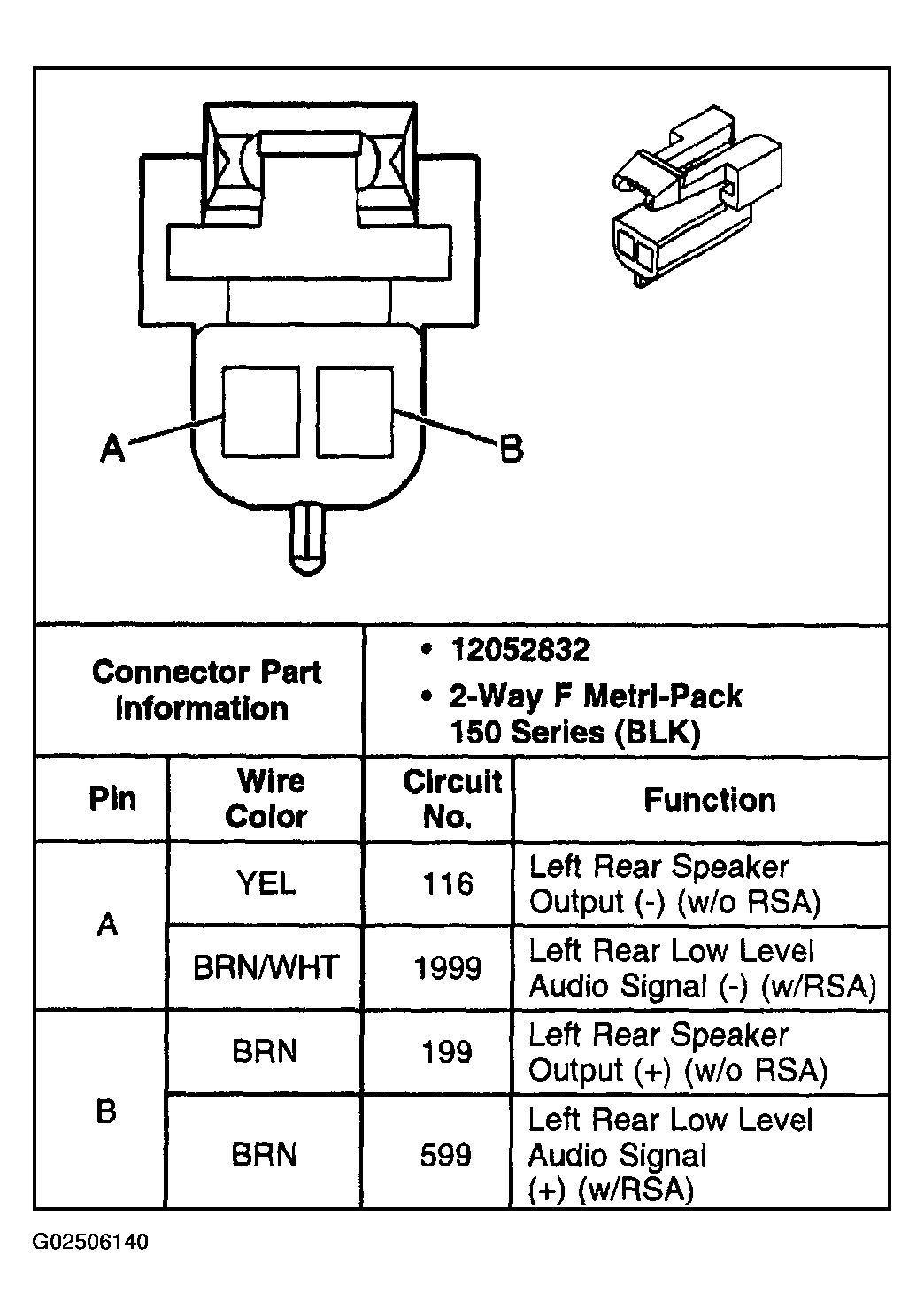

Fig 9: Speaker - LR Connector Terminals

G02506140

Courtesy of GENERAL MOTORS CORP.

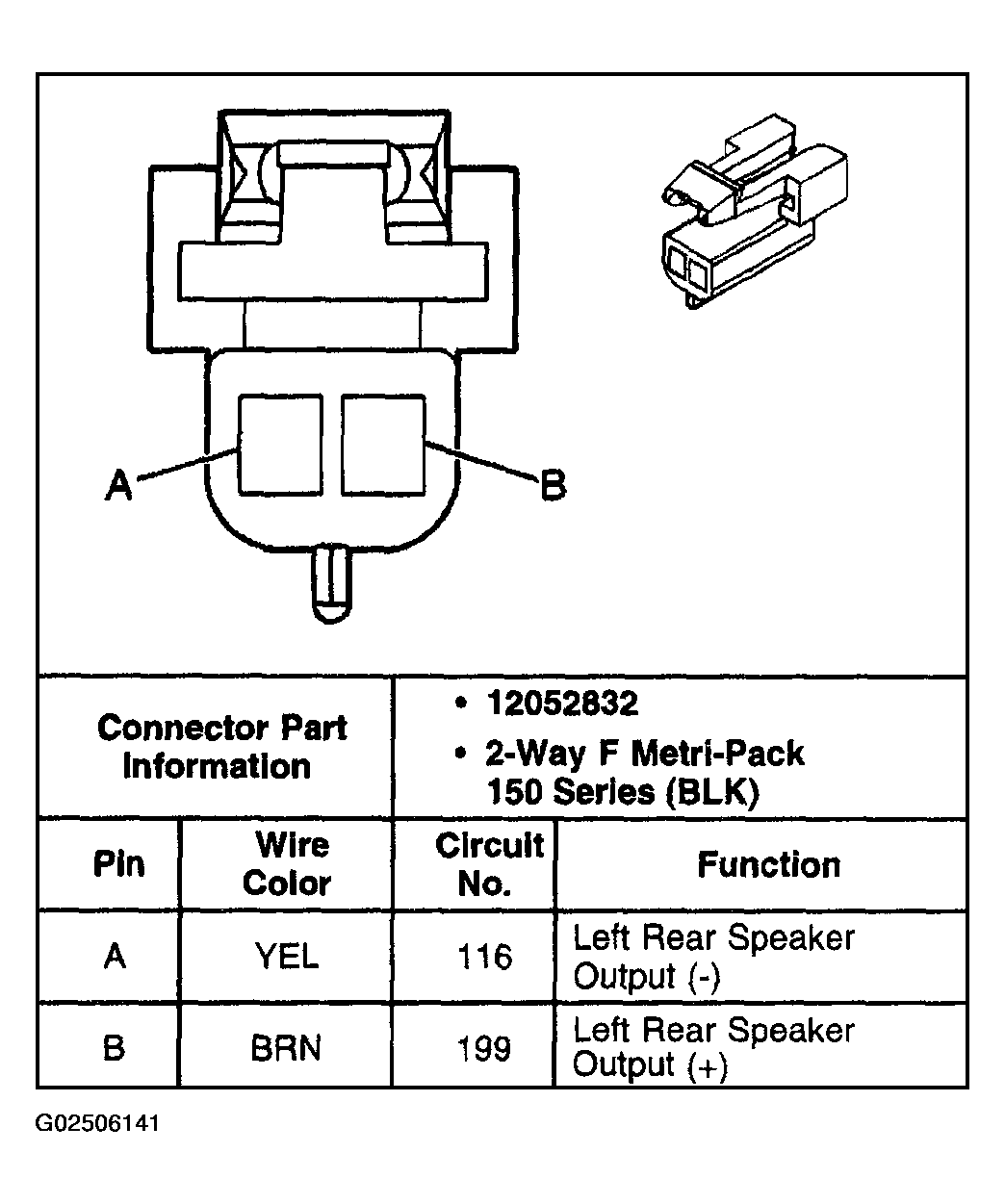

Fig 10: Speaker - LR Door Connector Terminals

G02506141

Courtesy of GENERAL MOTORS CORP.

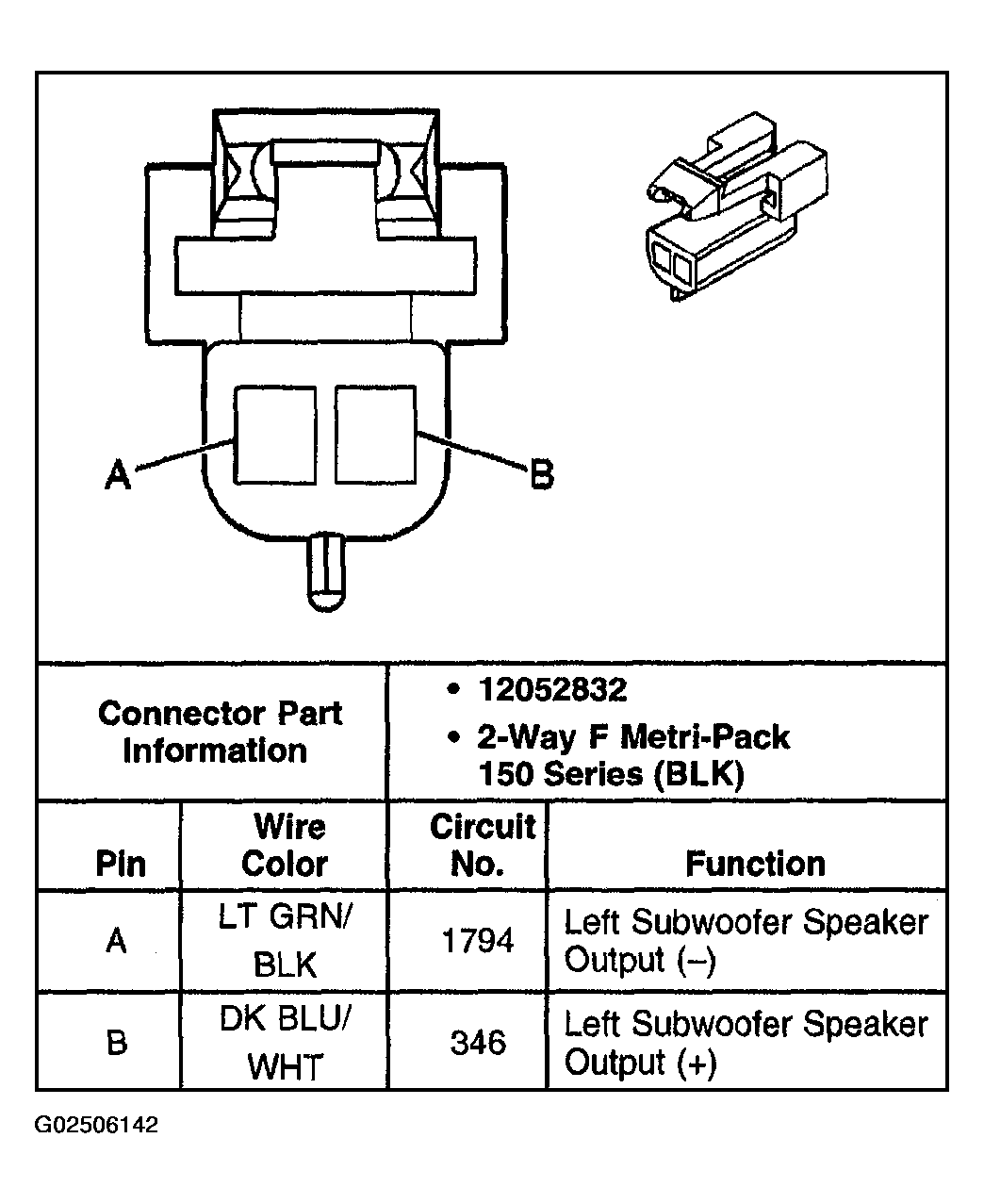

Fig 11: Speaker - LR Subwoofer Connector Terminals

G02506142

Courtesy of GENERAL MOTORS CORP.

Fig 12: Speaker - RF Door Connector Terminals

G02506143

Courtesy of GENERAL MOTORS CORP.

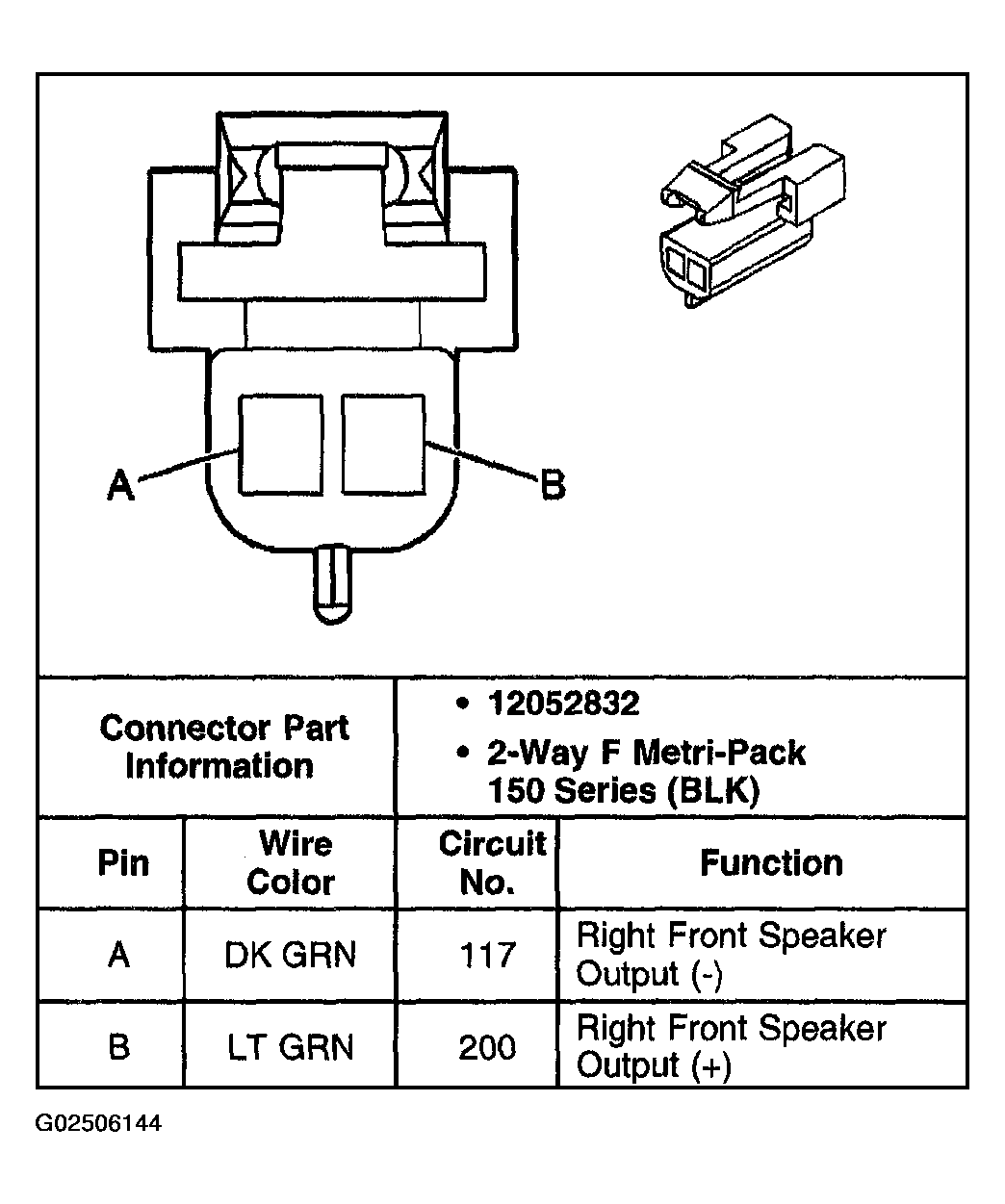

Fig 13: Speaker - RF Door Tweeter Connector Terminals

G02506144

Courtesy of GENERAL MOTORS CORP.

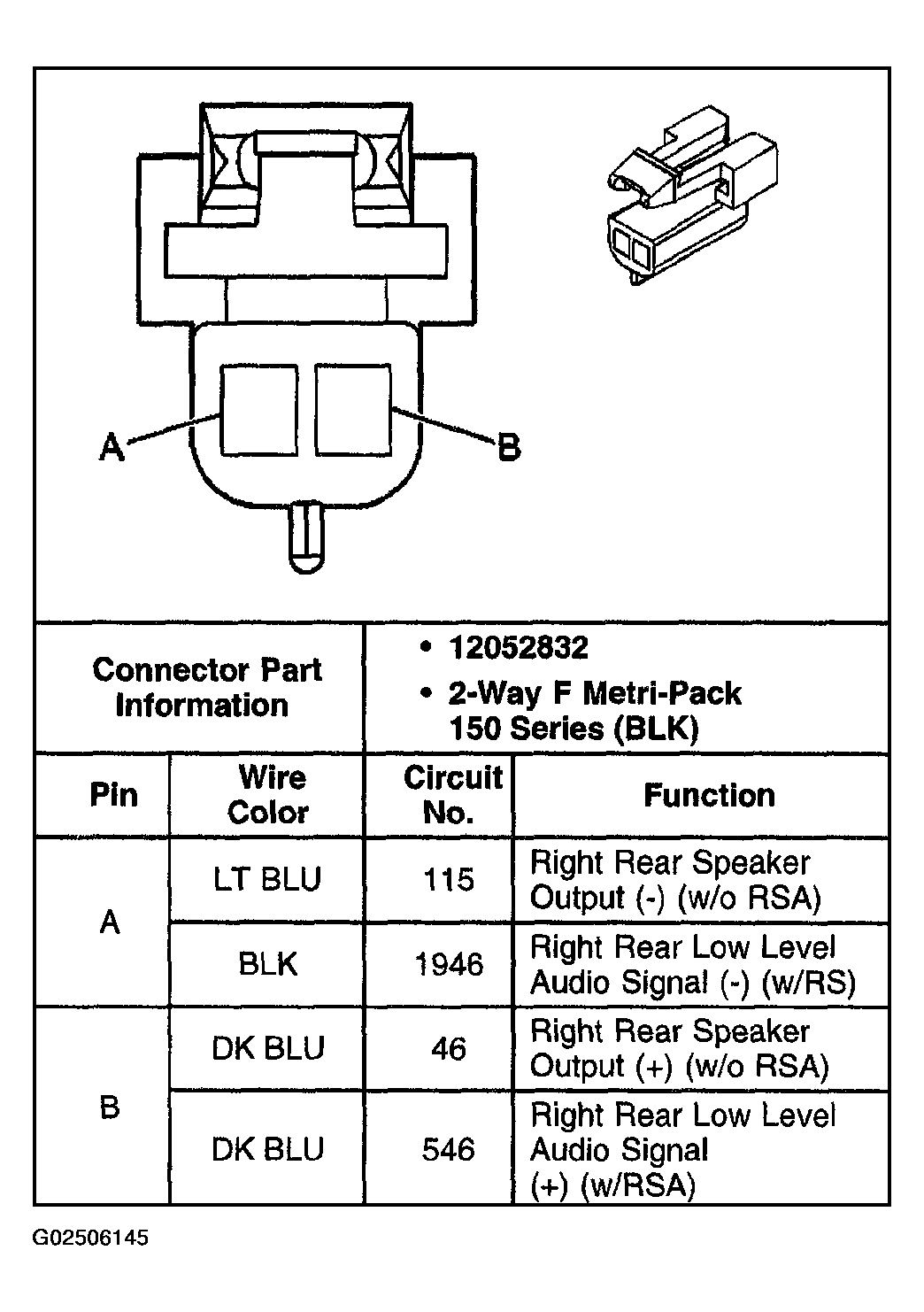

Fig 14: Speaker - RR Connector Terminals

G02506145

Courtesy of GENERAL MOTORS CORP.

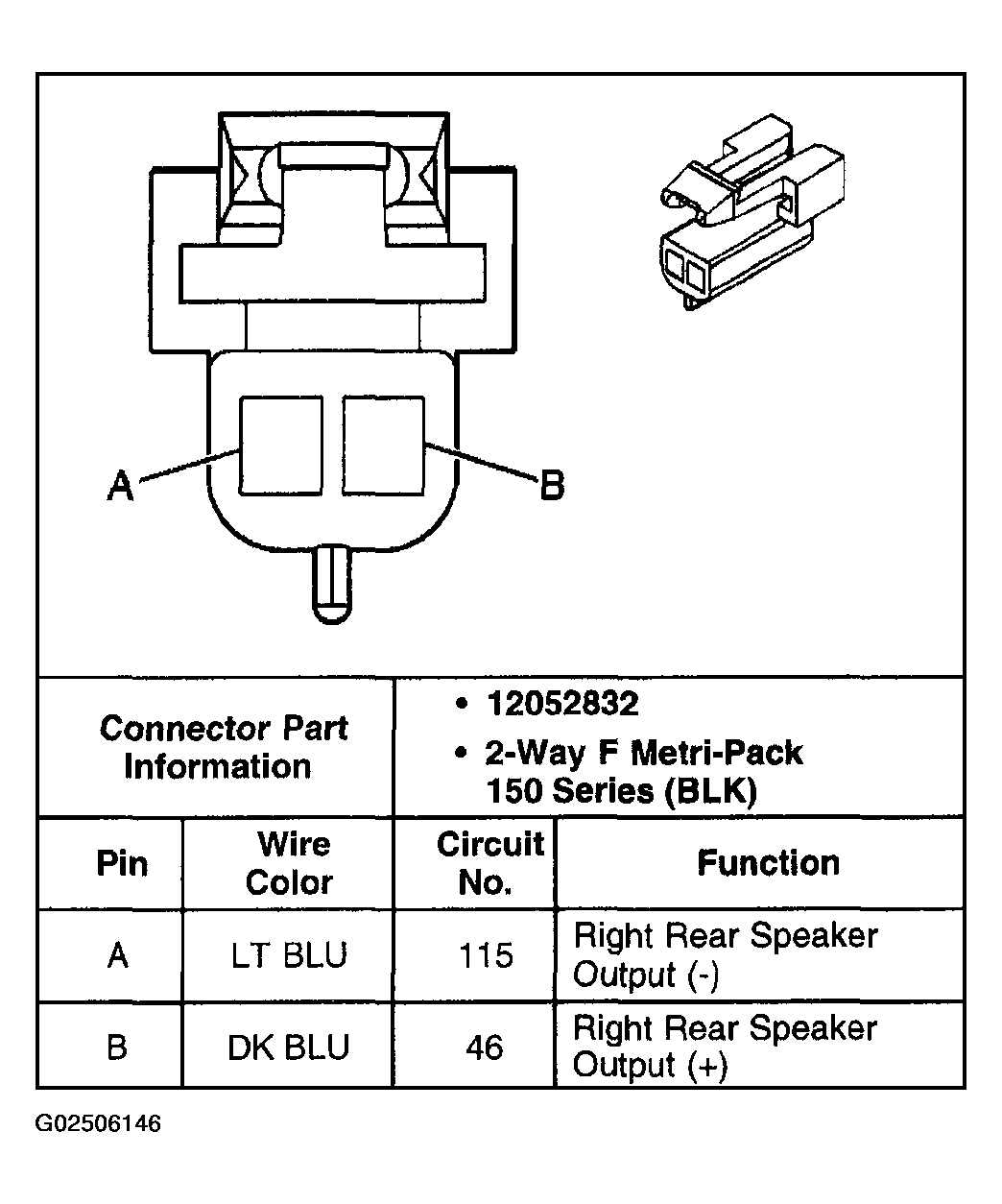

Fig 15: Speaker - RR Door Connector Terminals

G02506146

Courtesy of GENERAL MOTORS CORP.

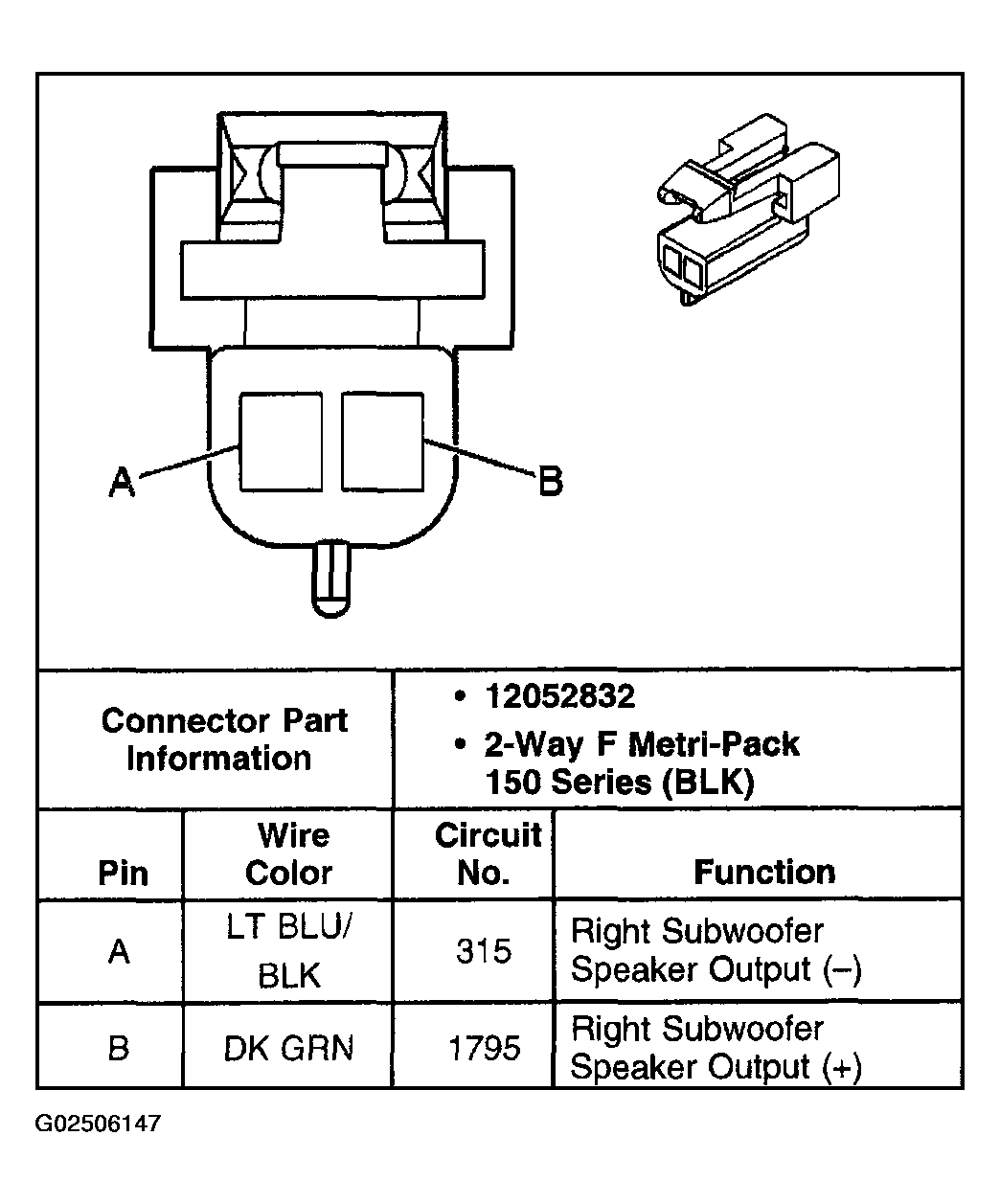

Fig 16: Speaker - RR Subwoofer Connector Terminals

G02506147

Courtesy of GENERAL MOTORS CORP.
