Wiper/Washer System Component Views

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

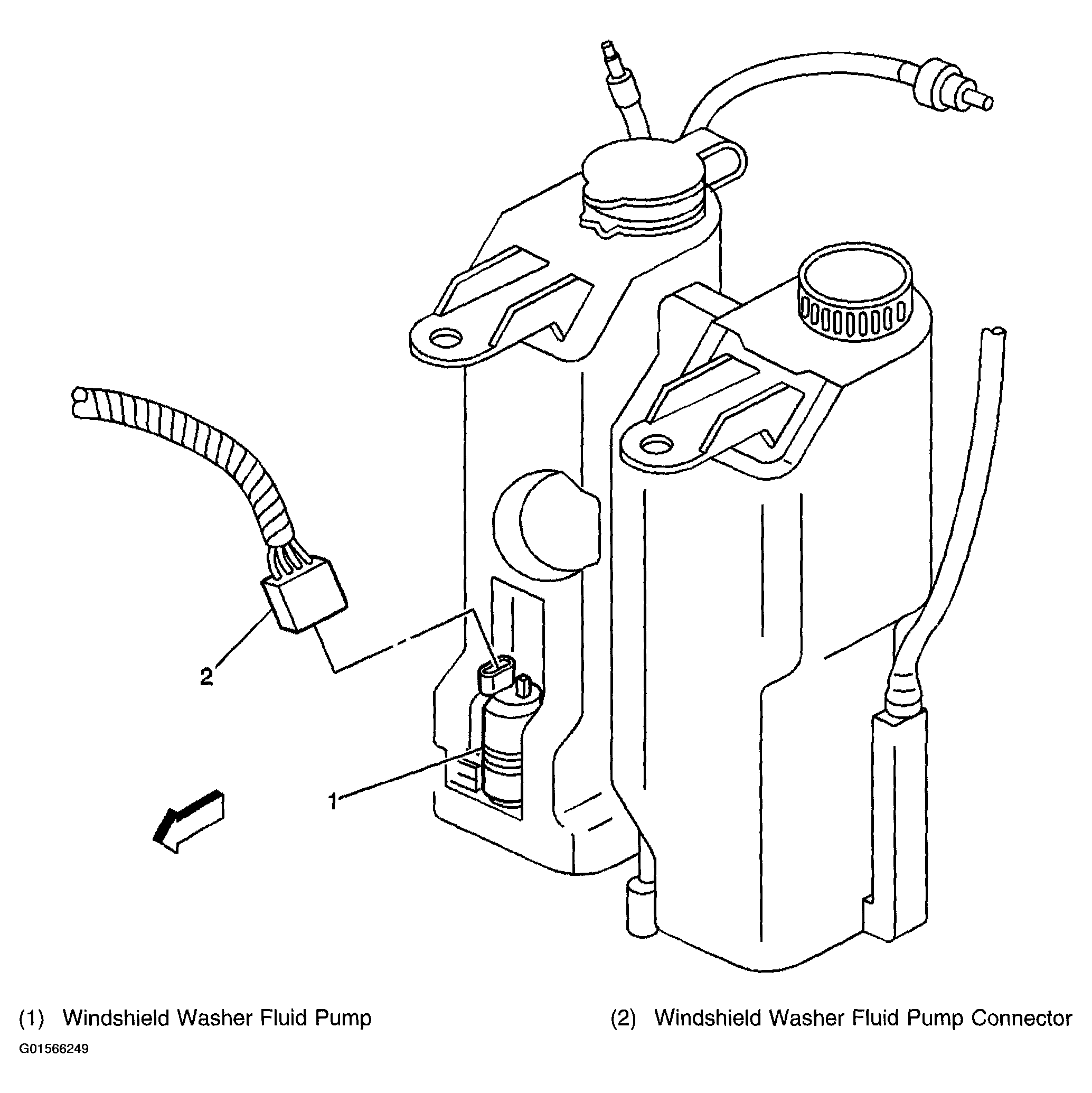

Fig 1: Windshield Coolant Recovery Reservoir View

G01566249

Courtesy of GENERAL MOTORS CORP.

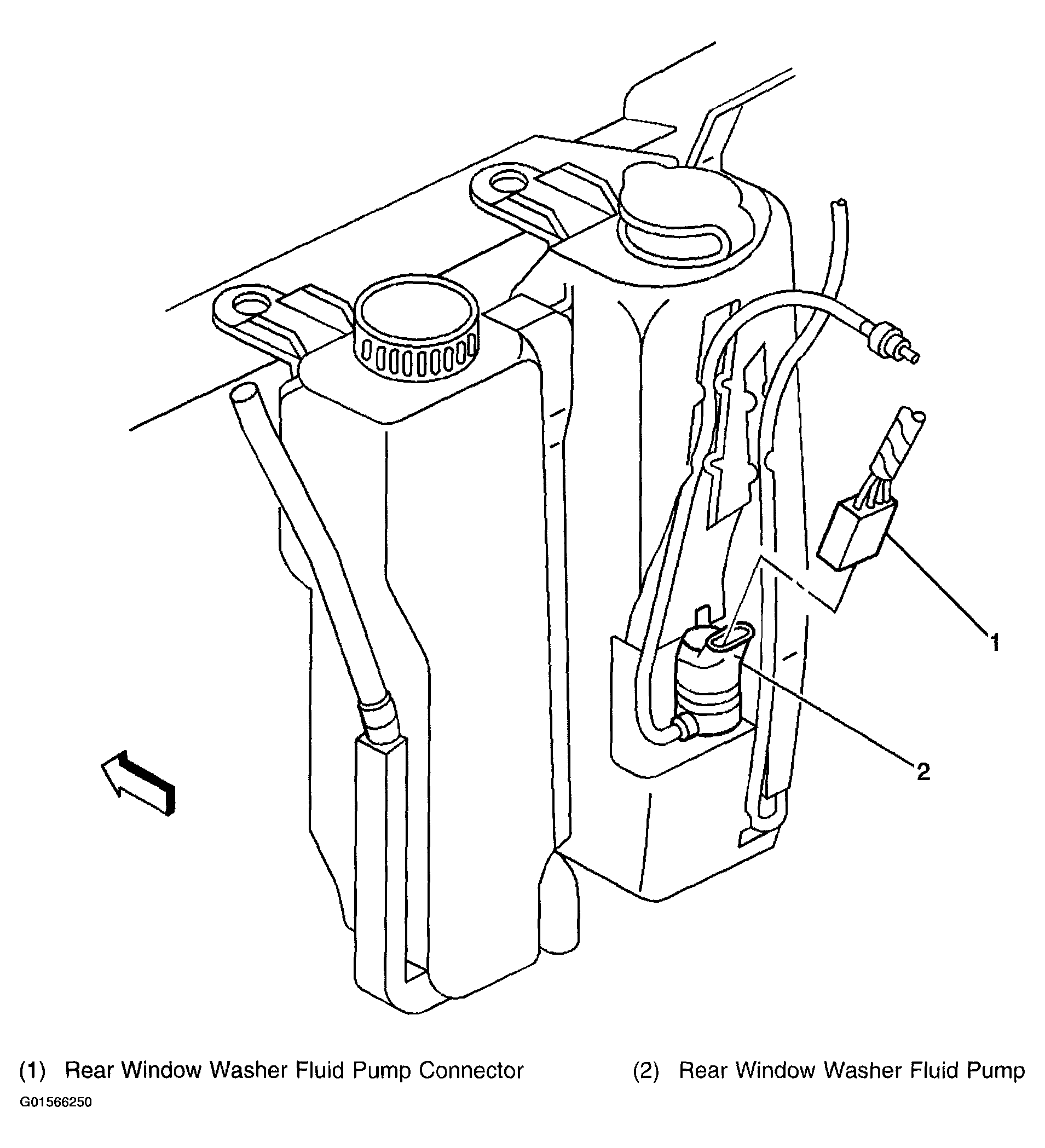

Fig 2: Rear Window Coolant Recovery Reservoir View

G01566250

Courtesy of GENERAL MOTORS CORP.

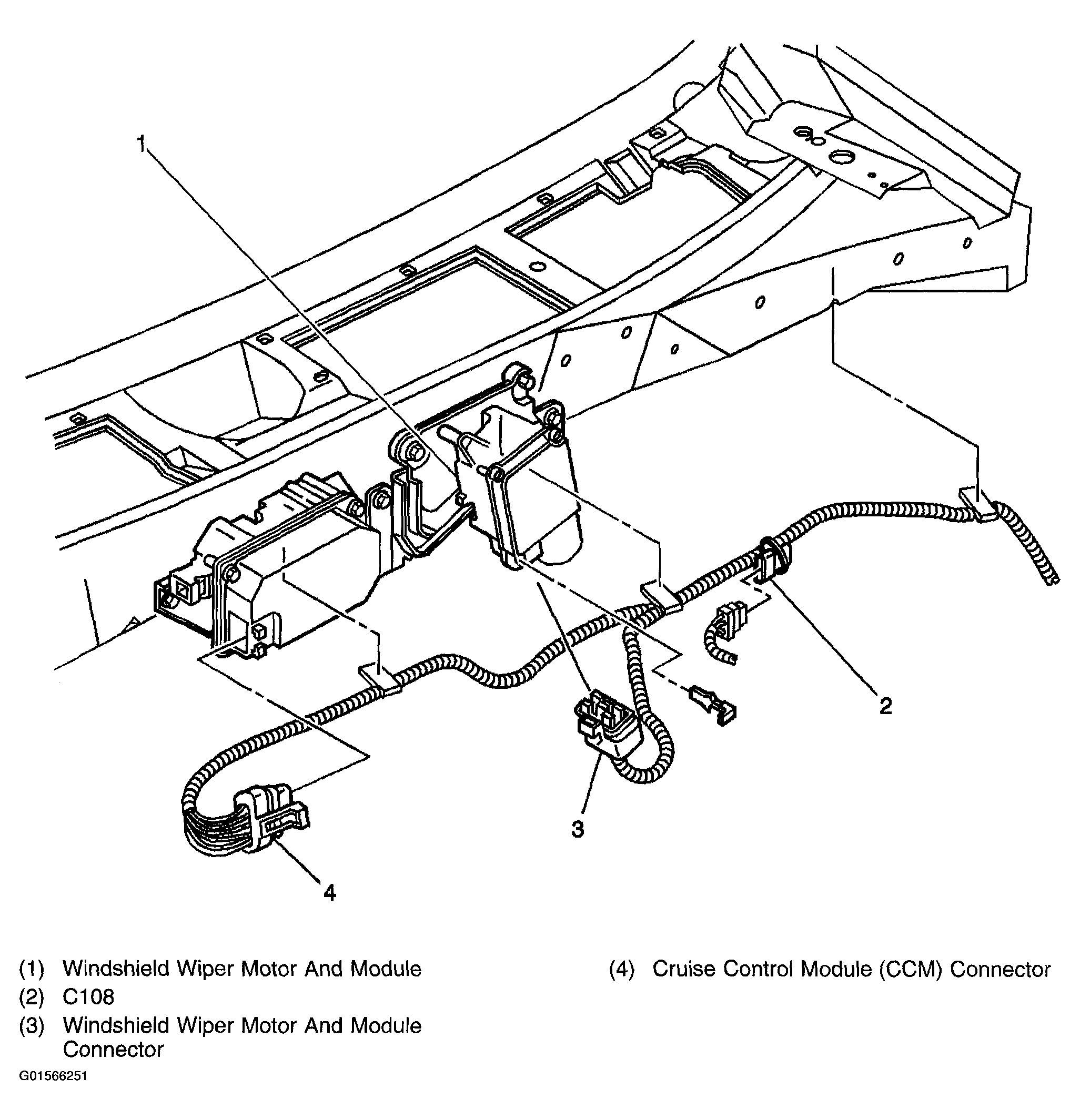

Fig 3: Cruise Control Module, And Wiper Motor View

G01566251

Courtesy of GENERAL MOTORS CORP.

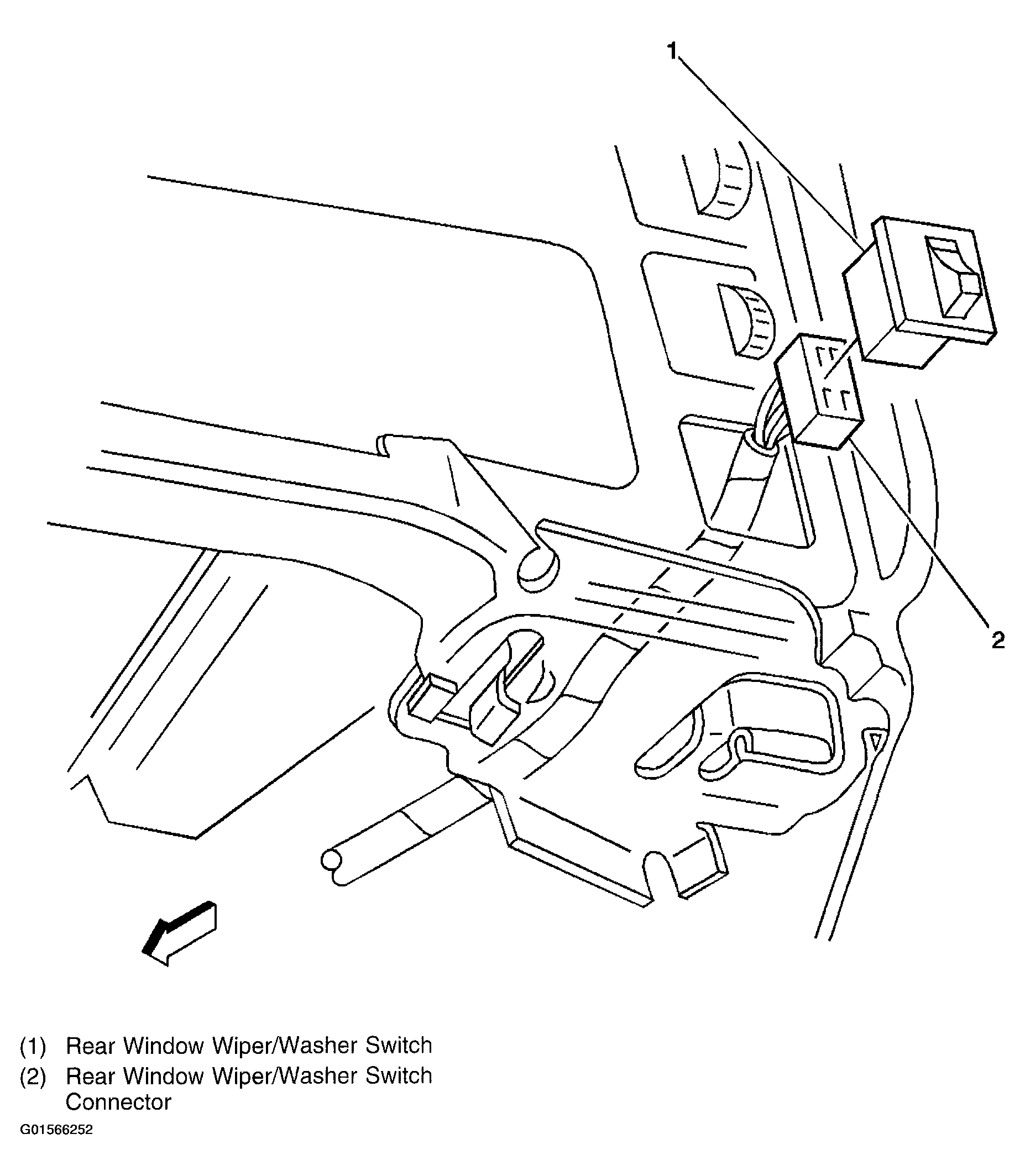

Fig 4: Rear Window Wiper/Washer Switch View

G01566252

Courtesy of GENERAL MOTORS CORP.

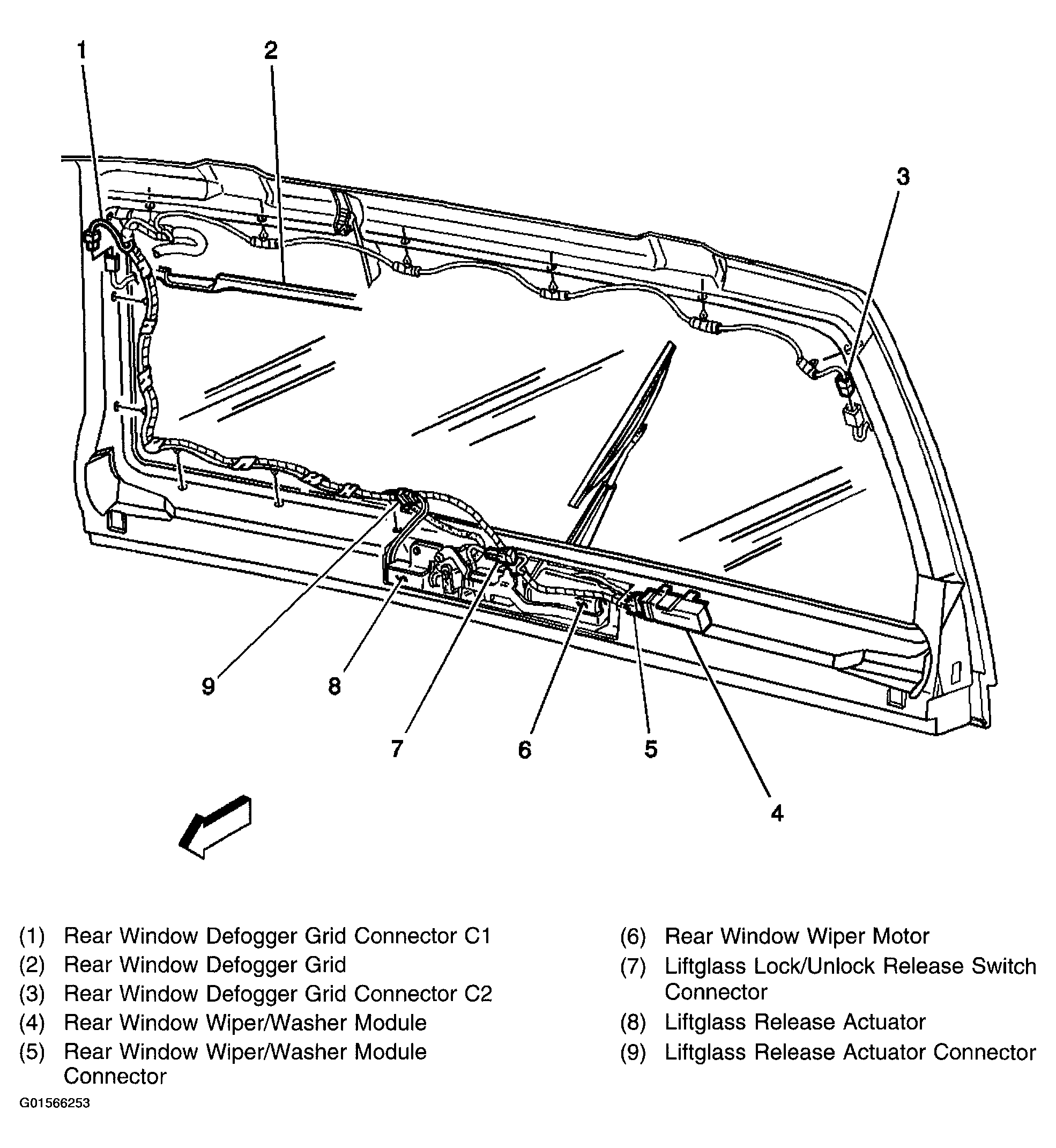

Fig 5: Liftgate Harness View

G01566253

Courtesy of GENERAL MOTORS CORP.
