Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

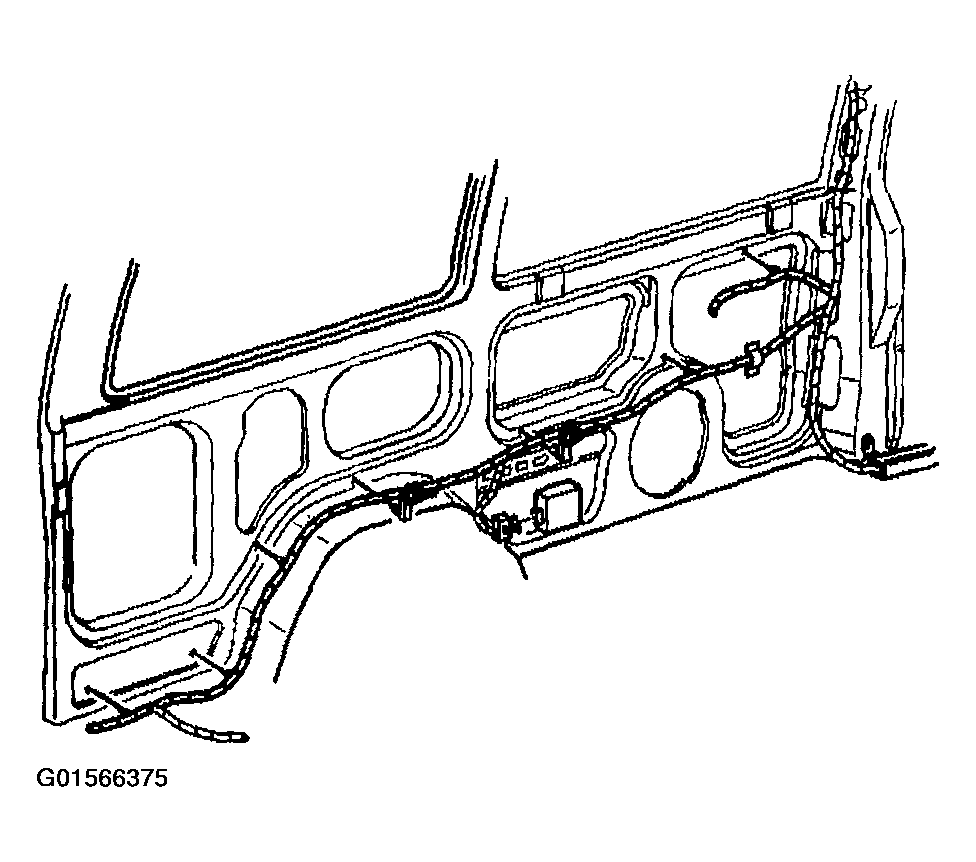

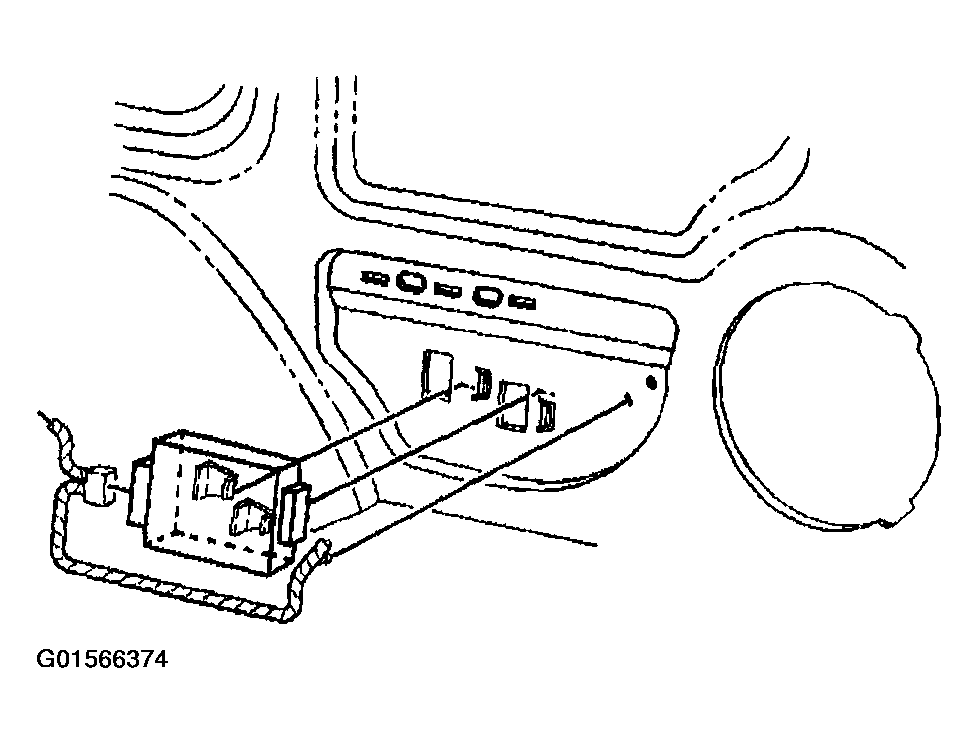

- Align the mounting tabs and slide the amplifier toward the front of the vehicle in order to install the amplifier to the vehicle.
- Connect the electrical connector to the amplifier.
- Install the body front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
