Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 bolts attaching the A/C condenser to the radiator.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

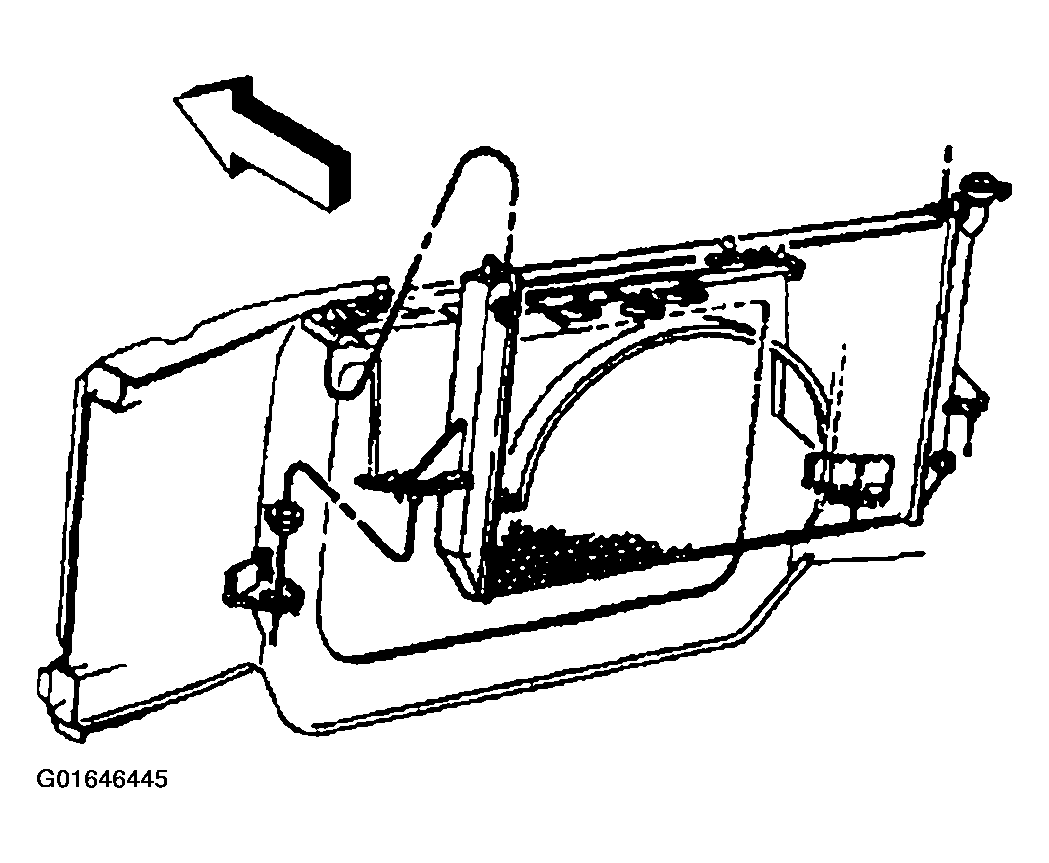

    Fig 1: Installing Radiator
    G01646445Courtesy of GENERAL MOTORS CORP.
  3. Install the grille. Refer to GRILLE REPLACEMENT in Exterior Trim.
  4. Install the coolant recovery reservoir hose to the radiator filler neck.
  5. Reposition the coolant recovery reservoir hose clamp to the coolant recovery reservoir.
  6. Install the engine oil cooler lines to the connector fittings. Refer to ENGINE OIL COOLER PIPE/HOSE QUICK CONNECT FITTING .
  7. Install the transmission oil cooler lines into the connector fittings. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING in Automatic Transmission.
    Fig 2: Connecting Coolant Recovery Reservoir Hose To Radiator Filler Neck
    G01646446Courtesy of GENERAL MOTORS CORP.
  8. Install the radiator inlet hose to the radiator.

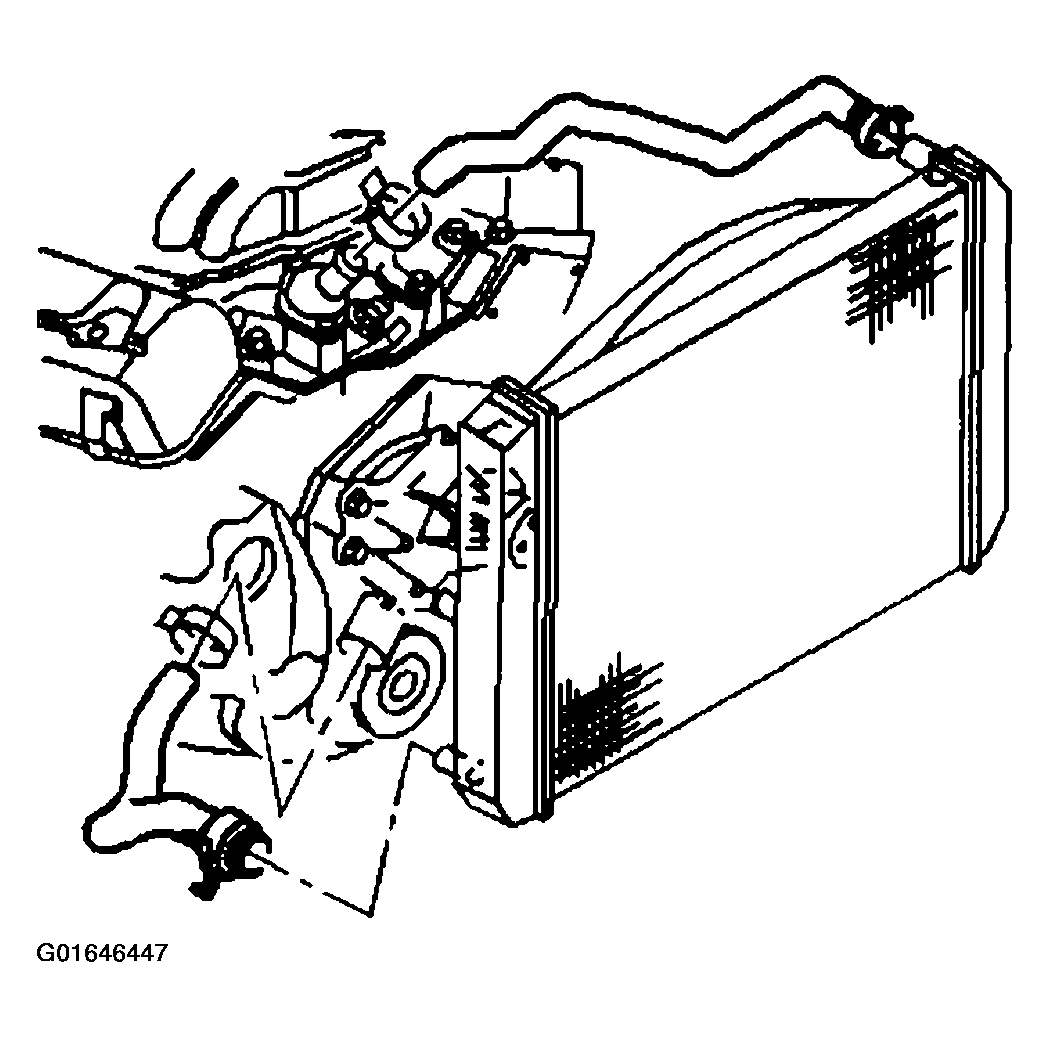

    Fig 3: Installing Radiator Inlet And Outlet Hoses
    G01646447Courtesy of GENERAL MOTORS CORP.
  9. Using the J 38185  , reposition the radiator inlet hose clamp to the radiator.
  10. Install the radiator outlet hose to the radiator.
  11. Using the J 38185  , reposition the radiator outlet hose clamp to the radiator.
  12. Install the lower fan shroud. Refer to FAN SHROUD REPLACEMENT - LOWER .
  13. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
