Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear part of the overhead console by inserting the mounting tabs into the roof panel.
Connect the electrical connectors.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the overhead console retaining screws.
Tighten

Tighten the screws to the overhead console to 2 N.m (18lb in).
1. 3.1. Install the rear screws to the overhead console.
  Tighten

  Tighten the rear screws to the overhead console to 2 N.m (18 lb in).
2. 3.2. Install the front screws to the overhead console.
  Tighten

  Tighten the rear screws to the overhead console to 2 N.m (18 lb in).
3. 3.3. Install the dome lamp lens to the overhead console.

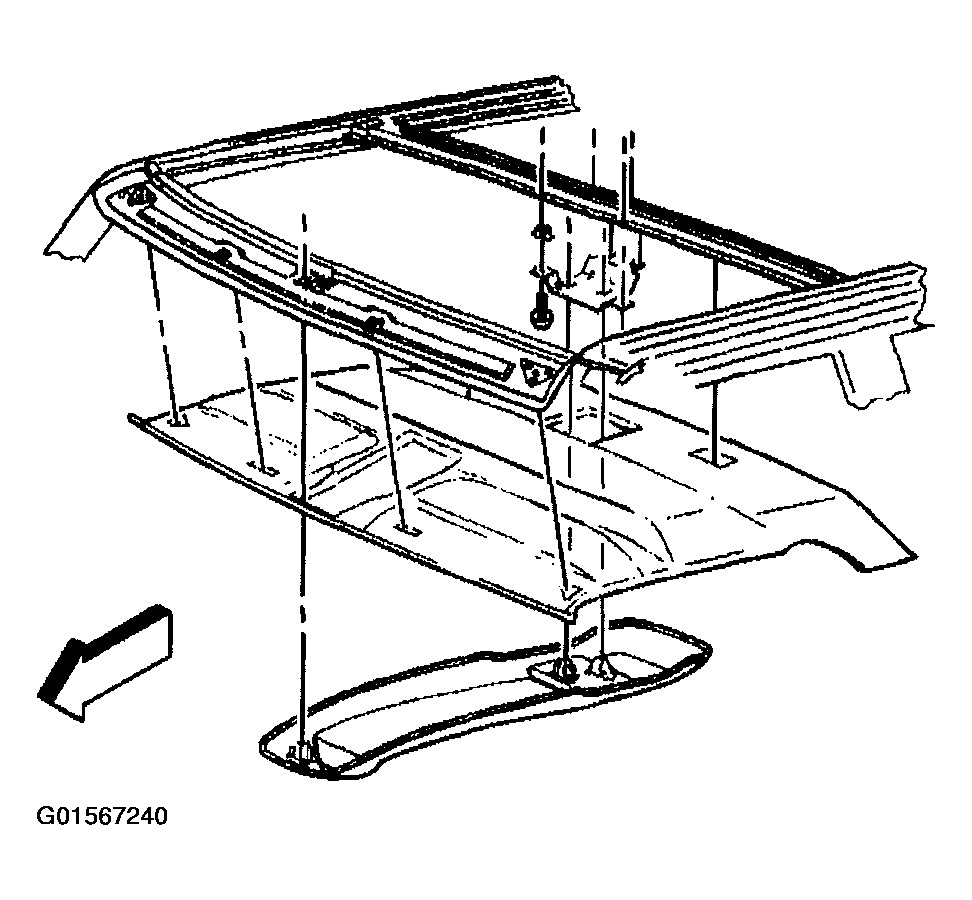

  Fig 1: Installing Overhead Console
  Courtesy of GENERAL MOTORS CORP.
