Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine cover guide assembly.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts that retain the engine cover guide assembly to the vehicle.
Tighten

Tighten the bolts that retain the engine cover guide to 8.5 N.m (75 lb in).
Install the engine cover. Refer to ENGINE COVER REPLACEMENT .

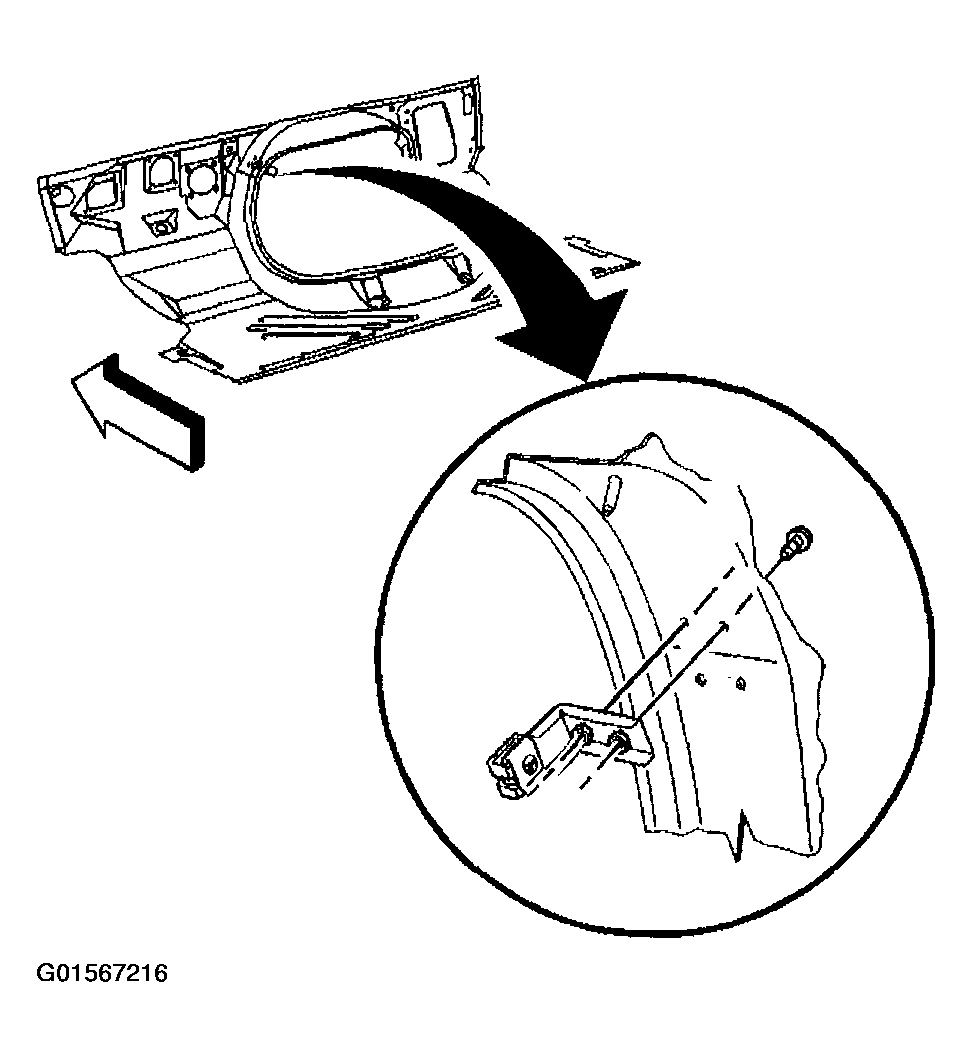

Fig 1: Installing Engine Cover Guide Assembly
Courtesy of GENERAL MOTORS CORP.
