Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. Refer to ENGINE COVER REPLACEMENT .
Remove the bolts that retain the engine cover guide assembly to the vehicle.
Remove the engine cover guide assembly.

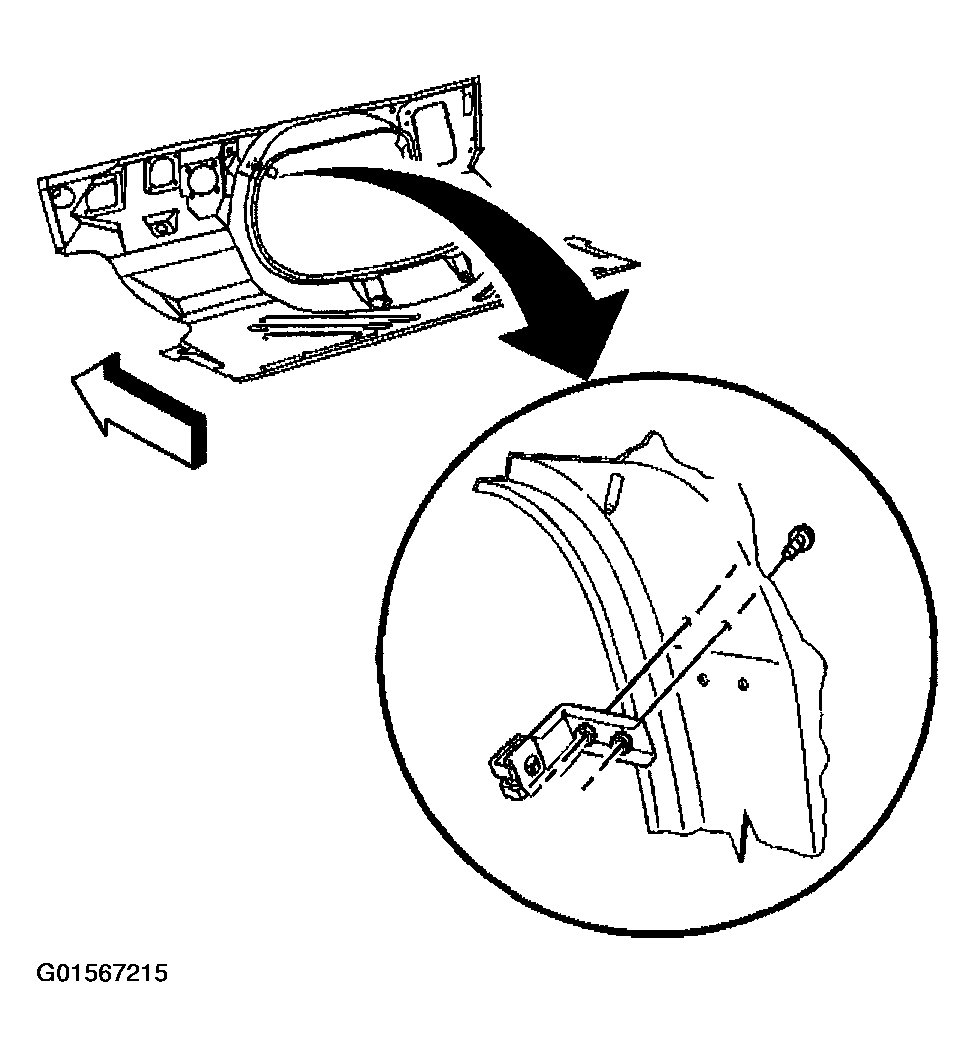

Fig 1: Removing Engine Cover Guide Assembly
Courtesy of GENERAL MOTORS CORP.
