Accumulator Assembly: Removal

  1. Remove the control valve body. See VALVE BODY & PRESSURE SWITCH .
  2. Remove the accumulator cover bolts. See Figure.
  3. Remove the 1-2 accumulator cover and pin, piston, and springs. Remove the 1-2 accumulator piston spring. Remove the 1-2 accumulator piston, and the oil seal ring. See Figure.
  4. Remove the oil pass cover bolt. Remove the oil pass cover. See Figure.

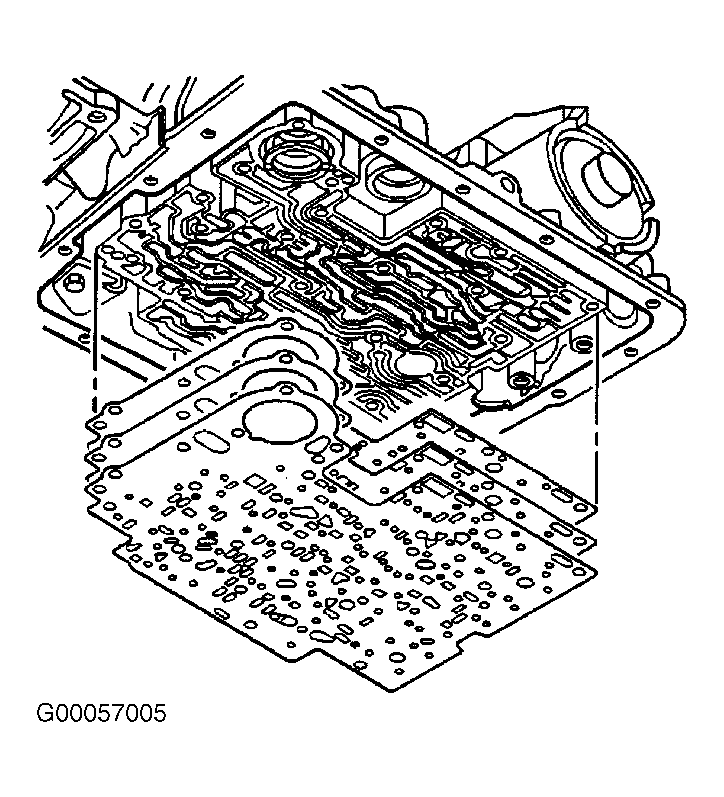

  5. Remove the spacer plate. Remove the spacer plate gaskets. See Figure.
  6. Remove the 3-4 accumulator spring. Remove the piston oil seal ring. Remove the 3-4 accumulator piston, and the pin. See Figure. Inspect the accumulator assembly.
