Instrument Fuse Block

NOTE: Instrument panel fuse block is located on driver's side of the instrument panel.

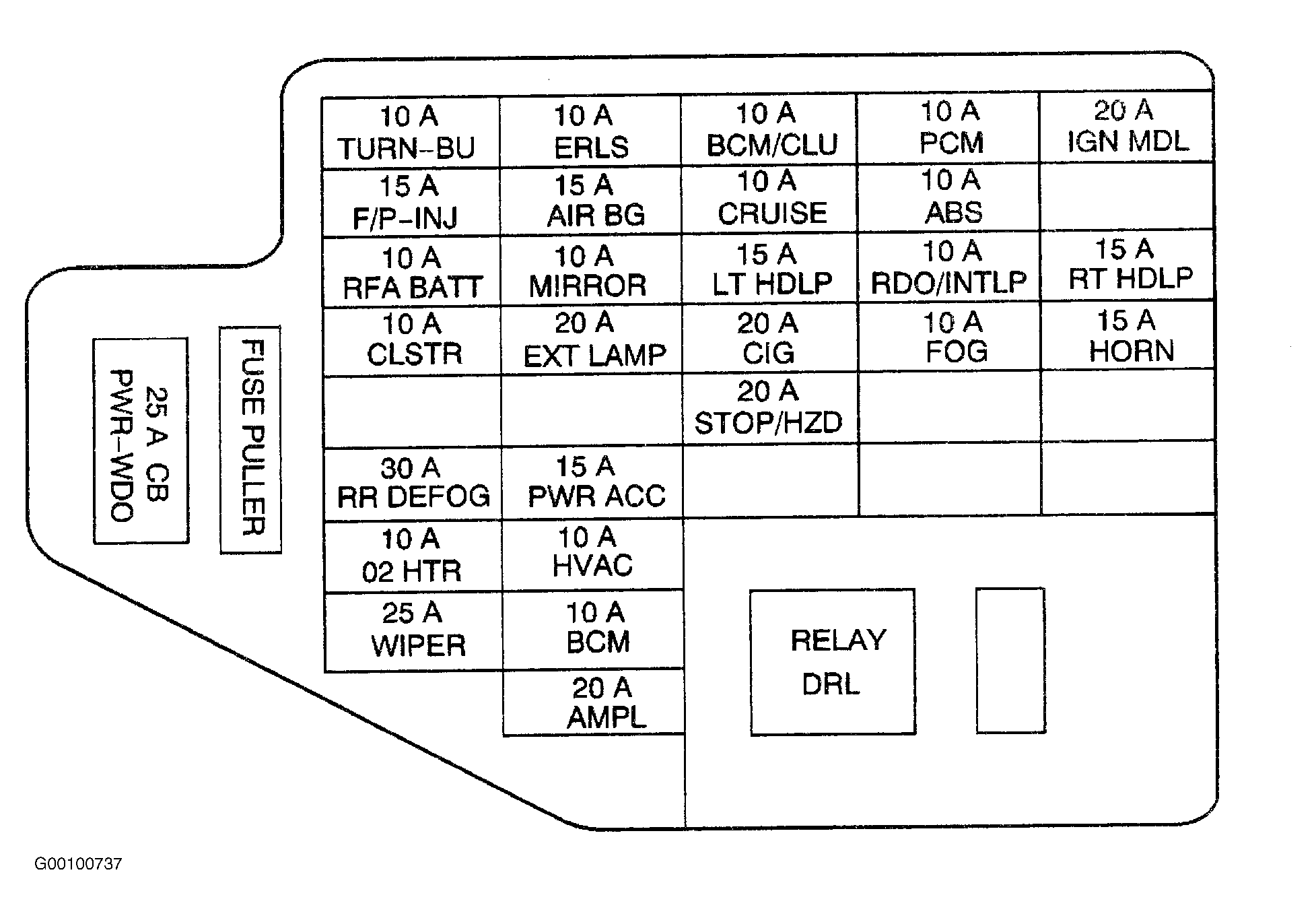

Fig 1: Identifying Instrument Panel Fuse Block Components
G00100737Courtesy of GENERAL MOTORS CORP.

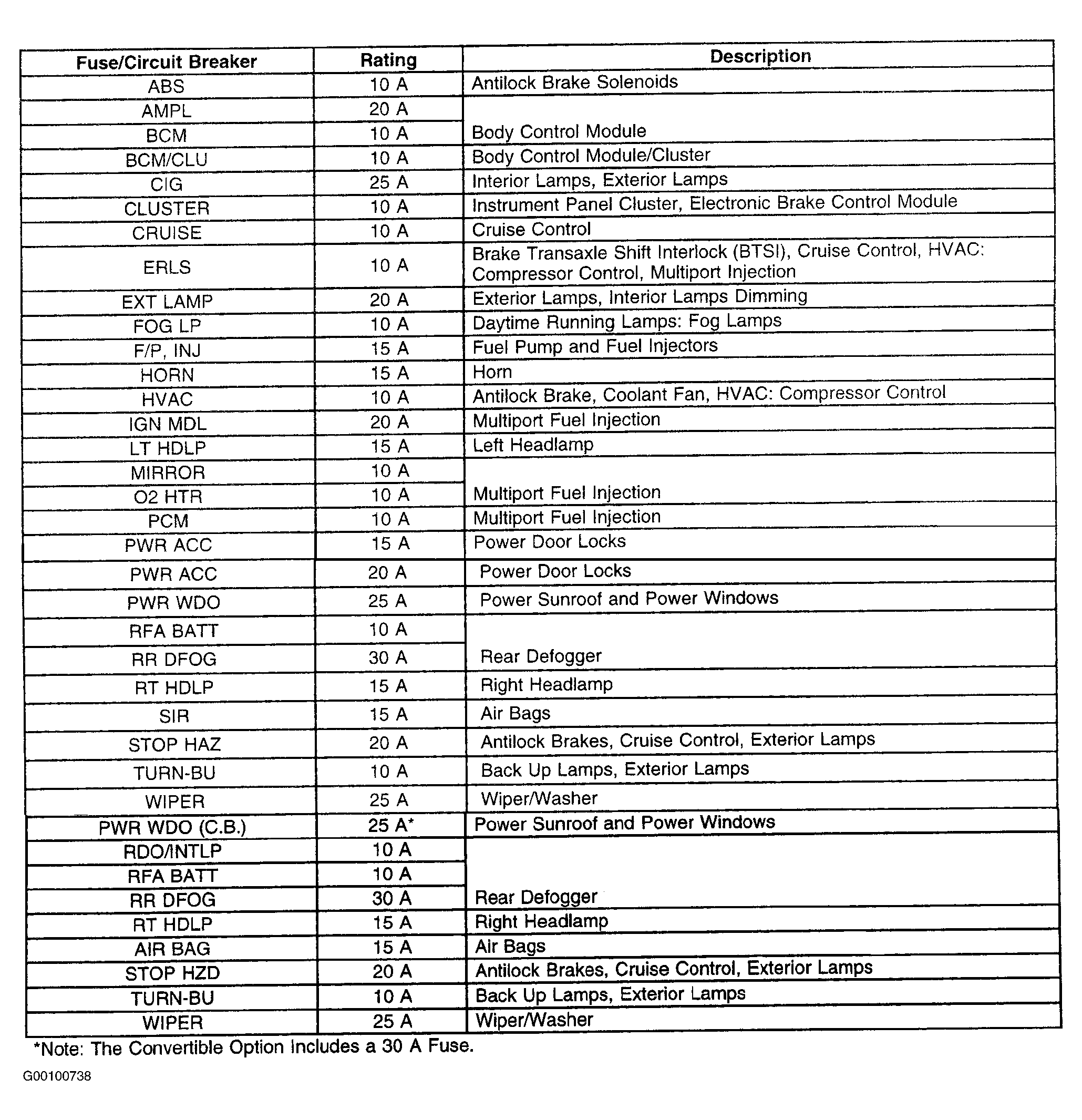

Fig 2: Instrument Panel Fuse Block Legend
G00100738Courtesy of GENERAL MOTORS CORP.
