Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the amplifier.
Install the amplifier to the bracket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the amplifier nuts.
Tighten

Tighten the nuts to 3.5 N.m (31 lb.in).
Reposition the rear compartment trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.

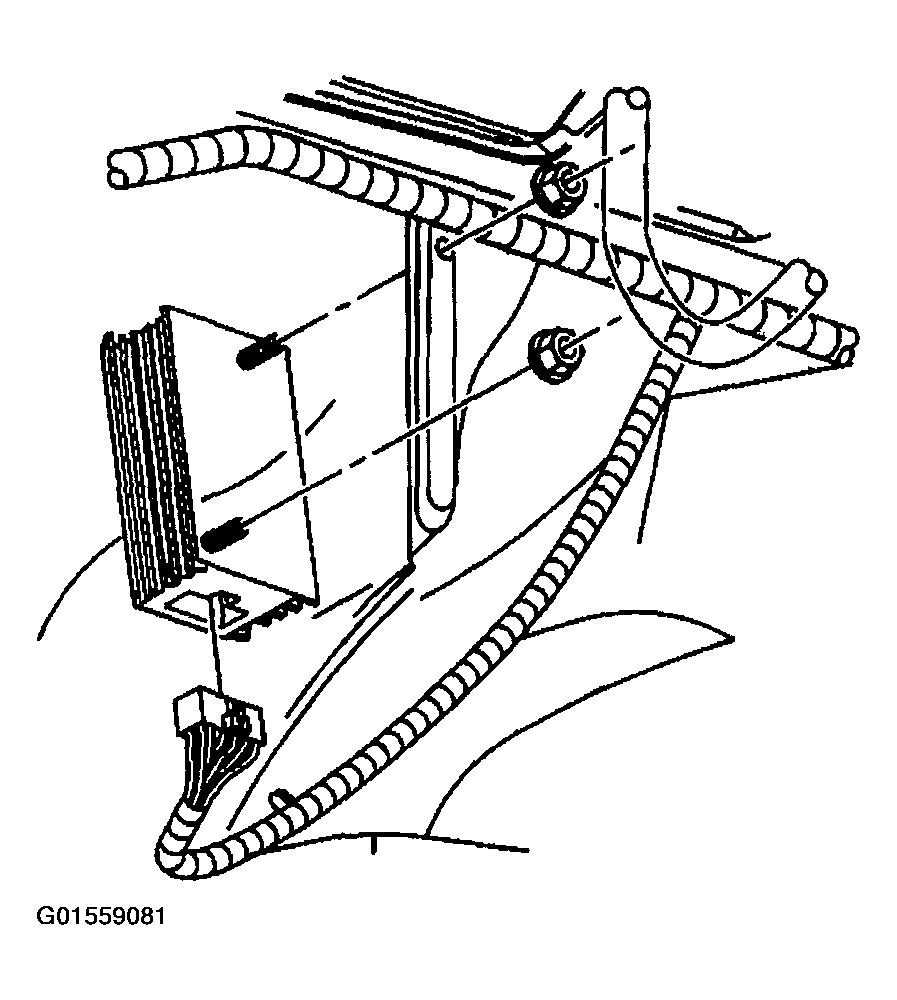

Fig 1: Connecting Electrical Connector To Amplifier
Courtesy of GENERAL MOTORS CORP.
