Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

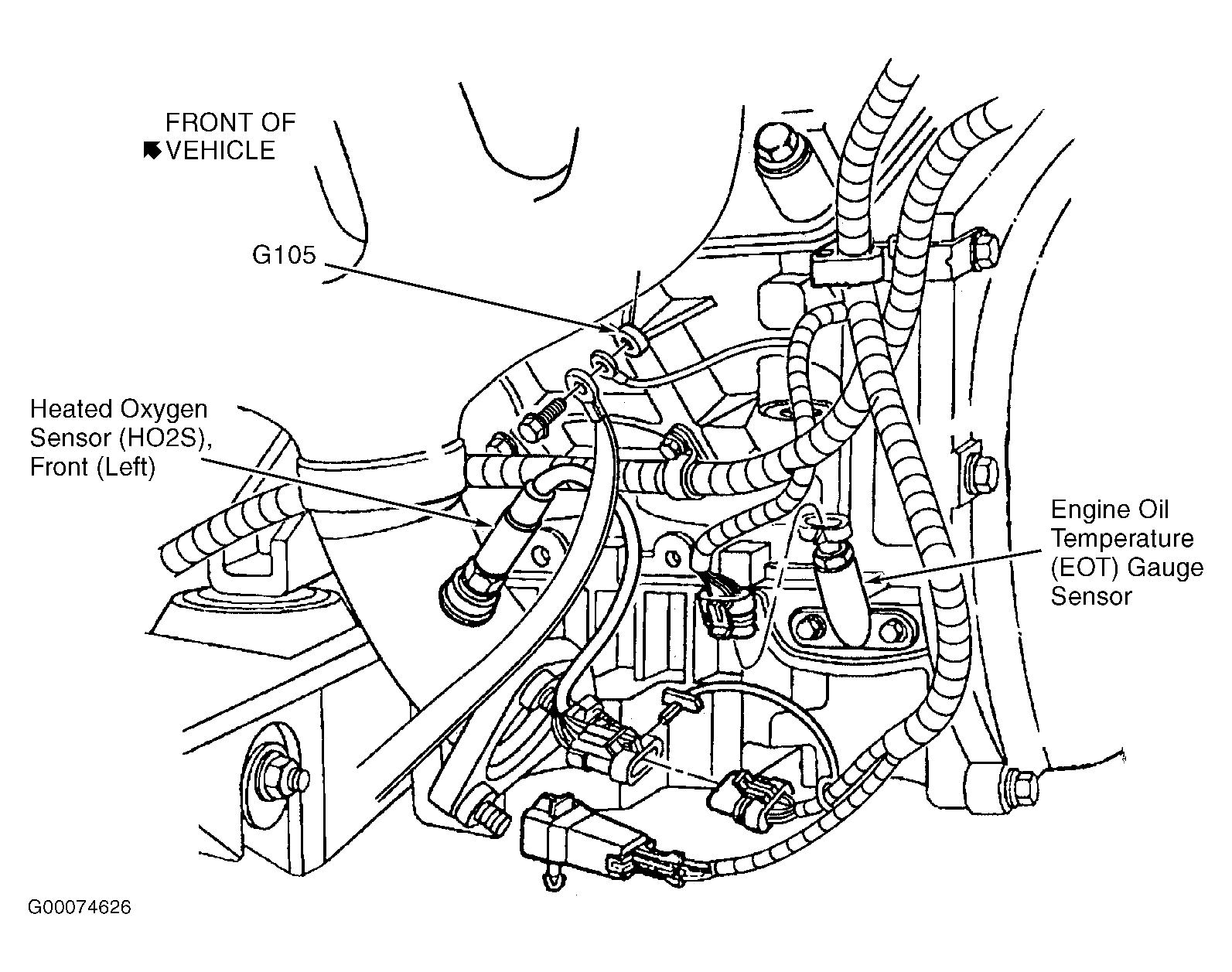

Fig 1: Left Lower Rear Of Engine

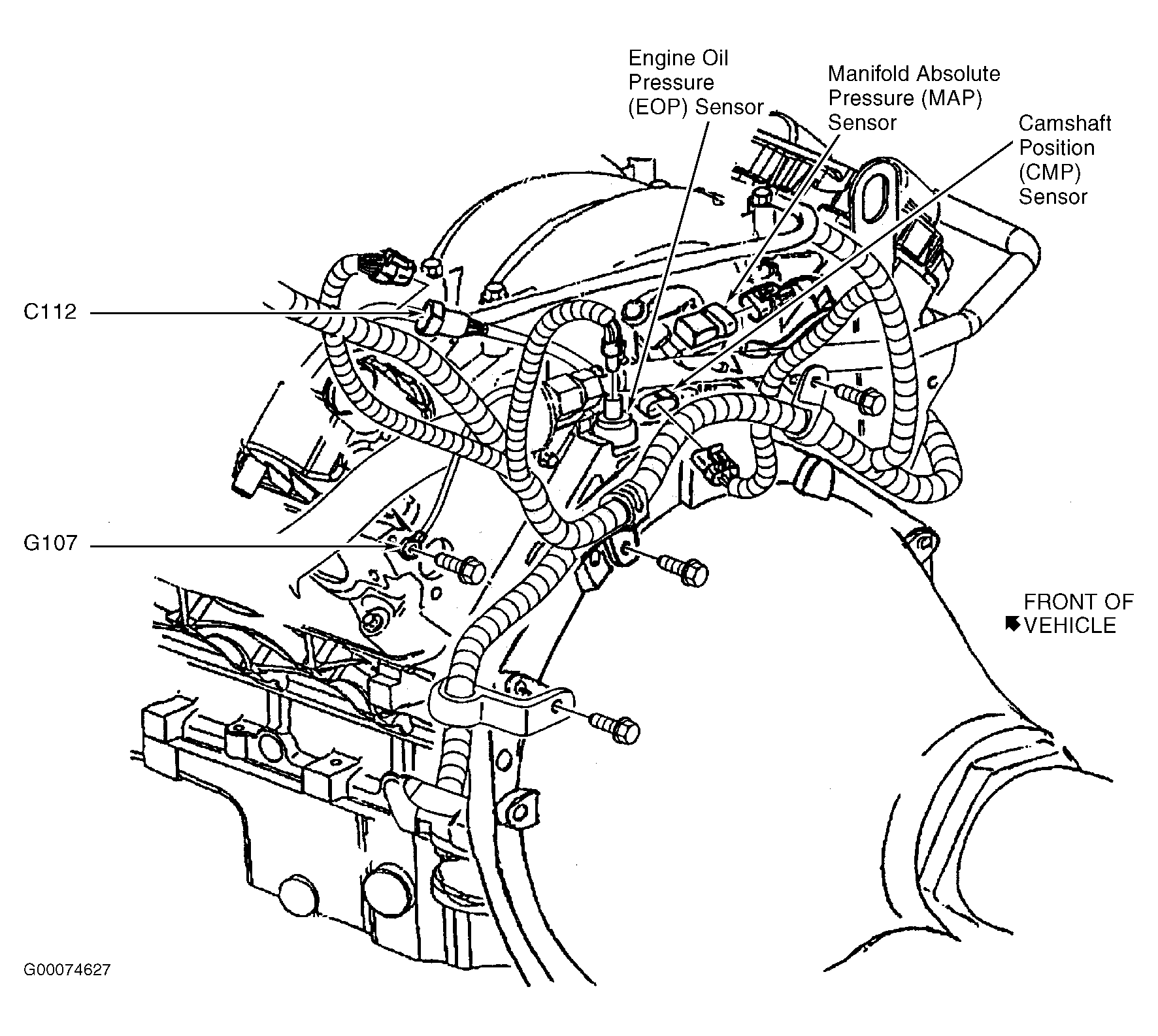

Fig 2: Left Rear Of Engine

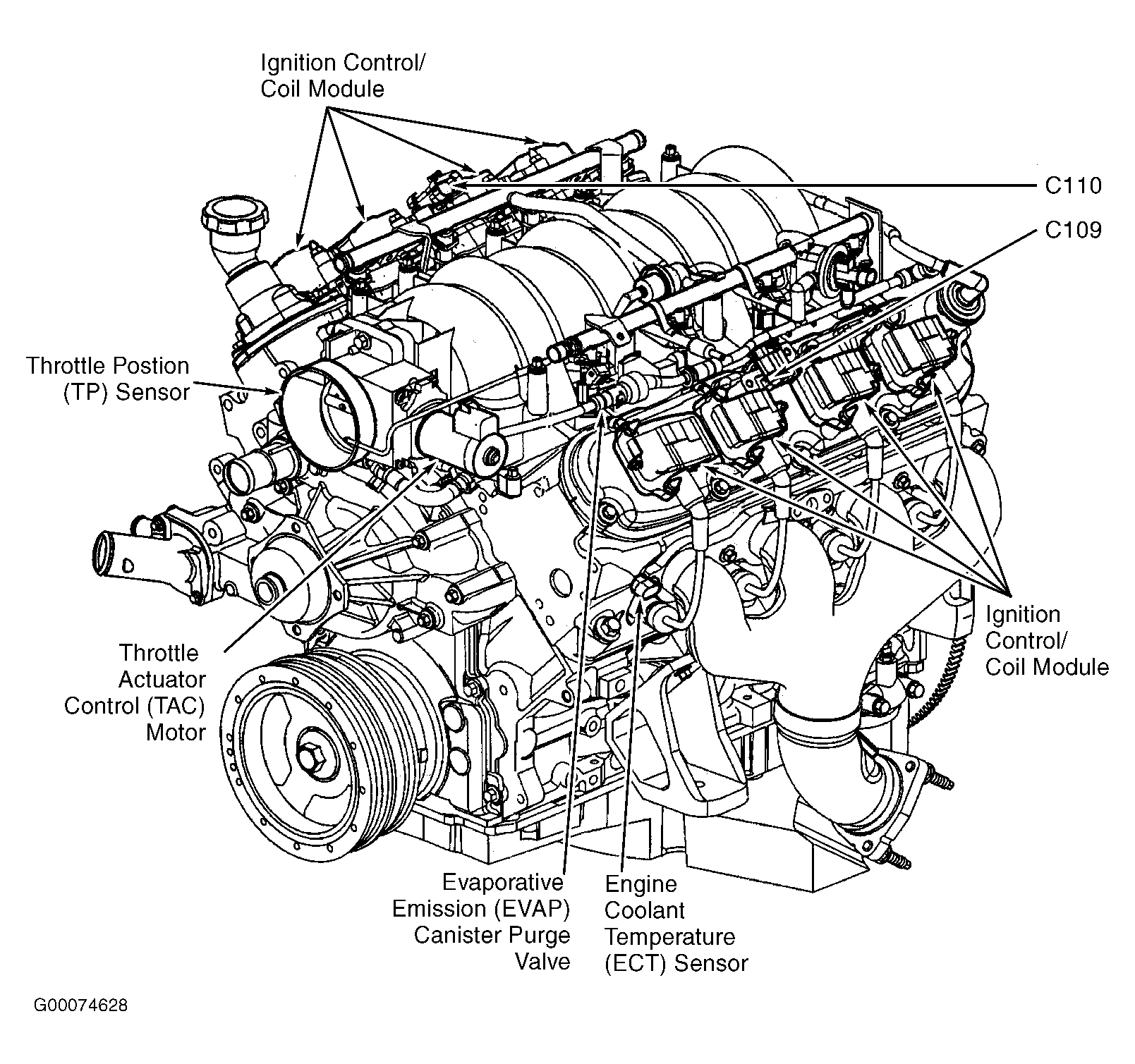

Fig 3: Left Front Of Engine

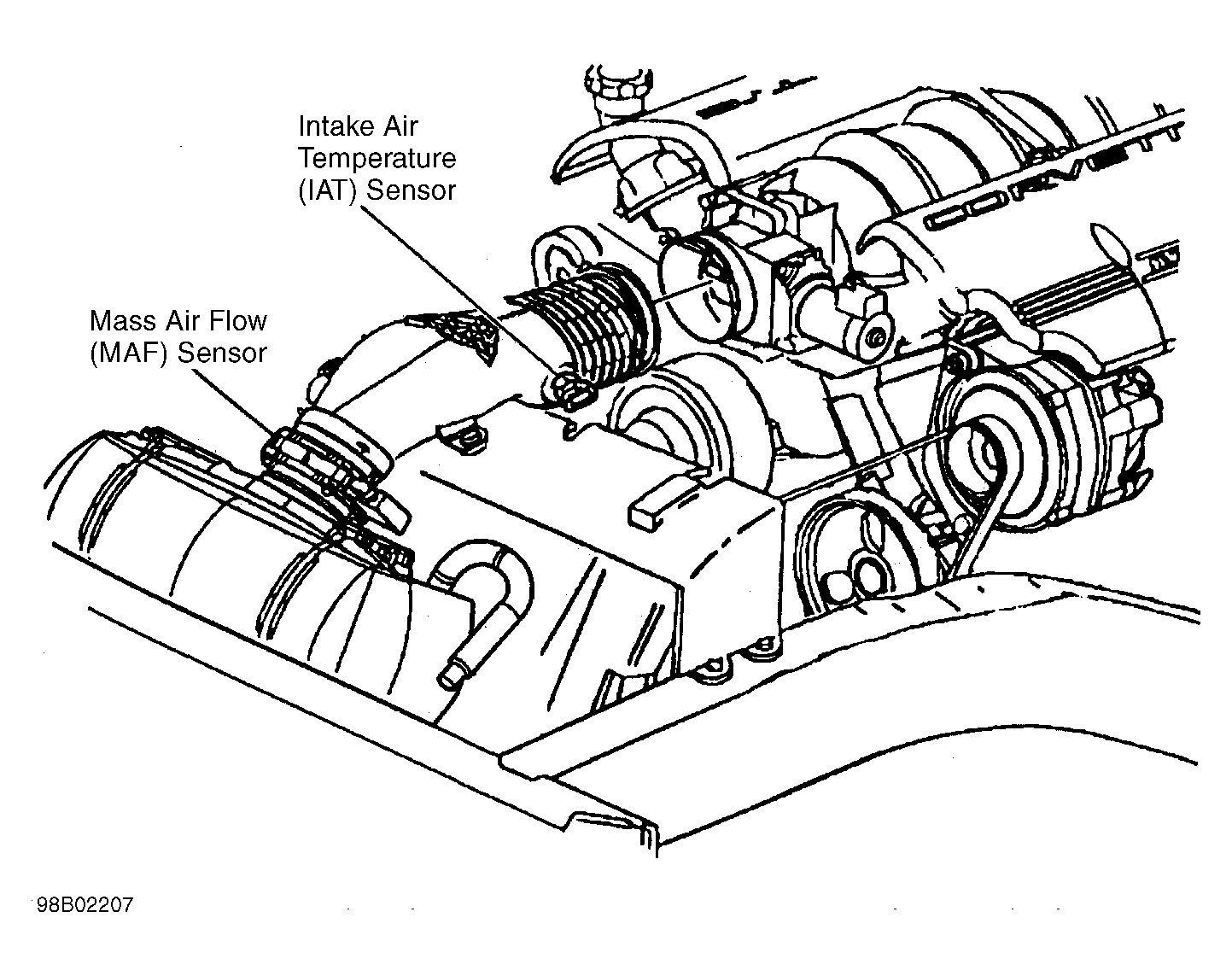

Fig 4: Front Of Engine

Fig 5: Vehicle Overview
