Body Control System Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

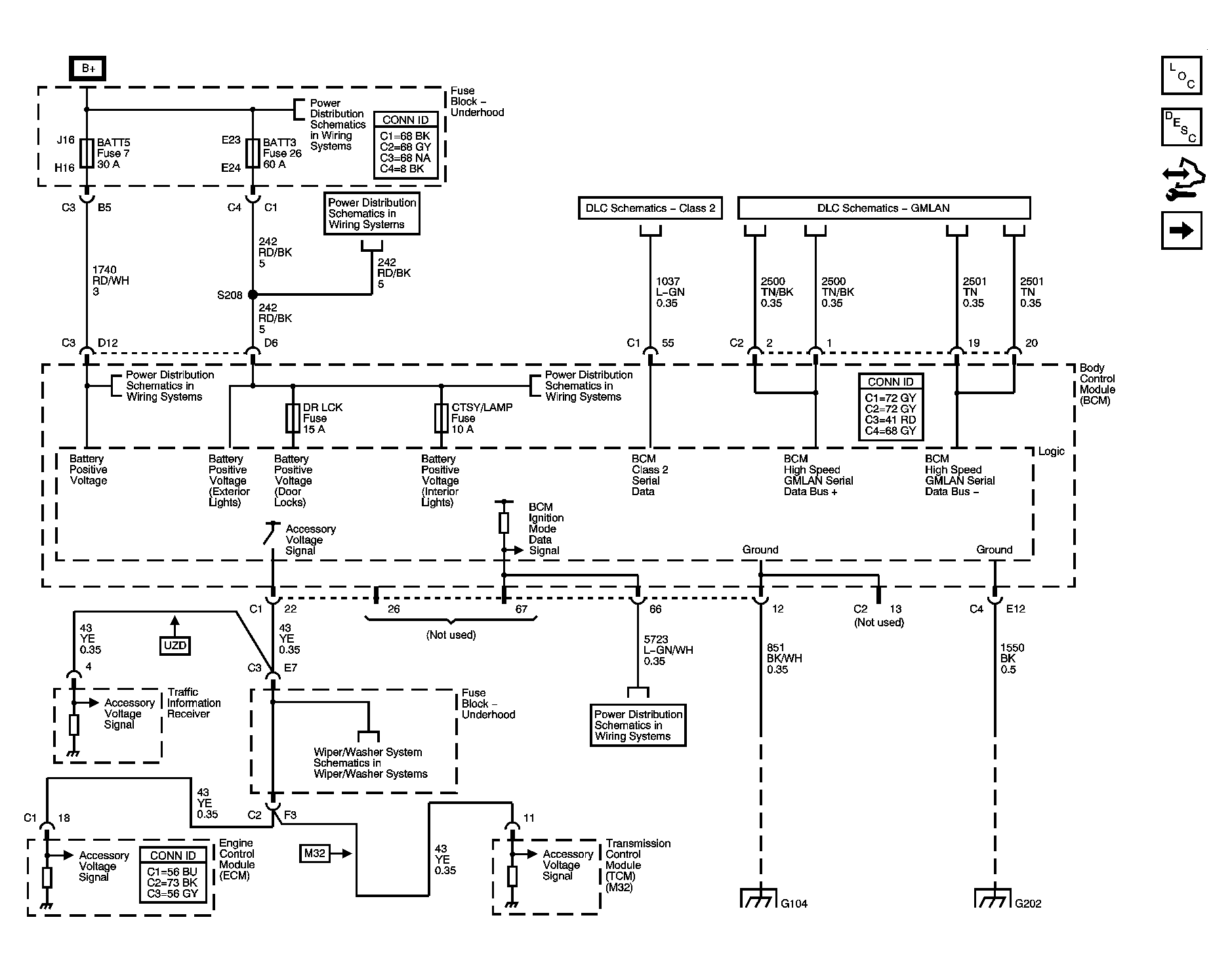

Fig 1: DLC, Ground and Power Schematics

GM1435019

Courtesy of GENERAL MOTORS CORP.

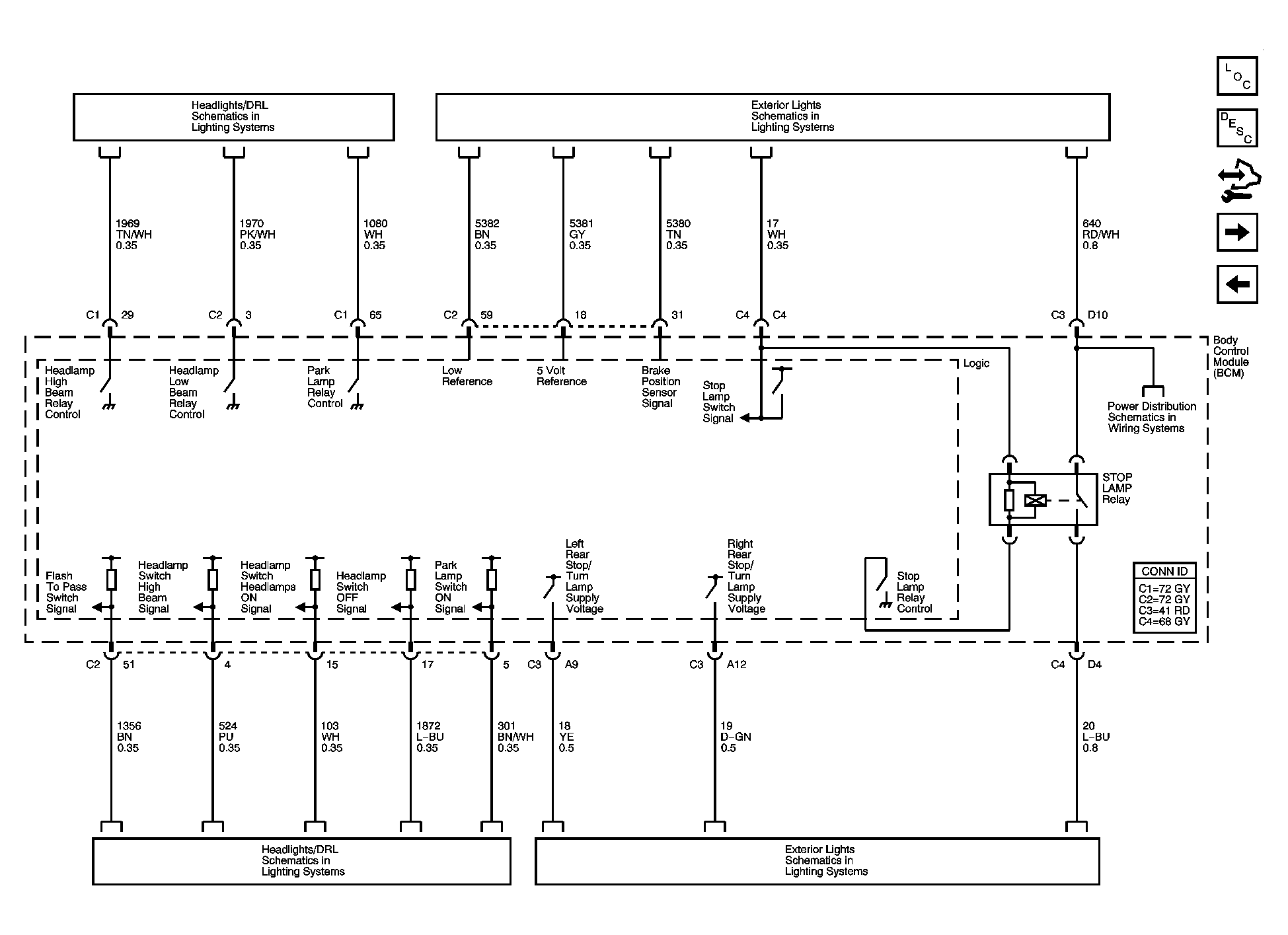

Fig 2: Lighting References Schematics - 1 of 2

GM1435022

Courtesy of GENERAL MOTORS CORP.

Fig 3: Lighting References Schematics - 2 of 2

GM1435023

Courtesy of GENERAL MOTORS CORP.

Fig 4: Subsystem References Schematics - 1 of 2

GM1435024

Courtesy of GENERAL MOTORS CORP.

Fig 5: Subsystem References Schematics - 2 of 2

GM1435025

Courtesy of GENERAL MOTORS CORP.
