Steering Column Disassembled View (Telescoping)

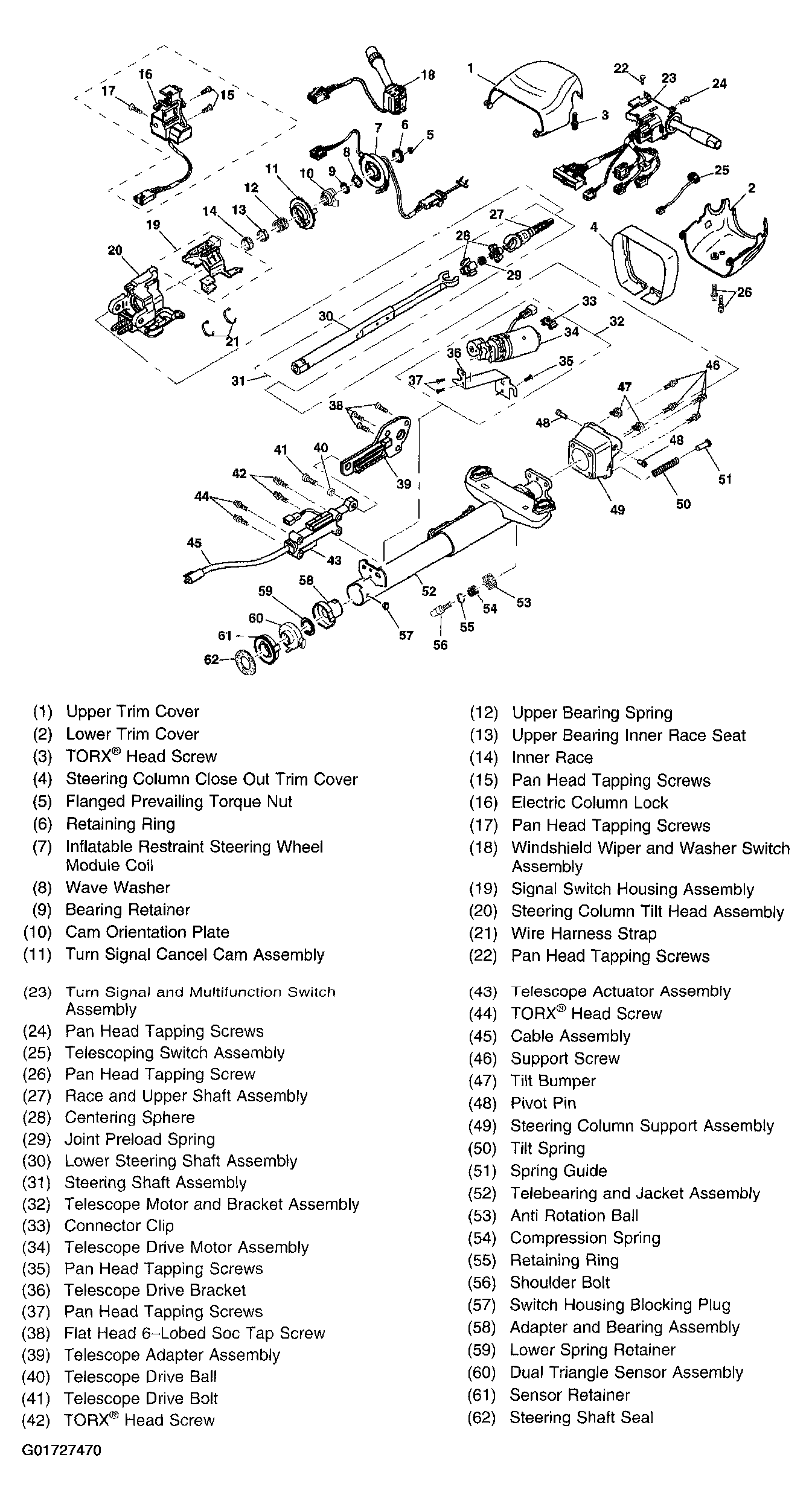

Fig 1: Telescoping Steering Column
G01727470Courtesy of GENERAL MOTORS CORP.
