Lighting Systems Component Views

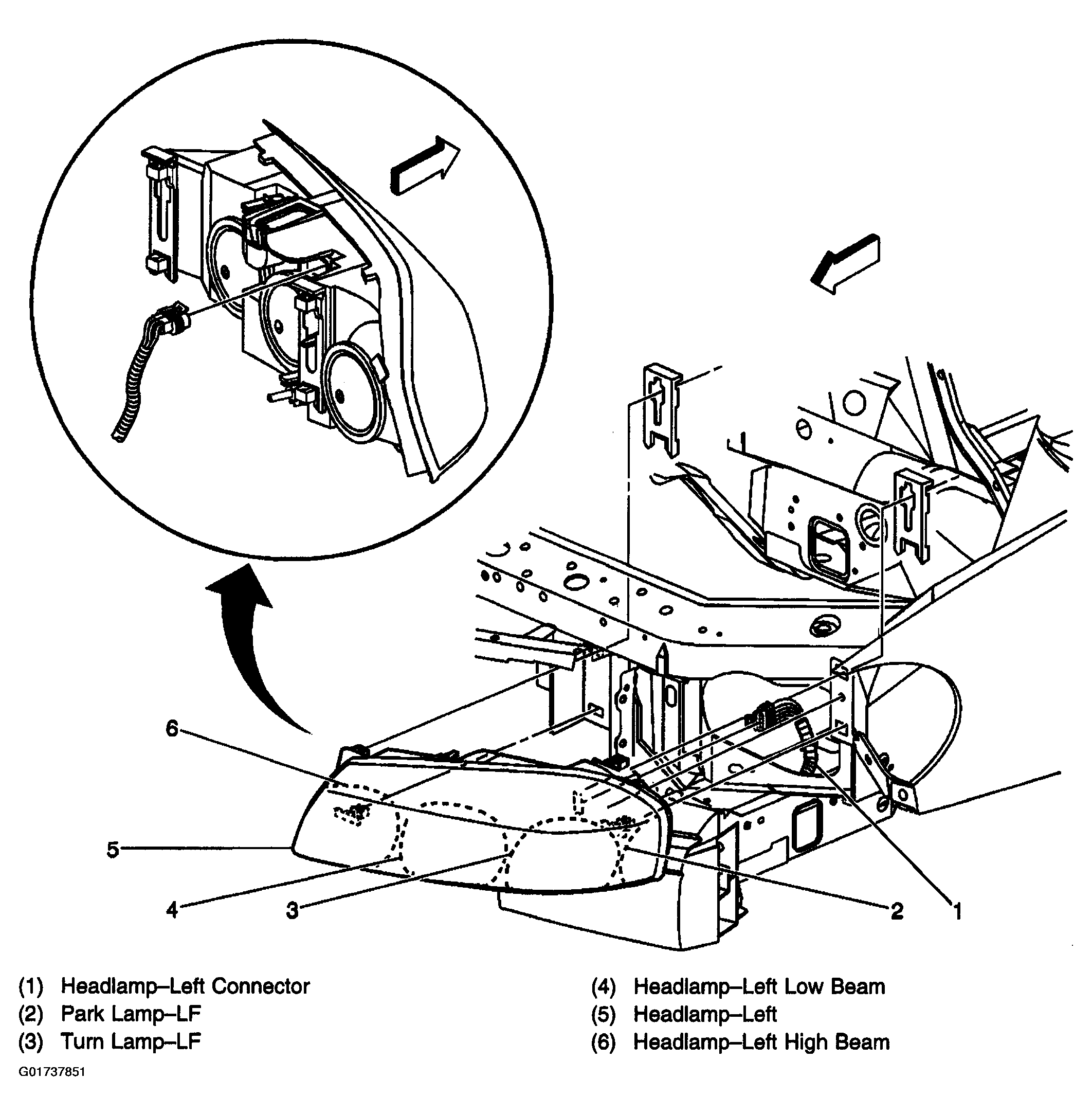

Fig 1: Left Front Lights; Right Front Similar (Impala)
G01737851Courtesy of GENERAL MOTORS CORP.

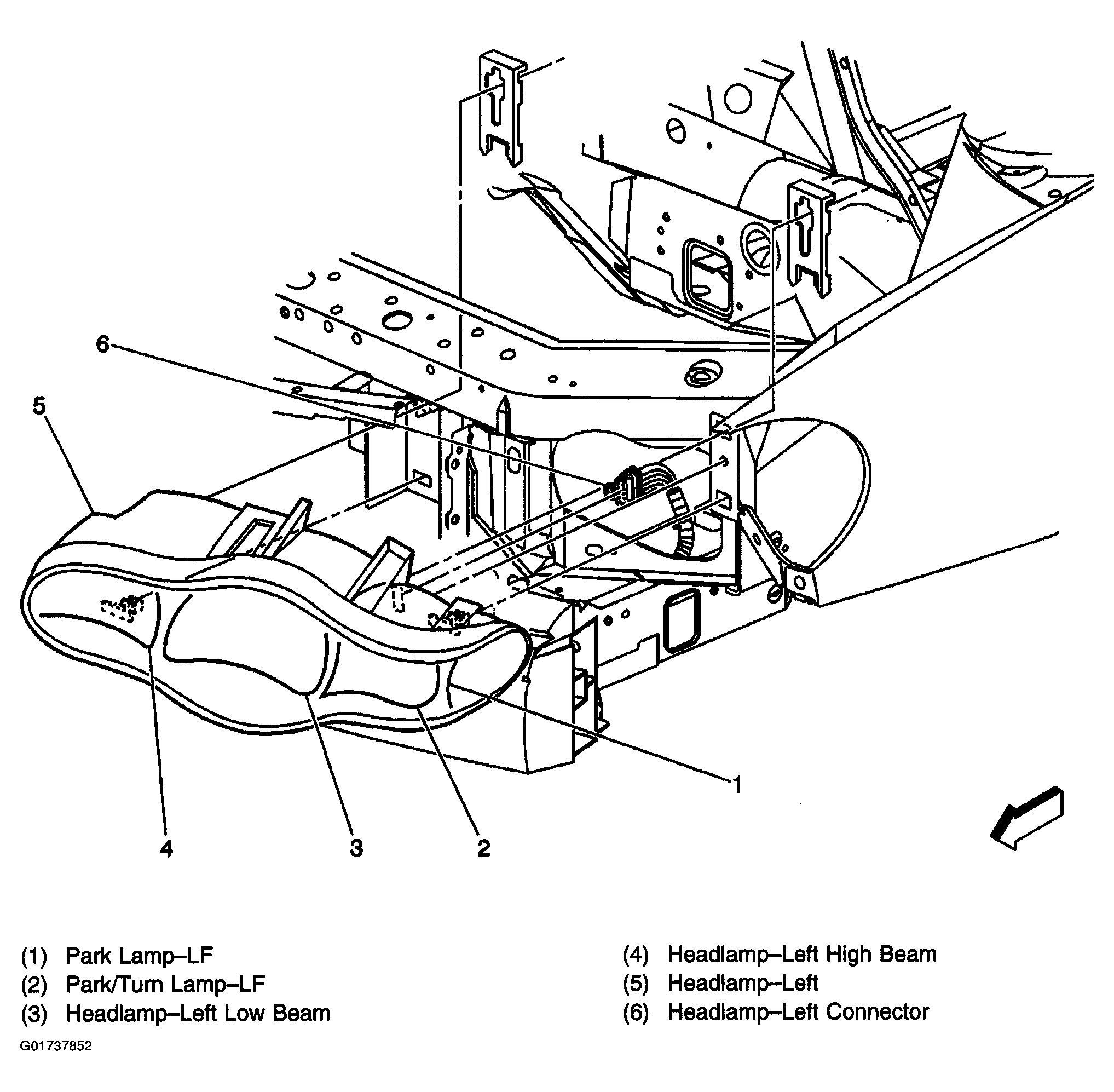

Fig 2: Left Front Lights; Right Front Similar (Monte Carlo)
G01737852Courtesy of GENERAL MOTORS CORP.

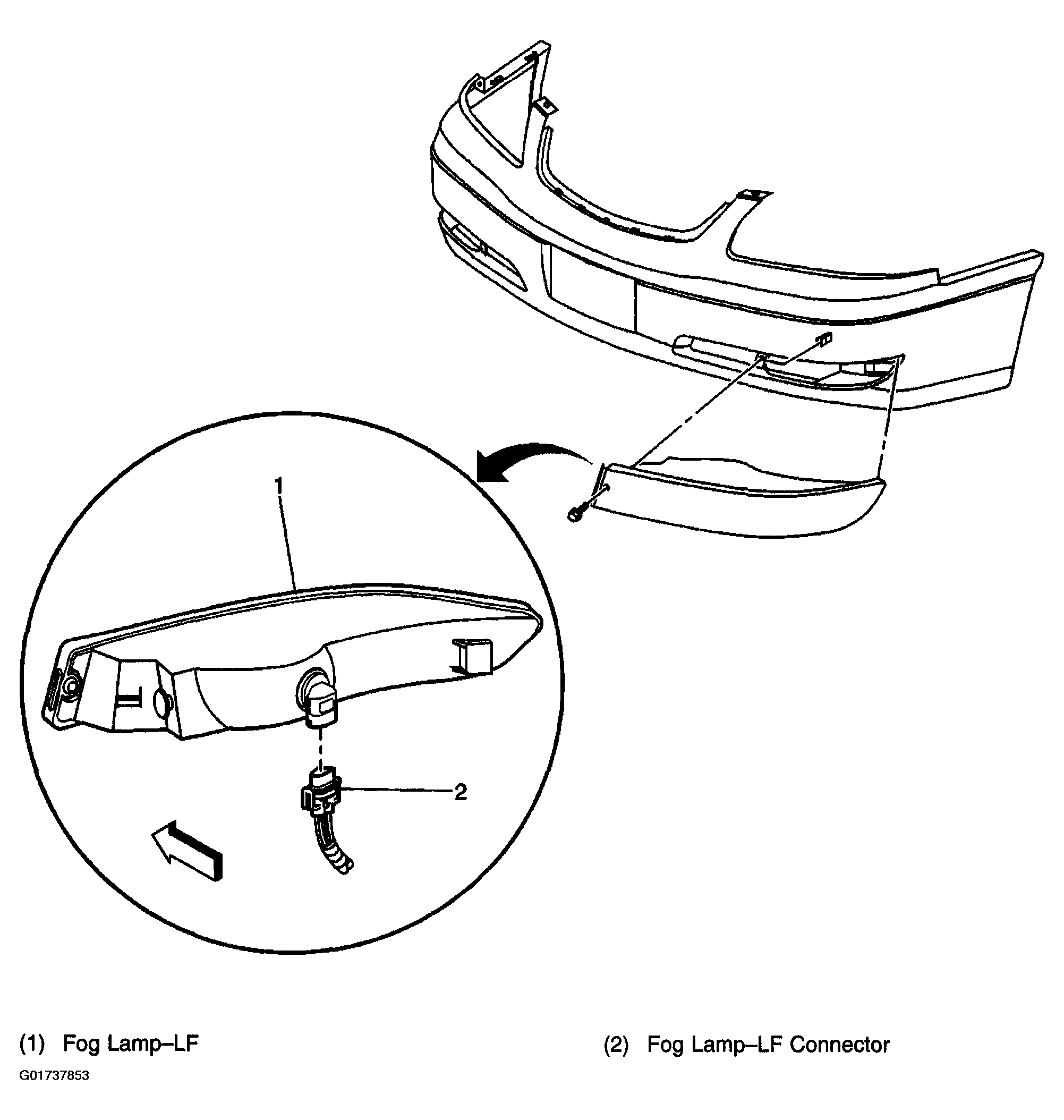

Fig 3: Left Front Foglight; Right Front Similar
G01737853Courtesy of GENERAL MOTORS CORP.

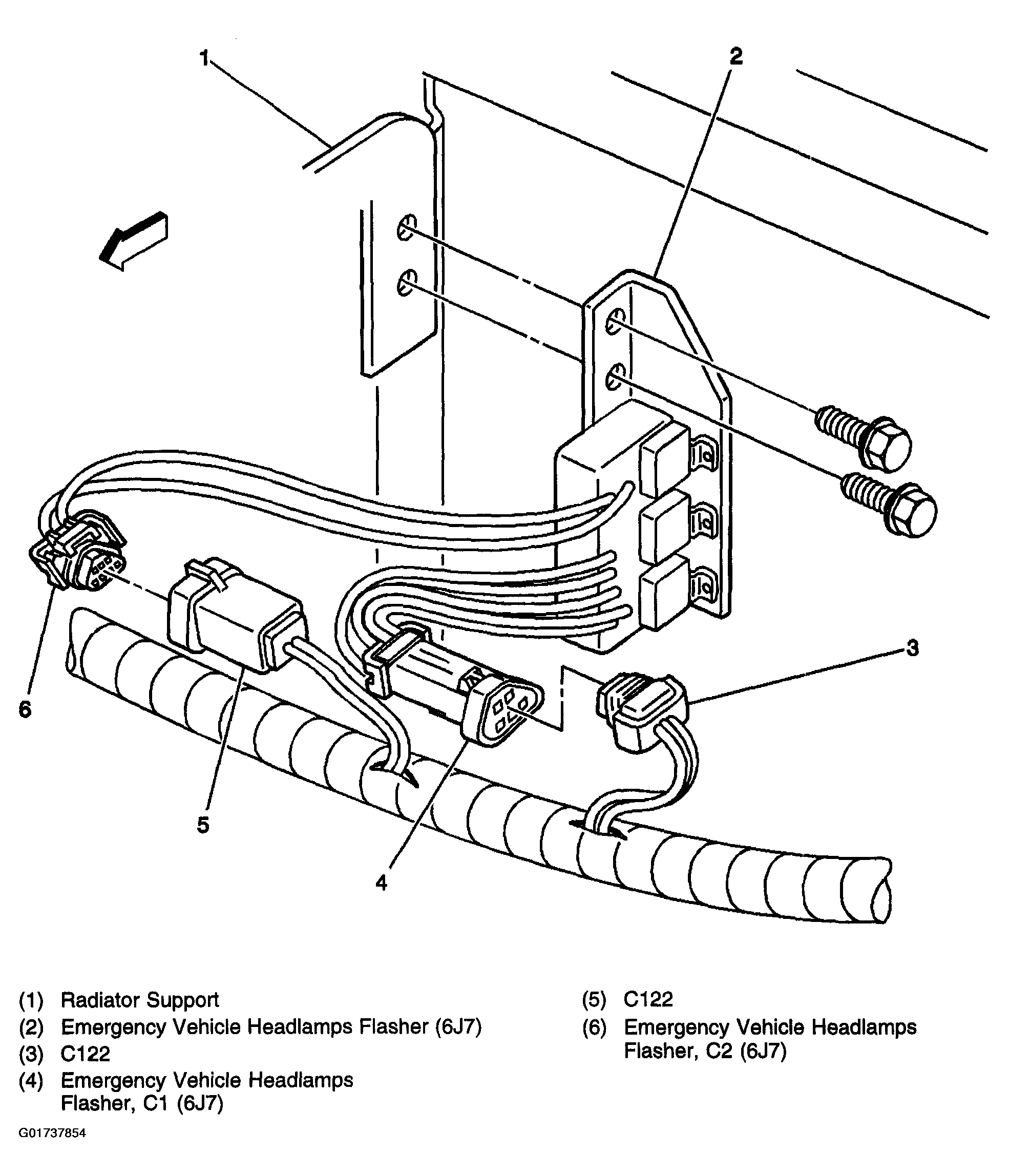

Fig 4: Locating Emergency Vehicle Headlight Flashers
G01737854Courtesy of GENERAL MOTORS CORP.

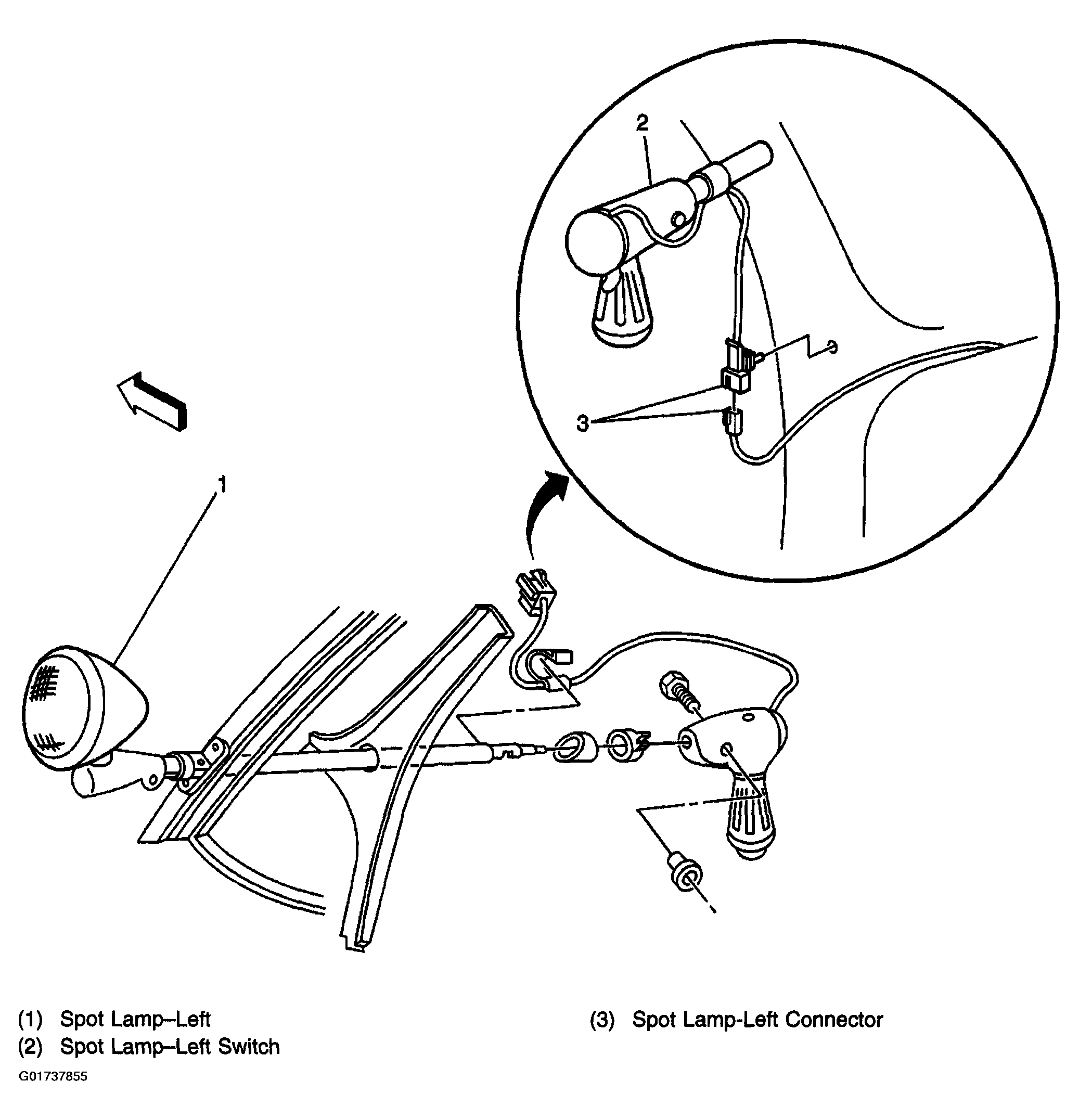

Fig 5: Locating Spot Lamp & Switch (Driver A-Pillar; Passenger A-Pillar Similar)
G01737855Courtesy of GENERAL MOTORS CORP.

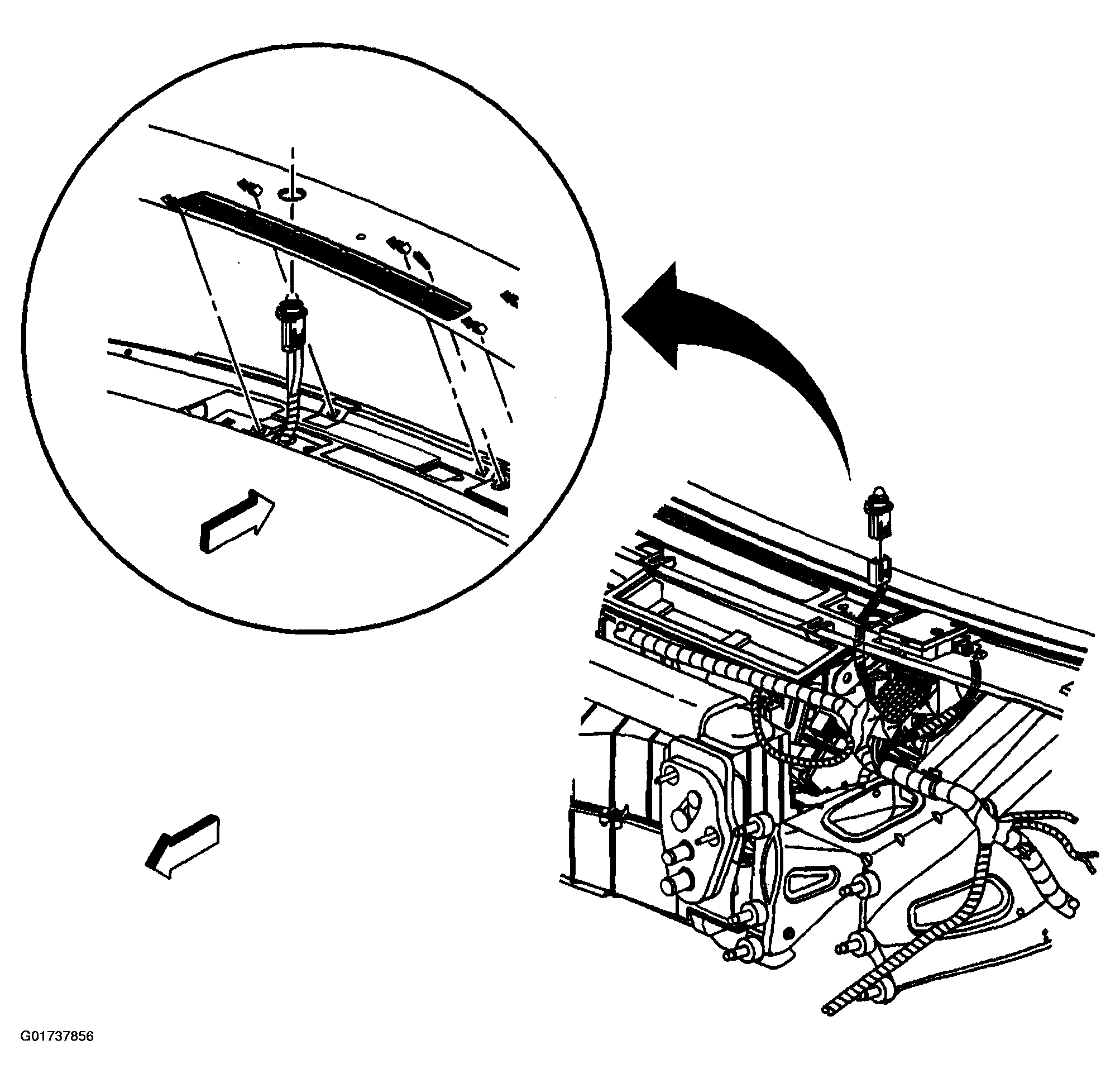

Fig 6: Locating Ambient Light Sensor (Top of Instrument Panel)
G01737856Courtesy of GENERAL MOTORS CORP.

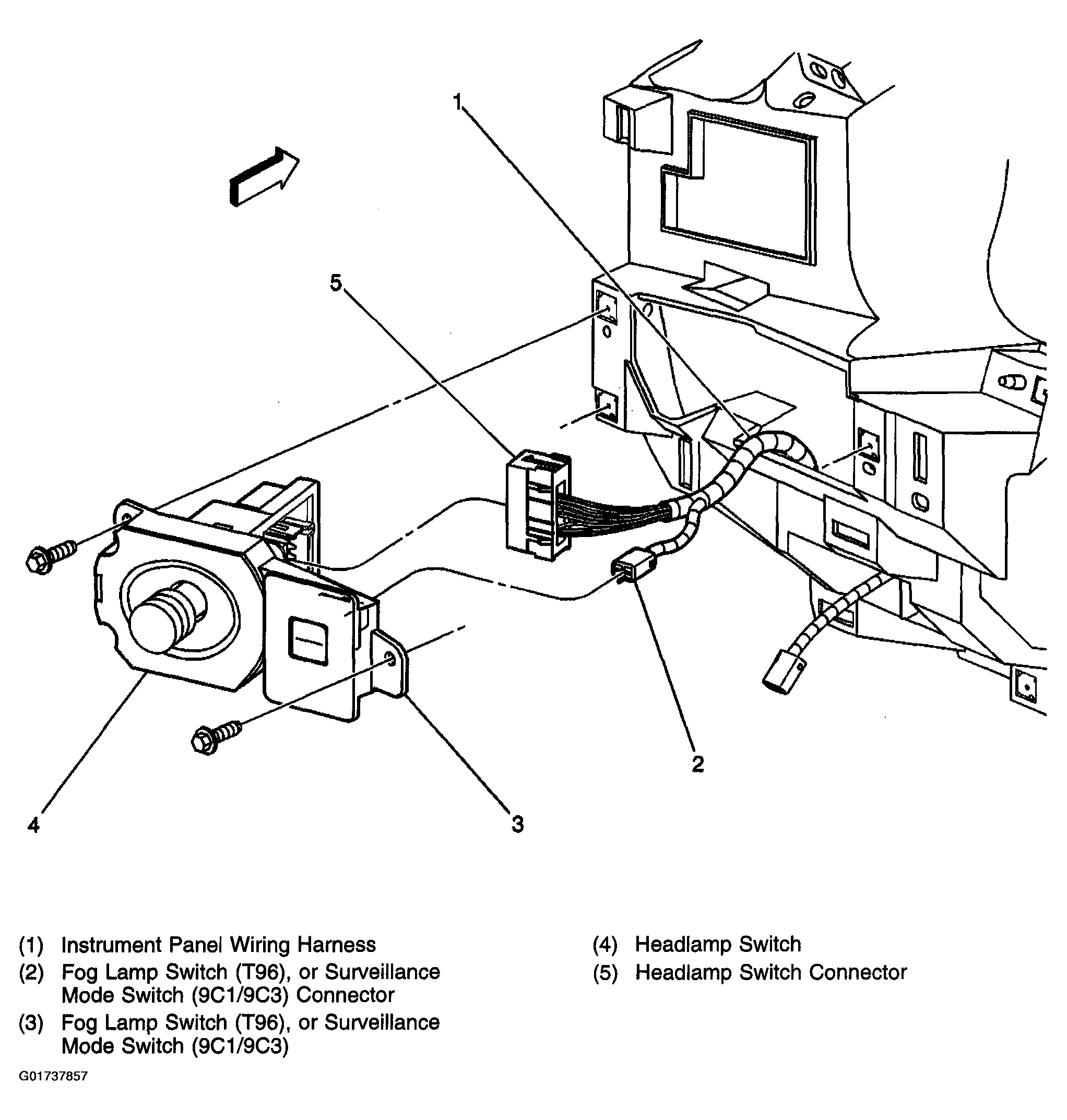

Fig 7: Locating Fog Light Switch & Connectors (Left Front Of Instrument Panel)
G01737857Courtesy of GENERAL MOTORS CORP.

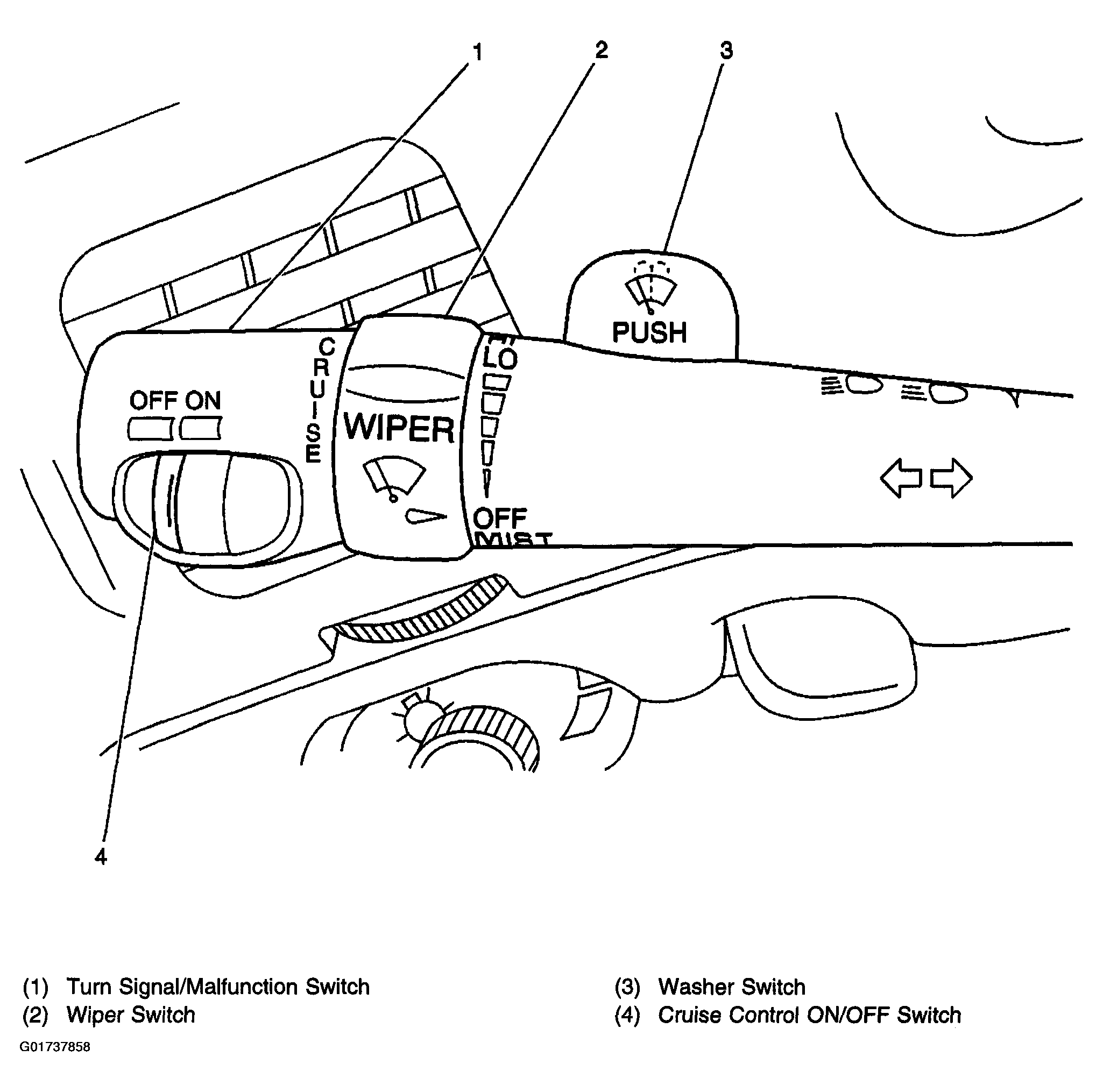

Fig 8: Locating Turn Signal/Multifunction Switch (Impala)
G01737858Courtesy of GENERAL MOTORS CORP.

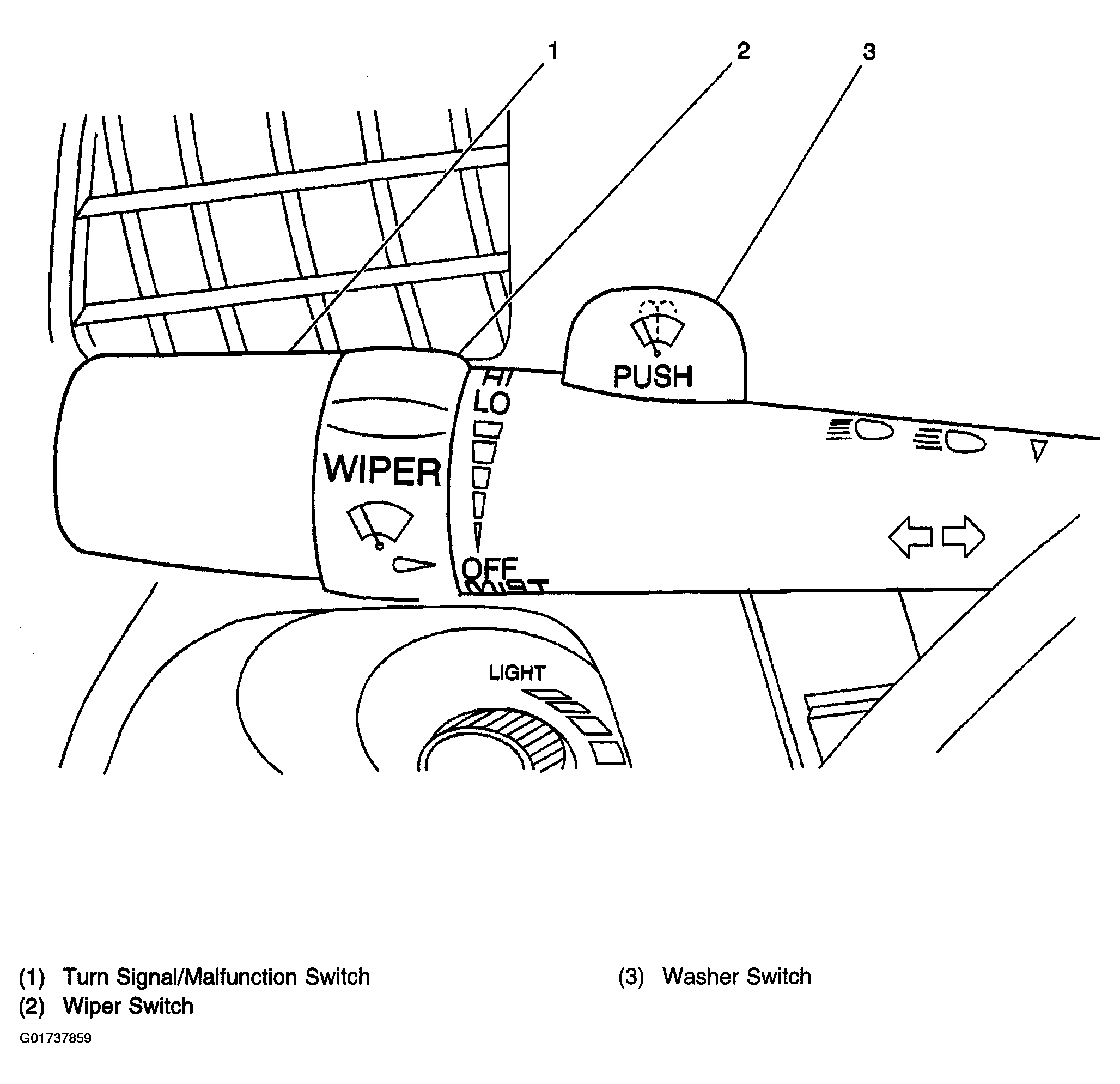

Fig 9: Locating Turn Signal/Multifunction Switch (Monte Carlo)
G01737859Courtesy of GENERAL MOTORS CORP.

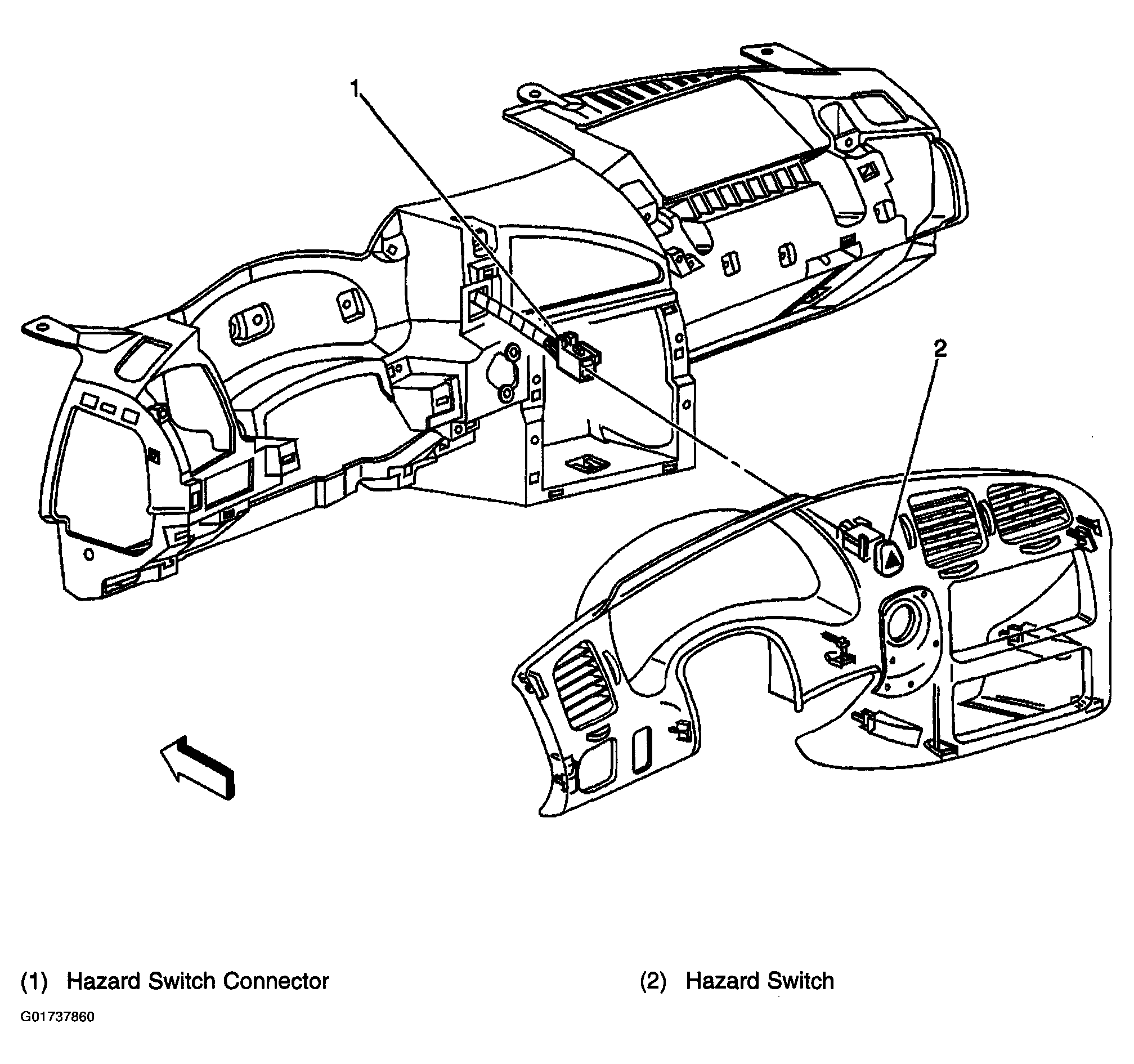

Fig 10: Locating Hazard Switch & Connector (Left Center Of Instrument Panel)
G01737860Courtesy of GENERAL MOTORS CORP.

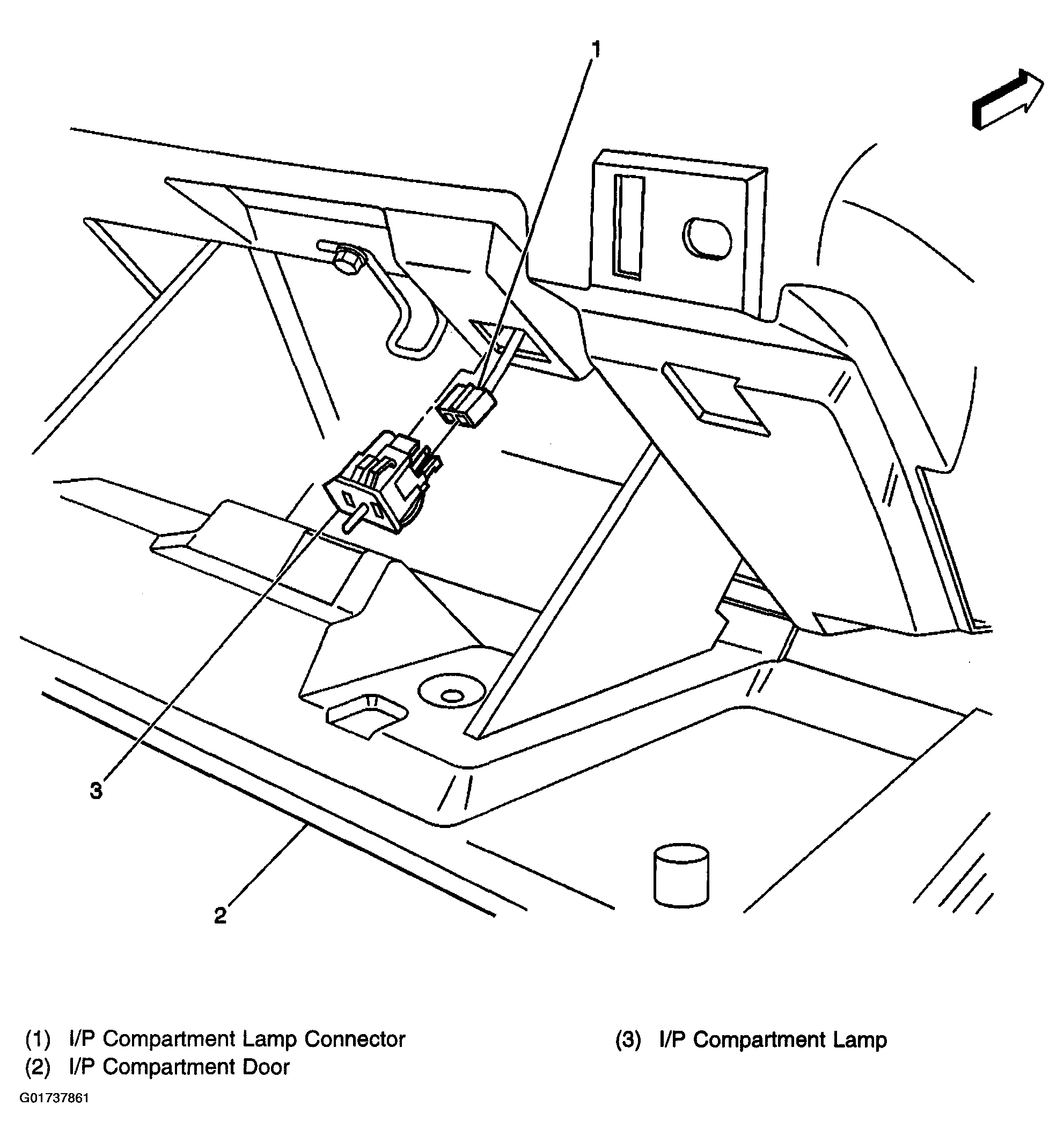

Fig 11: Locating Glove Compartment Lamp
G01737861Courtesy of GENERAL MOTORS CORP.

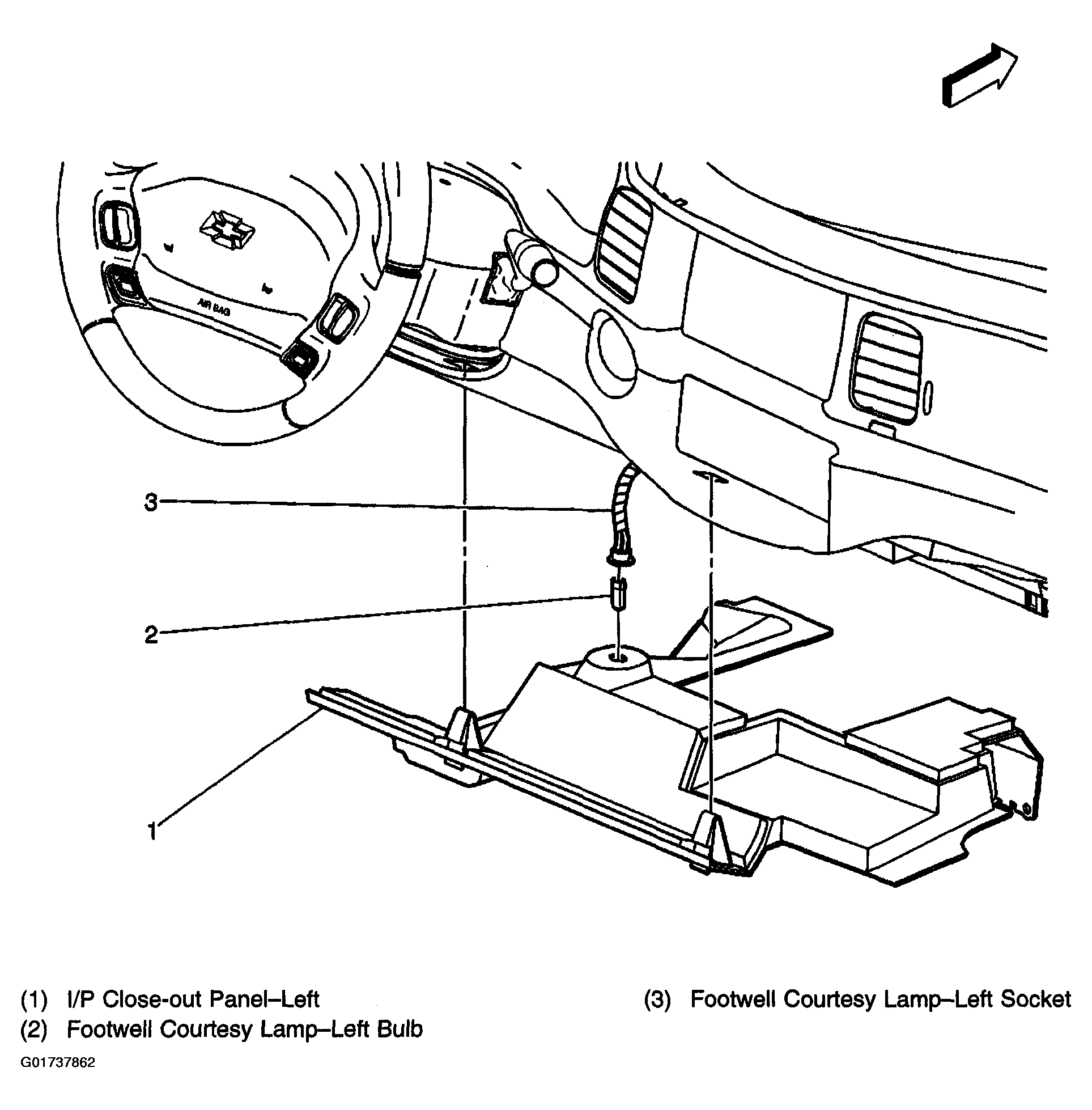

Fig 12: Locating Left Footwell Courtesy Lamp
G01737862Courtesy of GENERAL MOTORS CORP.

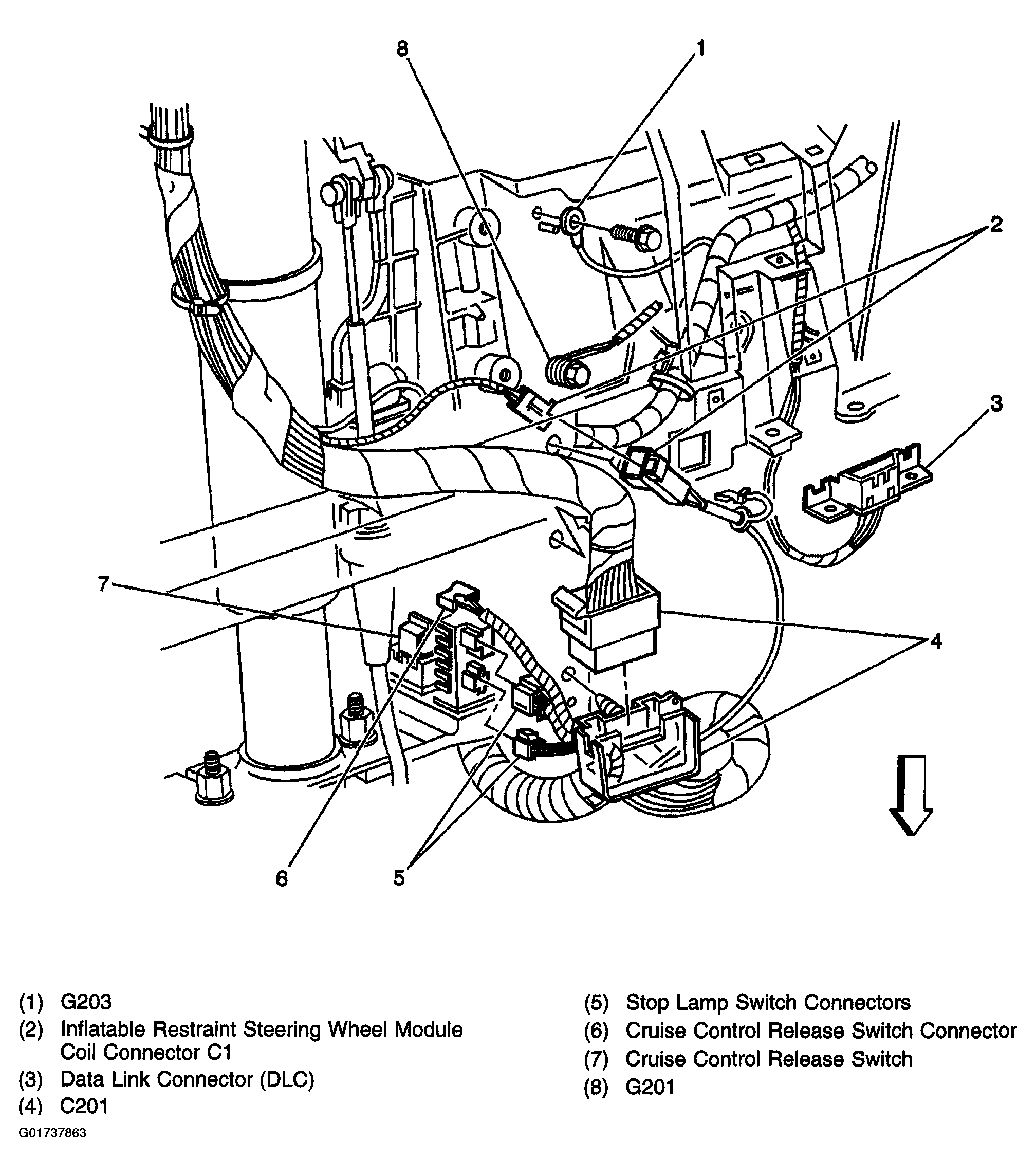

Fig 13: Locating DLC
G01737863Courtesy of GENERAL MOTORS CORP.

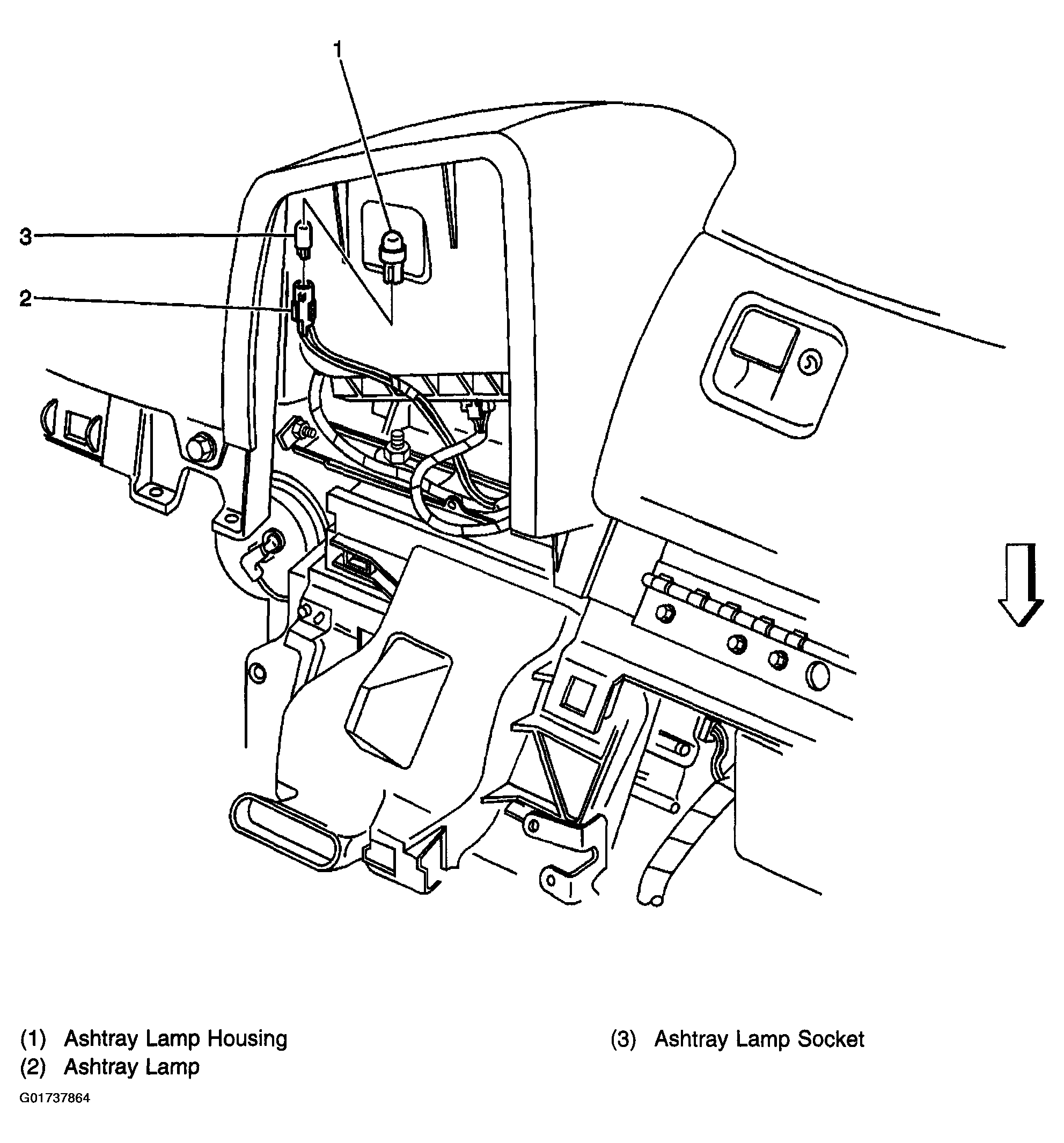

Fig 14: Locating Ashtray Light
G01737864Courtesy of GENERAL MOTORS CORP.

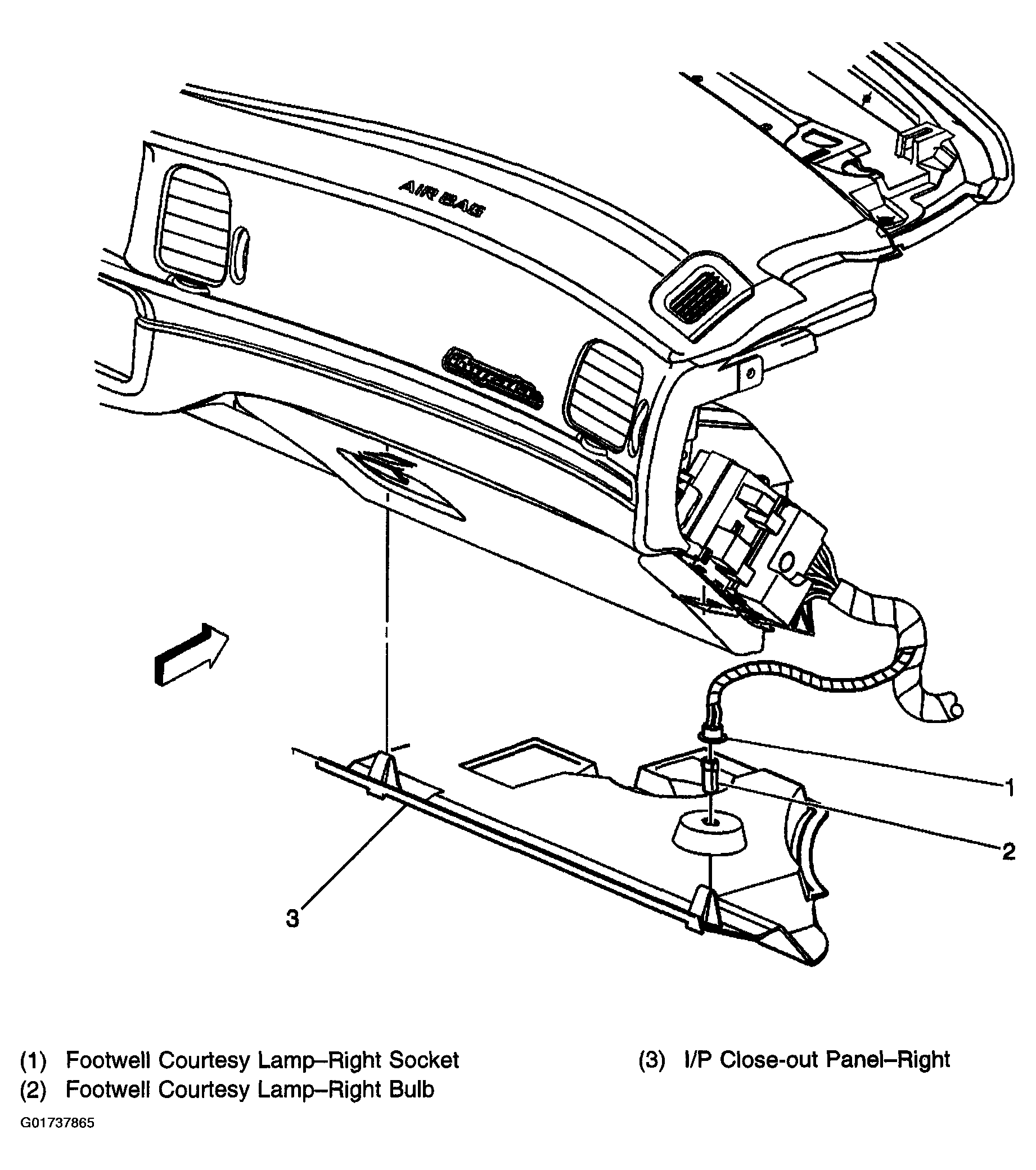

Fig 15: Locating Right Footwell Courtesy Lamp
G01737865Courtesy of GENERAL MOTORS CORP.

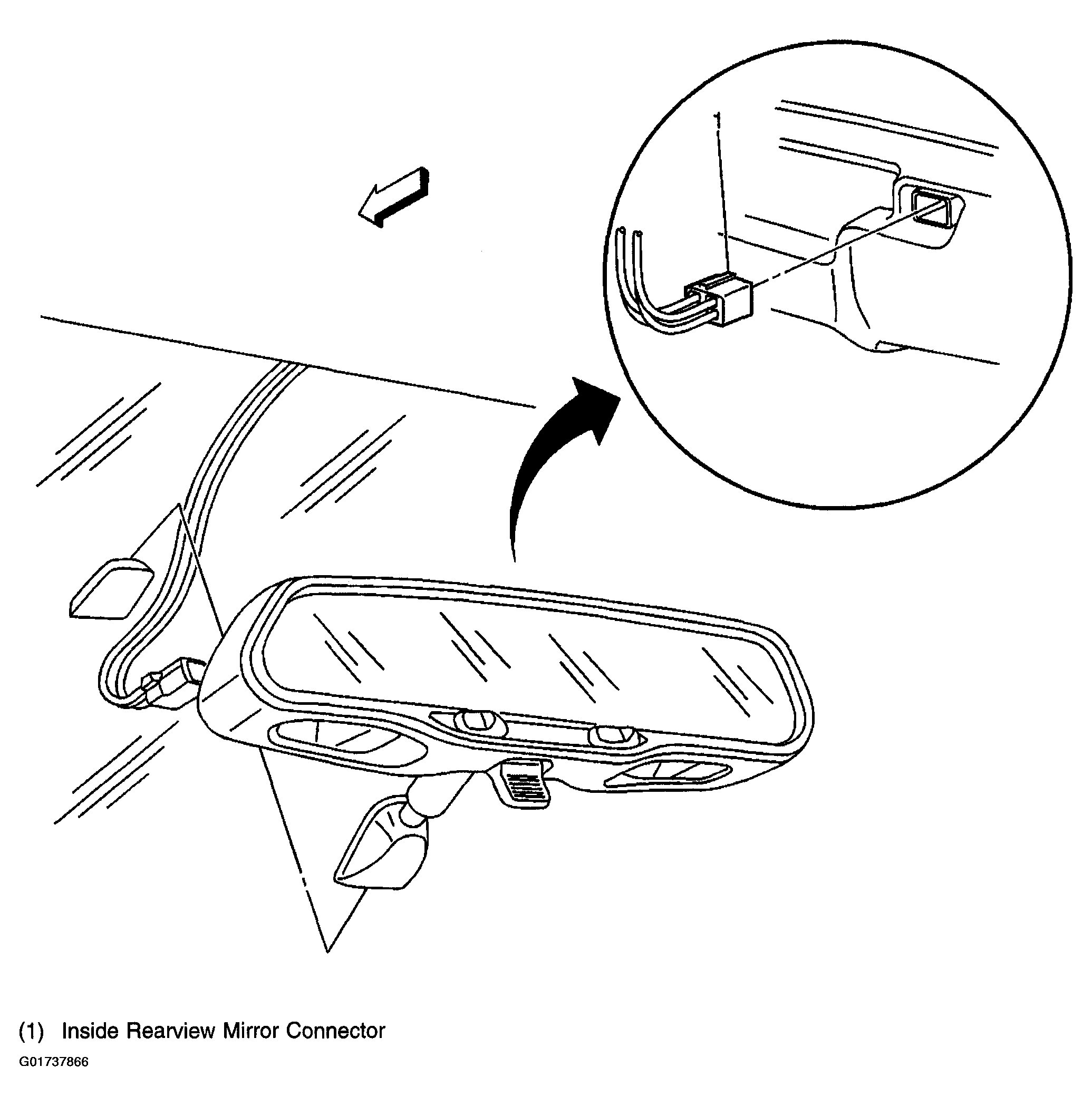

Fig 16: Locating Rear View Mirror & Connector
G01737866Courtesy of GENERAL MOTORS CORP.

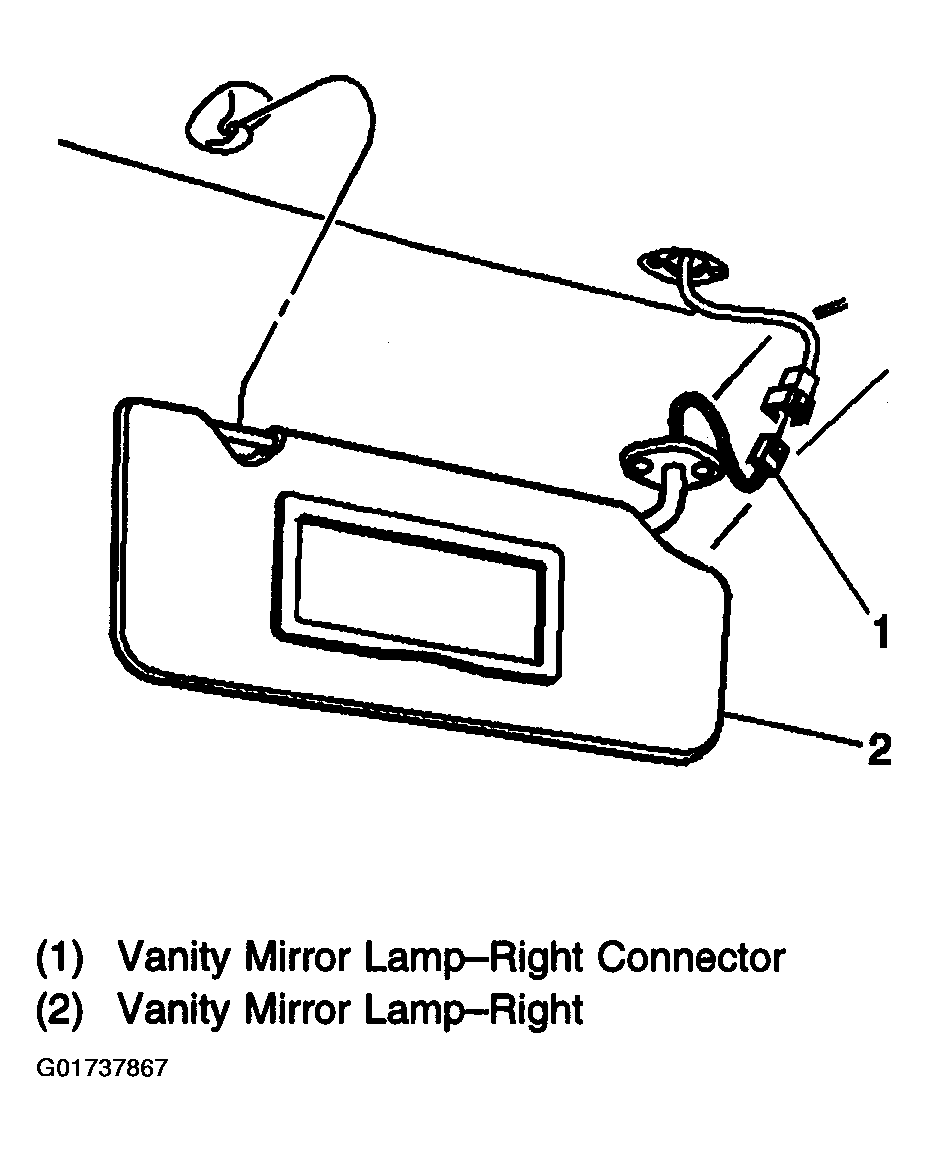

Fig 17: Locating Right Vanity Mirror & Connector
G01737867Courtesy of GENERAL MOTORS CORP.

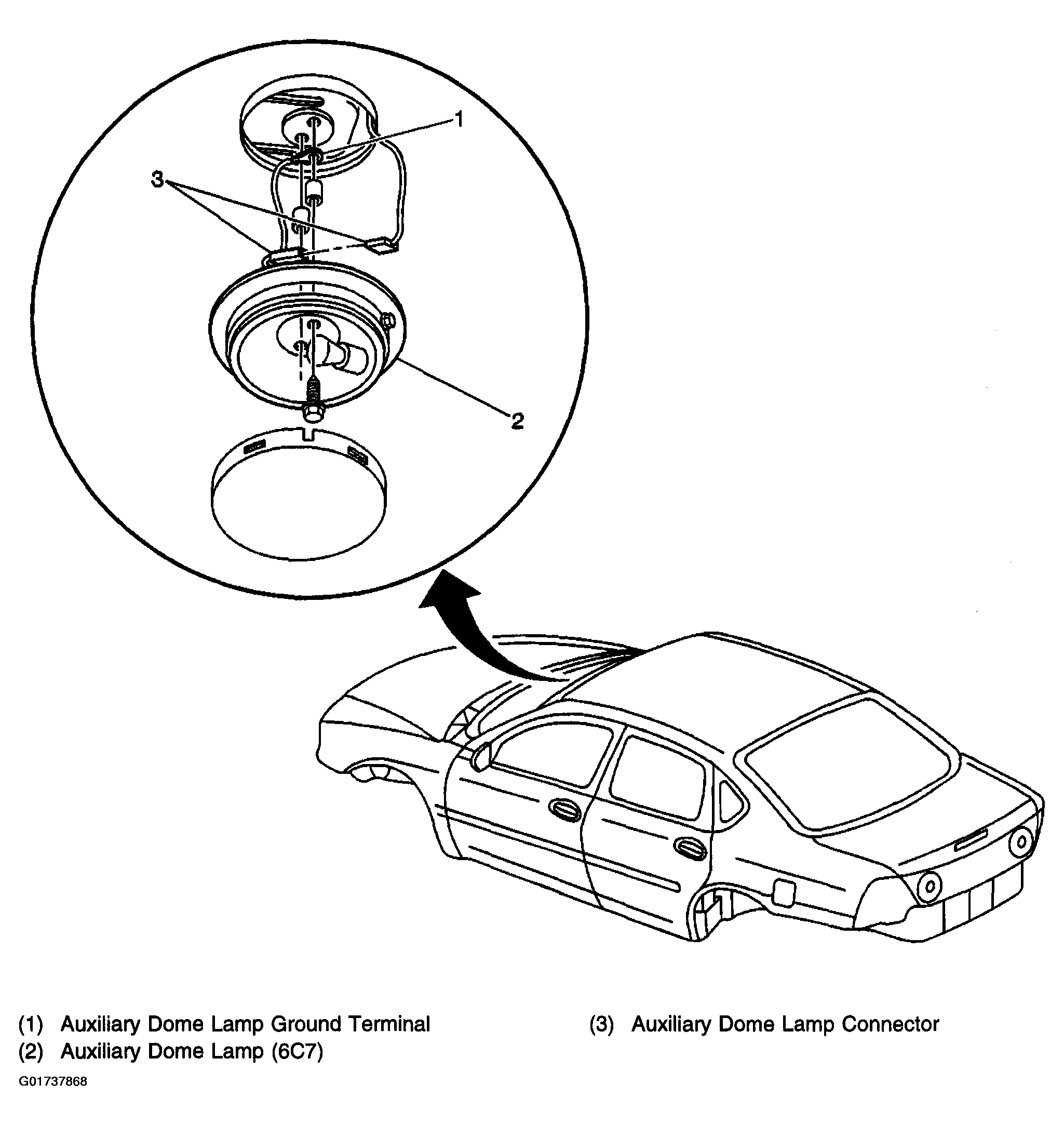

Fig 18: Locating Dome Light & Connector
G01737868Courtesy of GENERAL MOTORS CORP.

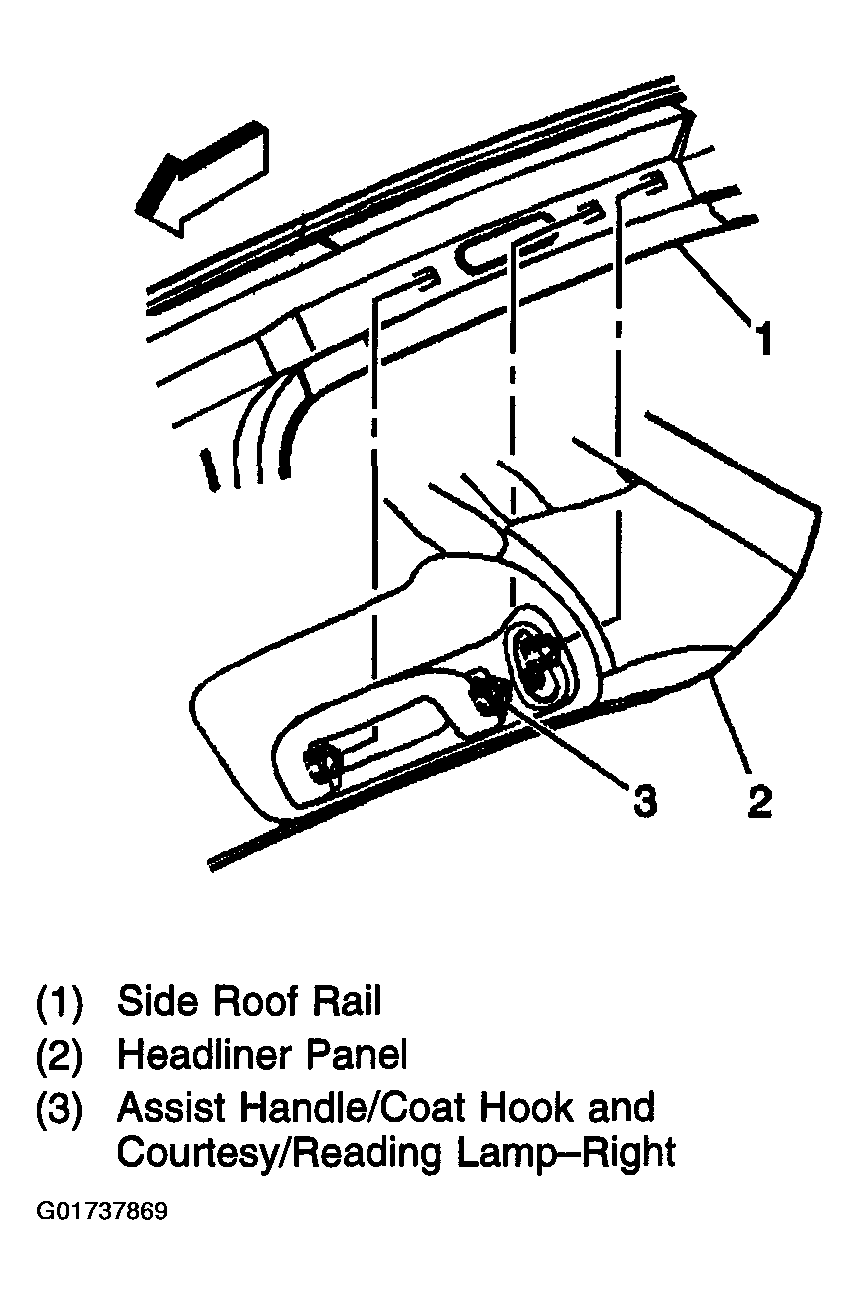

Fig 19: Locating Right Assist Handle Courtesy Lamp
G01737869Courtesy of GENERAL MOTORS CORP.

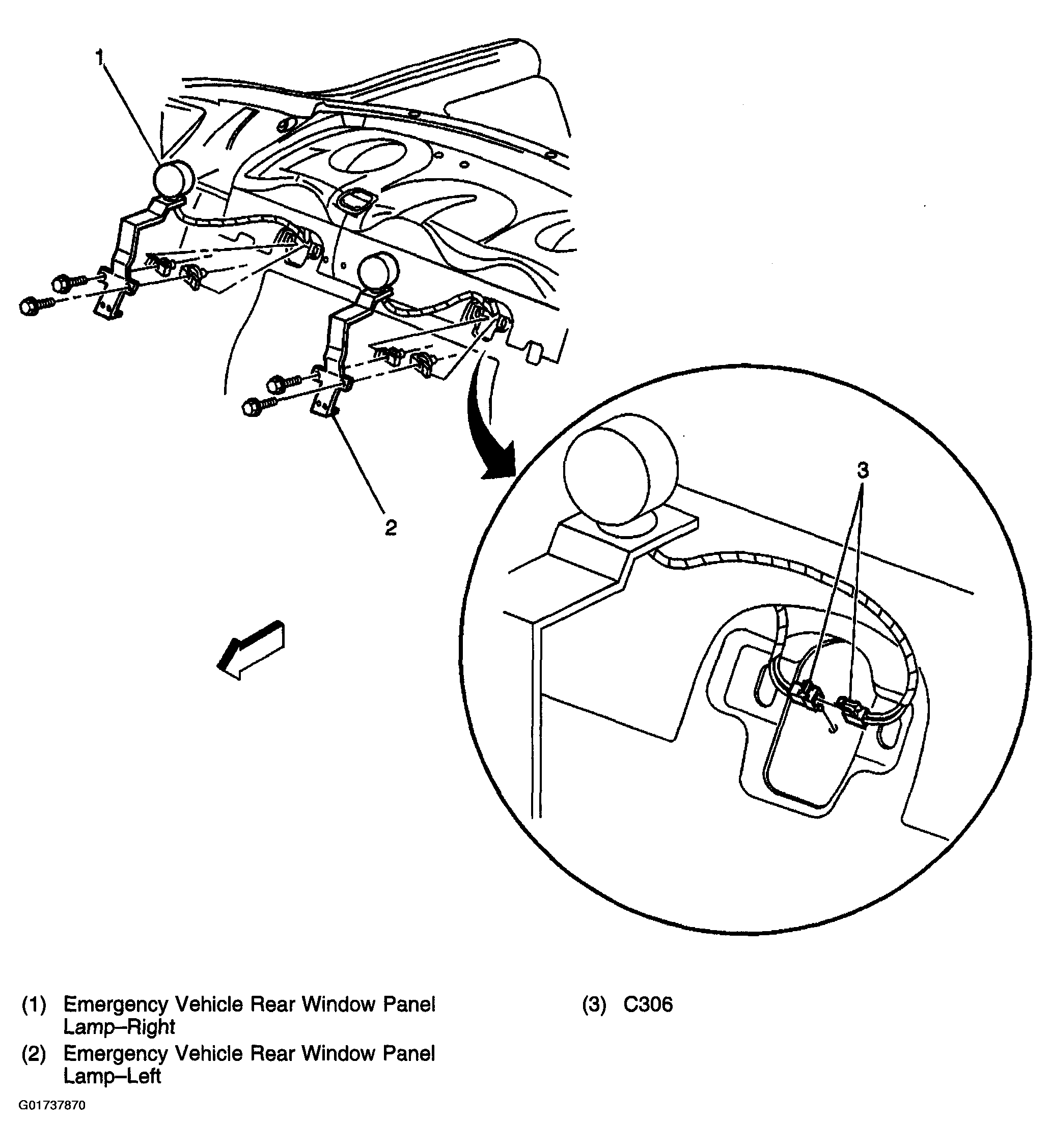

Fig 20: Locating Emergency Vehicle Rear Lamp
G01737870Courtesy of GENERAL MOTORS CORP.

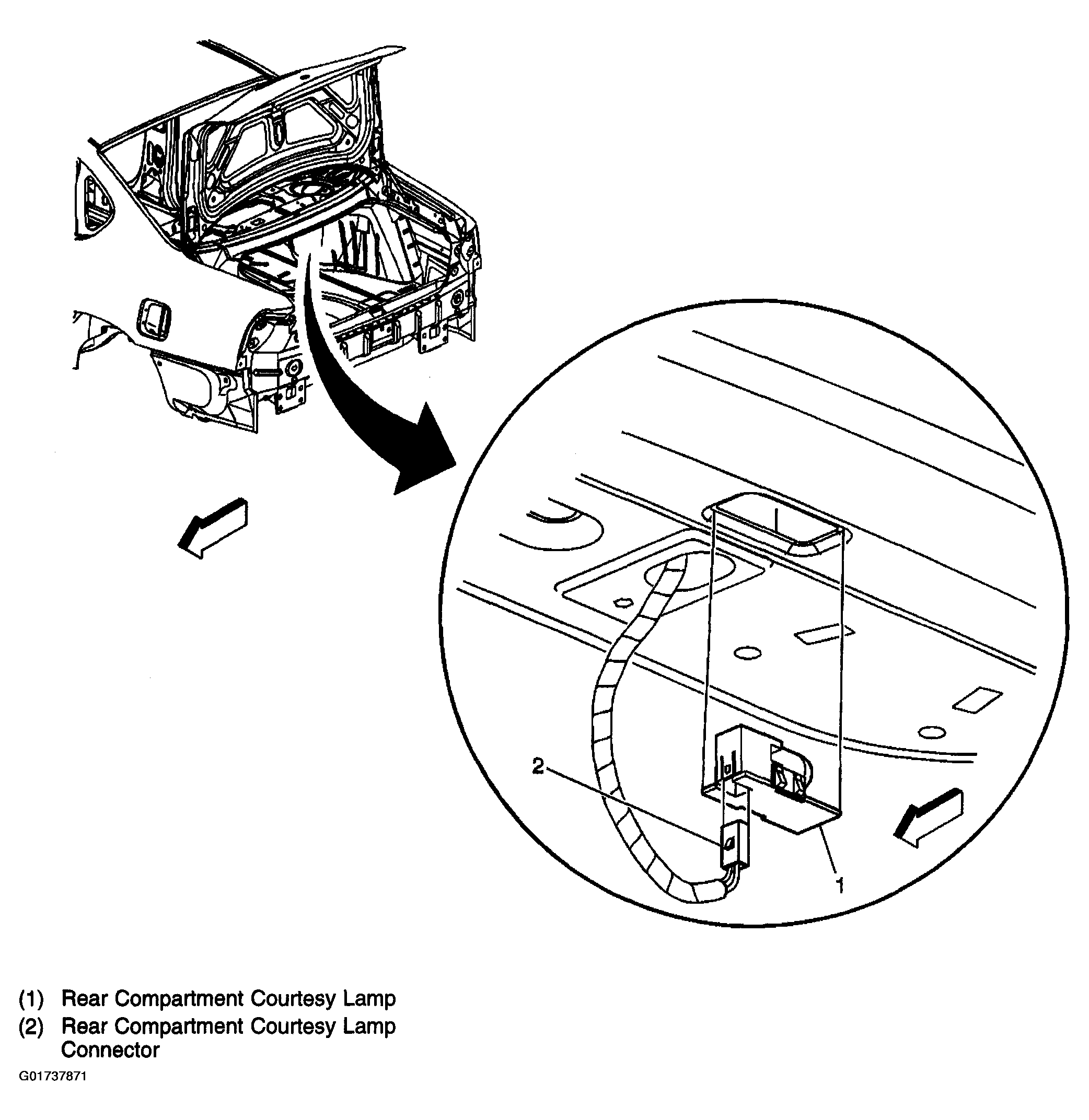

Fig 21: Locating Rear Compartment Courtesy Lamp
G01737871Courtesy of GENERAL MOTORS CORP.

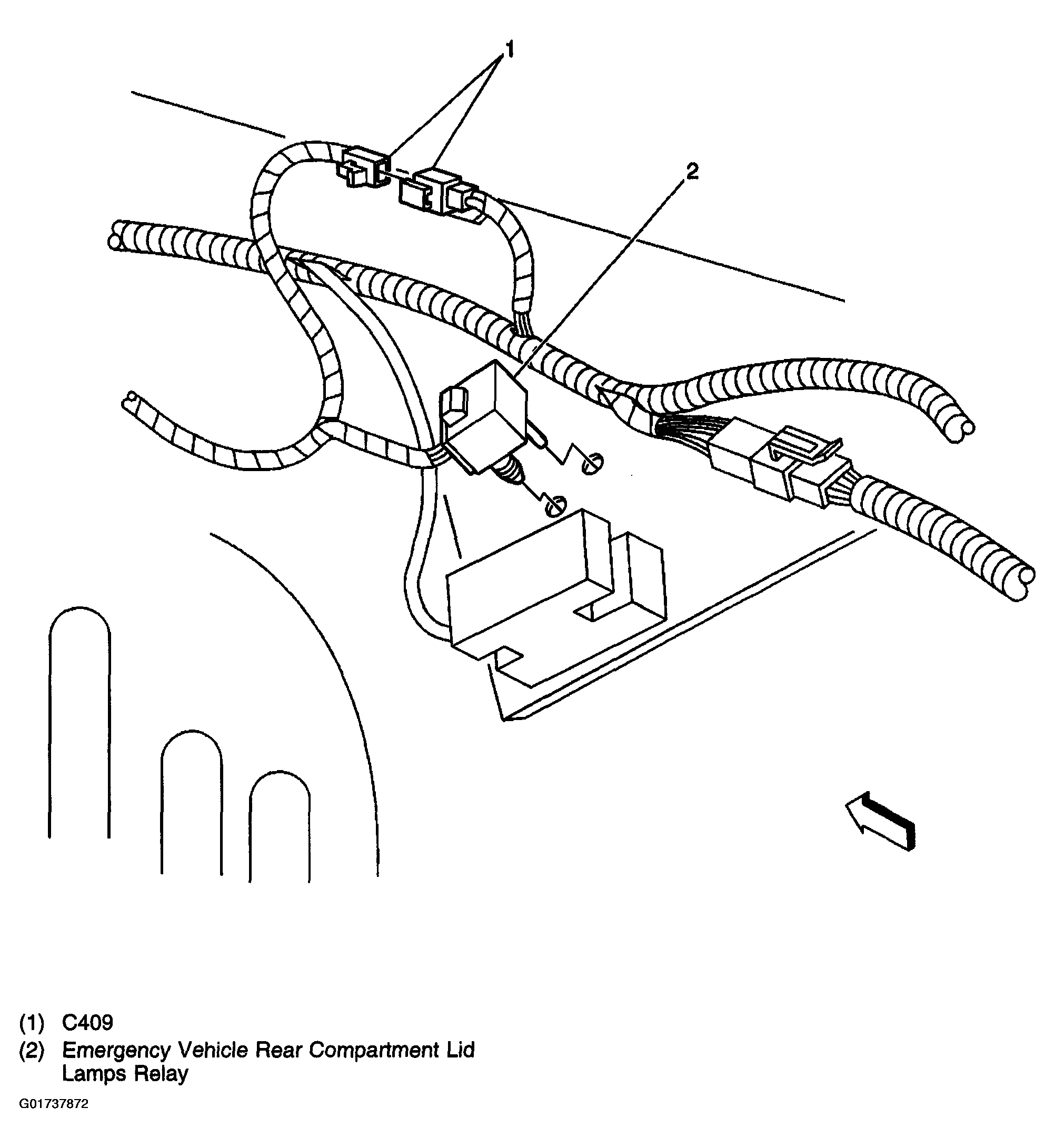

Fig 22: Locating Emergency Vehicle Rear Lamp Relay
G01737872Courtesy of GENERAL MOTORS CORP.

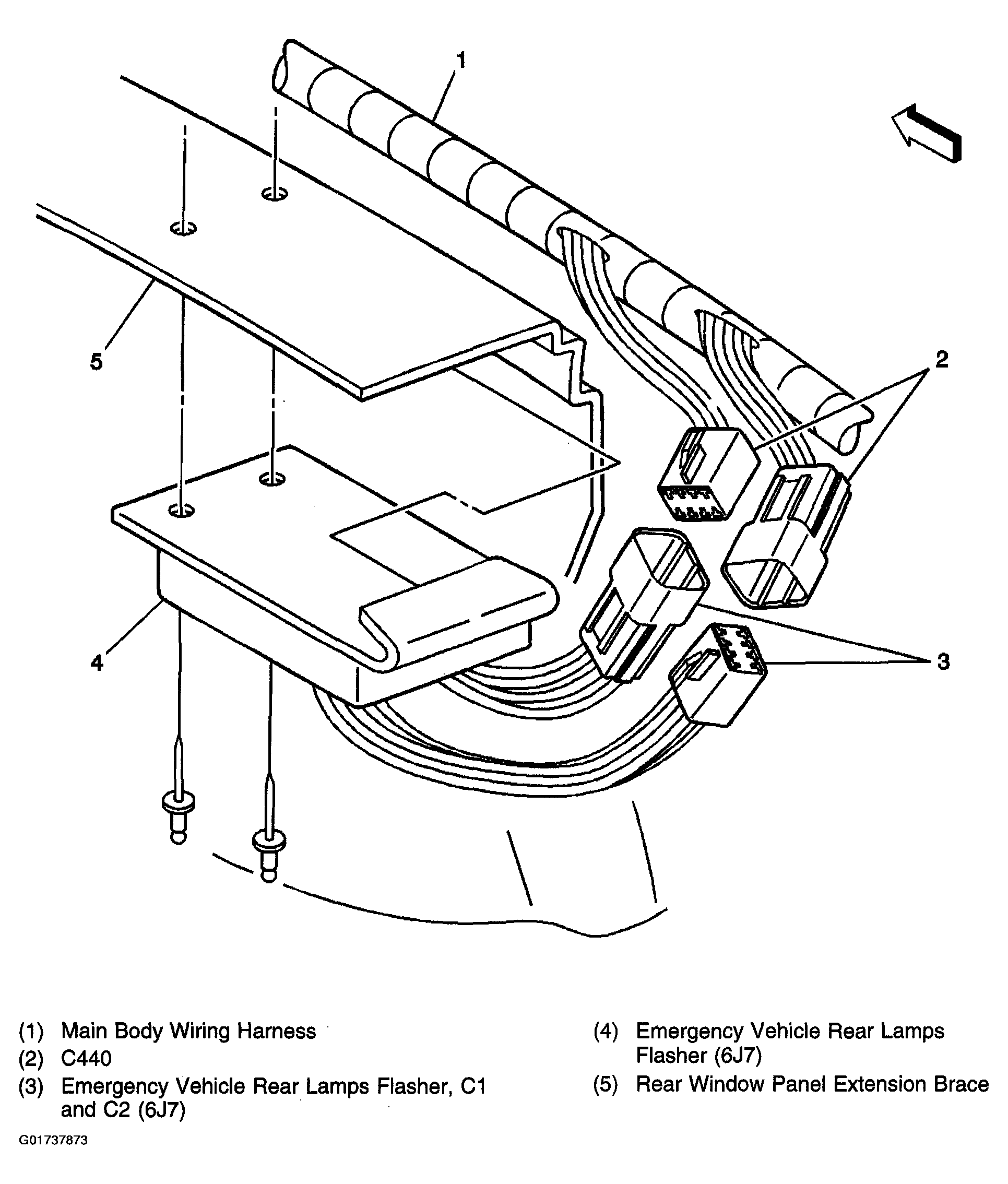

Fig 23: Locating Emergency Vehicle Rear Lamp Flasher
G01737873Courtesy of GENERAL MOTORS CORP.

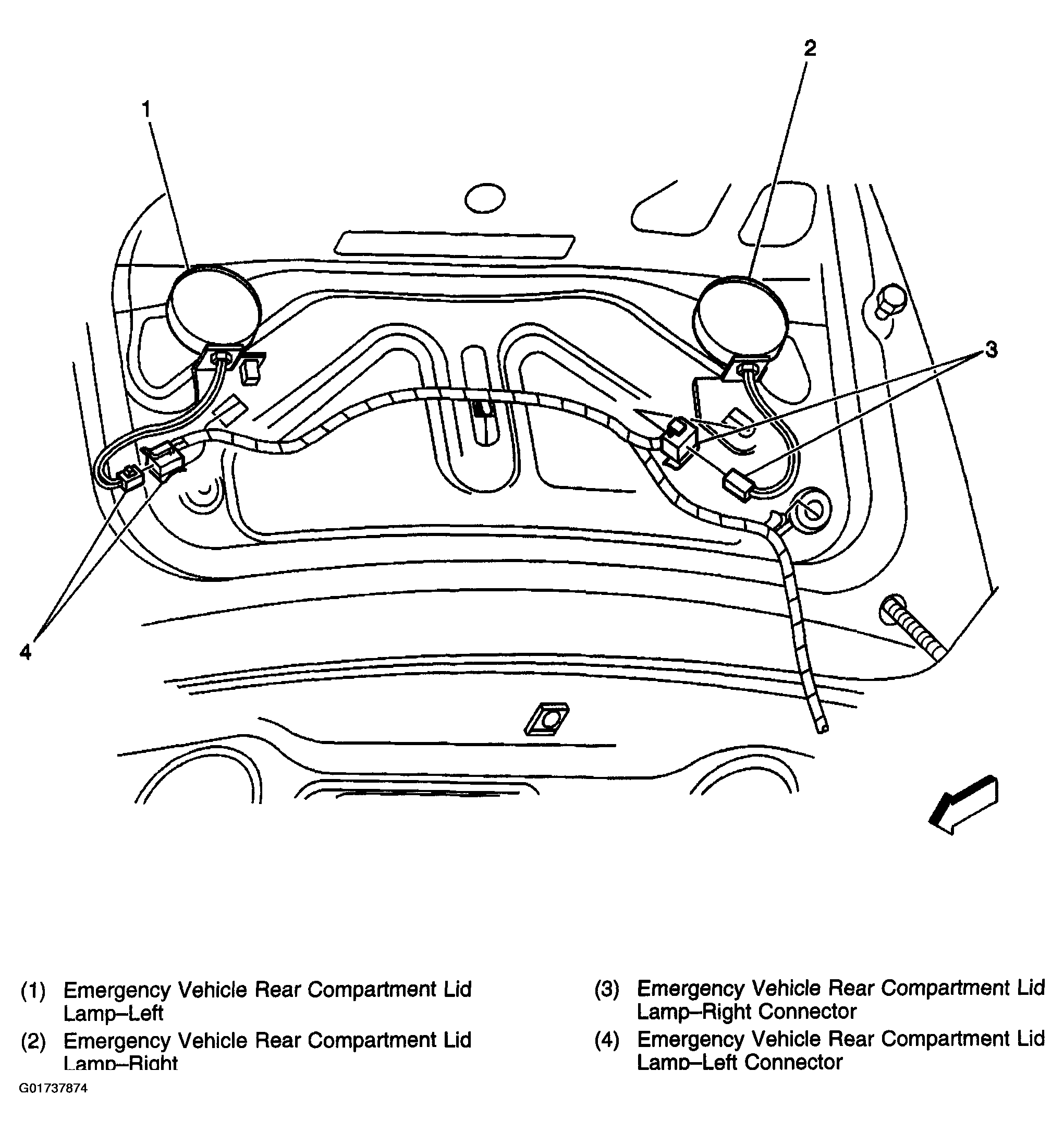

Fig 24: Locating Emergency Vehicle Rear Lid Lamps
G01737874Courtesy of GENERAL MOTORS CORP.

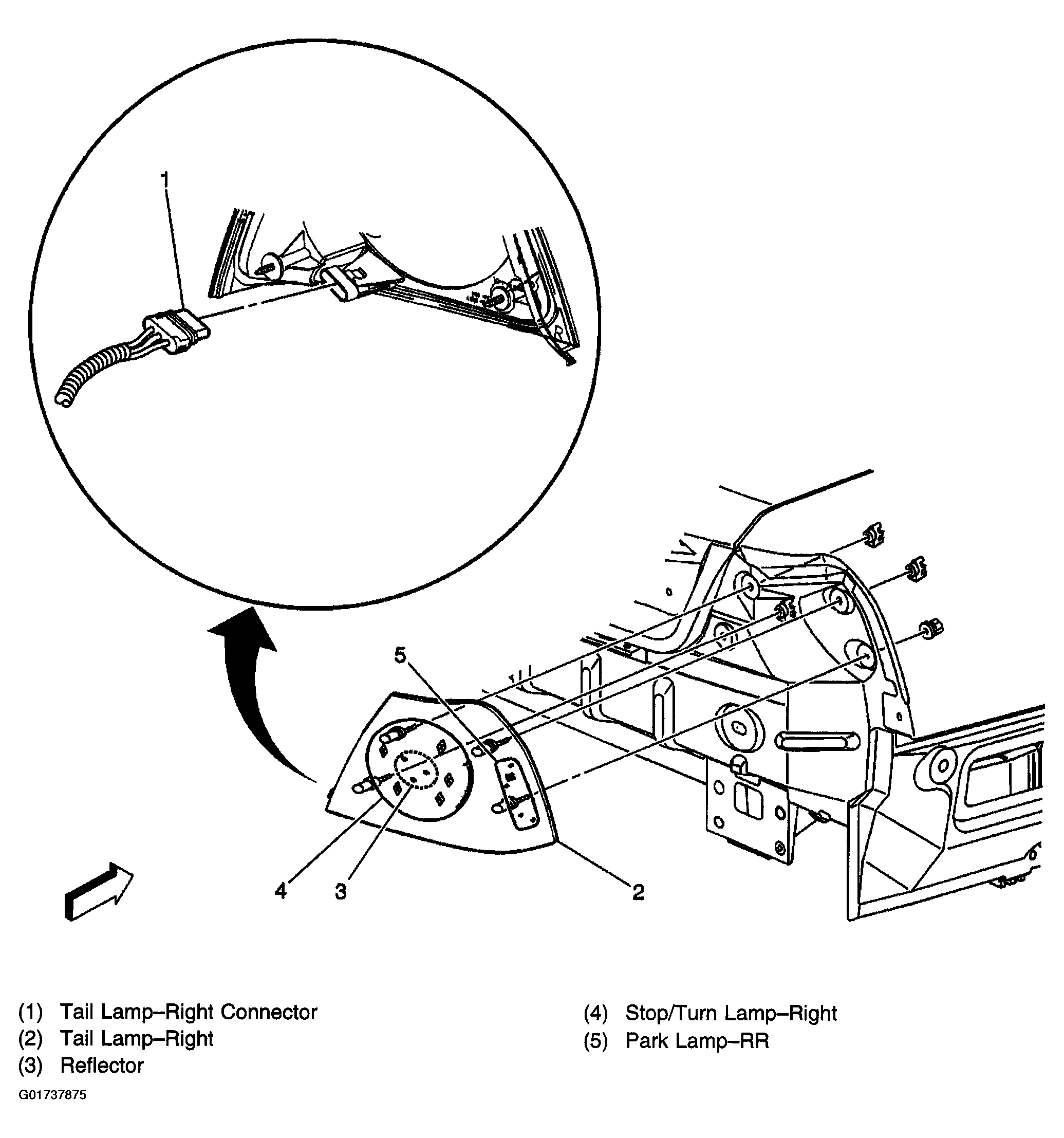

Fig 25: Right Rear Tail Lamp; Left Rear Similar (Impala)
G01737875Courtesy of GENERAL MOTORS CORP.

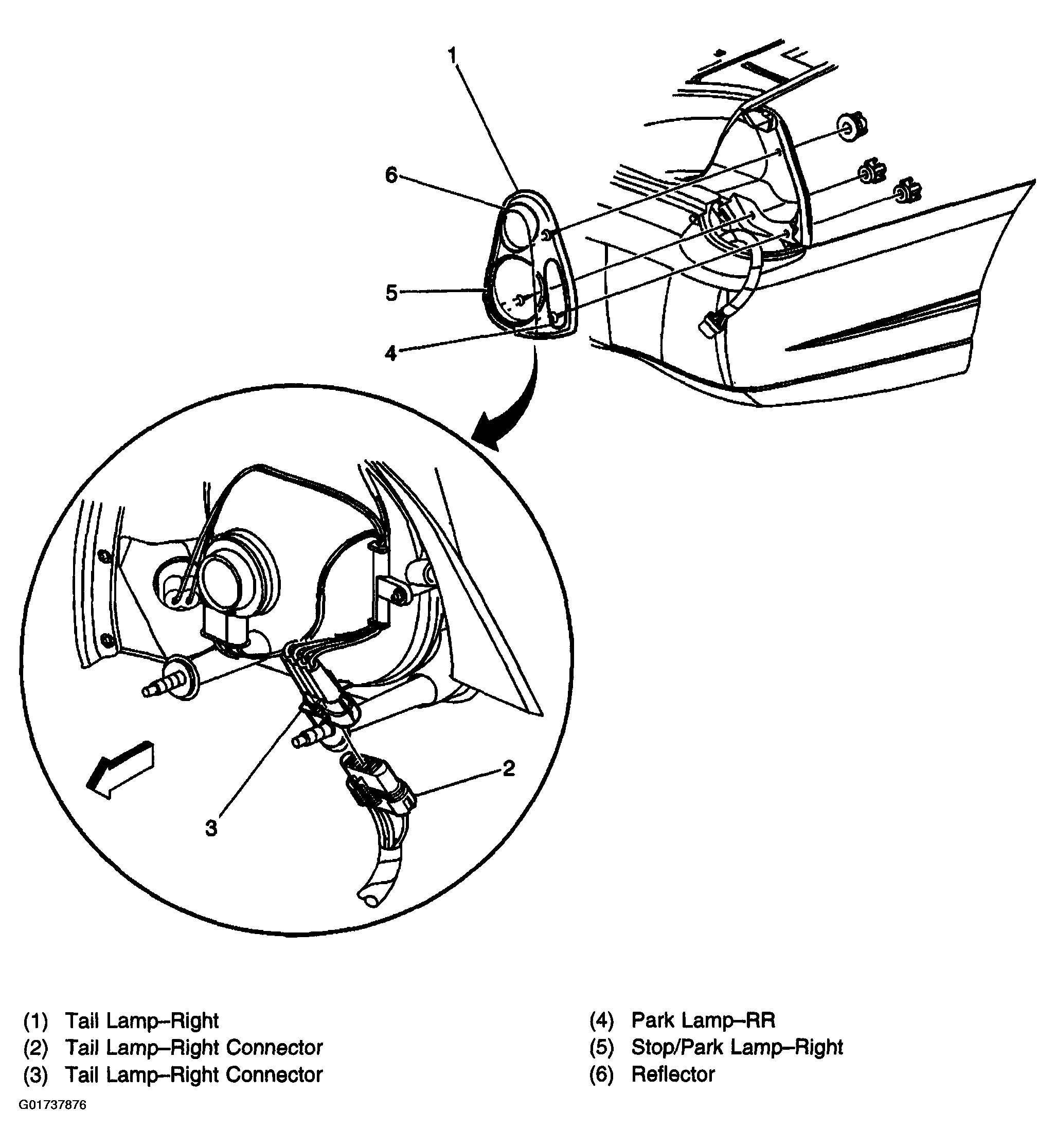

Fig 26: Right Rear Tail Lamp; Left Rear Similar (Monte Carlo)
G01737876Courtesy of GENERAL MOTORS CORP.

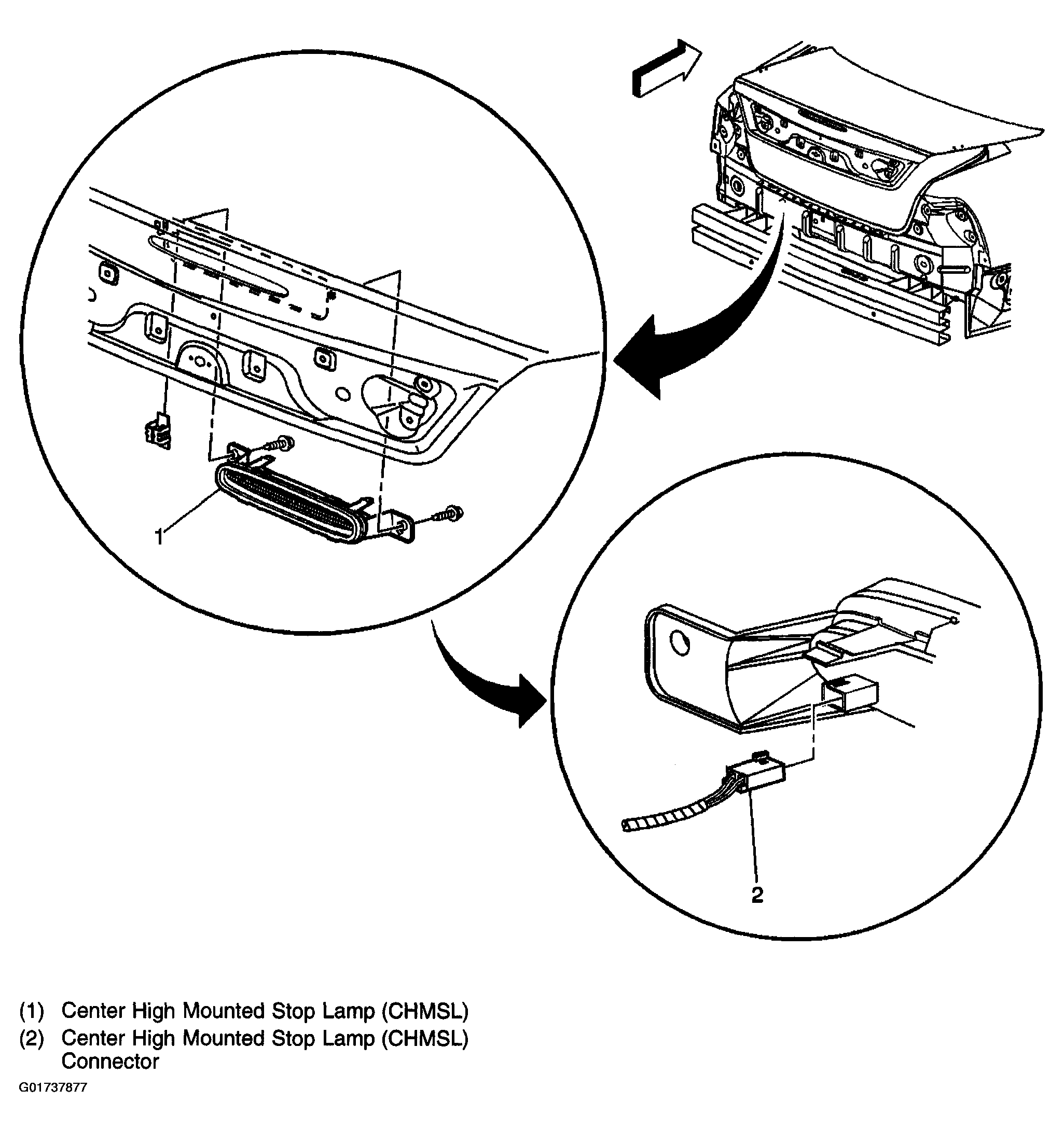

Fig 27: Locating Center High Mounted Stop Lamp
G01737877Courtesy of GENERAL MOTORS CORP.

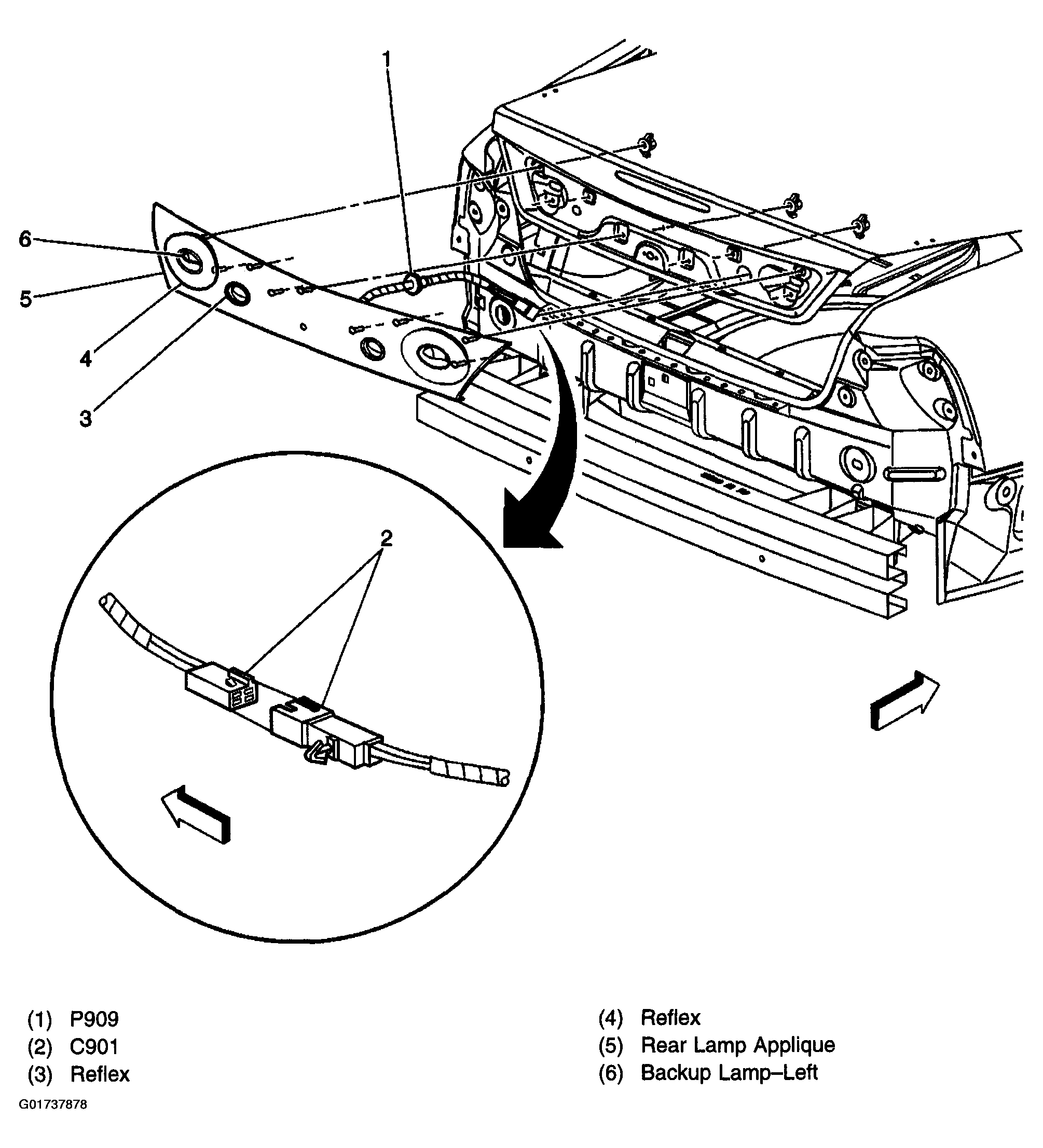

Fig 28: Locating Rear Applique Lamp (Impala)
G01737878Courtesy of GENERAL MOTORS CORP.

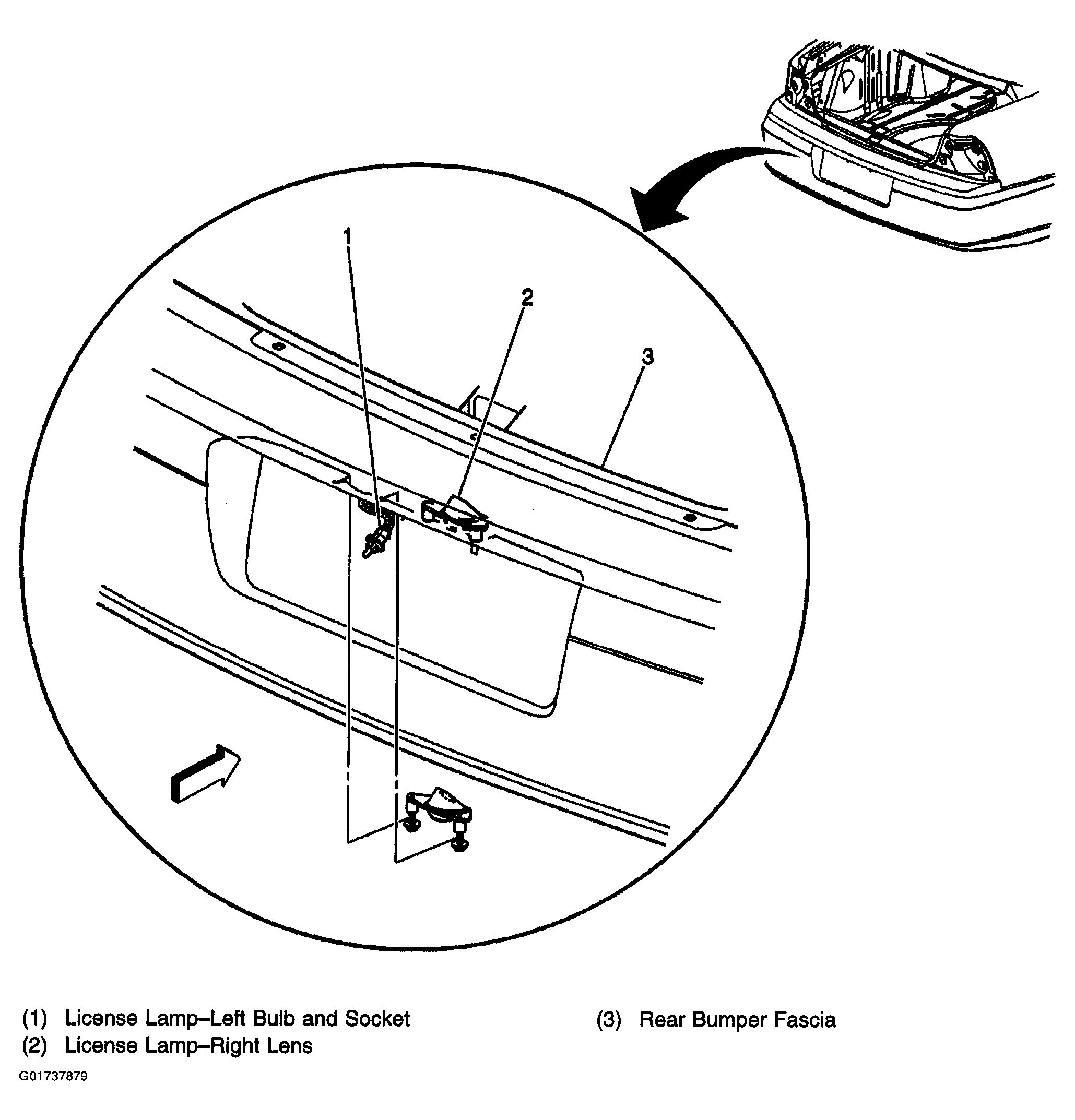

Fig 29: Locating License Plate Lamps (Impala)
G01737879Courtesy of GENERAL MOTORS CORP.

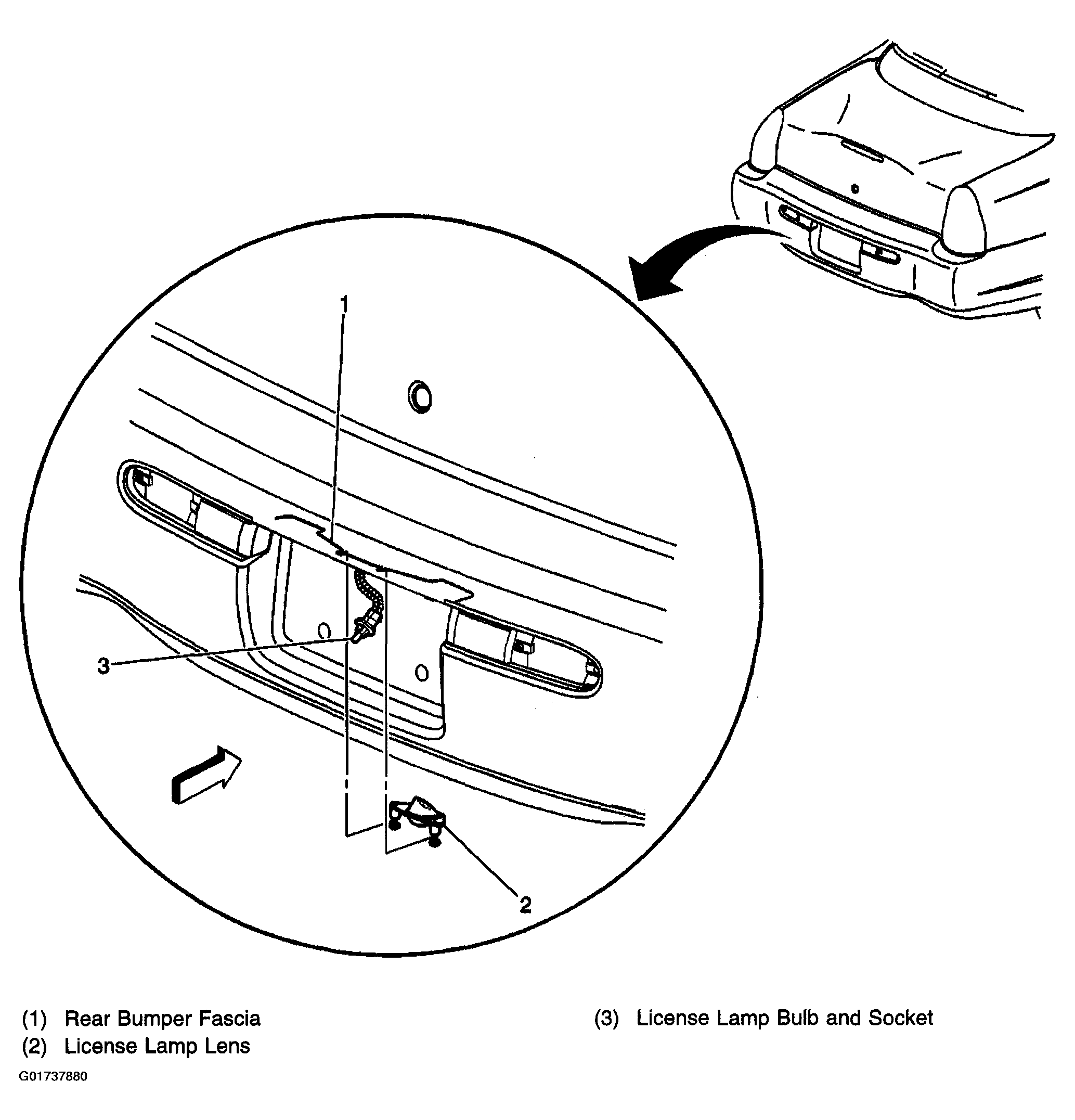

Fig 30: Locating License Plate Lamps (Monte Carlo)
G01737880Courtesy of GENERAL MOTORS CORP.

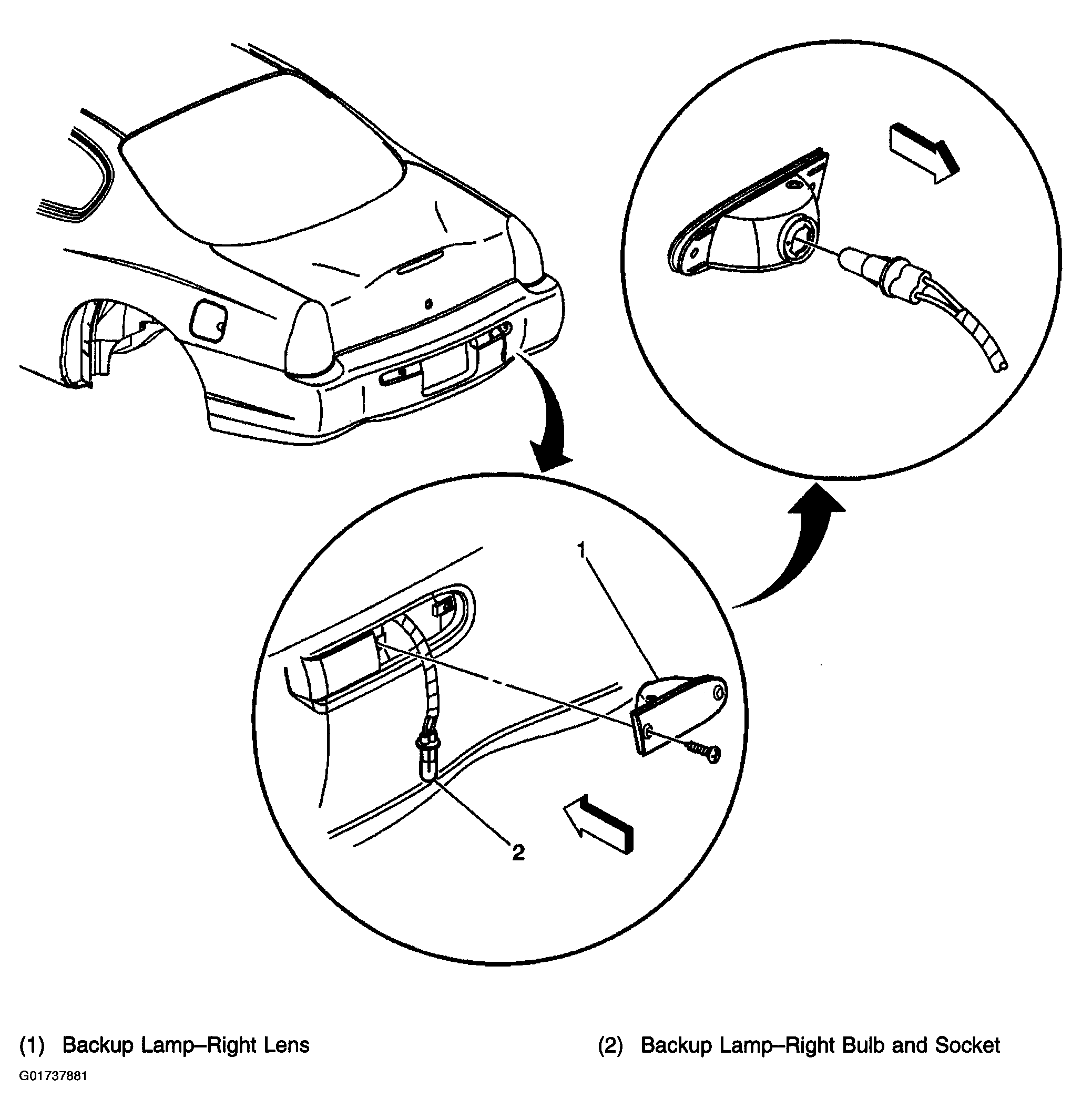

Fig 31: Locating Backup Lamps (Monte Carlo)
G01737881Courtesy of GENERAL MOTORS CORP.
