Lighting Systems Connector End Views

Fig 1: Identifying Ambient Light Sensor Connector Terminals
G01737882Courtesy of GENERAL MOTORS CORP.

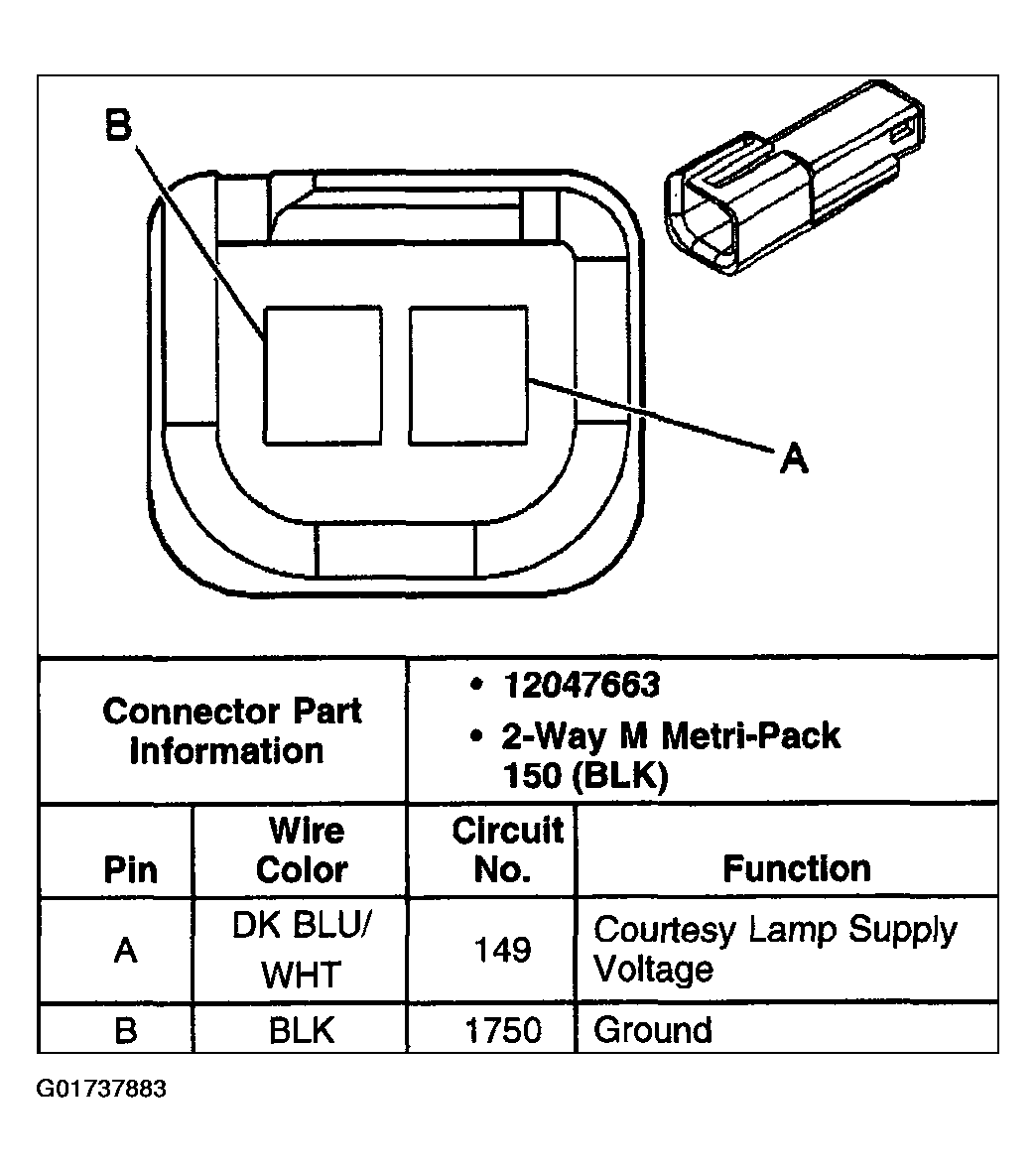

Fig 2: Identifying Auxiliary Dome Lamp Connector Terminals
G01737883Courtesy of GENERAL MOTORS CORP.

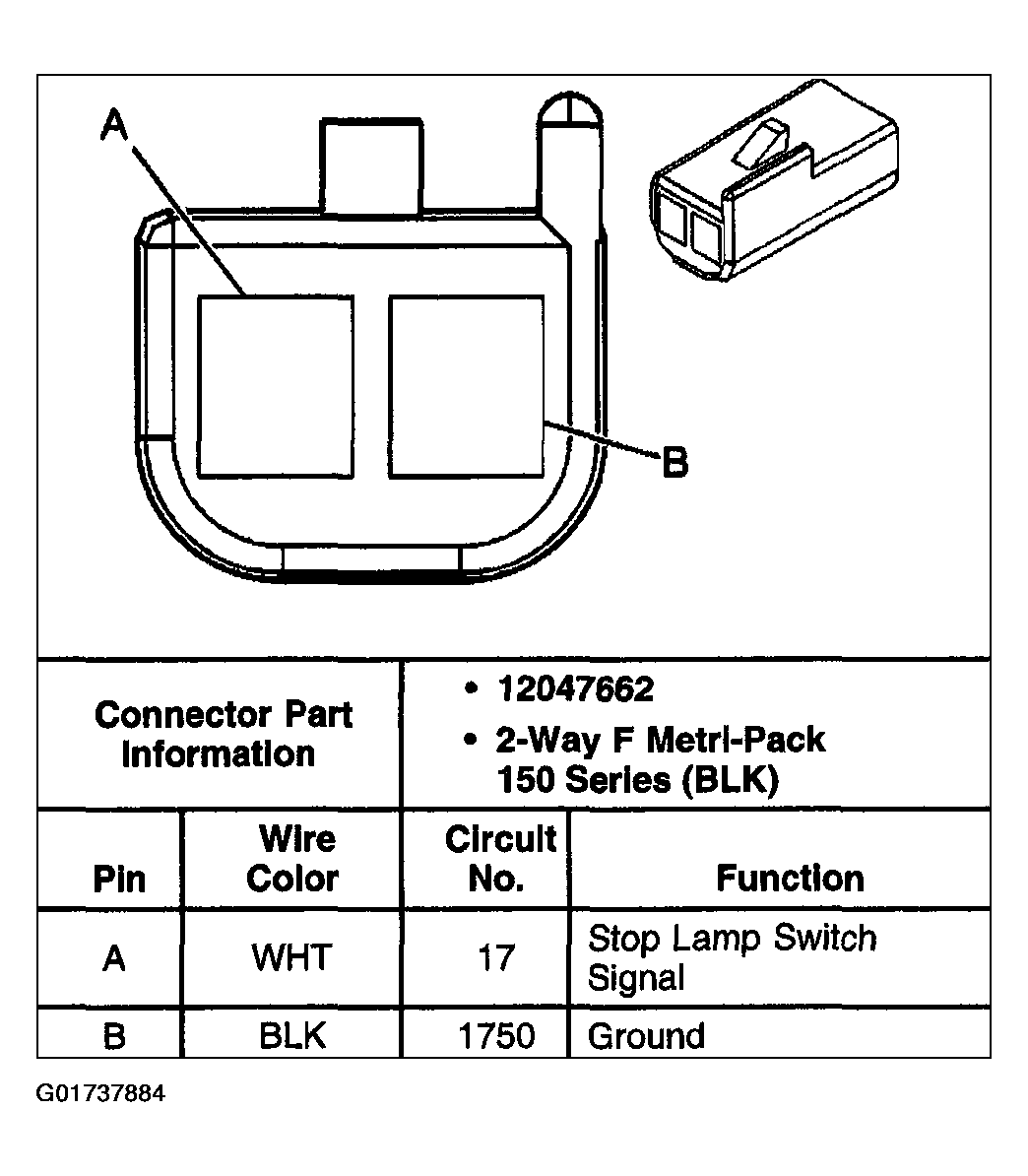

Fig 3: Identifying Center High Mounted Stop Lamp (CHMSL) Connector Terminals
G01737884Courtesy of GENERAL MOTORS CORP.

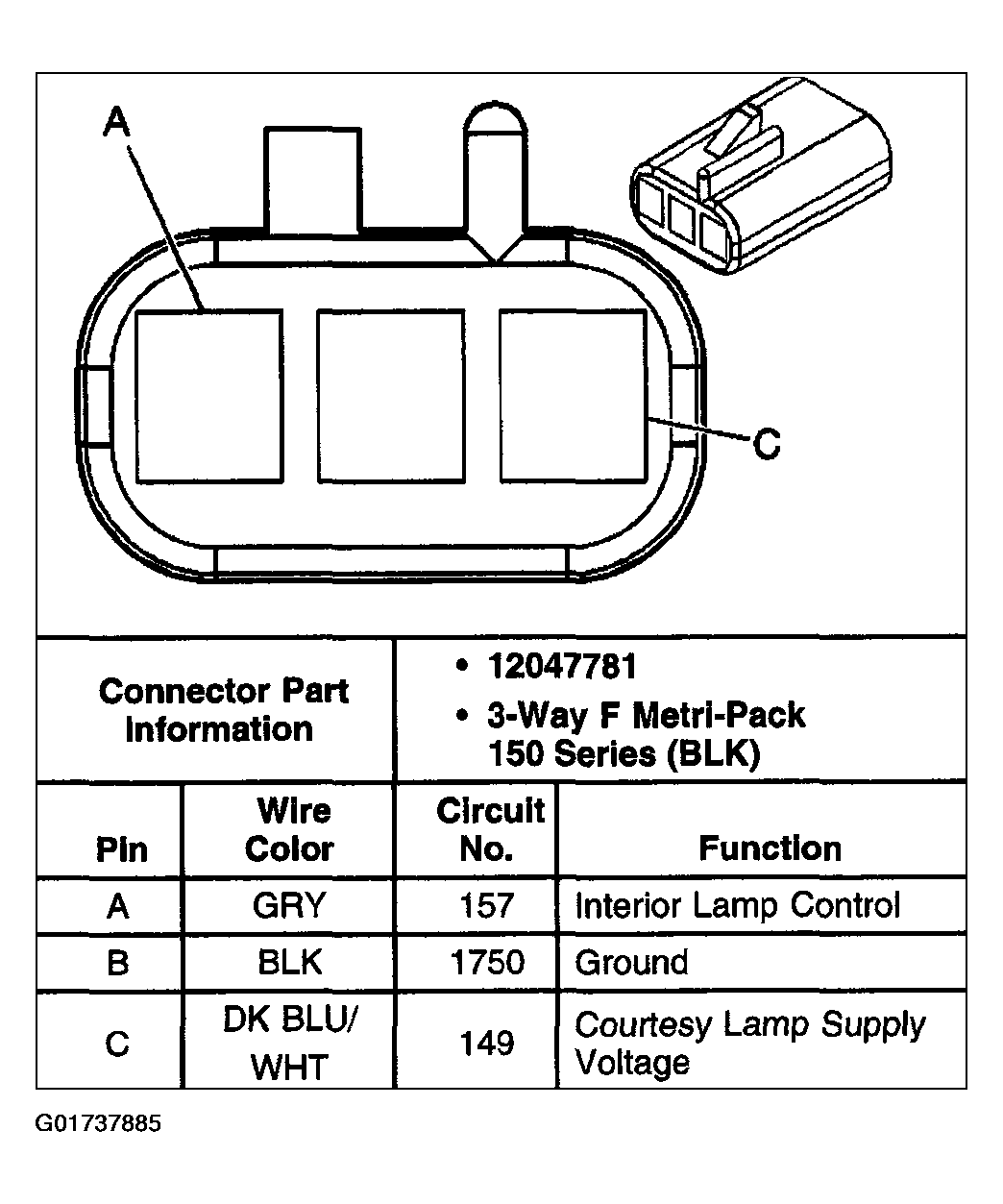

Fig 4: Identifying Courtesy/Reading Lamp (Left) Connector Terminals
G01737885Courtesy of GENERAL MOTORS CORP.

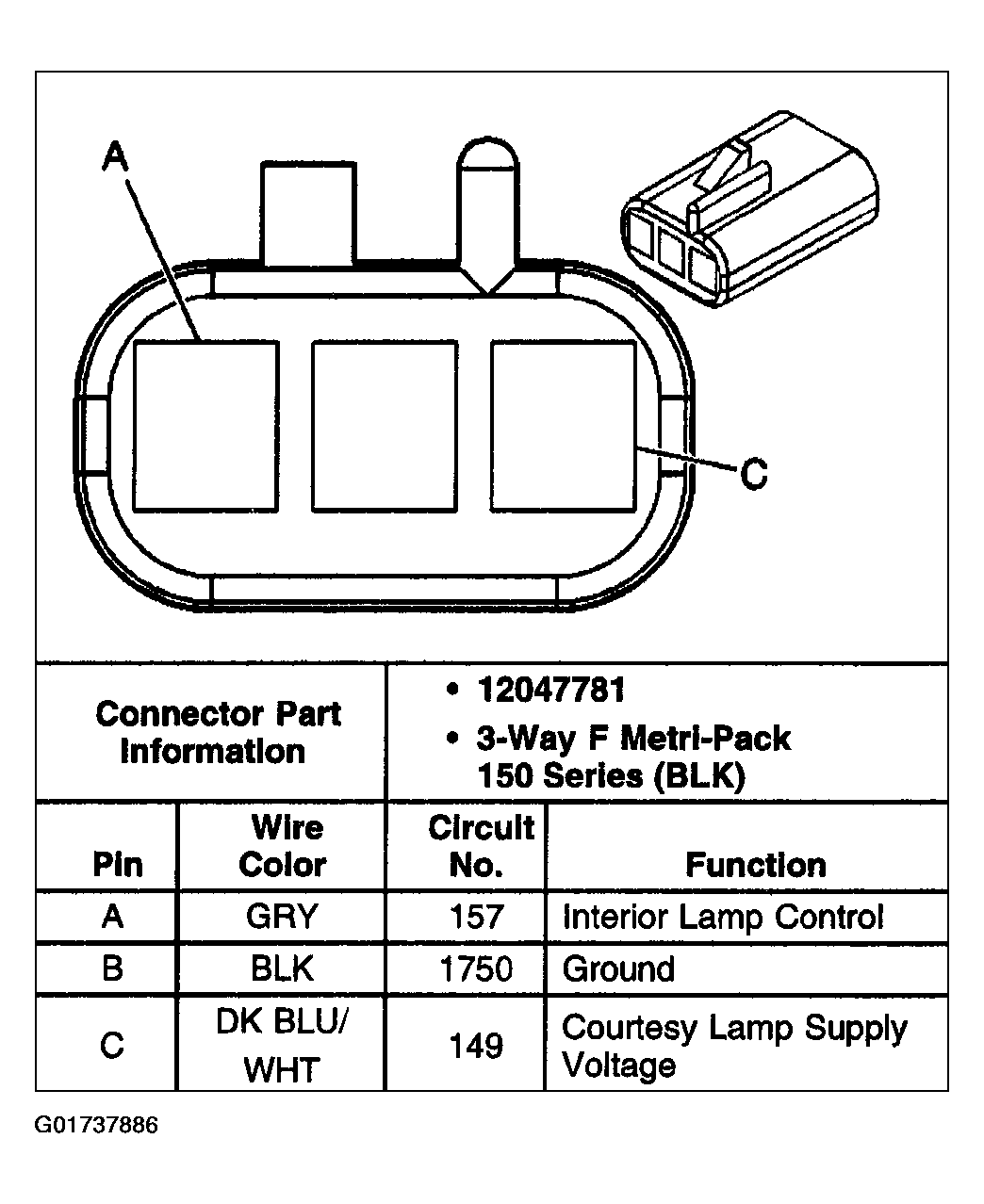

Fig 5: Identifying Courtesy/Reading Lamp (Right) Connector Terminals
G01737886Courtesy of GENERAL MOTORS CORP.

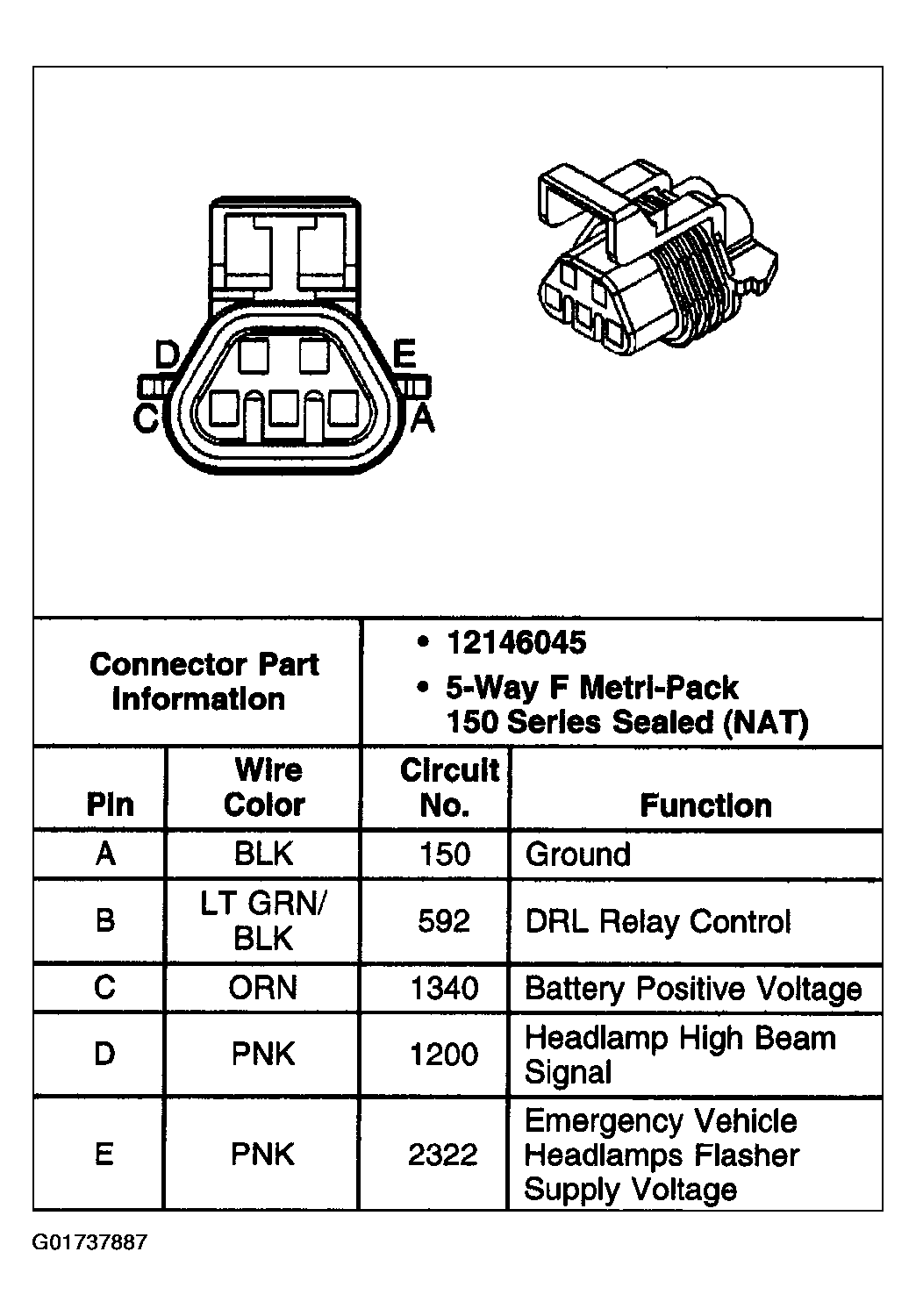

Fig 6: Identifying Emergency Vehicle Headlamp Flasher, C1 Connector Terminals
G01737887Courtesy of GENERAL MOTORS CORP.

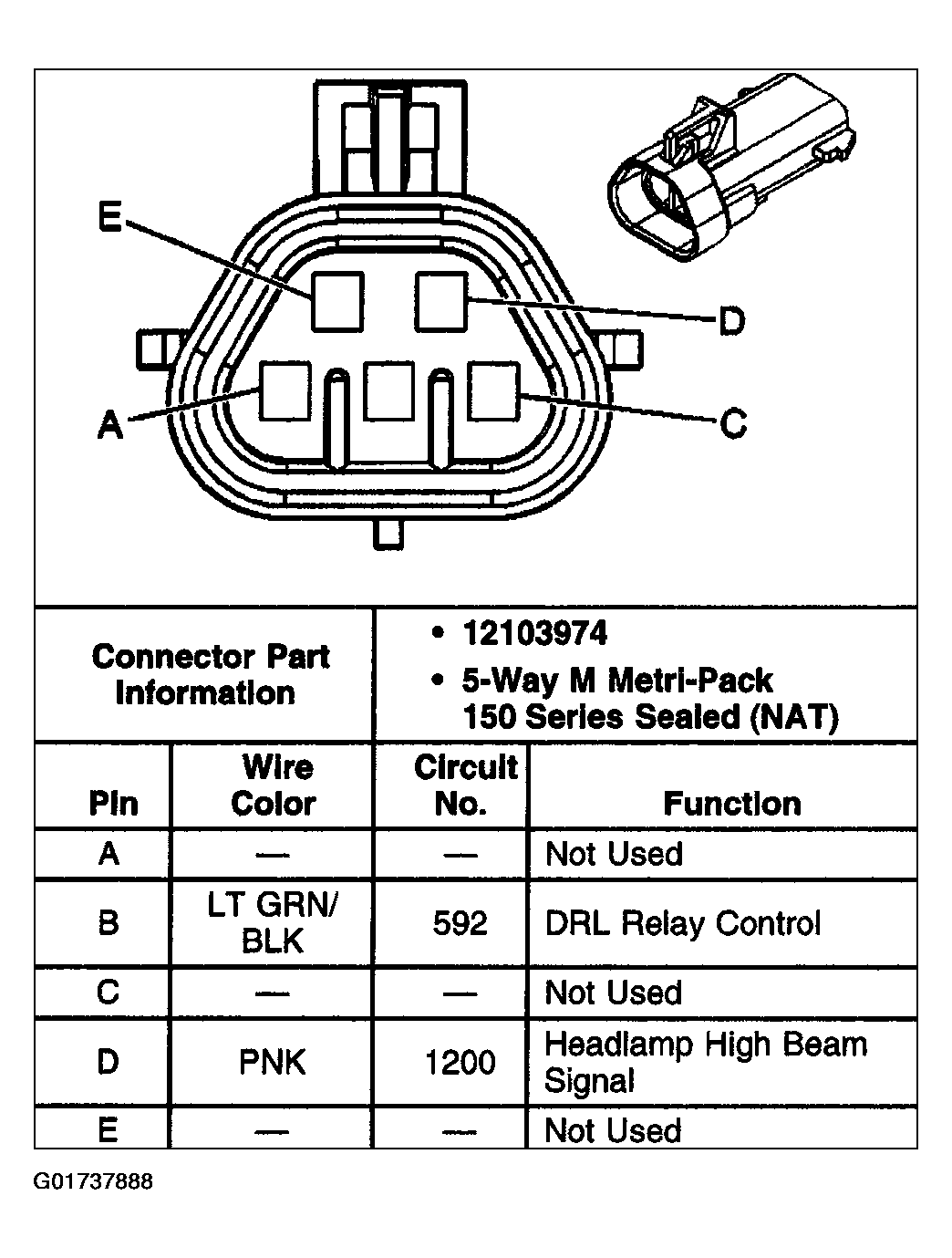

Fig 7: Identifying Emergency Vehicle Headlamp Flasher, C2 Connector Terminals
G01737888Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Emergency Vehicle Rear Compartment Lid Lamp (Left) Connector Terminals
G01737889Courtesy of GENERAL MOTORS CORP.

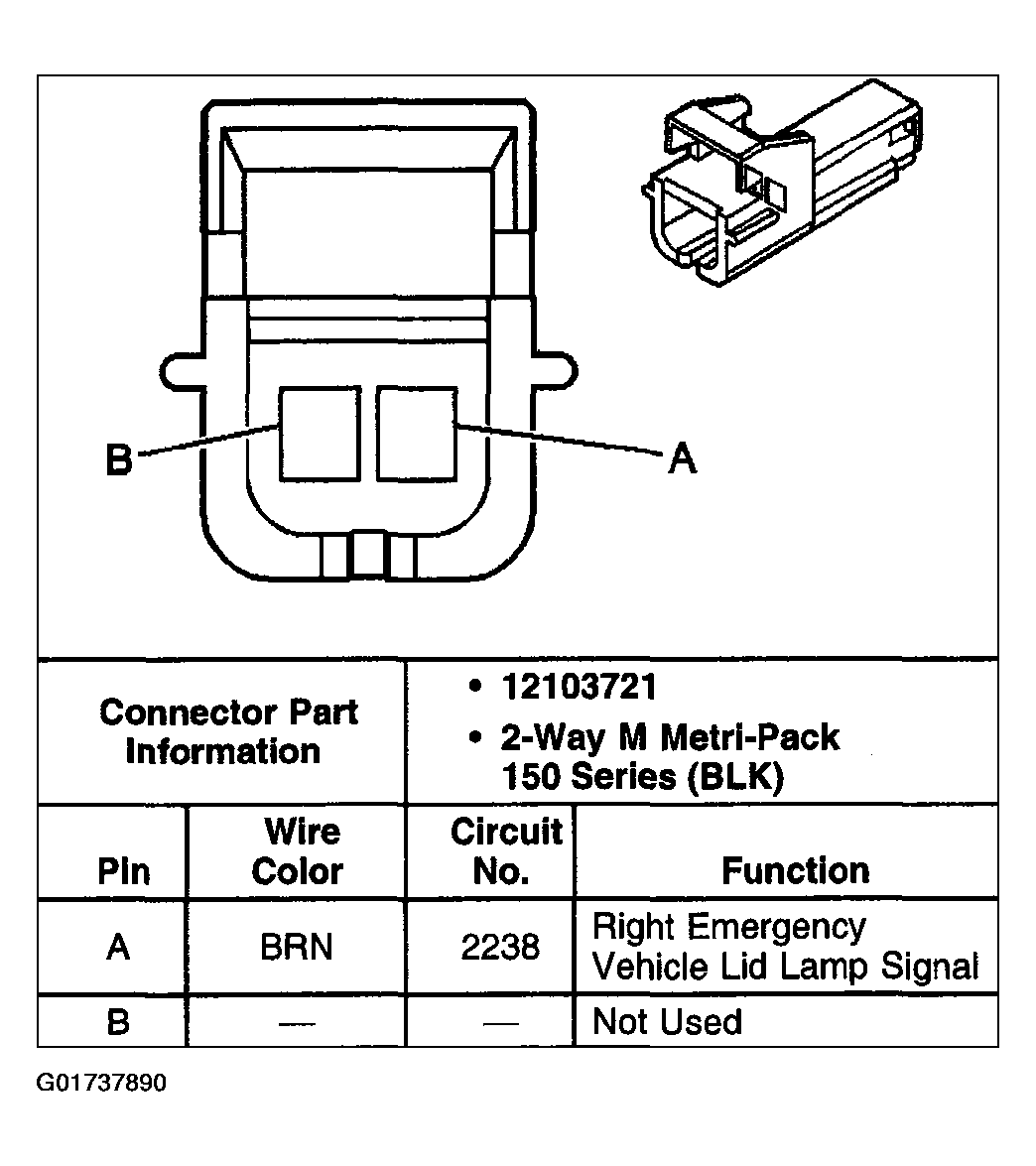

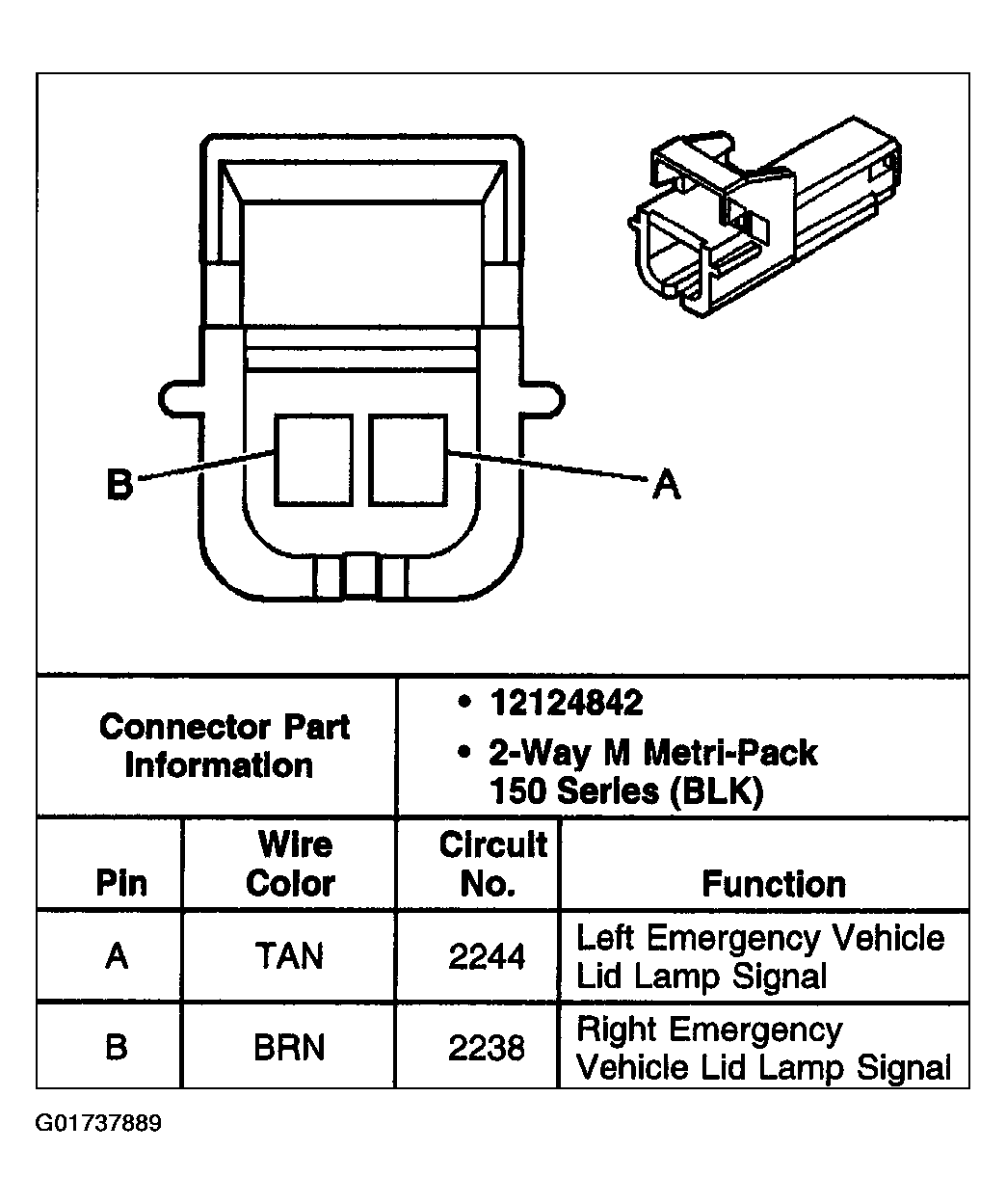

Fig 9: Identifying Emergency Vehicle Rear Compartment Lid Lamp (Right) Connector Terminals
G01737890Courtesy of GENERAL MOTORS CORP.

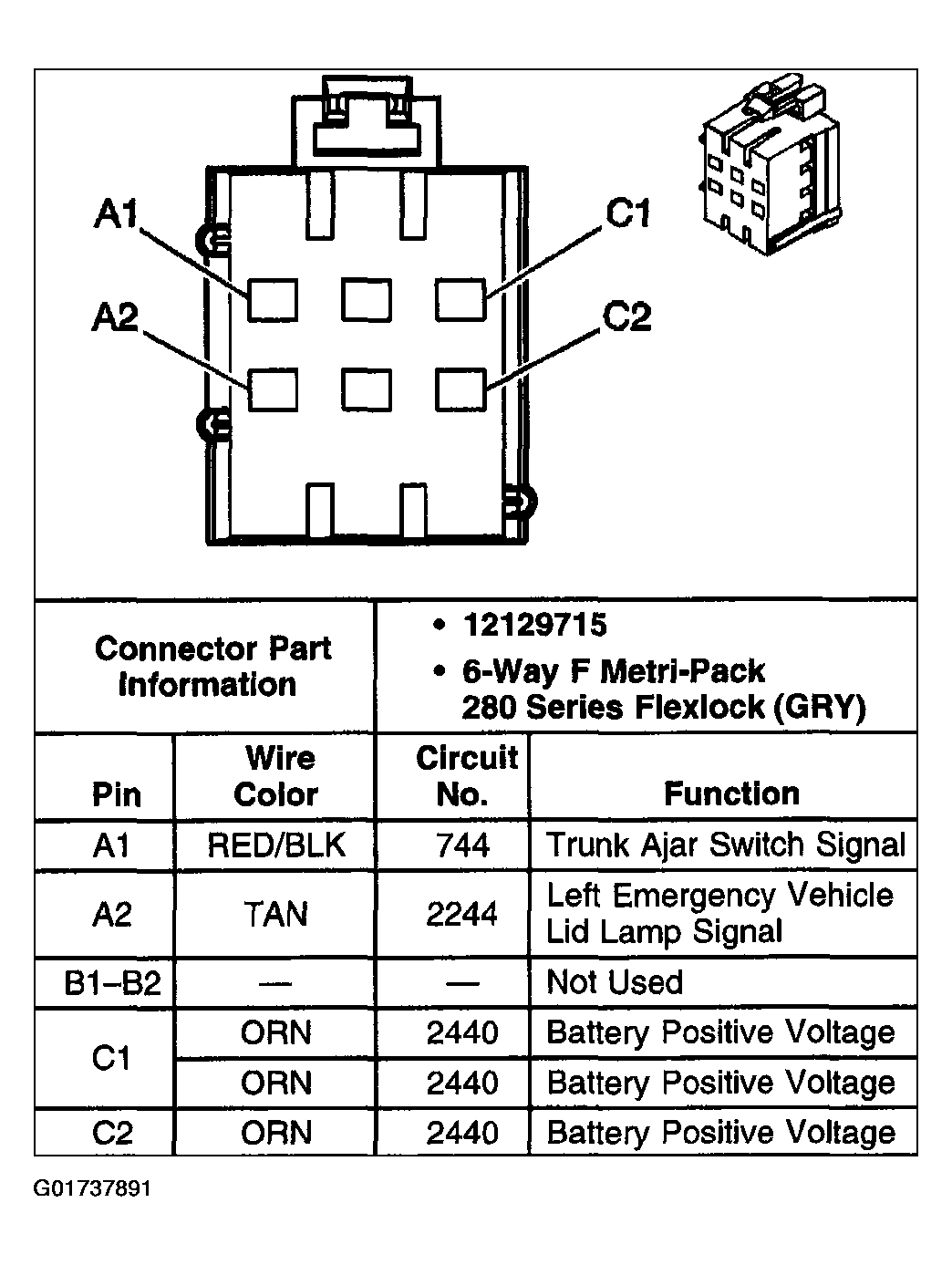

Fig 10: Identifying Emergency Vehicle Rear Compartment Lid Lamps Relay Connector Terminals
G01737891Courtesy of GENERAL MOTORS CORP.

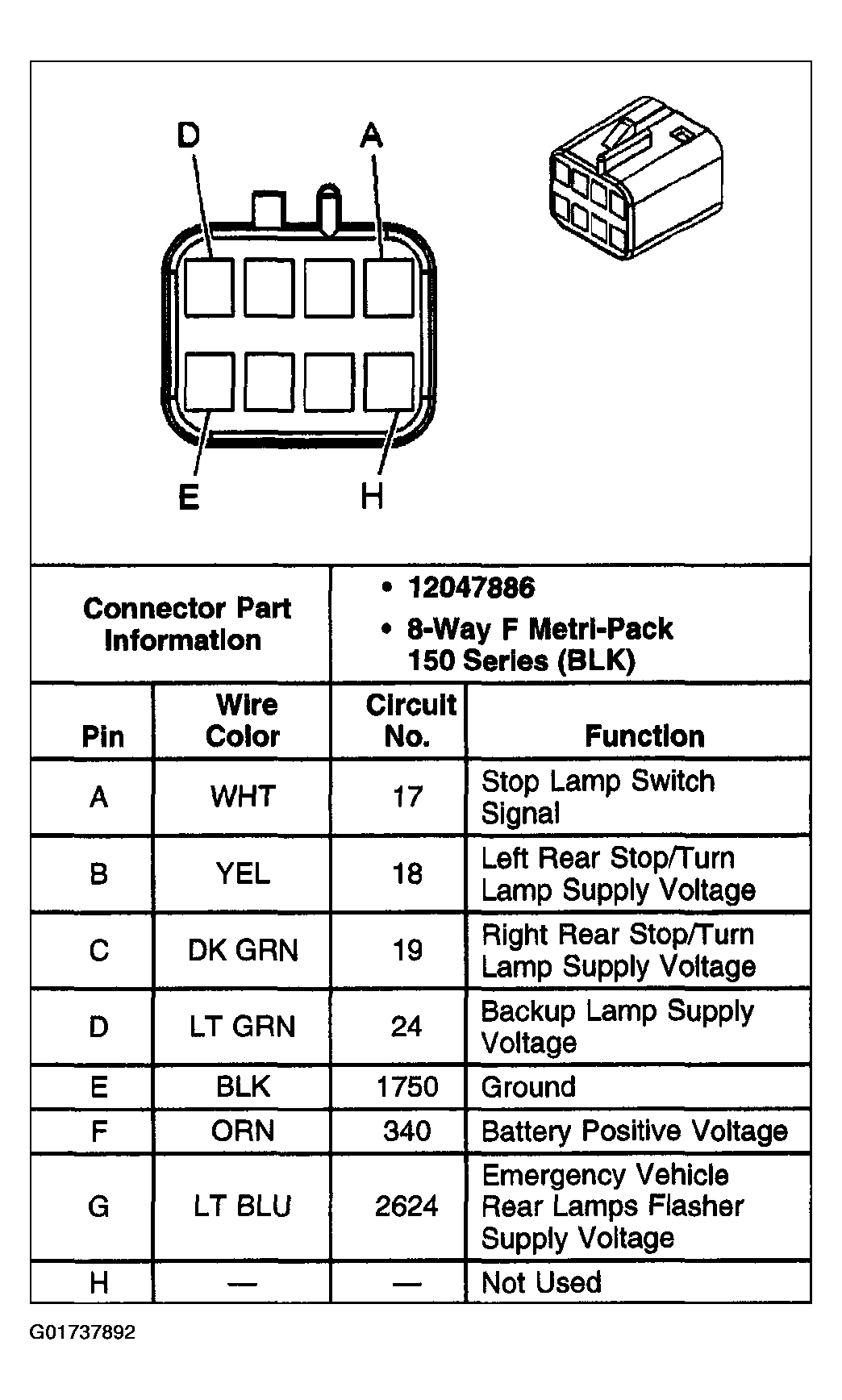

Fig 11: Identifying Emergency Vehicle Rear Lamps Flasher, C1 Connector Terminals
G01737892Courtesy of GENERAL MOTORS CORP.

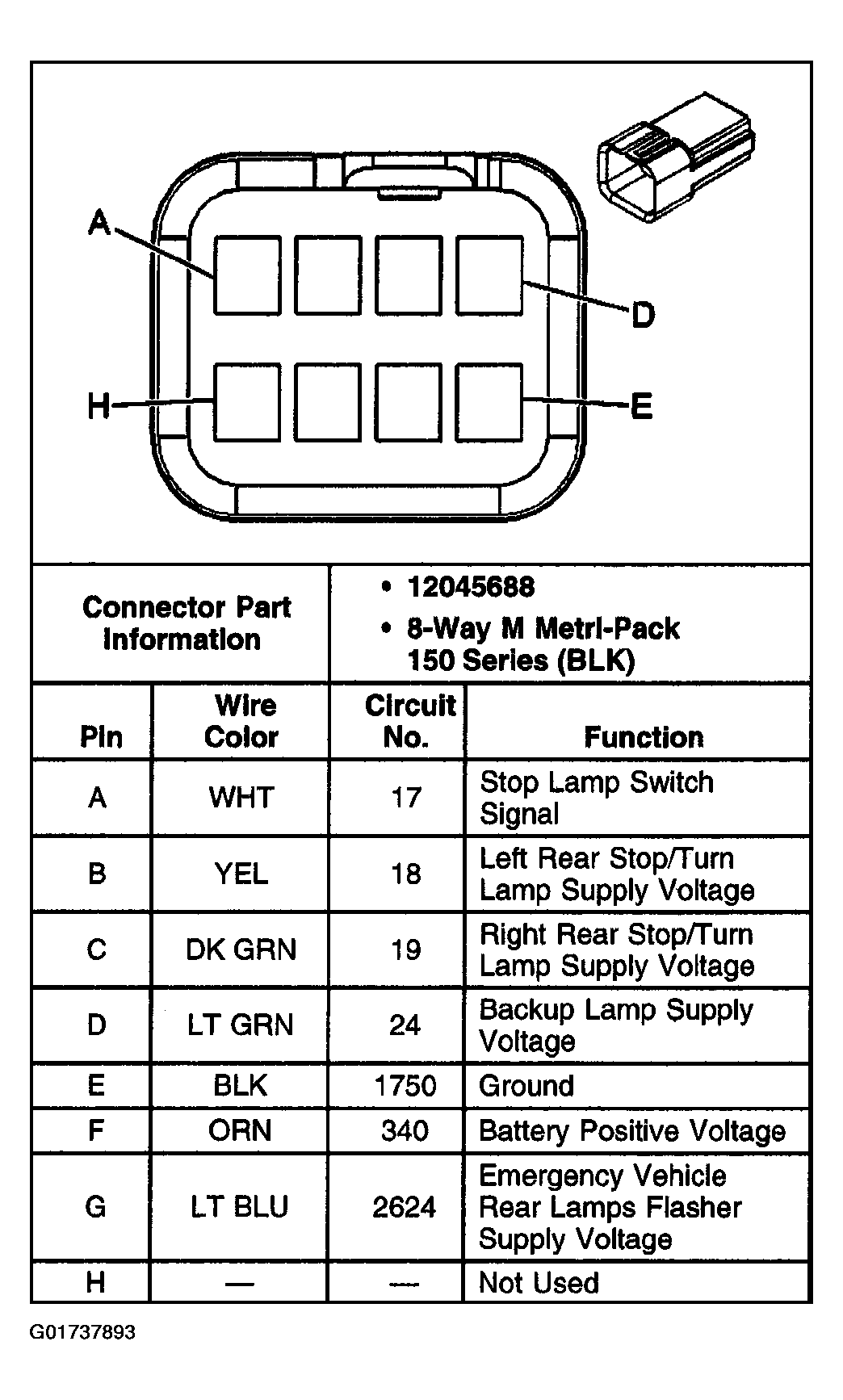

Fig 12: Identifying Emergency Vehicle Rear Lamps Flasher, C2 Connector Terminals
G01737893Courtesy of GENERAL MOTORS CORP.

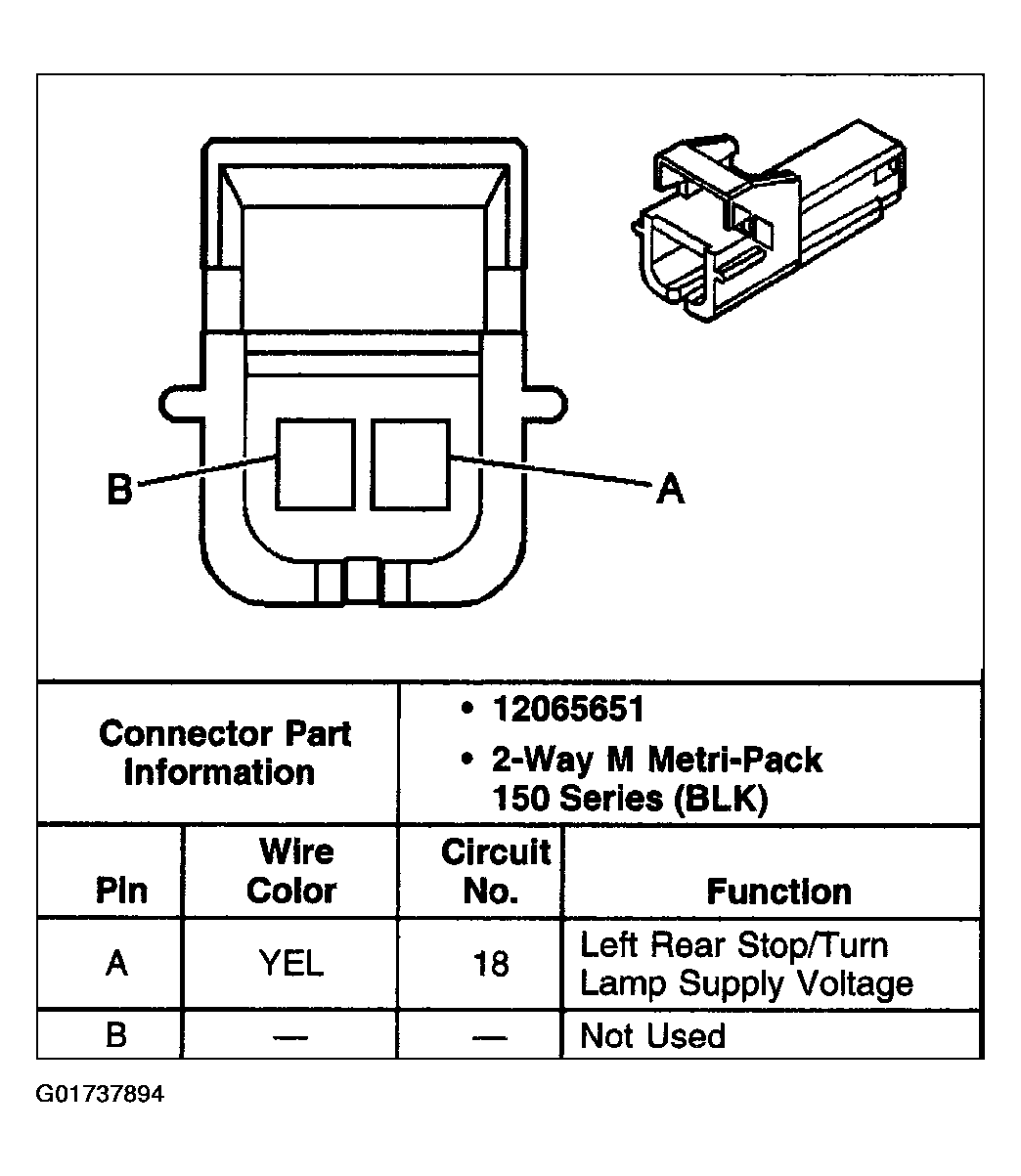

Fig 13: Identifying Emergency Vehicle Rear Window Panel Lamp (Left) Connector Terminals
G01737894Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Emergency Vehicle Rear Window Panel Lamp (Right) Connector Terminals
G01737895Courtesy of GENERAL MOTORS CORP.

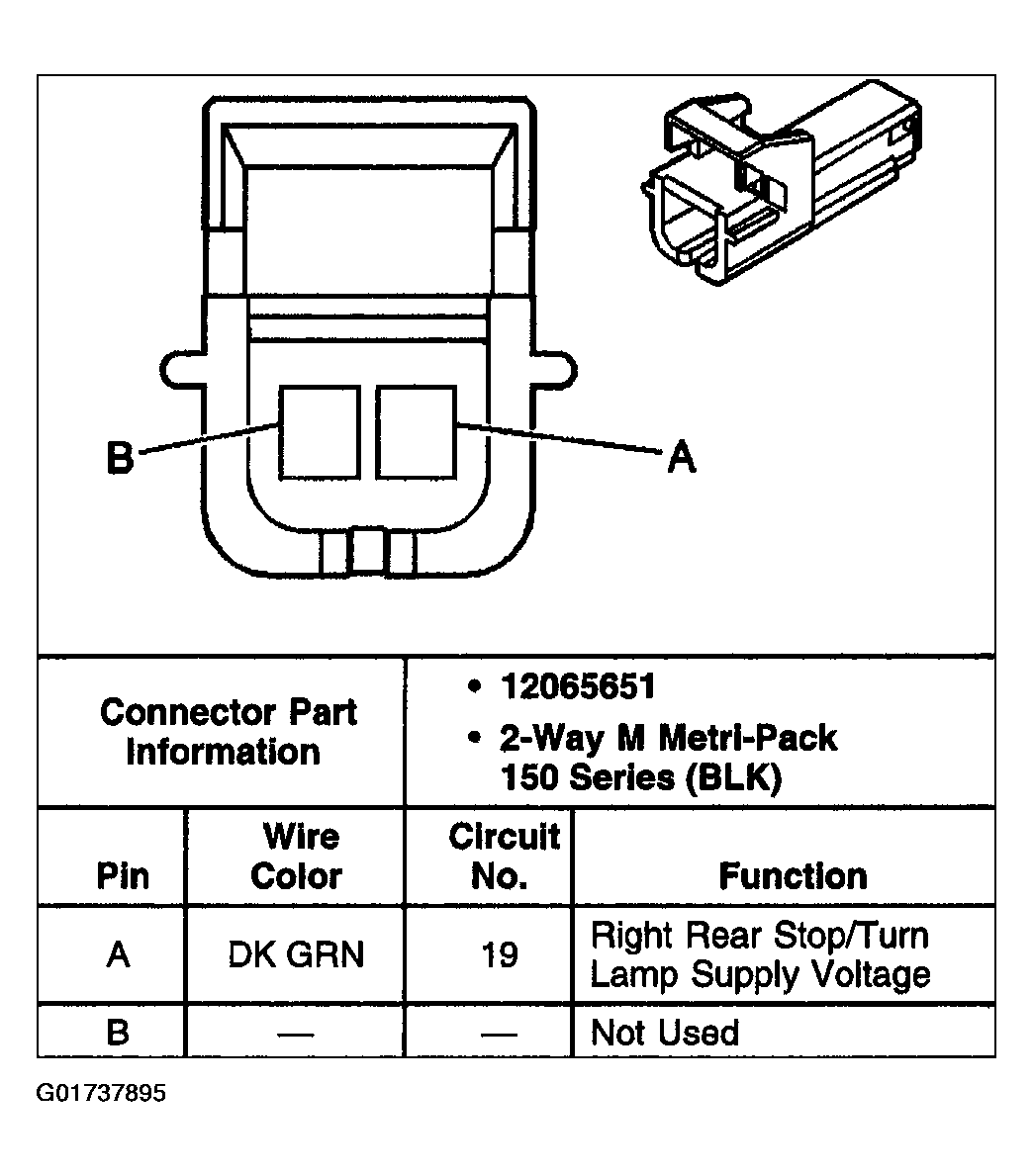

Fig 15: Identifying Fog Lamp - LF Connector Terminals
G01737896Courtesy of GENERAL MOTORS CORP.

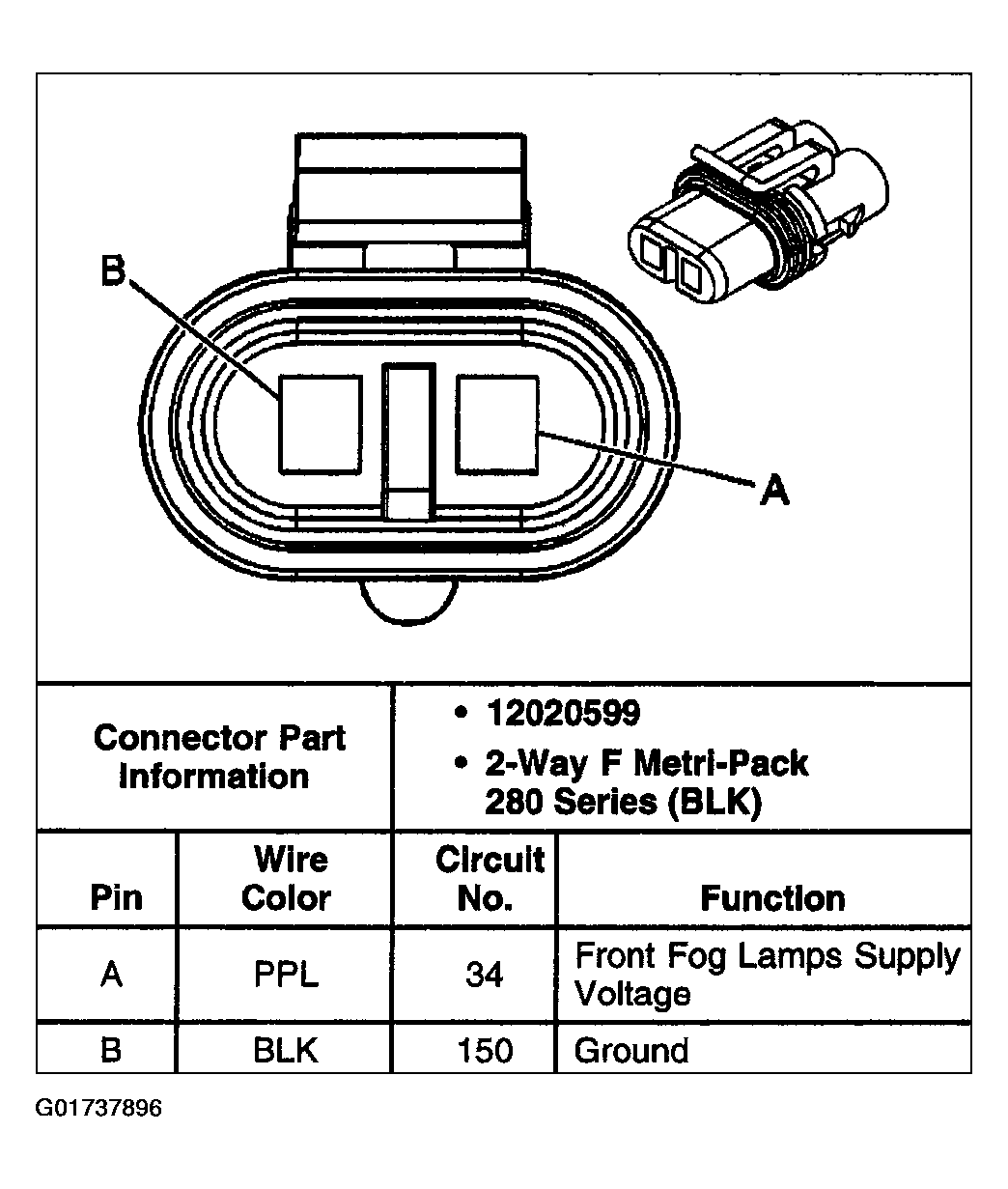

Fig 16: Identifying Fog Lamp - RF Connector Terminals
G01737897Courtesy of GENERAL MOTORS CORP.

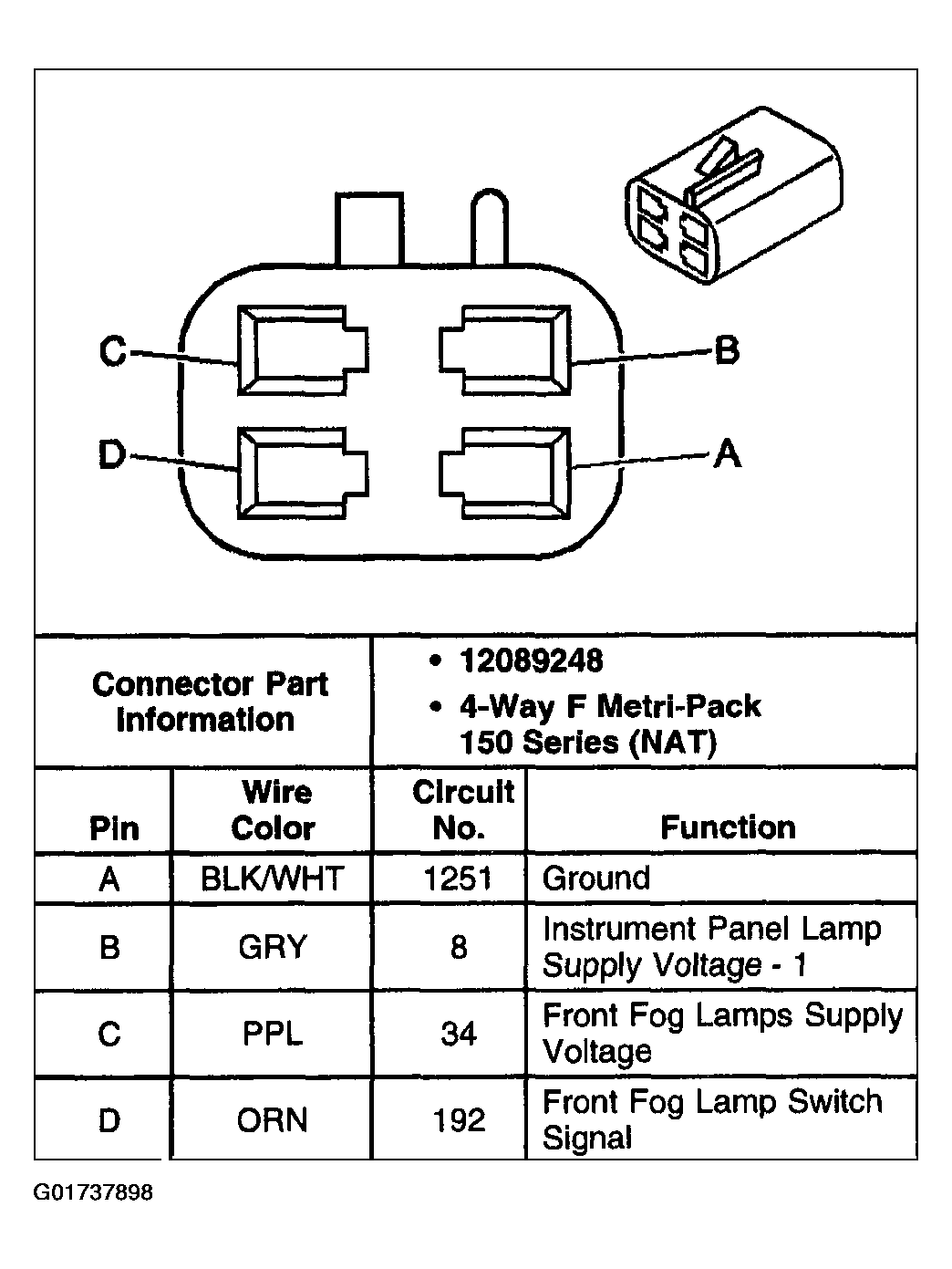

Fig 17: Identifying Fog Lamp Switch Connector Terminals
G01737898Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Hazard Switch Connector Terminals
G01737899Courtesy of GENERAL MOTORS CORP.

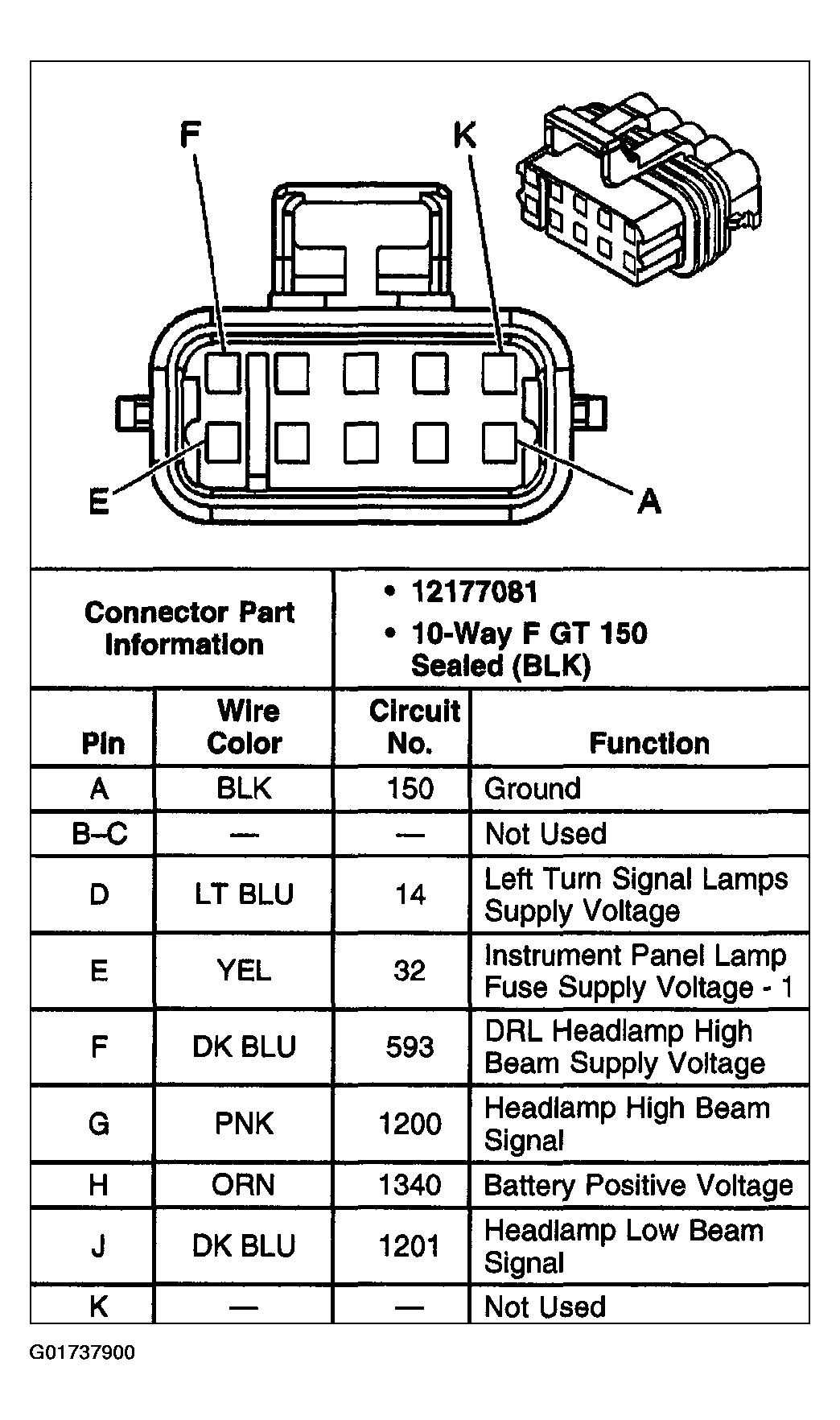

Fig 19: Identifying Headlamp (Left) Connector Terminals
G01737900Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Headlamp (Right) Connector Terminals
G01737901Courtesy of GENERAL MOTORS CORP.

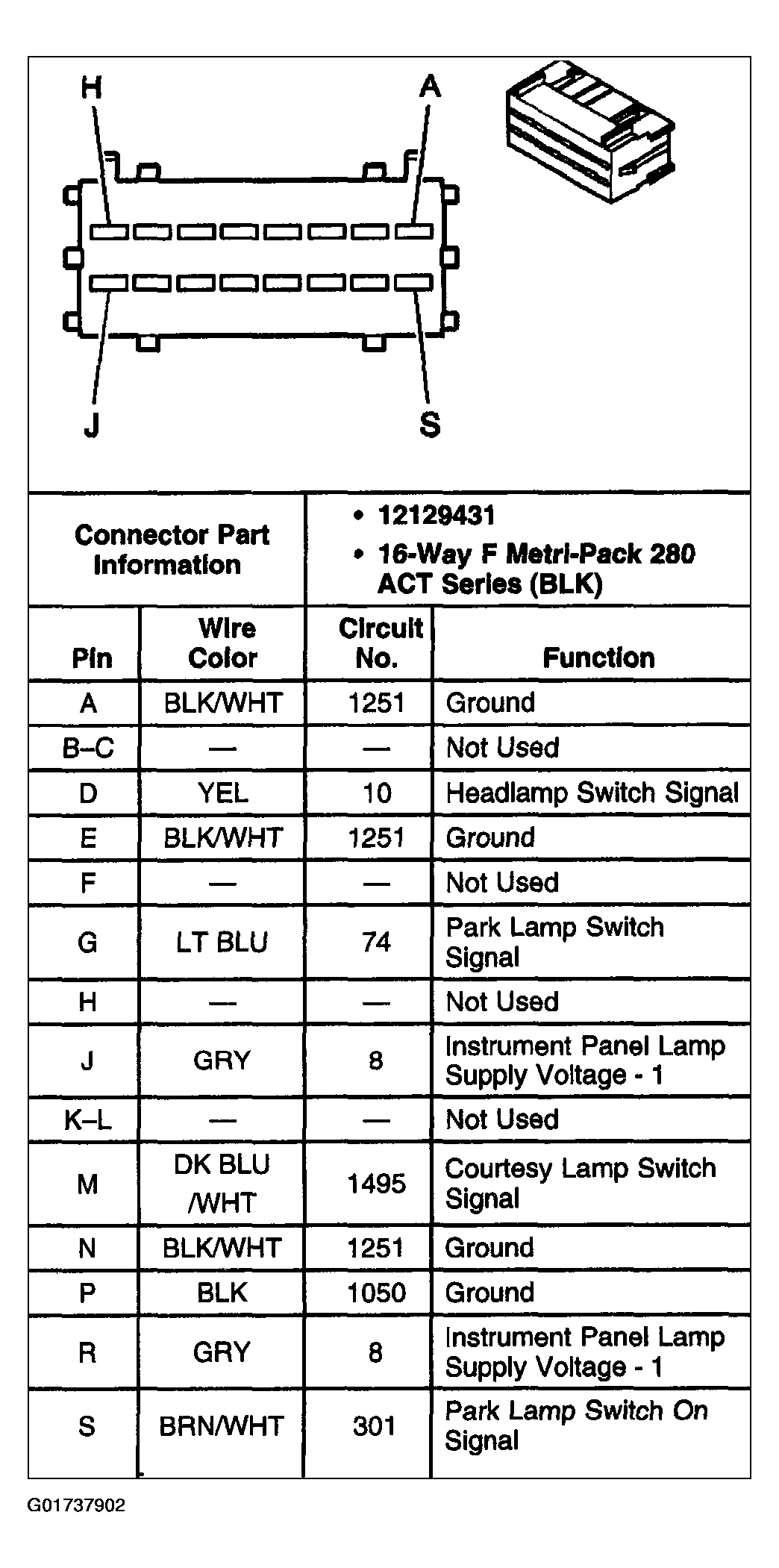

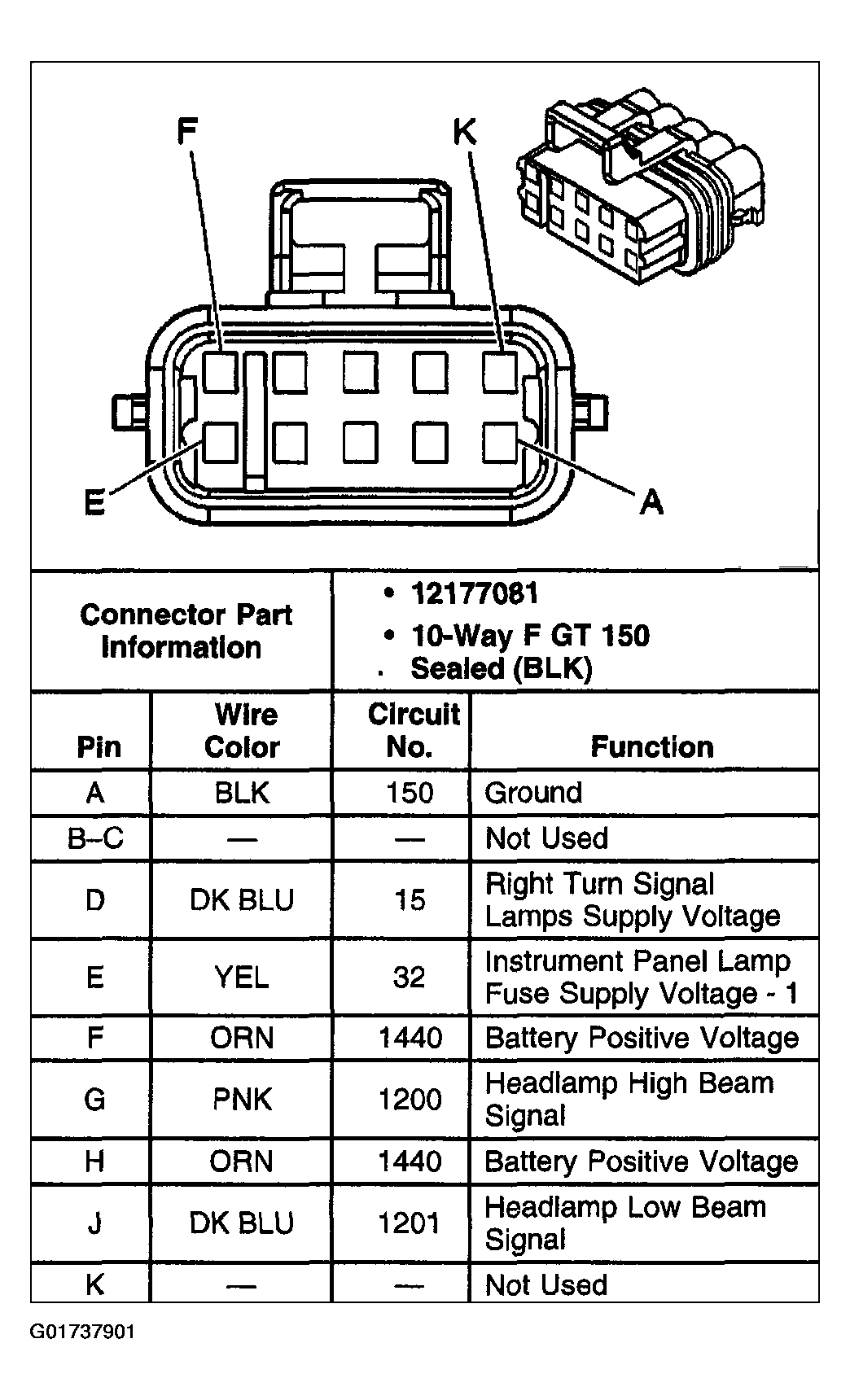

Fig 21: Identifying Headlamp Switch Connector Terminals
G01737902Courtesy of GENERAL MOTORS CORP.

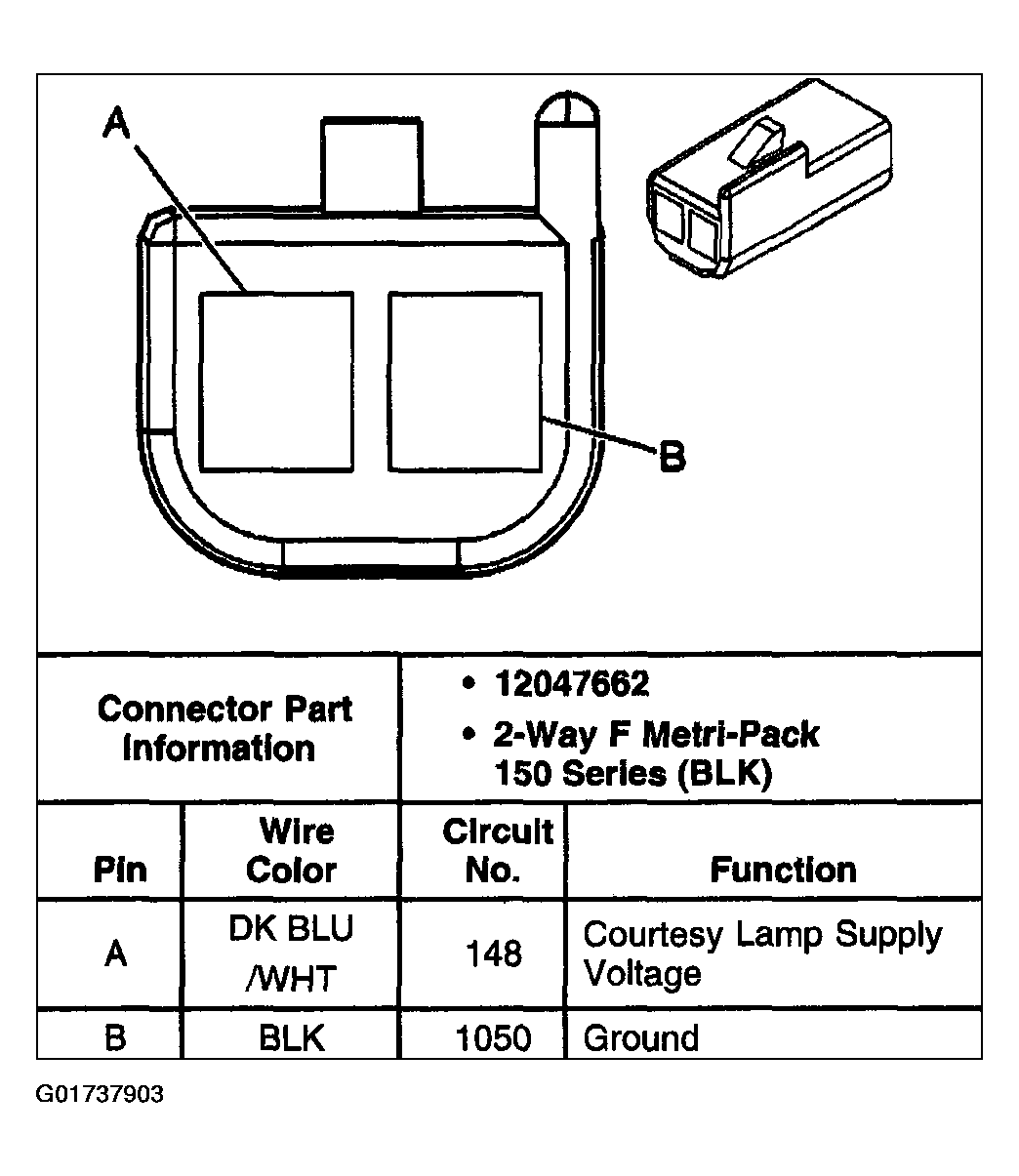

Fig 22: Identifying I/P Compartment Lamp Connector Terminals
G01737903Courtesy of GENERAL MOTORS CORP.

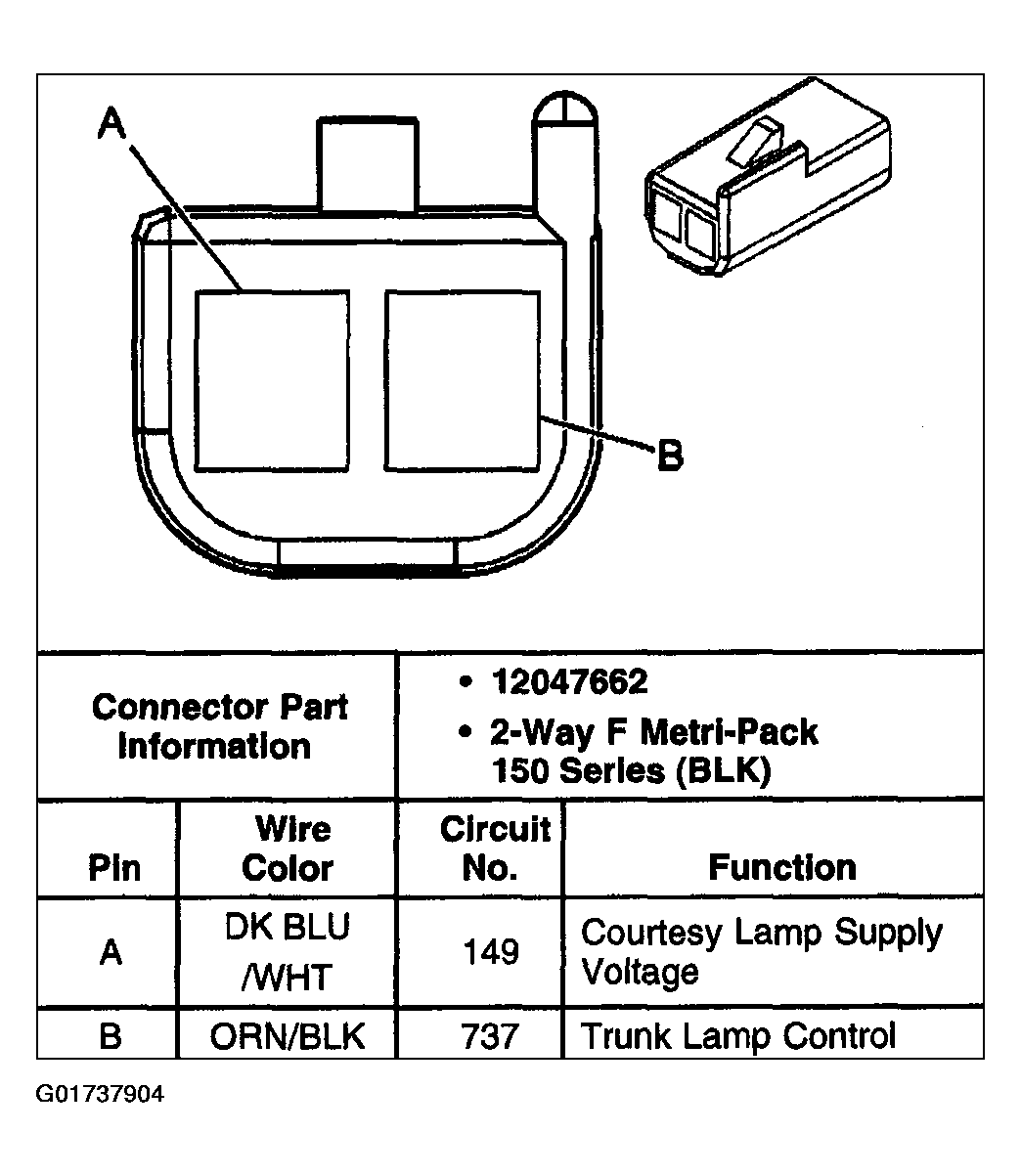

Fig 23: Identifying Rear Compartment Courtesy Lamp Connector Terminals
G01737904Courtesy of GENERAL MOTORS CORP.

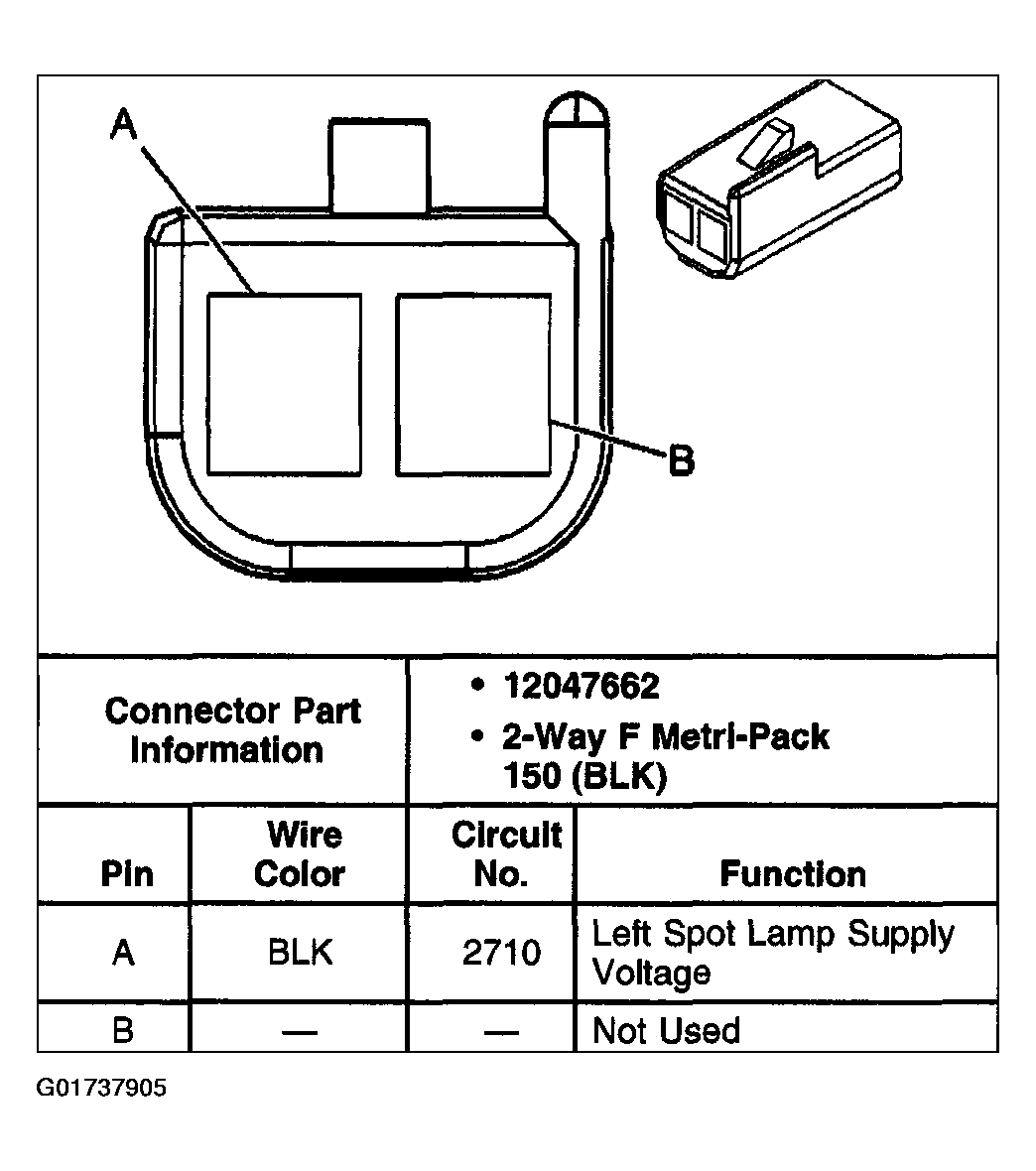

Fig 24: Identifying Spot Lamp (Left) Connector Terminals
G01737905Courtesy of GENERAL MOTORS CORP.

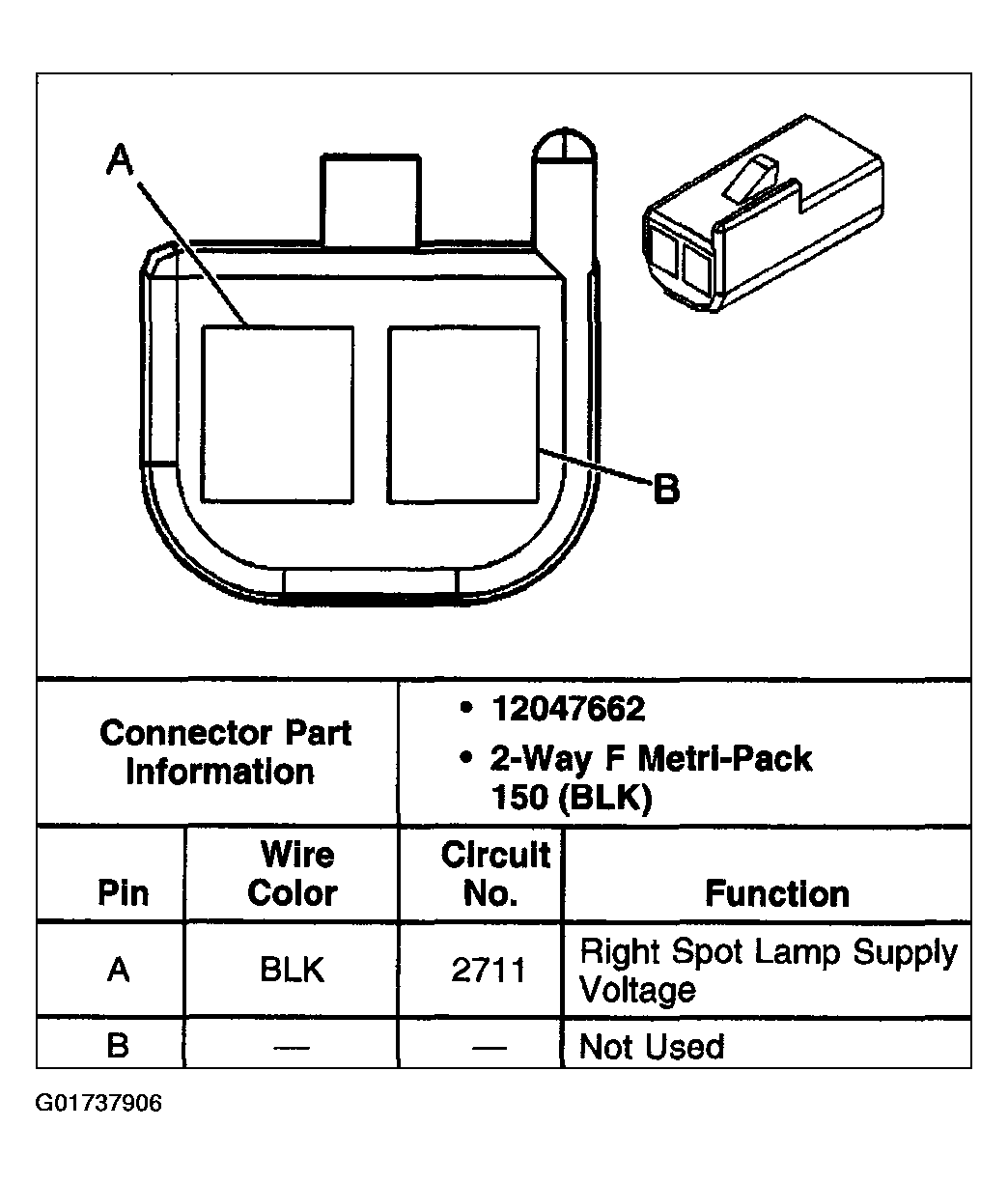

Fig 25: Identifying Spot Lamp (Right) Connector Terminals
G01737906Courtesy of GENERAL MOTORS CORP.

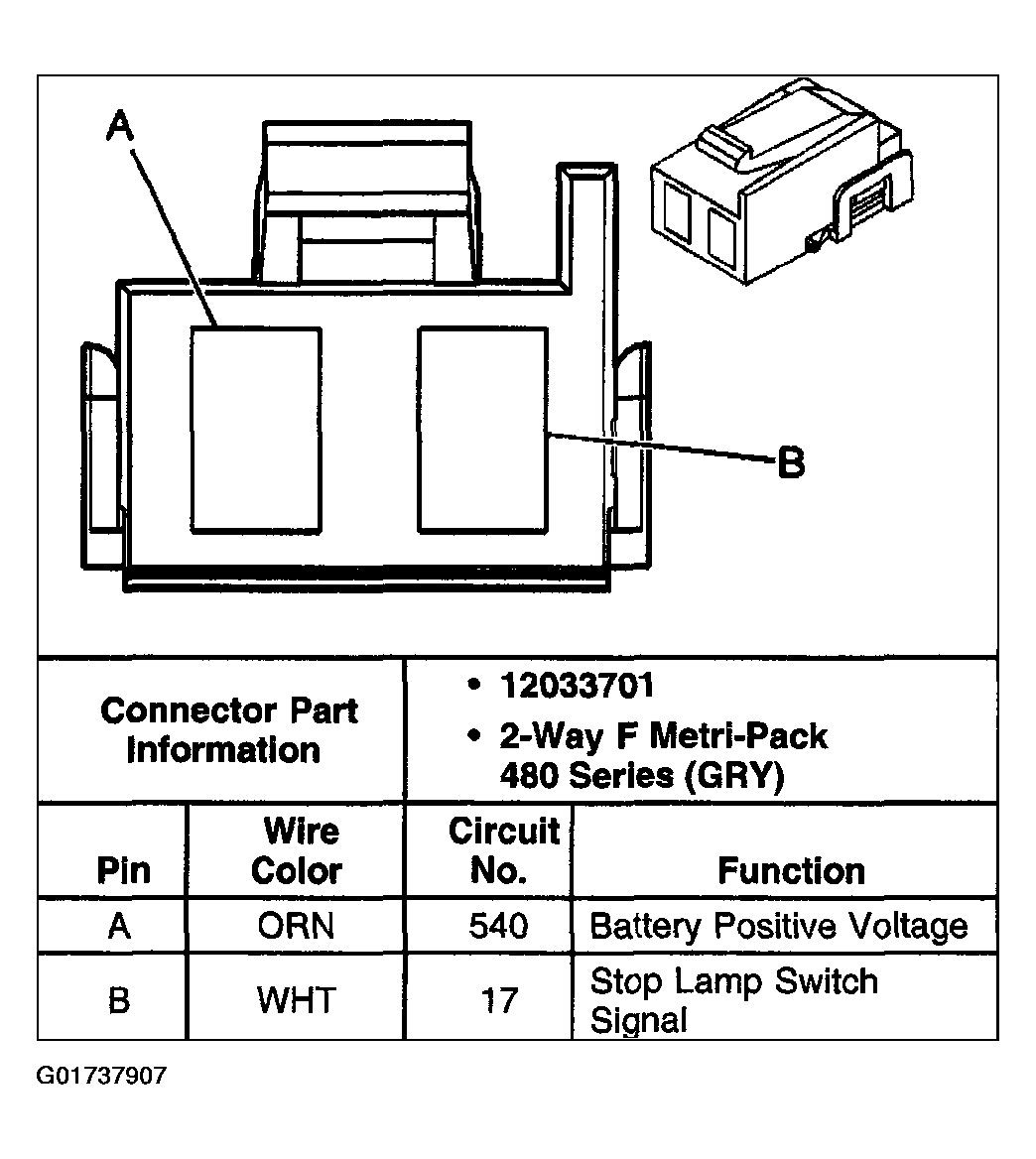

Fig 26: Identifying Stop Lamp Switch, C1 Connector Terminals
G01737907Courtesy of GENERAL MOTORS CORP.

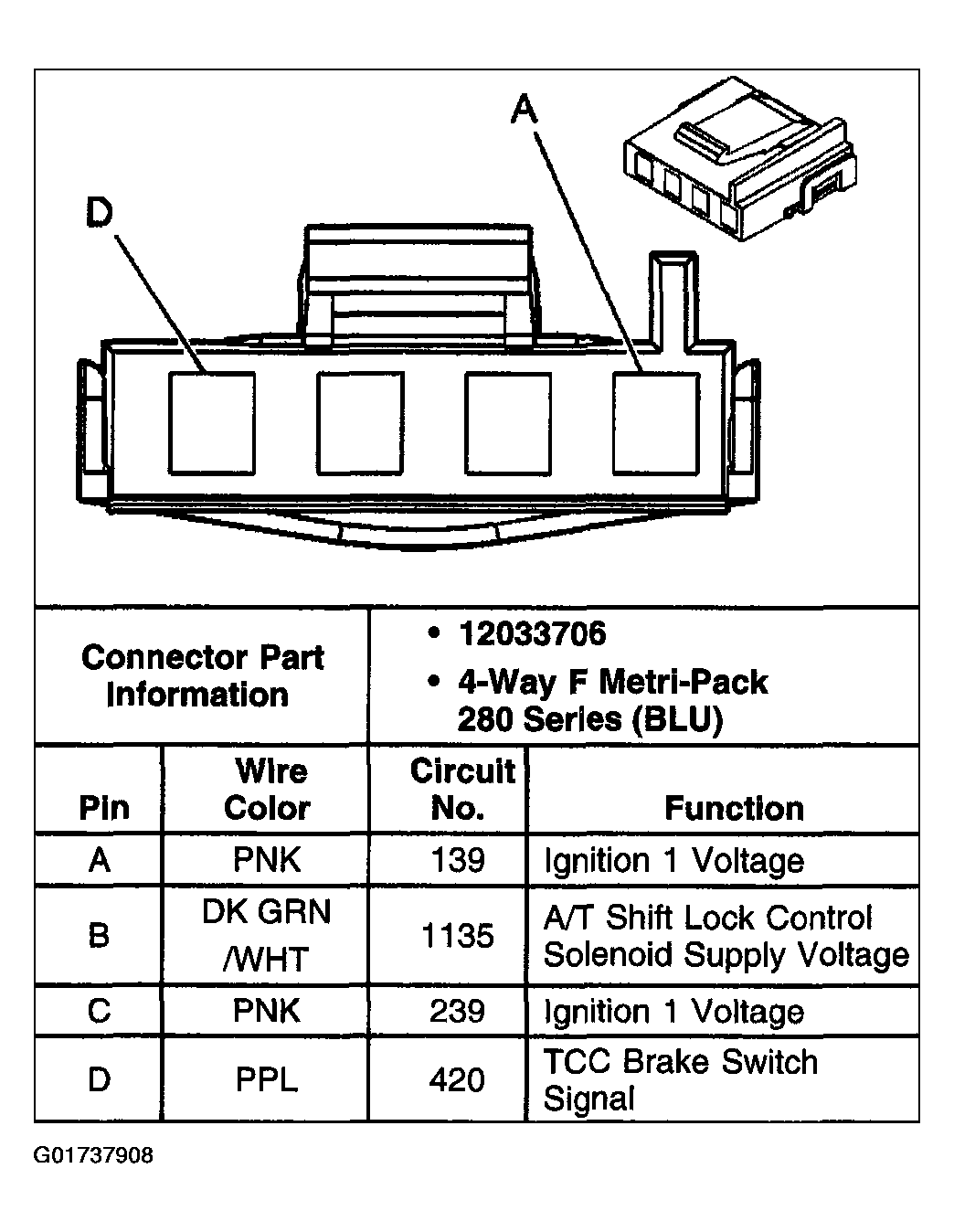

Fig 27: Identifying Stop Lamp Switch, C2 Connector Terminals
G01737908Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Surveillance Mode Switch Connector Terminals
G01737909Courtesy of GENERAL MOTORS CORP.

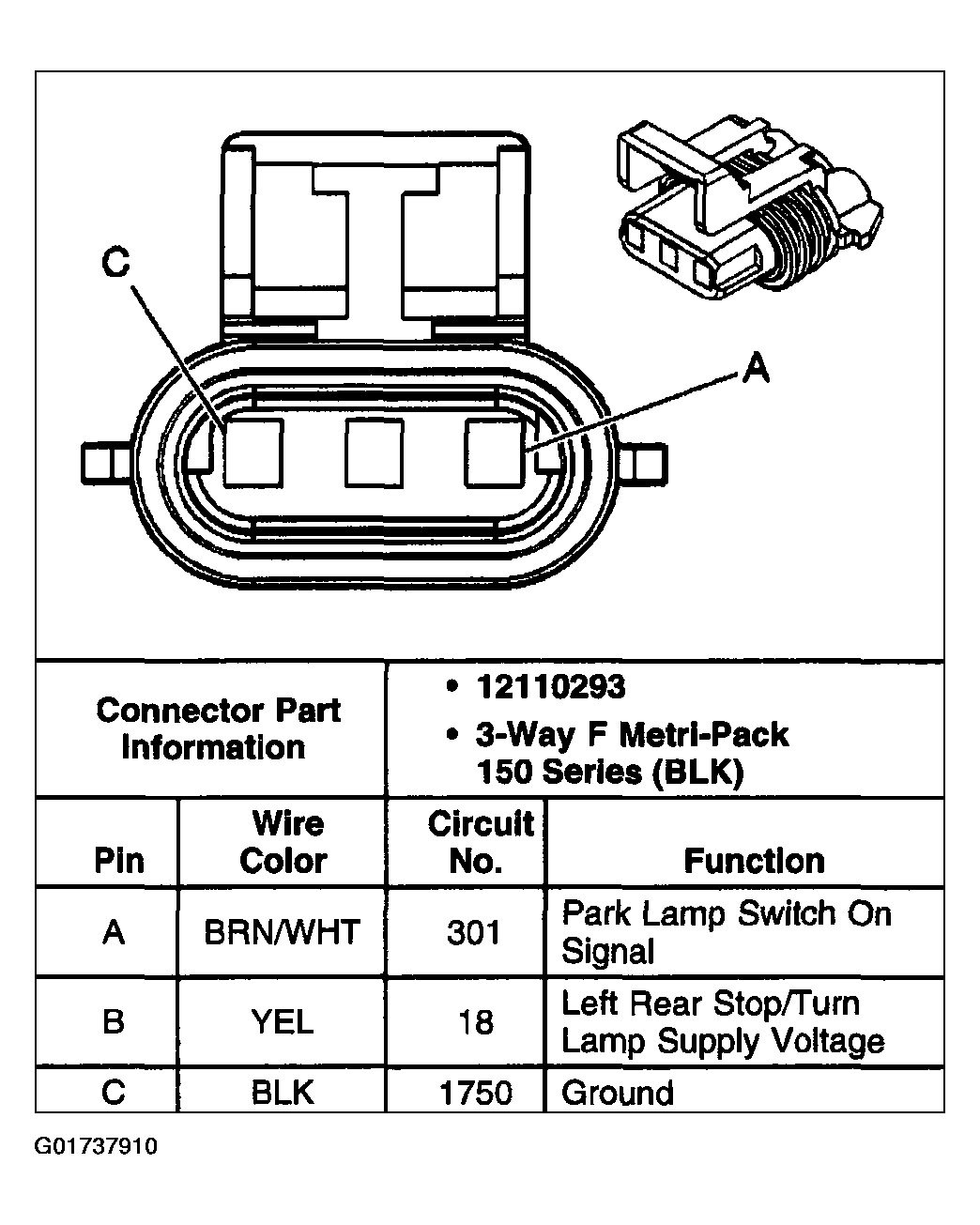

Fig 29: Identifying Tail Lamp (Left) Connector Terminals (Impala)
G01737910Courtesy of GENERAL MOTORS CORP.

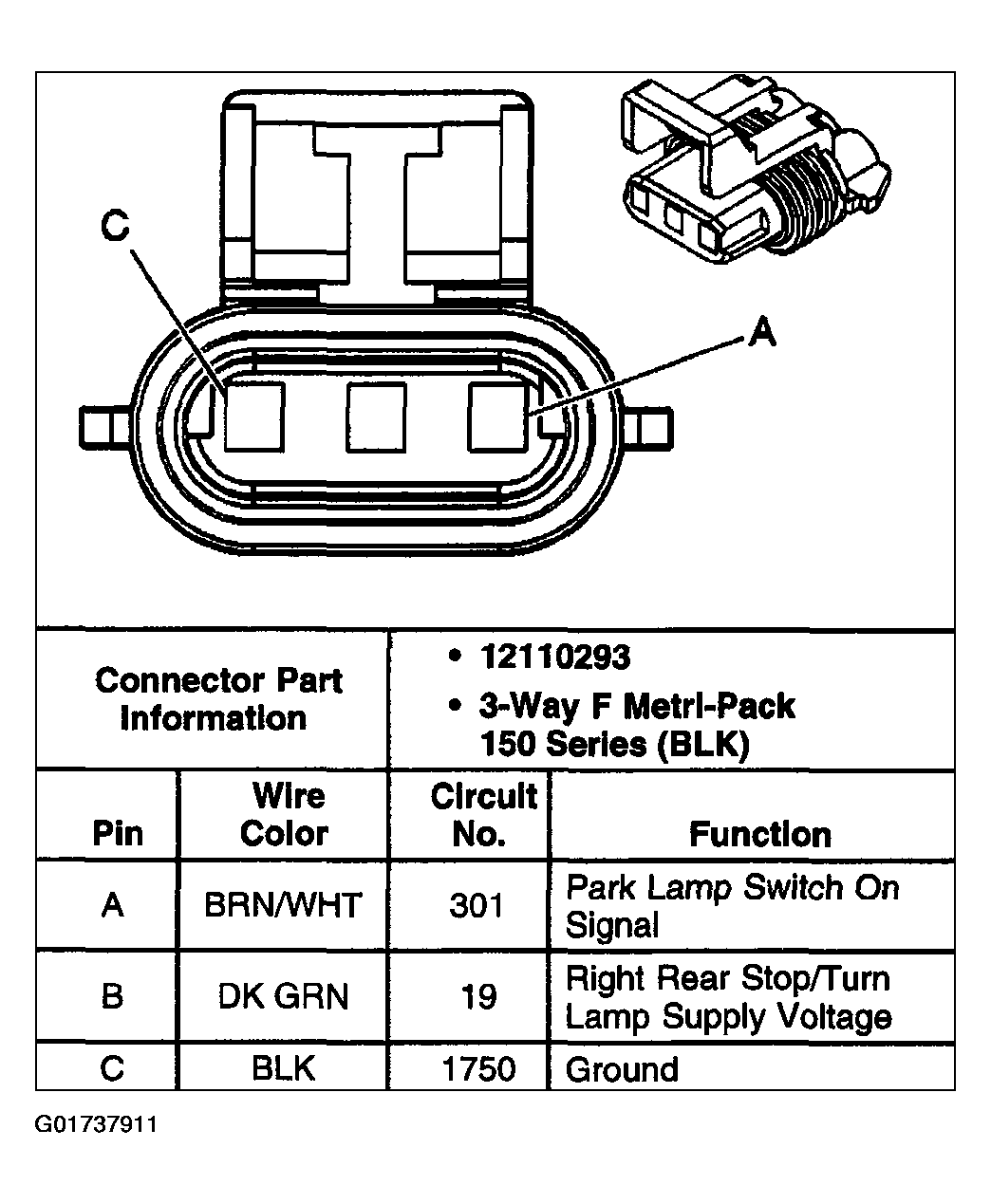

Fig 30: Identifying Tail Lamp (Right) Connector Terminals (Impala)
G01737911Courtesy of GENERAL MOTORS CORP.

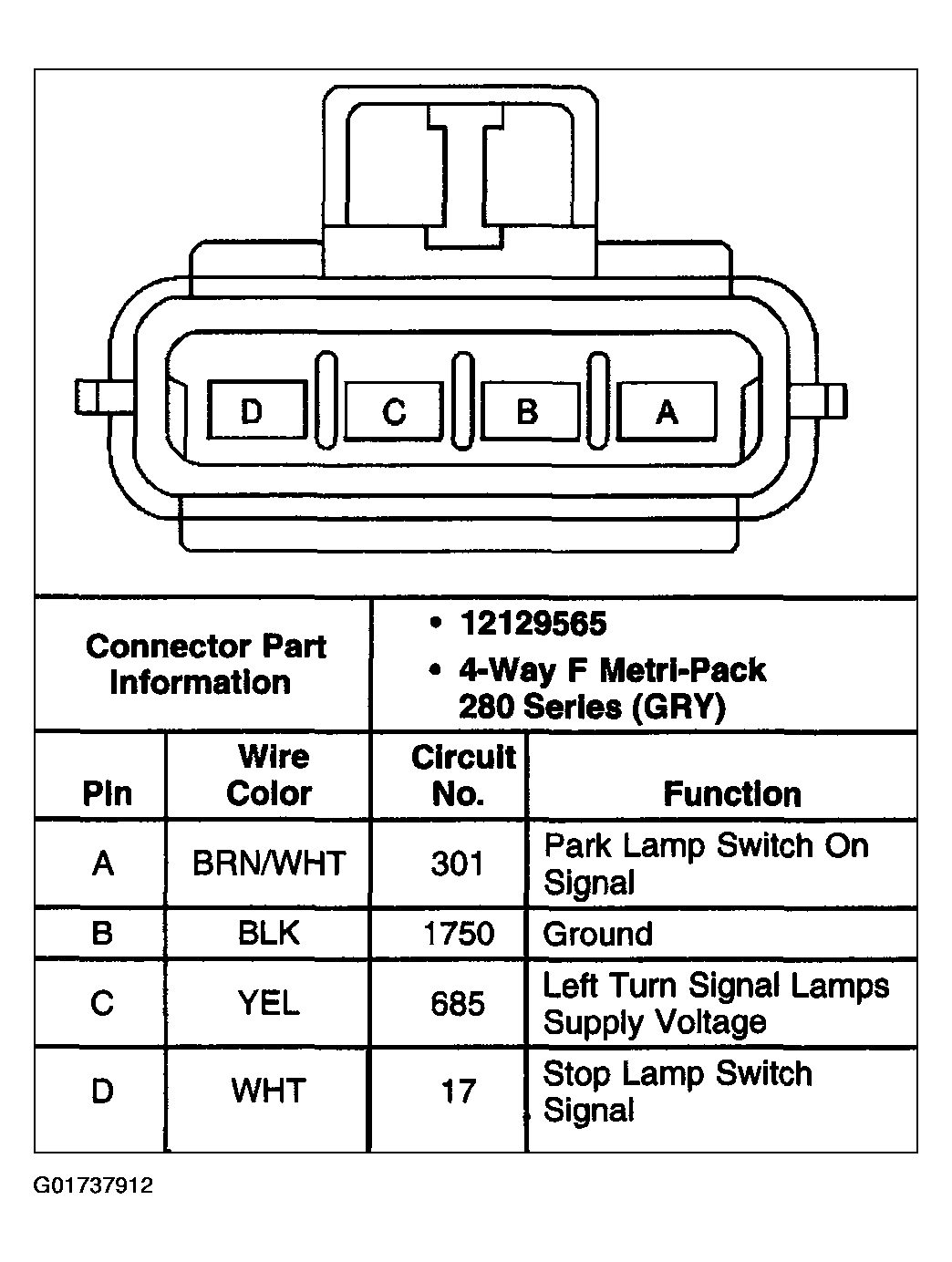

Fig 31: Identifying Tail Lamp (Left) Connector Terminals (Monte Carlo)
G01737912Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying Tail Lamp (Right) Connector Terminals (Monte Carlo)

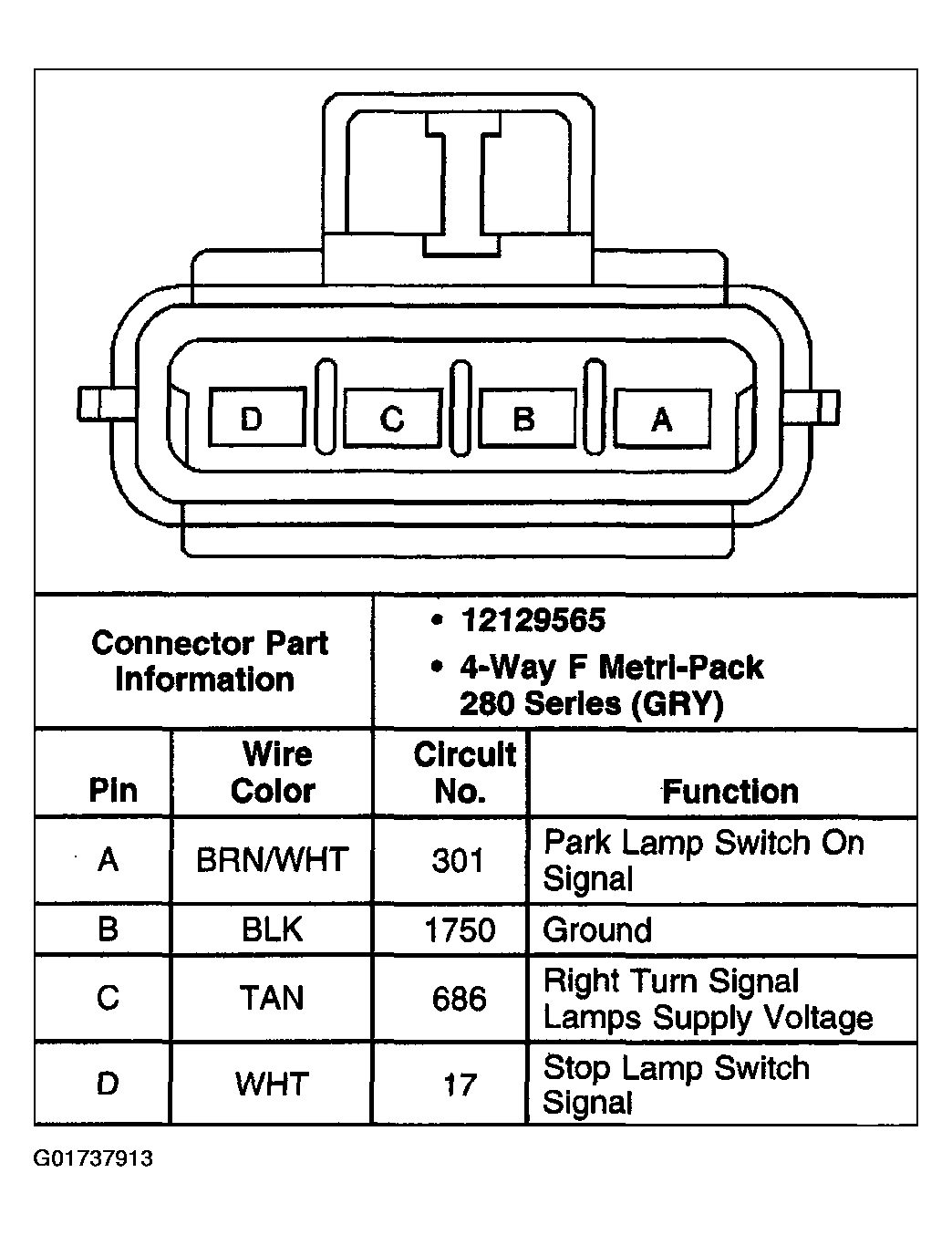

G01737913Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Vanity Mirror Lamp (Left) Connector Terminals
G01737914Courtesy of GENERAL MOTORS CORP.

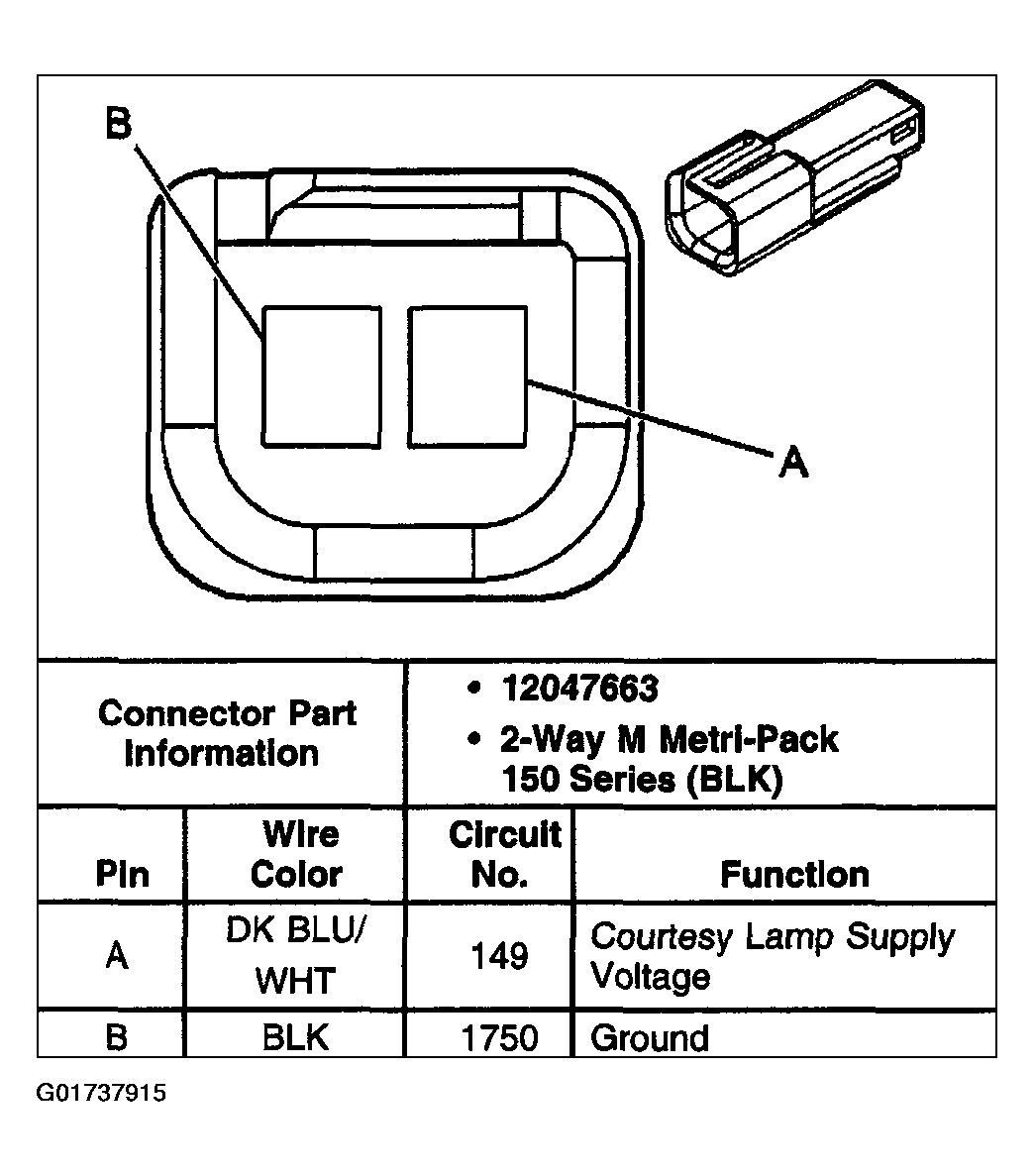

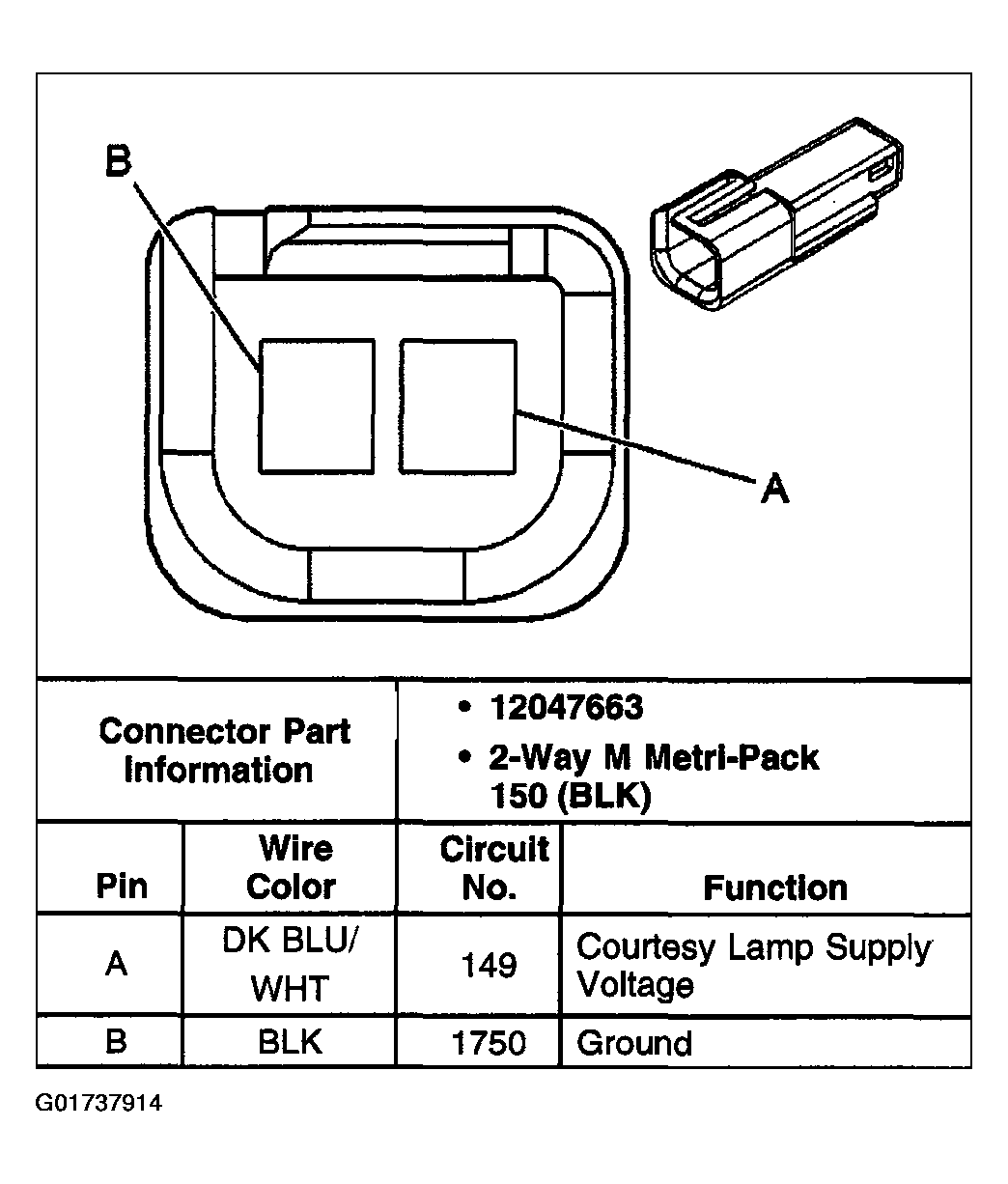

Fig 34: Identifying Vanity Mirror Lamp (Right) Connector Terminals
G01737915Courtesy of GENERAL MOTORS CORP.
