Left Instrument Panel Fuse Block
Left Instrument Panel Fuse Block
NOTE:
Left instrument panel fuse block is located on driver's side end of instrument panel. See
Fig 1
.

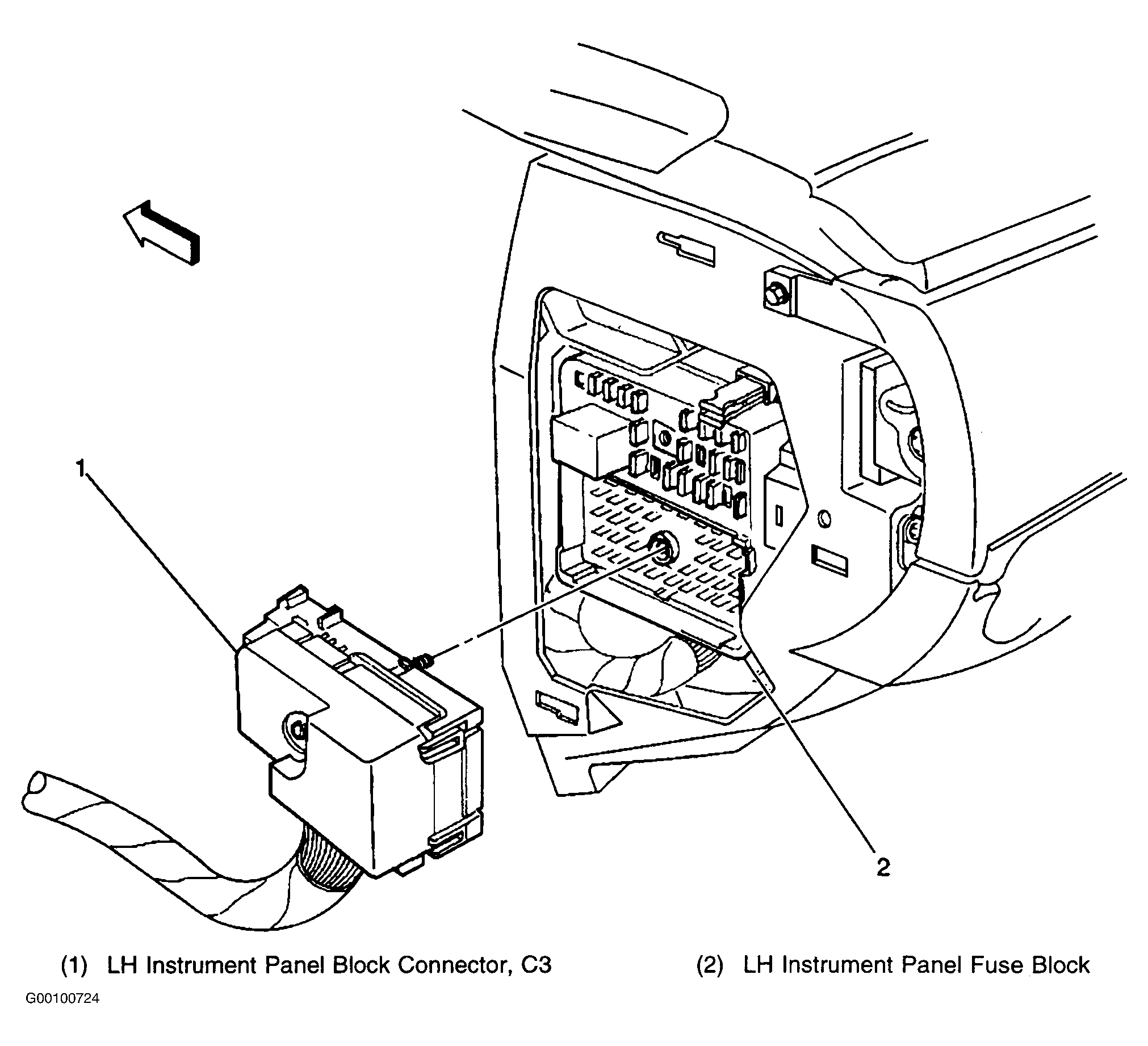

Fig 1: Locating Left Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Left Instrument Panel Fuse Block Components
Courtesy of GENERAL MOTORS CORP.

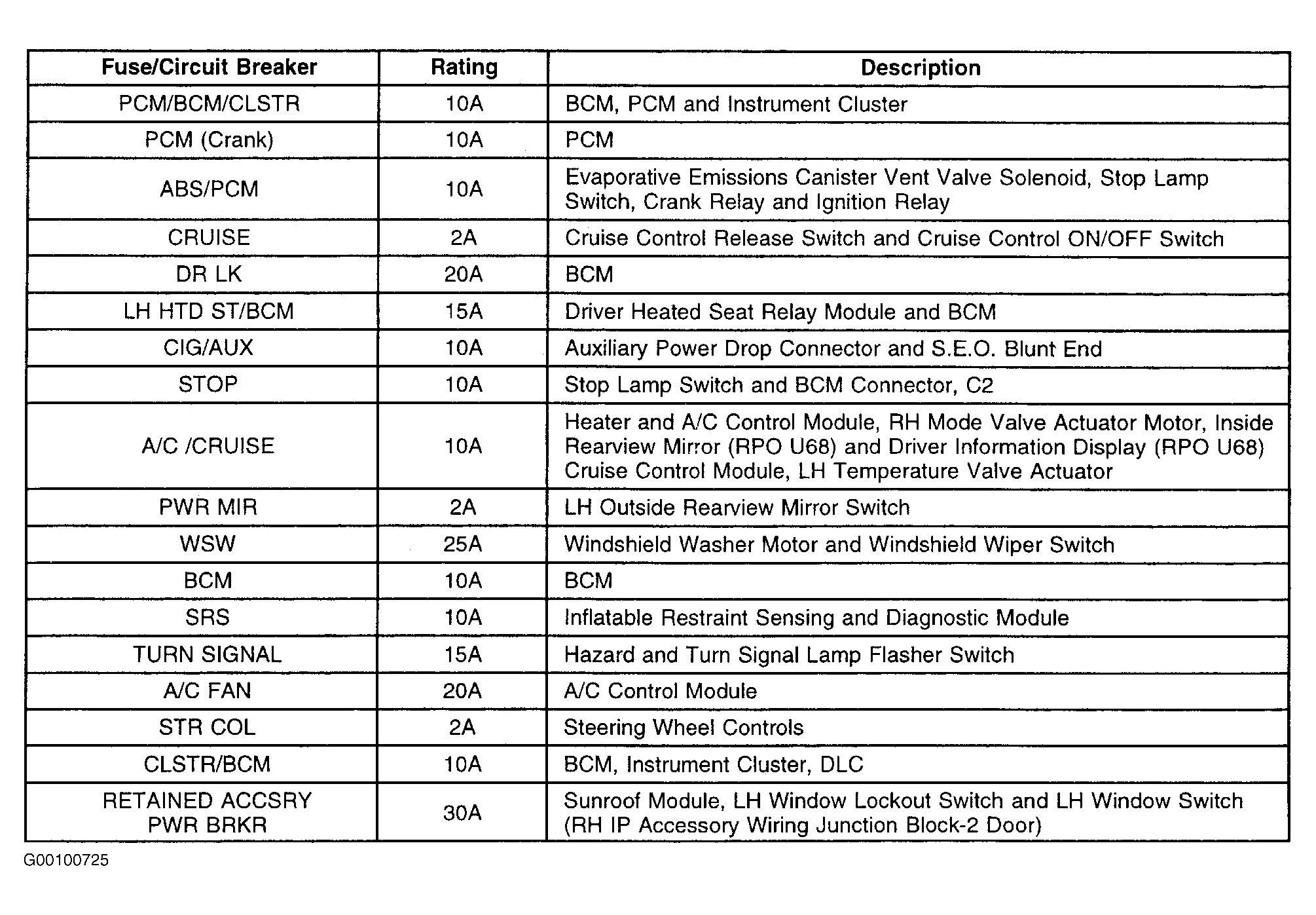

Fig 3: Left Instrument Panel Fuse Block Legend
Courtesy of GENERAL MOTORS CORP.
