Engine Fails To Reach Normal Operating Temperature

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

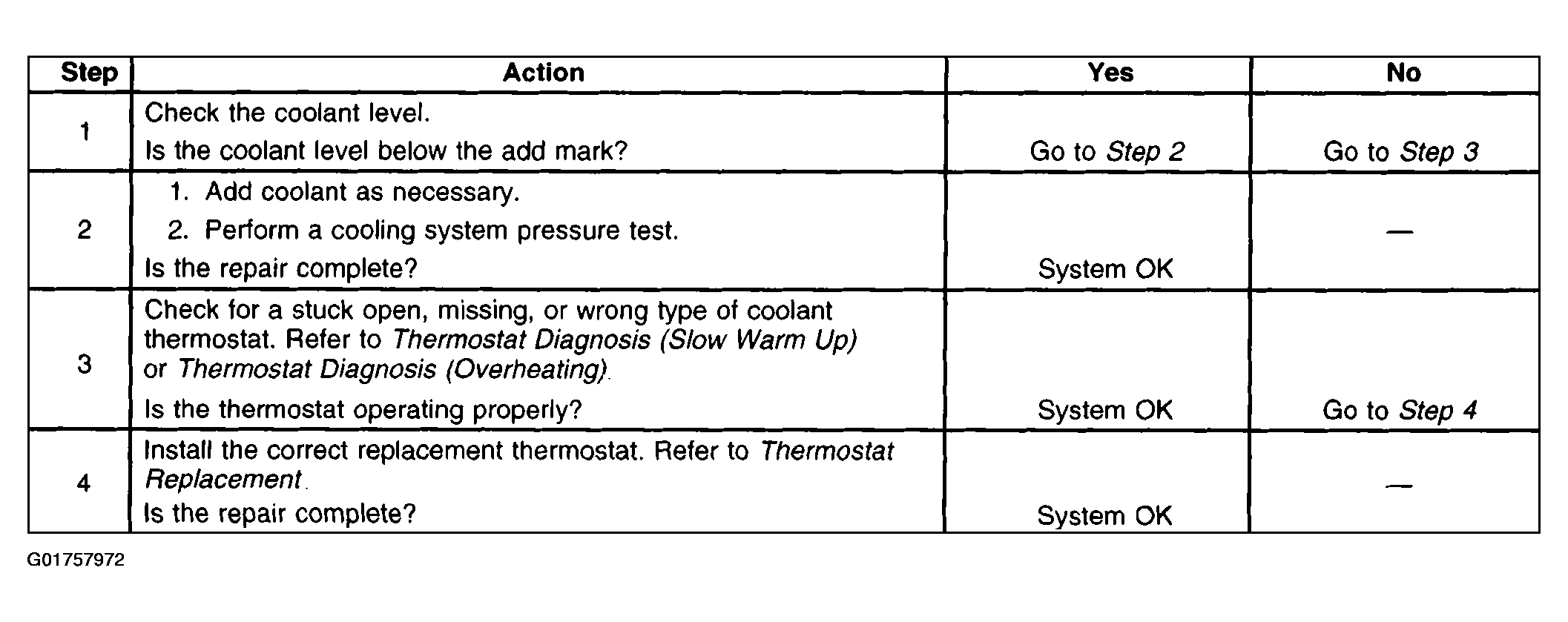

Fig 1: Engine Fails To Reach Normal Operating Temperature
G01757972Courtesy of GENERAL MOTORS CORP.
