Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

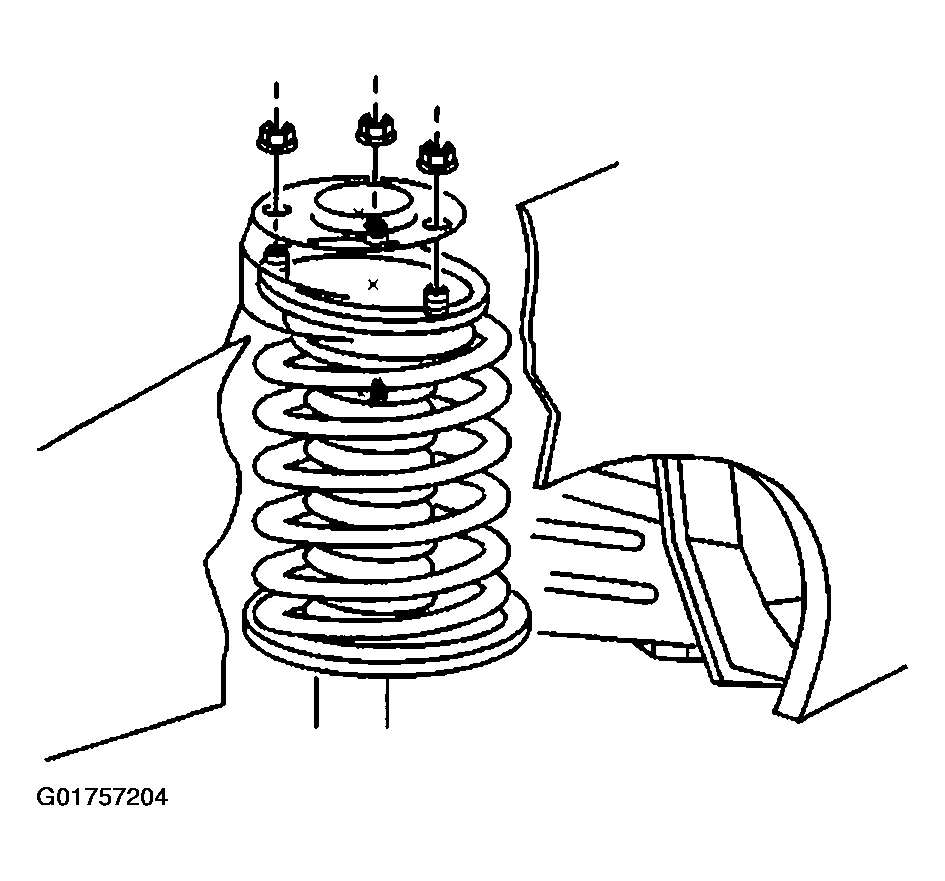

Remove the strut upper nuts.
IMPORTANT: Lift the vehicle using ONLY a frame-contact vehicle lift. Do NOT lift the vehicle using a suspension-contact vehicle lift.
Raise and support the vehicle.
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

Fig 1: Strut Lower Bolts And Nuts Removed
Courtesy of GENERAL MOTORS CORP.
Scribe the strut to the knuckle.

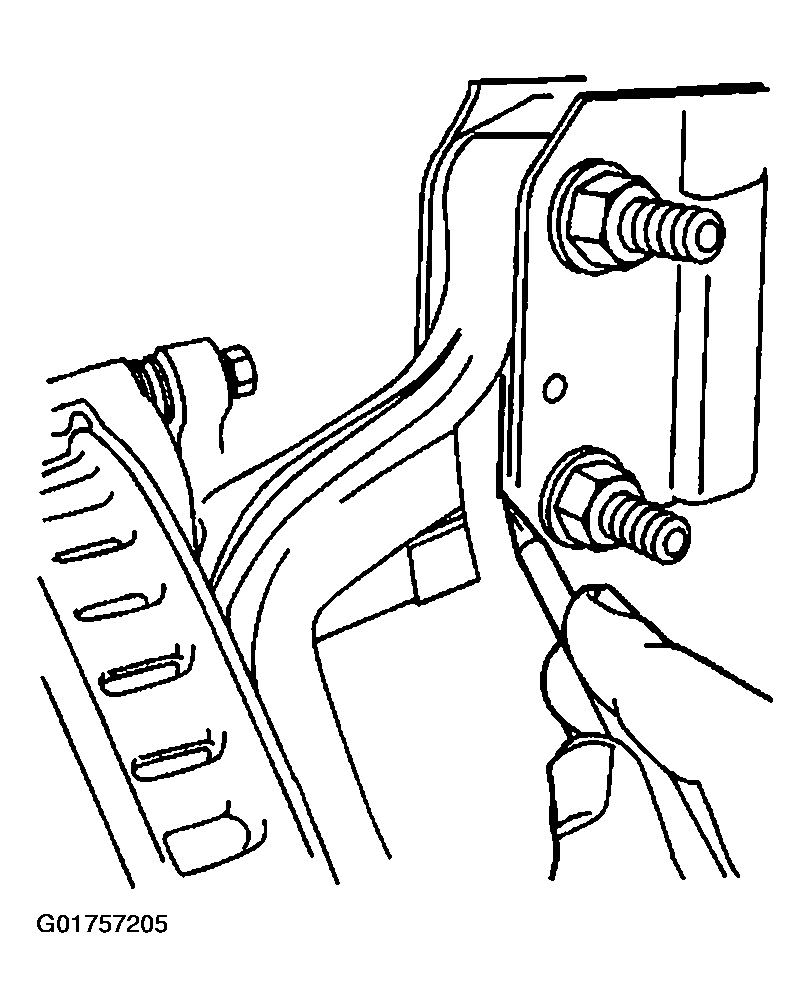

Fig 2: Scribing Strut To Knuckle
Courtesy of GENERAL MOTORS CORP.
Remove the strut lower bolts and nuts.
Remove the strut.

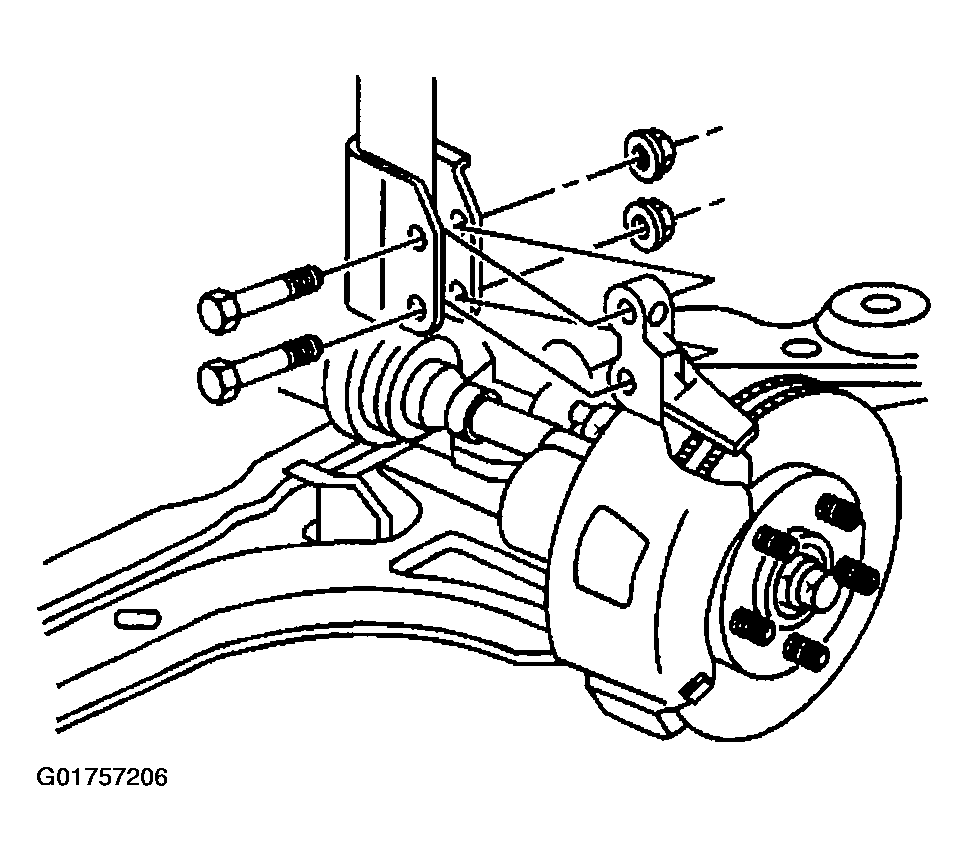

Fig 3: Removing Strut Lower Bolts And Nuts
Courtesy of GENERAL MOTORS CORP.
