Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on passenger's end of instrument panel. See Fig 1 .

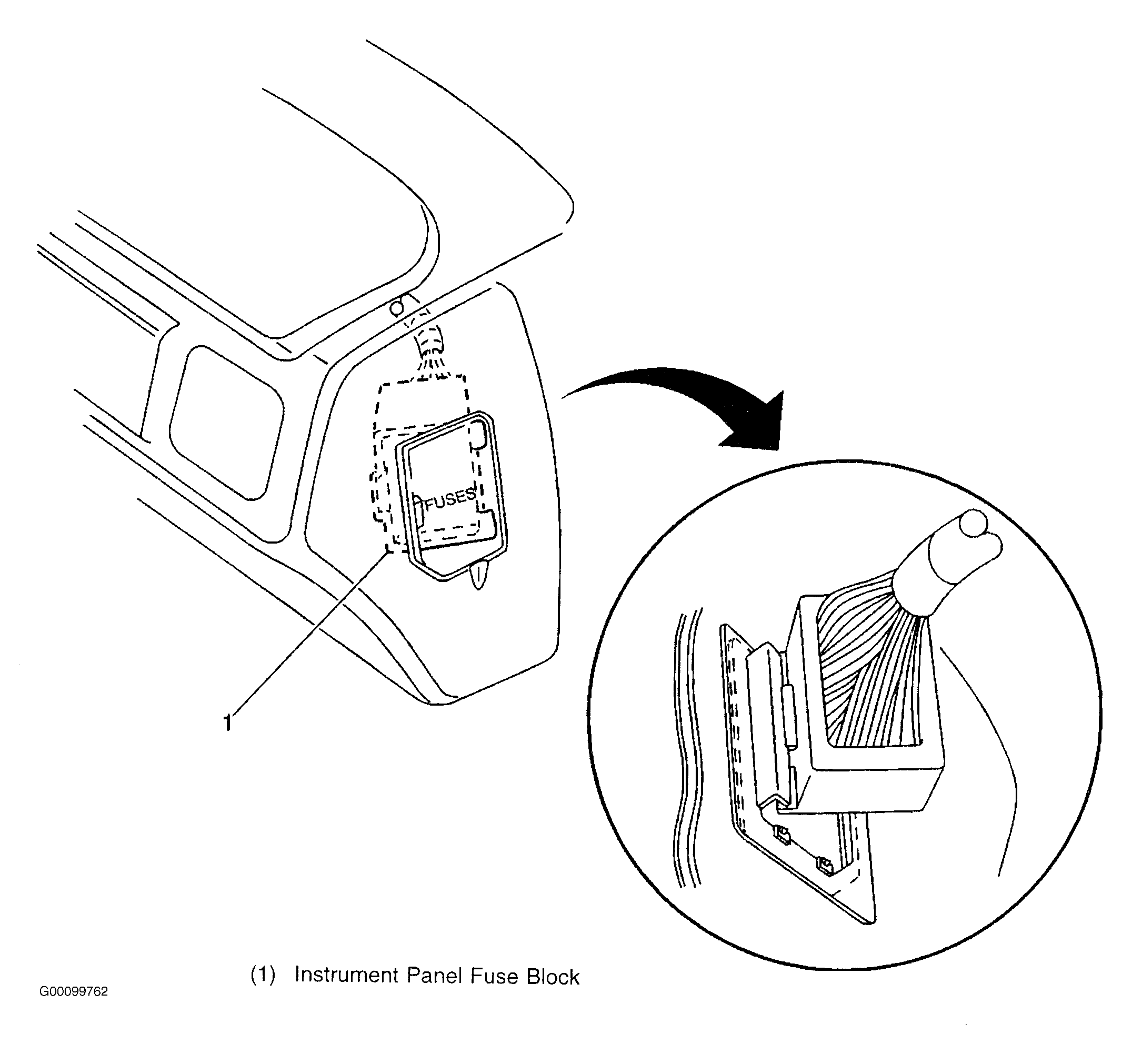

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

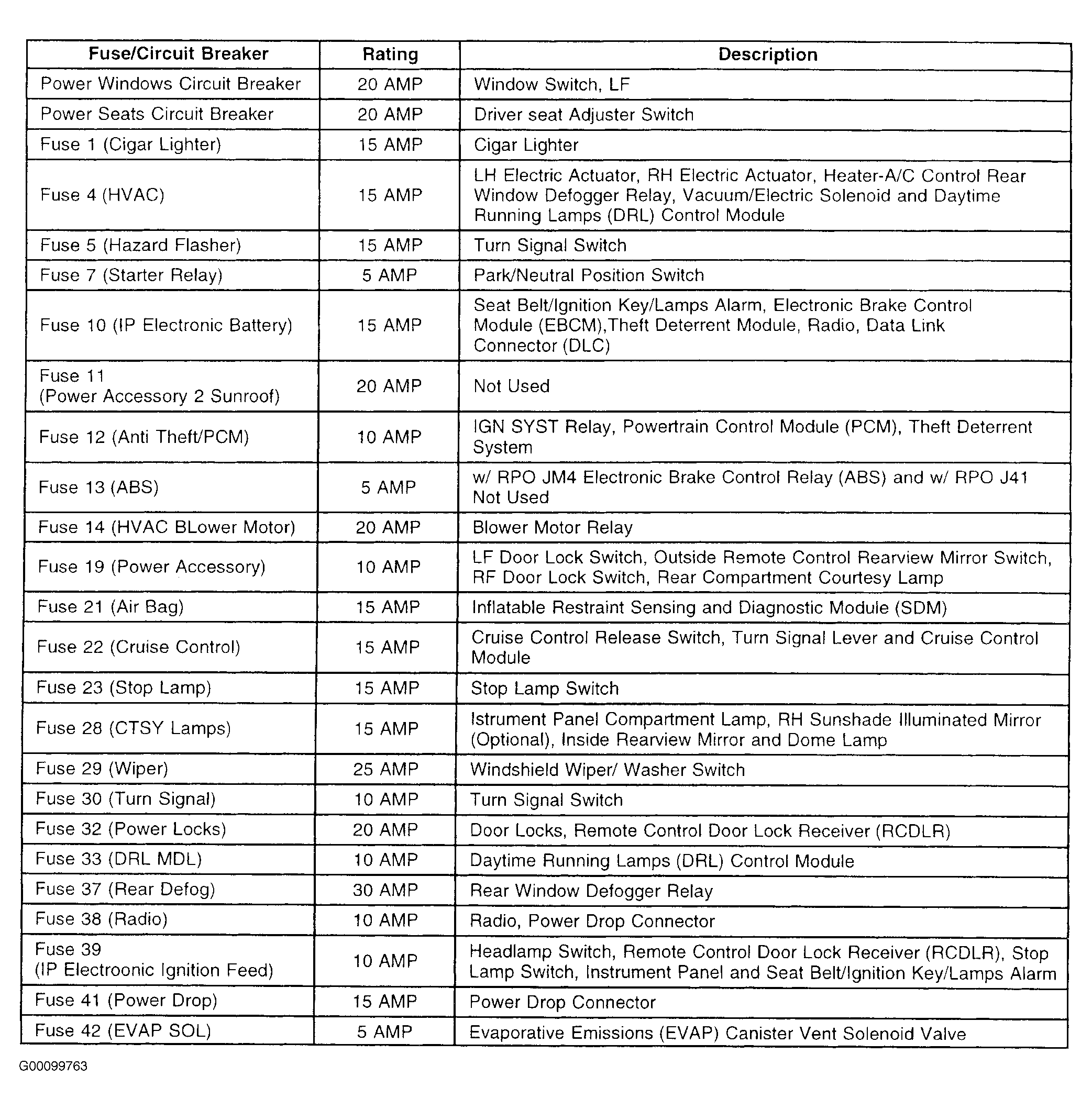

Fig 3: Instrument Panel Fuse Block Legend

Courtesy of GENERAL MOTORS CORP.
