Left Instrument Panel Junction Block

NOTE: Left instrument panel junction block is located under driver's side of instrument panel. See Fig 1 .

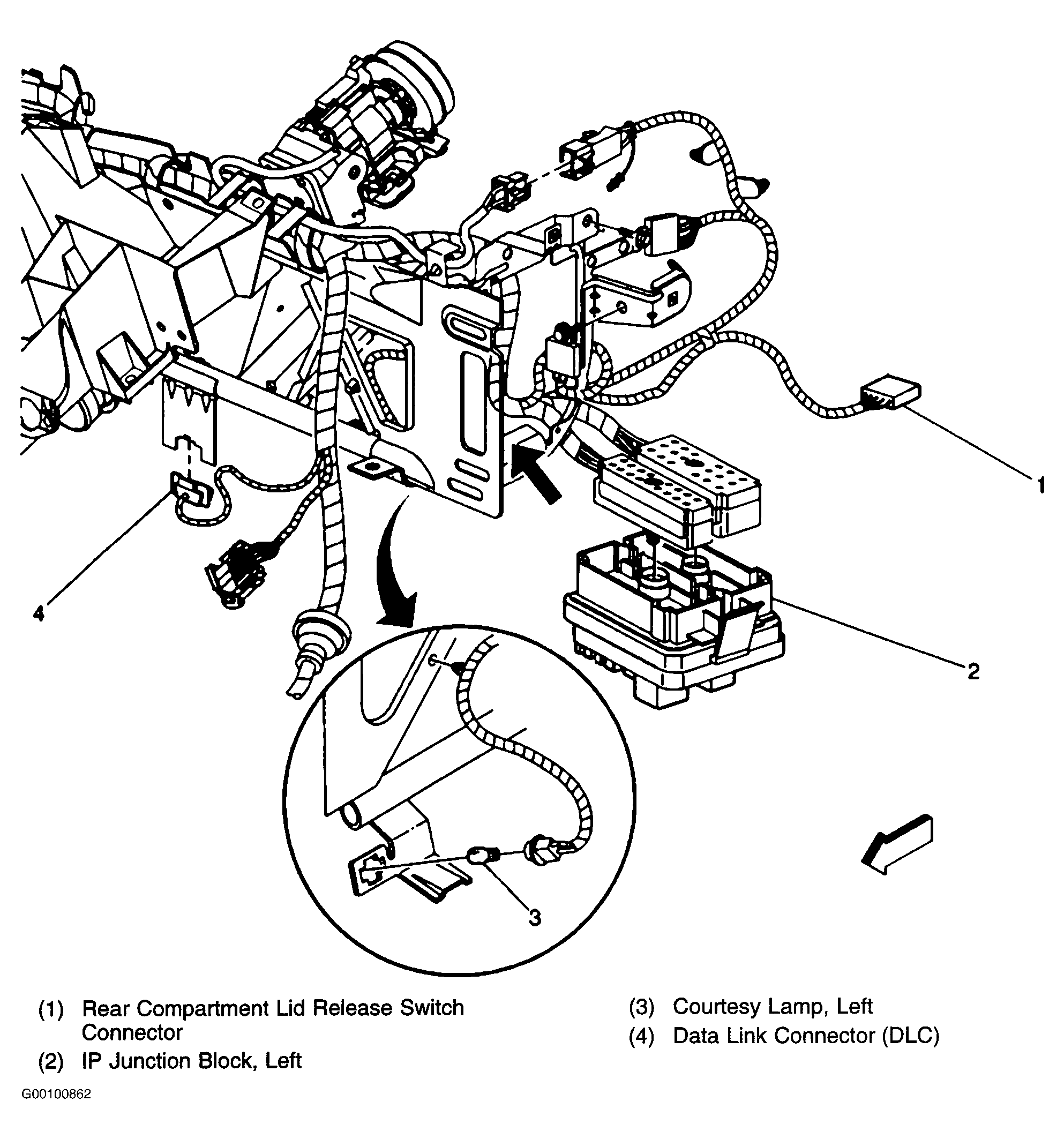

Fig 1: Locating Left Instrument Panel Junction Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Left Instrument Panel Junction Block Components

Courtesy of GENERAL MOTORS CORP.
