Intermediate-4TH Servo Assembly: Installation

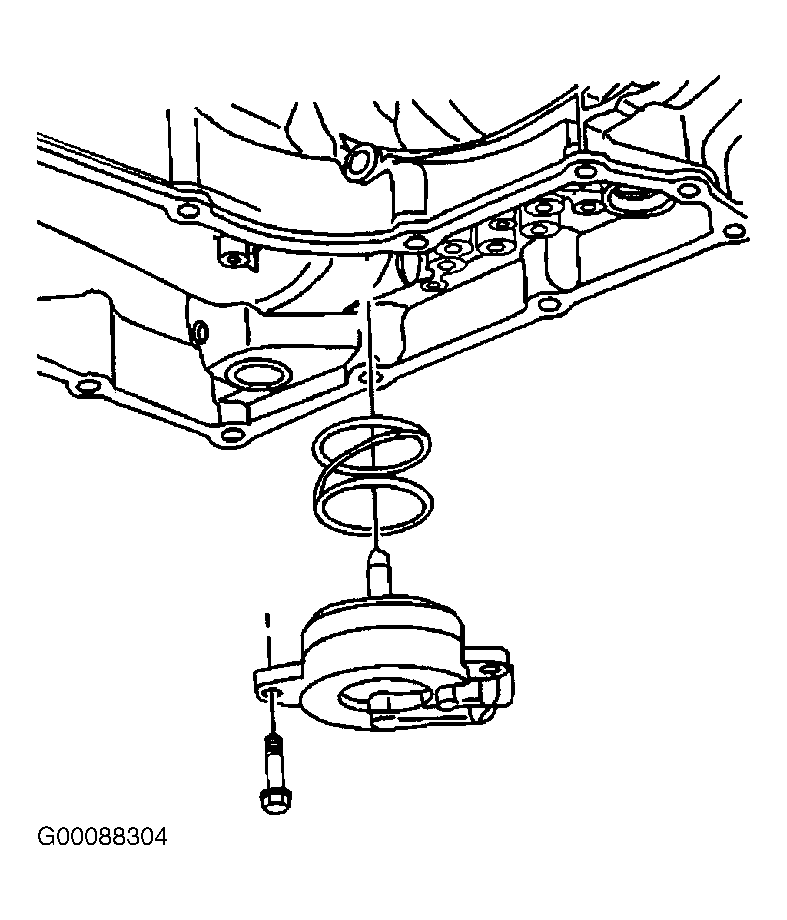

Install the intermediate-4th band servo piston spring, the servo and the servo cover bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Install the oil feed pipes. See OIL FEED PIPES . Install the filter and the oil pan. See DRAINING & REFILLING under LUBRICATION. Lower the vehicle. Connect the negative battery cable. Fill transaxle with appropriate fluid to proper level. See LUBRICATION .
