Junction Block

NOTE: Junction block is located under driver's side of instrument panel. See Fig 1.

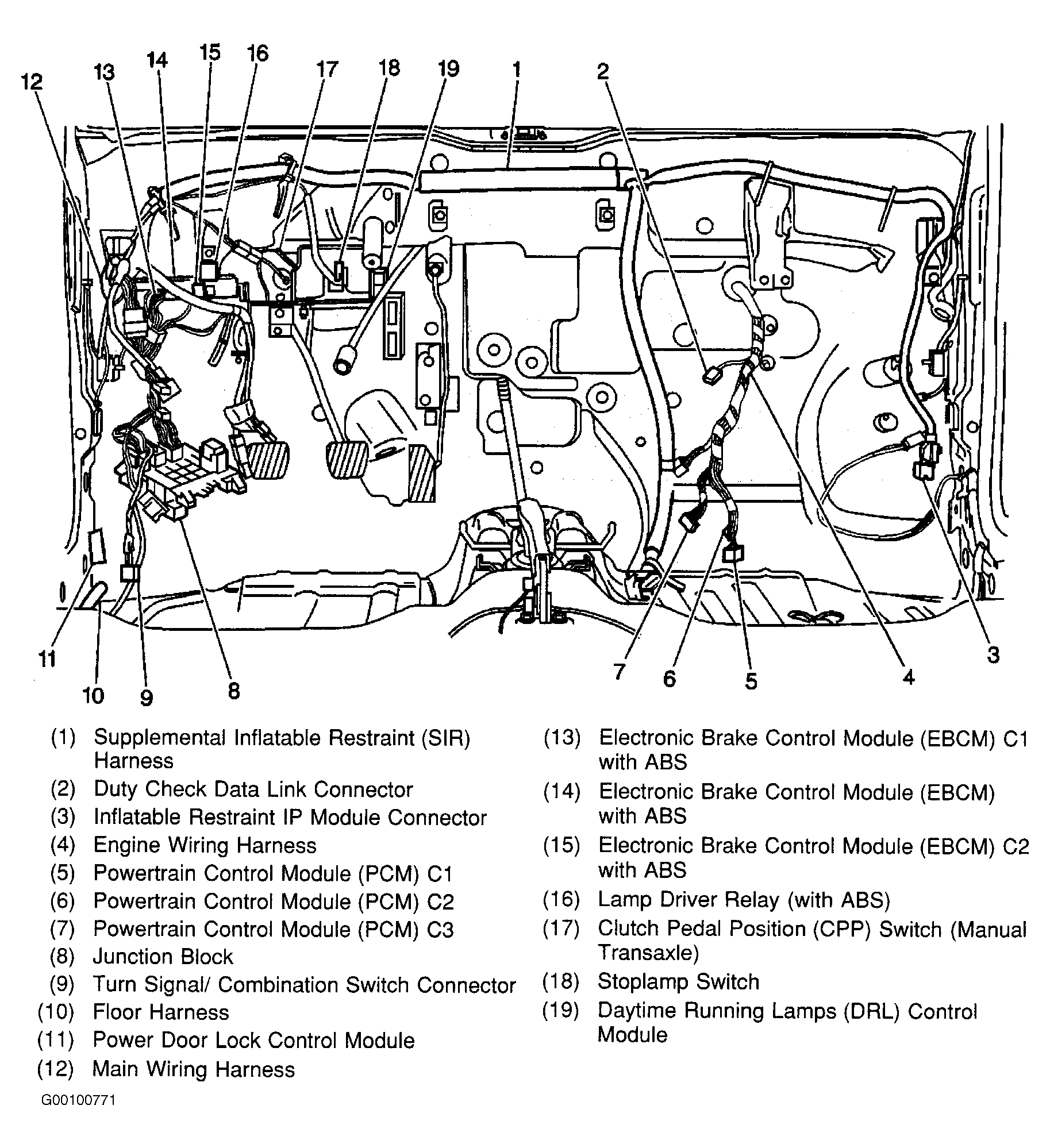

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of GENERAL MOTORS CORP.

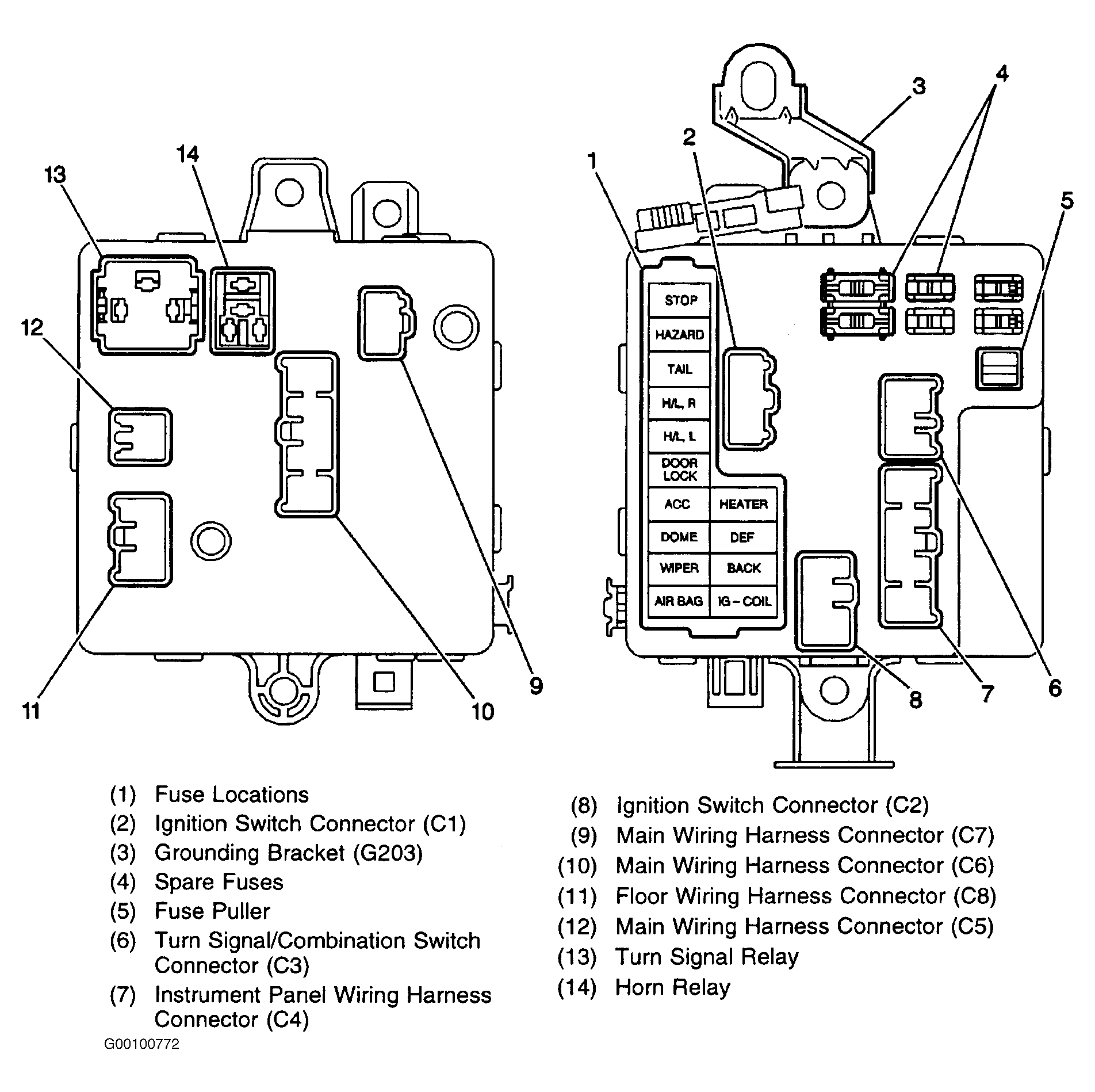

Fig 2: Identifying Junction Block Components

Courtesy of GENERAL MOTORS CORP.
