Junction Blocks
Junction Blocks

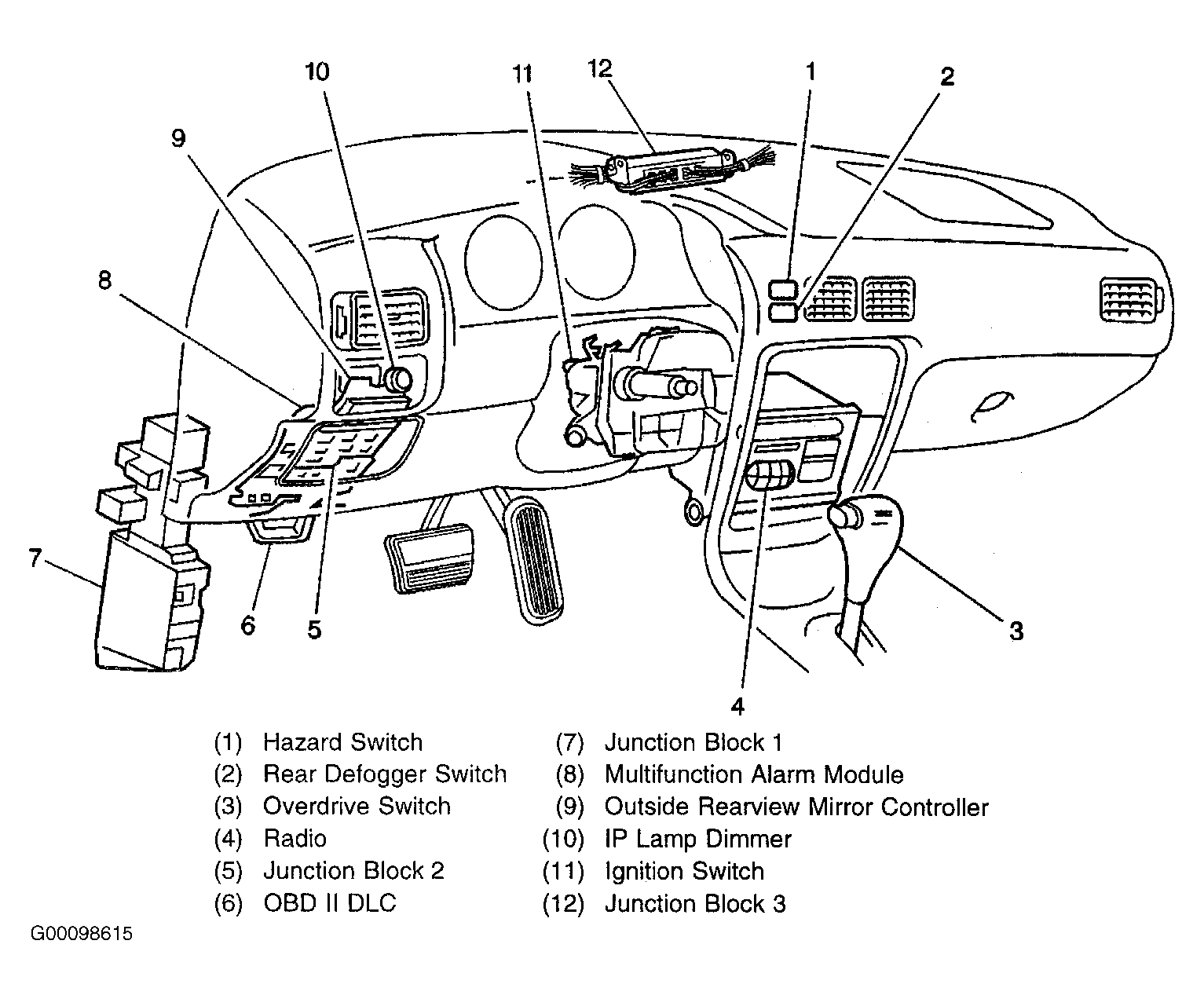

Fig 1: Locating Junction Blocks
Courtesy of GENERAL MOTORS CORP.

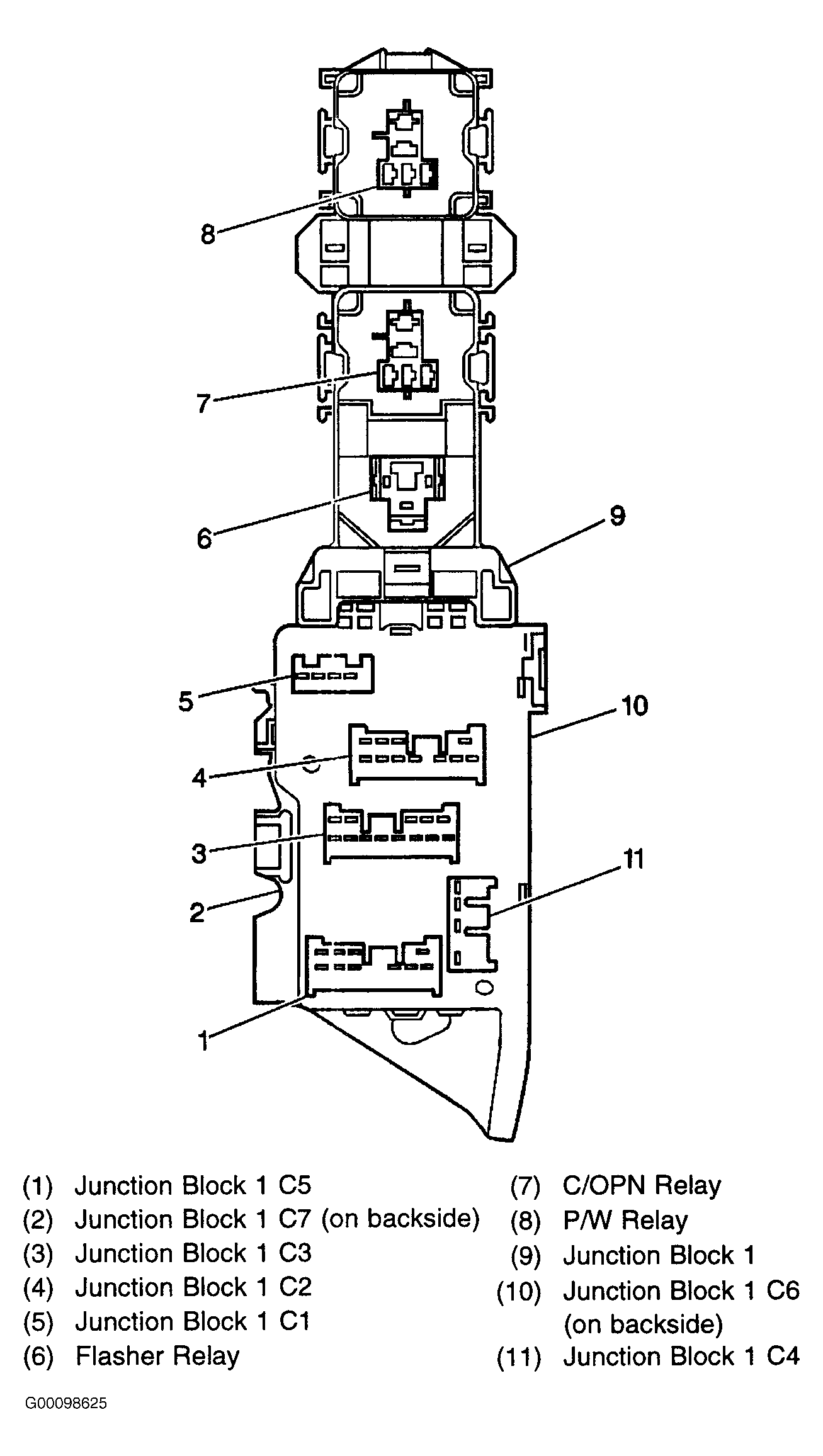

Fig 2: Identifying Junction Block 1
Courtesy of GENERAL MOTORS CORP.

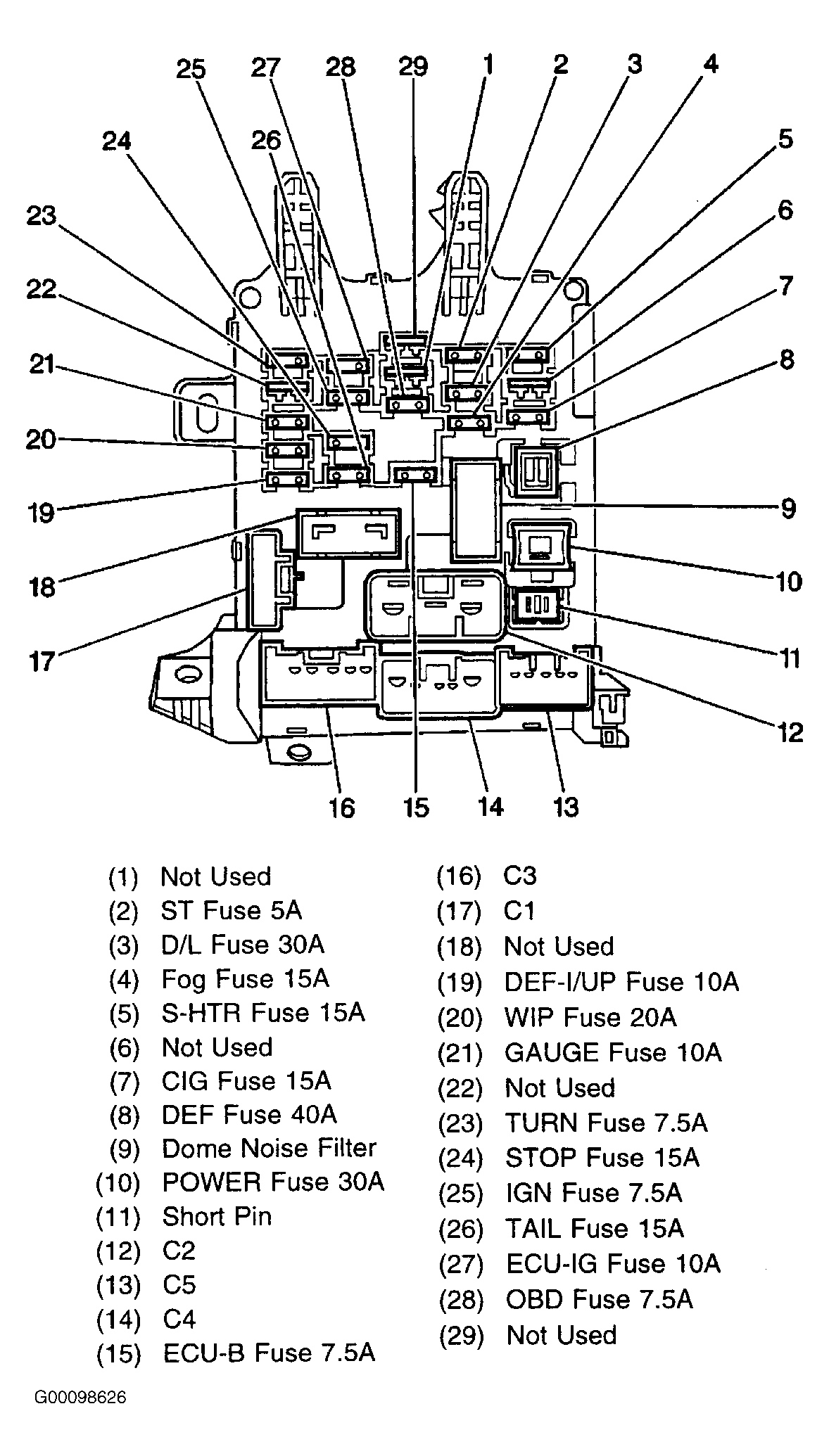

Fig 3: Identifying Junction Block 2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
