Engine Compartment Fuse Block
Engine Compartment Fuse Block
The main fuse block is located in the engine compartment.

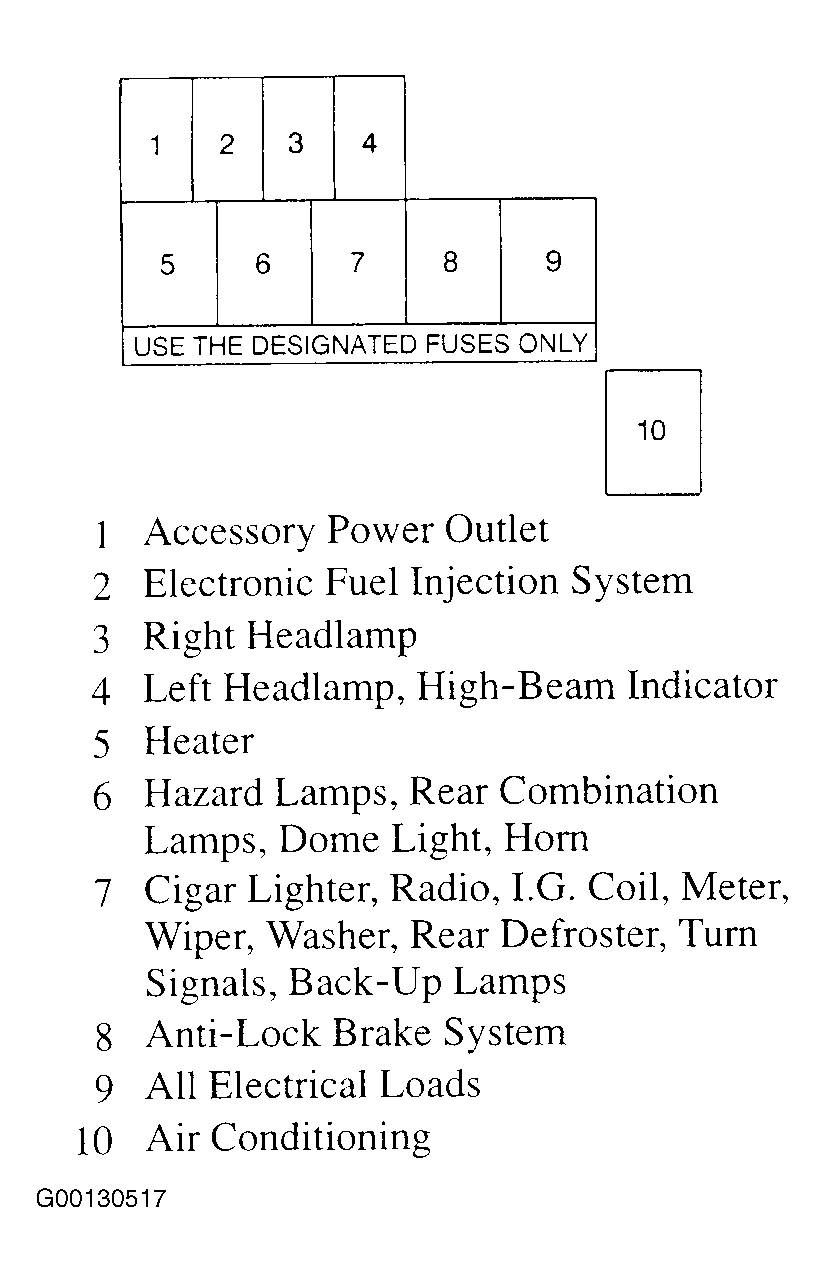

Fig 1: Engine Compartment Fuse Block - Identifying Components & Legend
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
