Axle Shafts - Front: Overhaul

NOTE: To assist in overhaul, use exploded view of axle shaft assemblies. See Fig 1 .

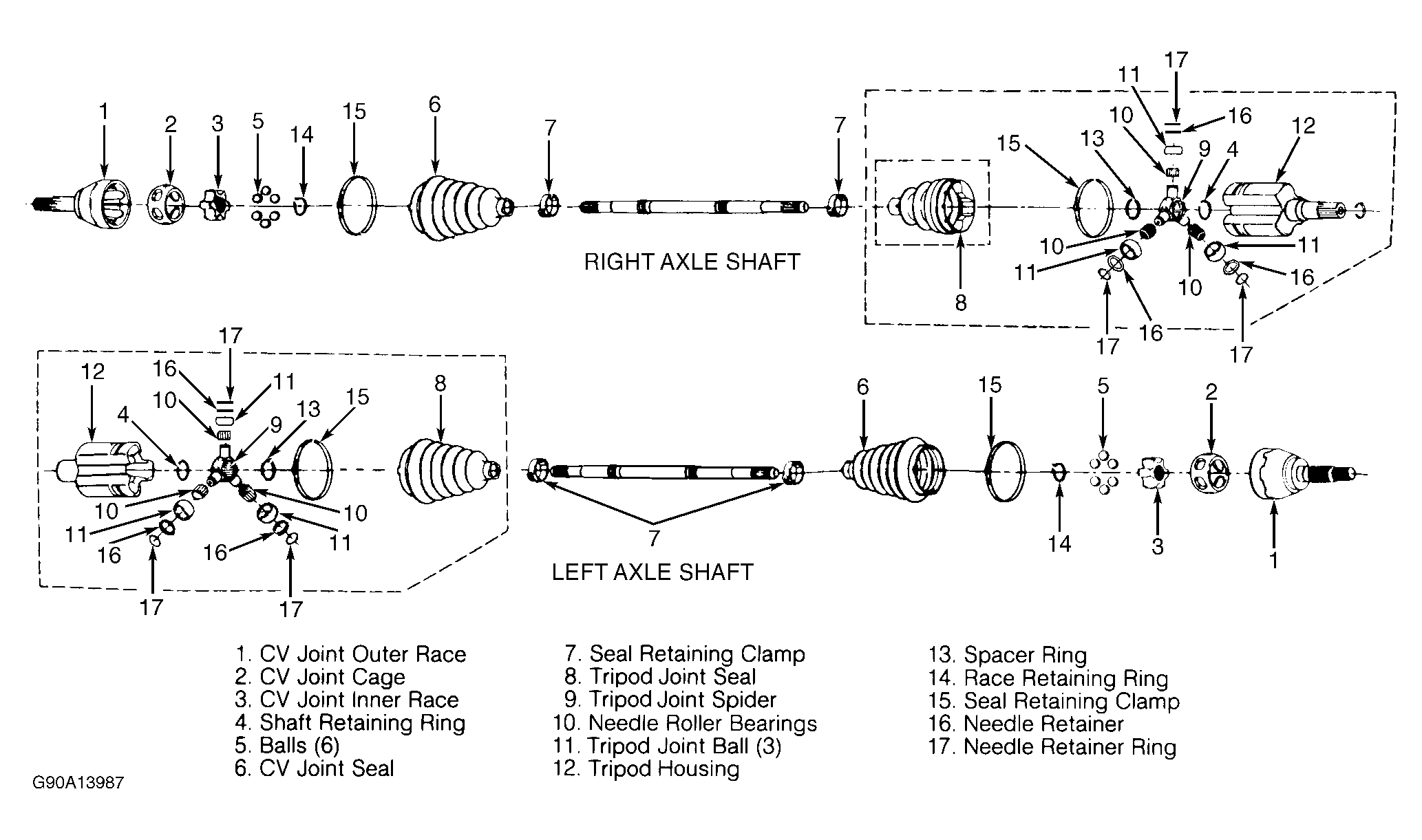

Fig 1: Exploded View Of Right & Left Axle Shaft Assemblies

Courtesy of GENERAL MOTORS CORP.
