UNDERHOOD Junction Block

NOTE: Underhood junction block is located on the front right side of the engine compartment, near battery. See Fig 1 .

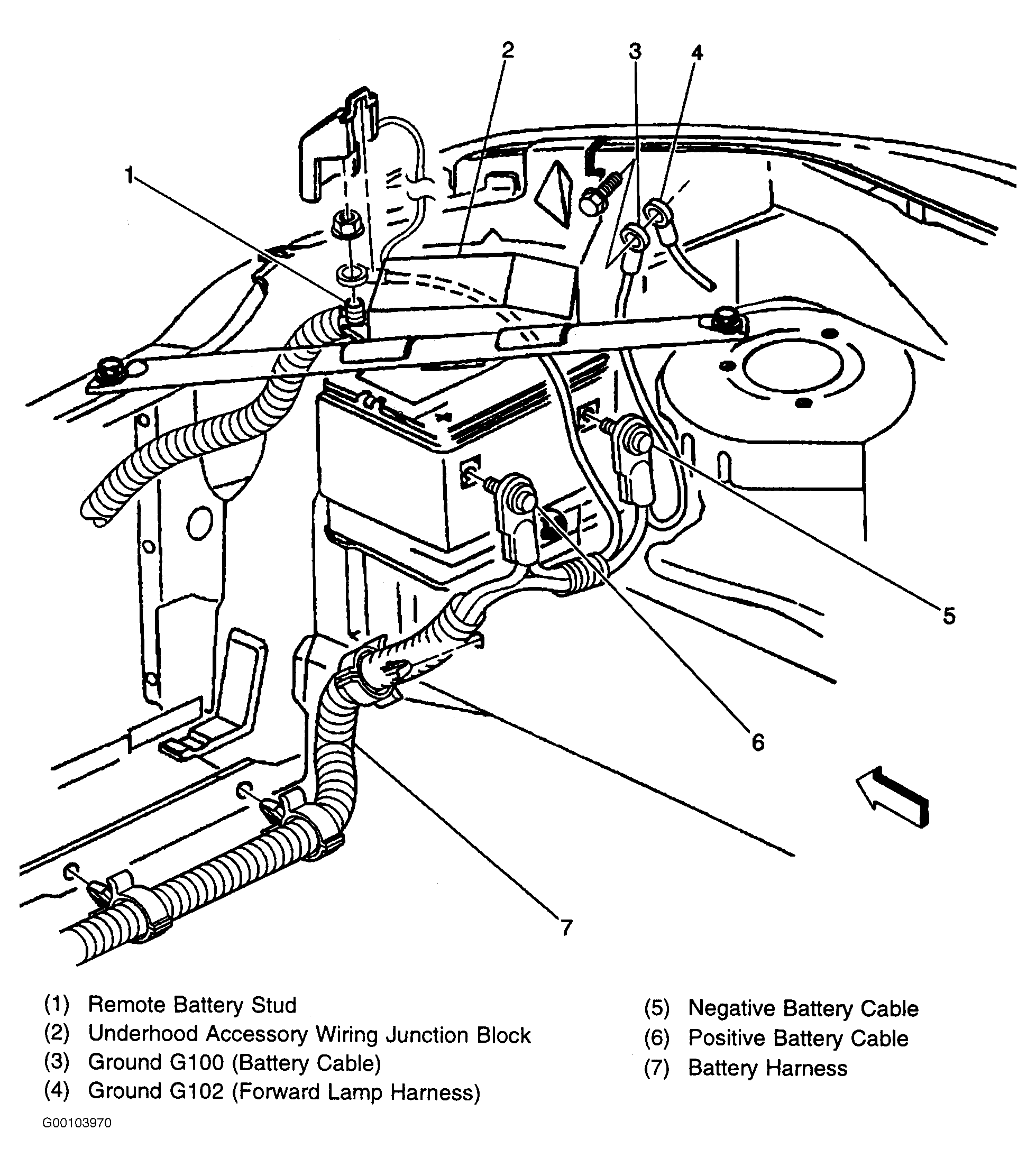

Fig 1: Locating Underhood Junction Block

Courtesy of GENERAL MOTORS CORP.

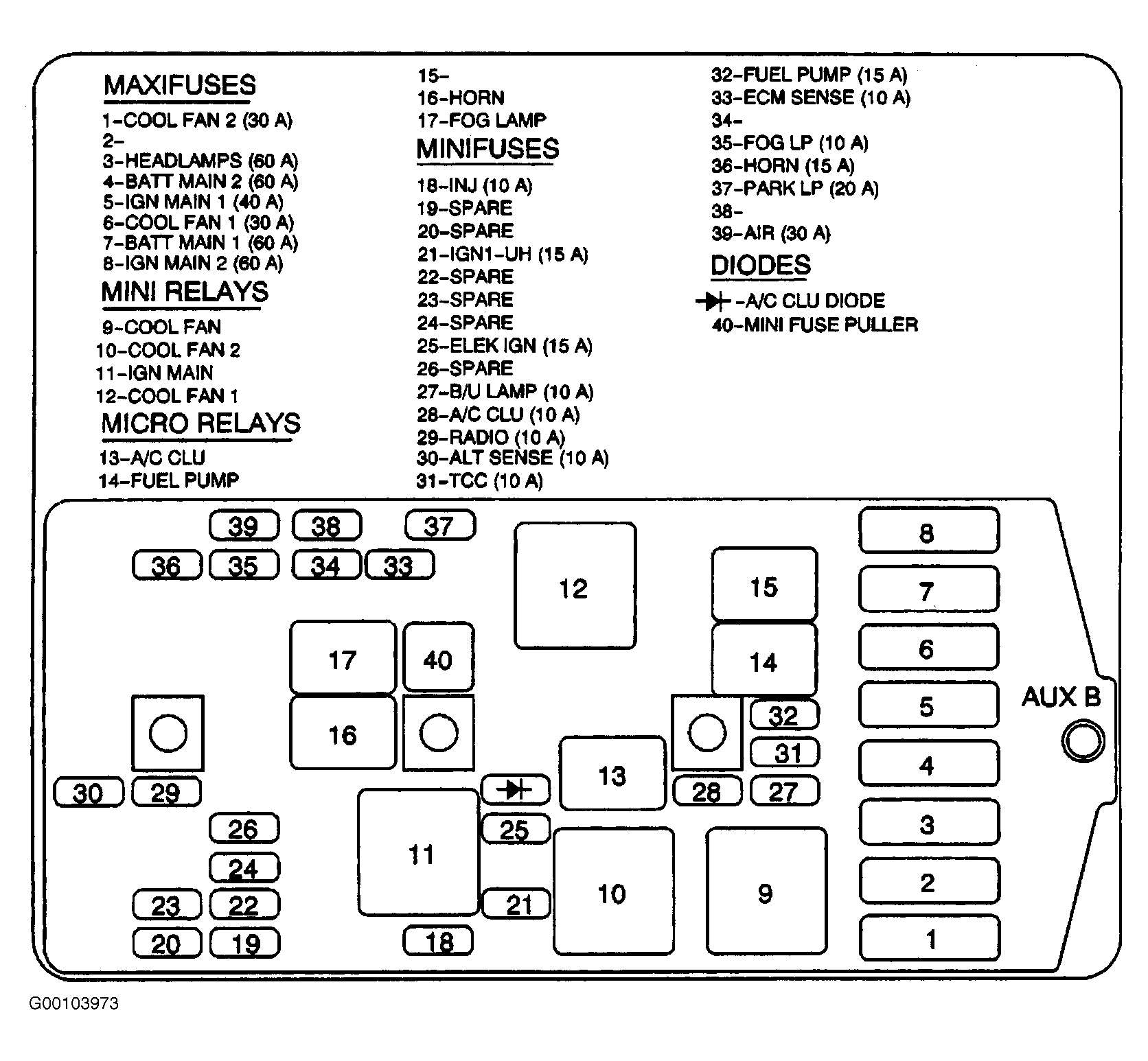

Fig 2: Identifying Underhood Junction Block Components

Courtesy of GENERAL MOTORS CORP.

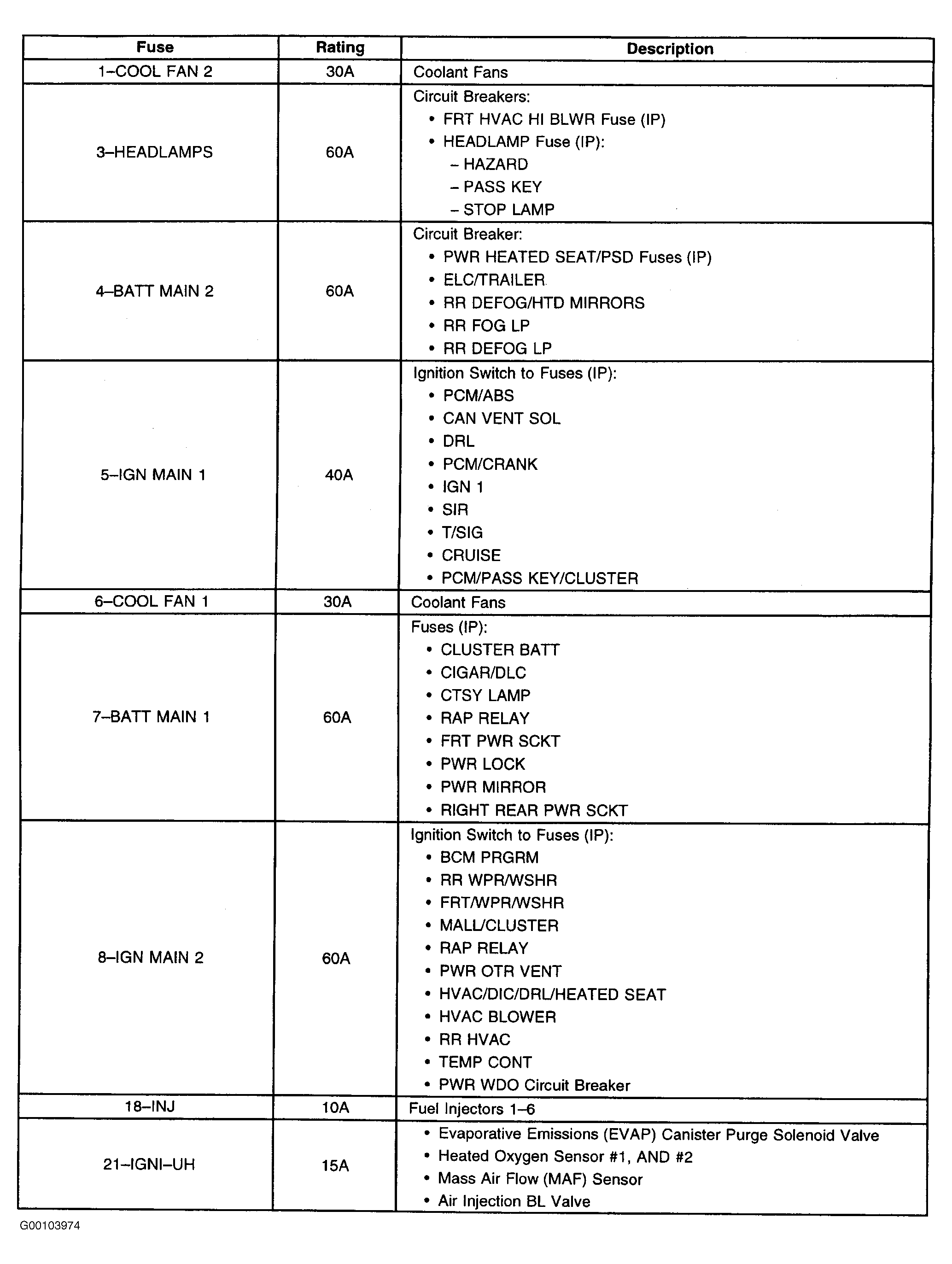

Fig 3: Underhood Junction Block Legend (1 of 2)

Courtesy of GENERAL MOTORS CORP.

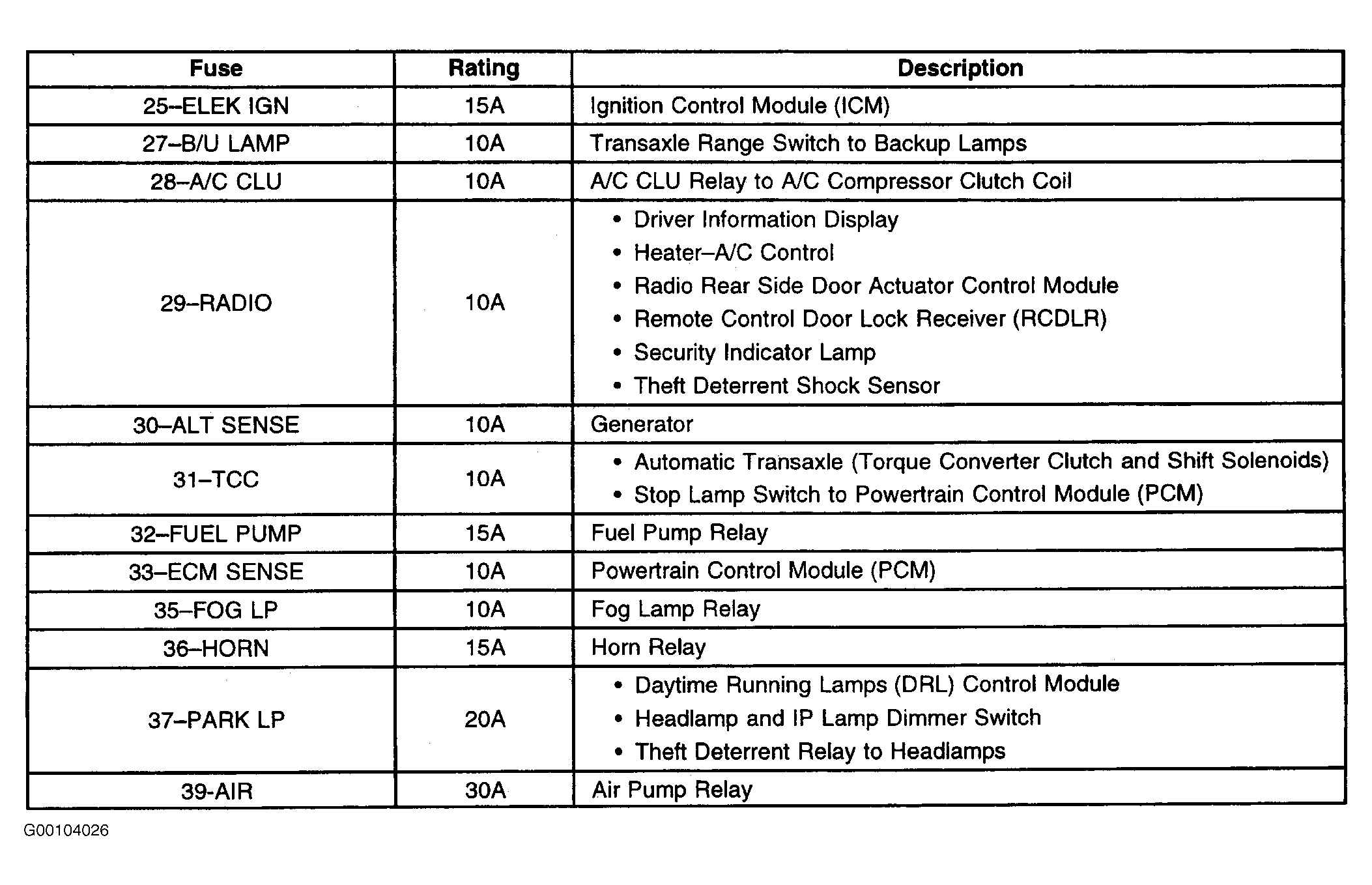

Fig 4: Underhood Junction Block Legend (2 of 2)

Courtesy of GENERAL MOTORS CORP.
