Wiper Motor Assembly: Removal

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air inlet grille panel.
Remove the wiper motor crank arm. See WIPER ARMS .
Remove the wiper drive system module.
Remove the wiper motor screws.
Remove the wiper motor from the wiper drive system module. See Fig 1 .
Remove the shaft seal and the water shield from the wiper motor.

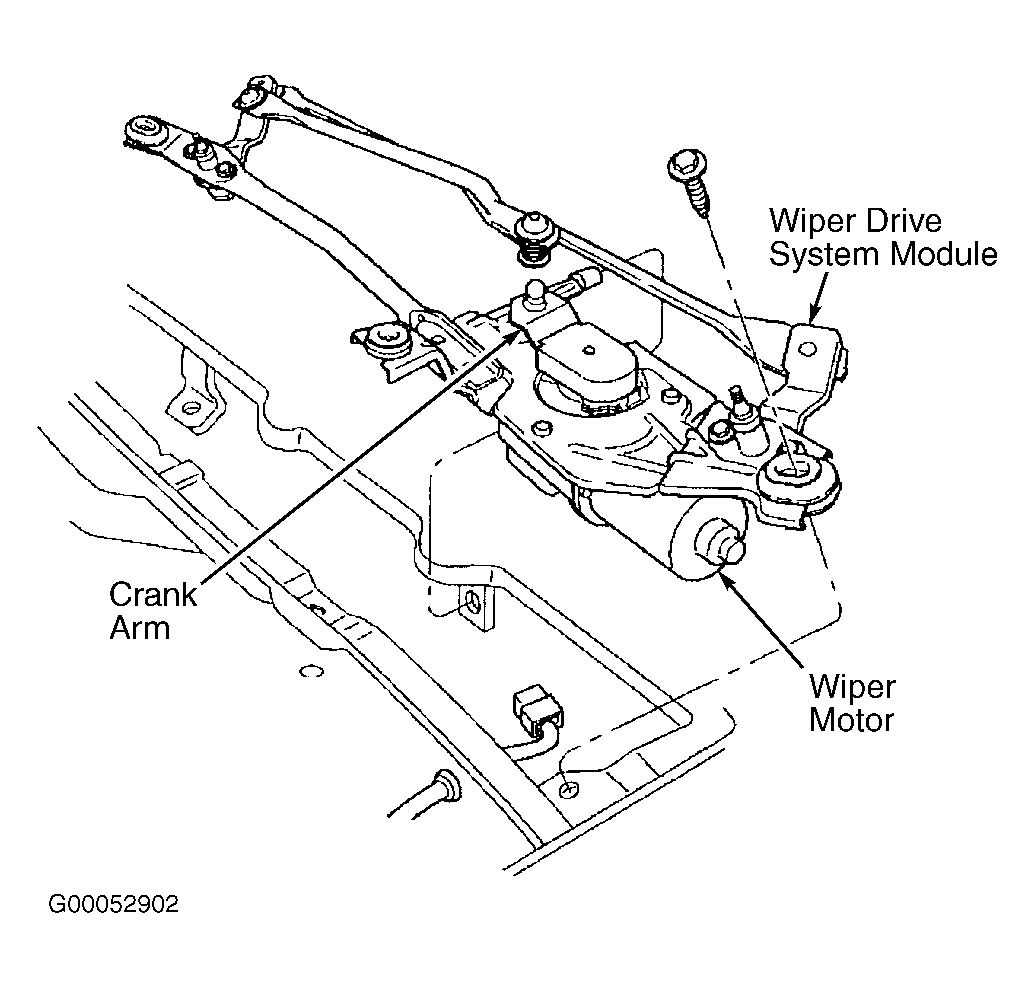

Fig 1: Removing Wiper Motor

Courtesy of GENERAL MOTORS CORP.
