Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery tray.
NOTE: Refer to FASTENER NOTICE .
Install the battery tray screws. Tighten the battery tray screws to 5 N.m (44 lb in).

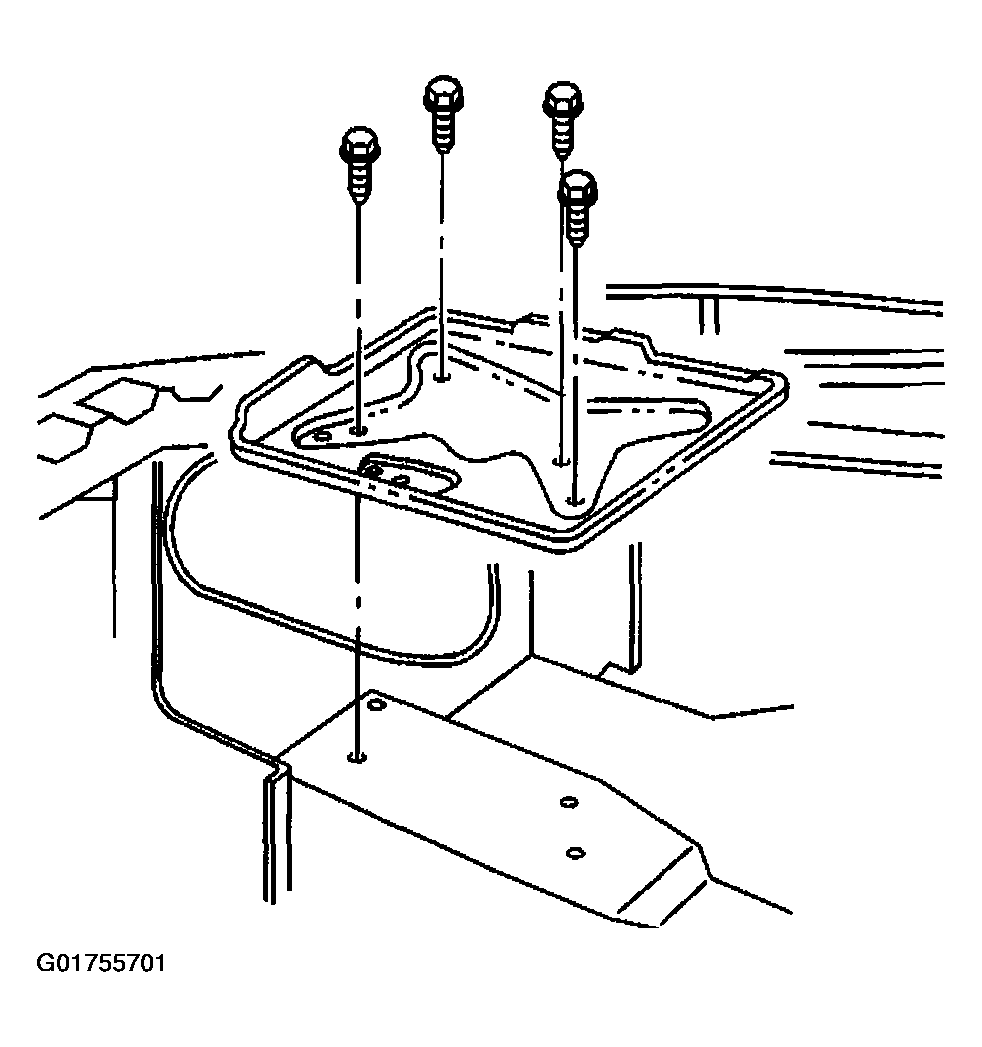

Fig 1: Identifying Battery Tray

Courtesy of GENERAL MOTORS CORP.

Install the battery. Refer to BATTERY REPLACEMENT .
