Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Align the hood hinge to the fender.
NOTE: Refer to FASTENER NOTICE .
Install the hood hinge to fender bolts. Tighten the bolts to 25 N.m (18 lb ft).

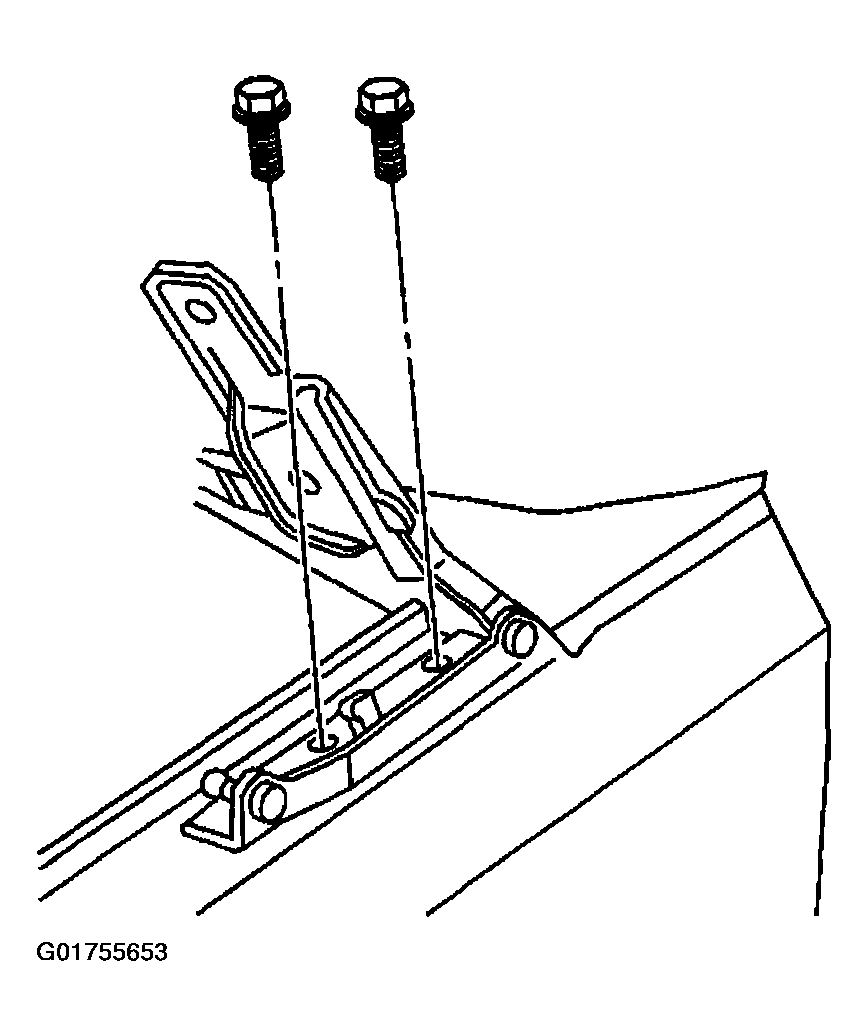

Fig 1: Identifying Hood Hinge-To-Fender Bolts

Courtesy of GENERAL MOTORS CORP.

Install the hood. Refer to Hood Replacement .
Install the hood assist rod. Refer to Assist Rod Replacement - Hood .
Install the hood rear side seal to the hood. Refer to Seal Replacement - Hood Rear Side .
Adjust the hood, as required. Refer to Hood Adjustment .
