Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator to the hood.

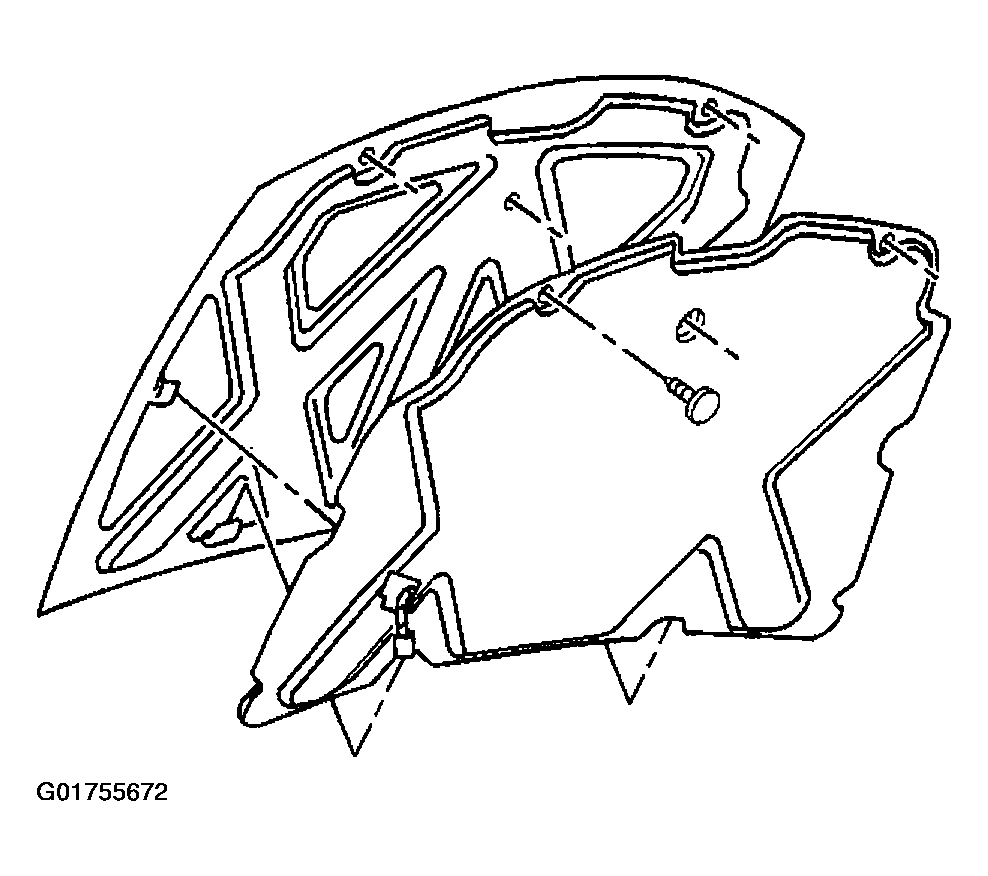

  2. Fig 1: Identifying Hood Insulator
    G01755672Courtesy of GENERAL MOTORS CORP.
  3. Align the insulator retainer holes to the holes in the hood.
  4. Install the push-in retainers to the hood insulator.
  5. Close the hood.
