Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Connect the hood latch release cable to the hood latch.

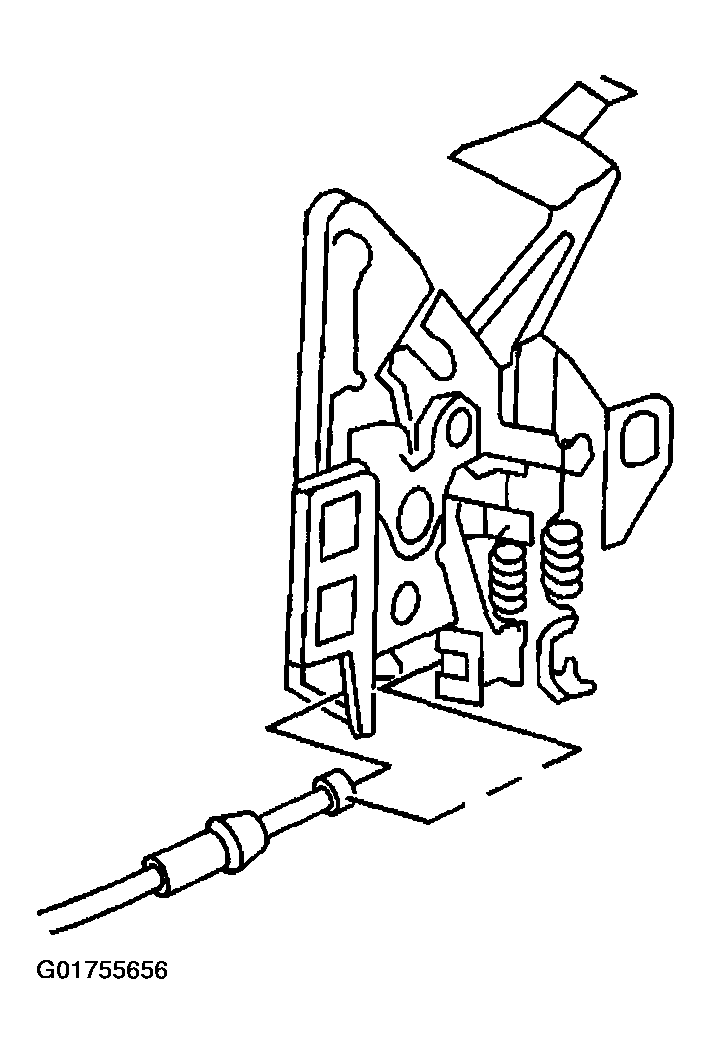

Fig 1: Identifying Hood Latch Cable
Courtesy of GENERAL MOTORS CORP.
Position the hood latch to the marks on the hood latch support bracket.
NOTE: Refer to FASTENER NOTICE .
Install the hood latch to center support bracket bolts. Tighten the bolts to 25 N.m (18 lb ft).

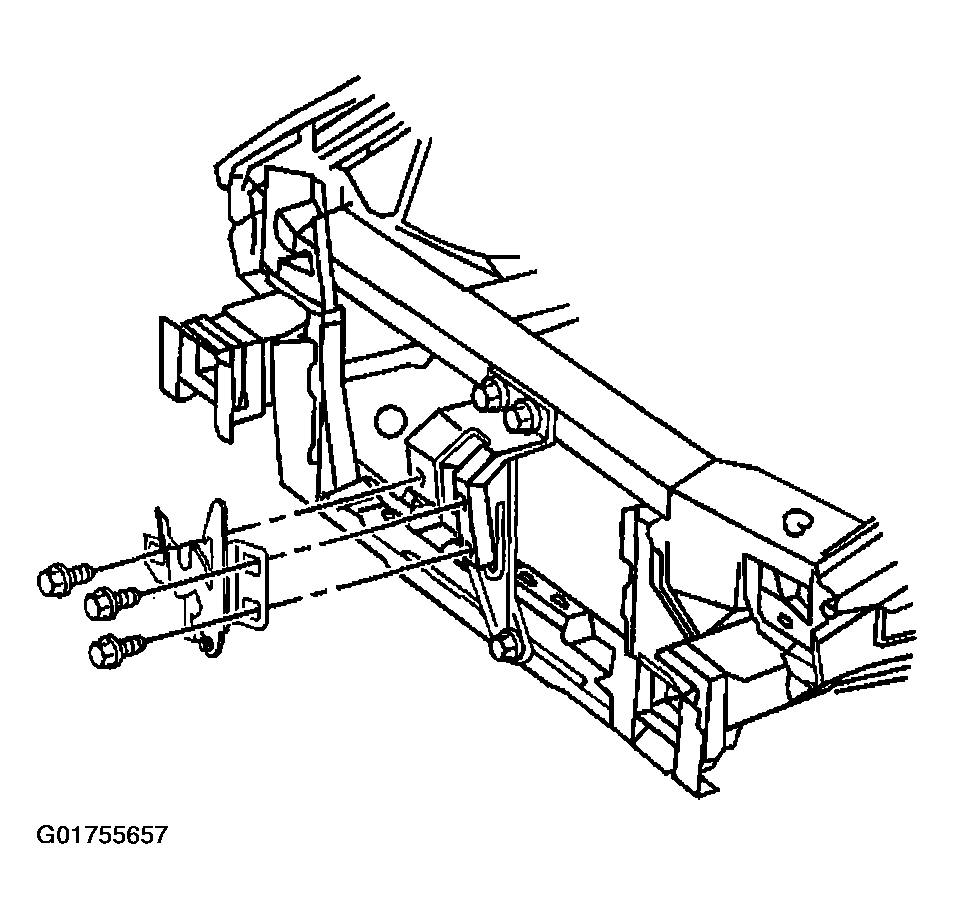

Fig 2: Identifying Hood Latch

Courtesy of GENERAL MOTORS CORP.

Adjust the hood, as required. Refer to Hood Adjustment .
Close the hood.
