Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Use a pry bar in order install the stabilizer shaft link insulators and the spacer.
Install the stabilizer shaft link and insulators.
Install the stabilizer shaft link bolt and nut.
Tighten Tighten the stabilizer shaft link nut to 23N.m(17lb ft).
Lower the vehicle.

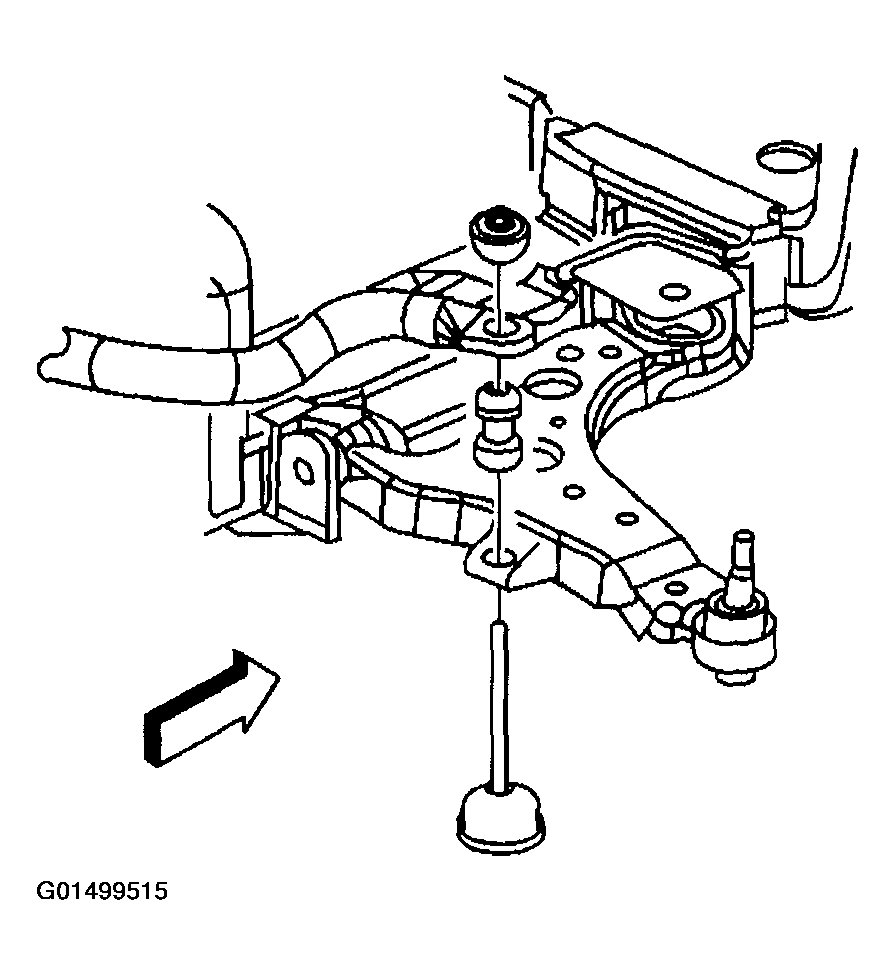

Fig 1: Installing Stabilizer Shaft Link
Courtesy of GENERAL MOTORS CORP.
