Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulbs into the cluster by inserting the bulb and base assembly, and turning the bulb turn clockwise.

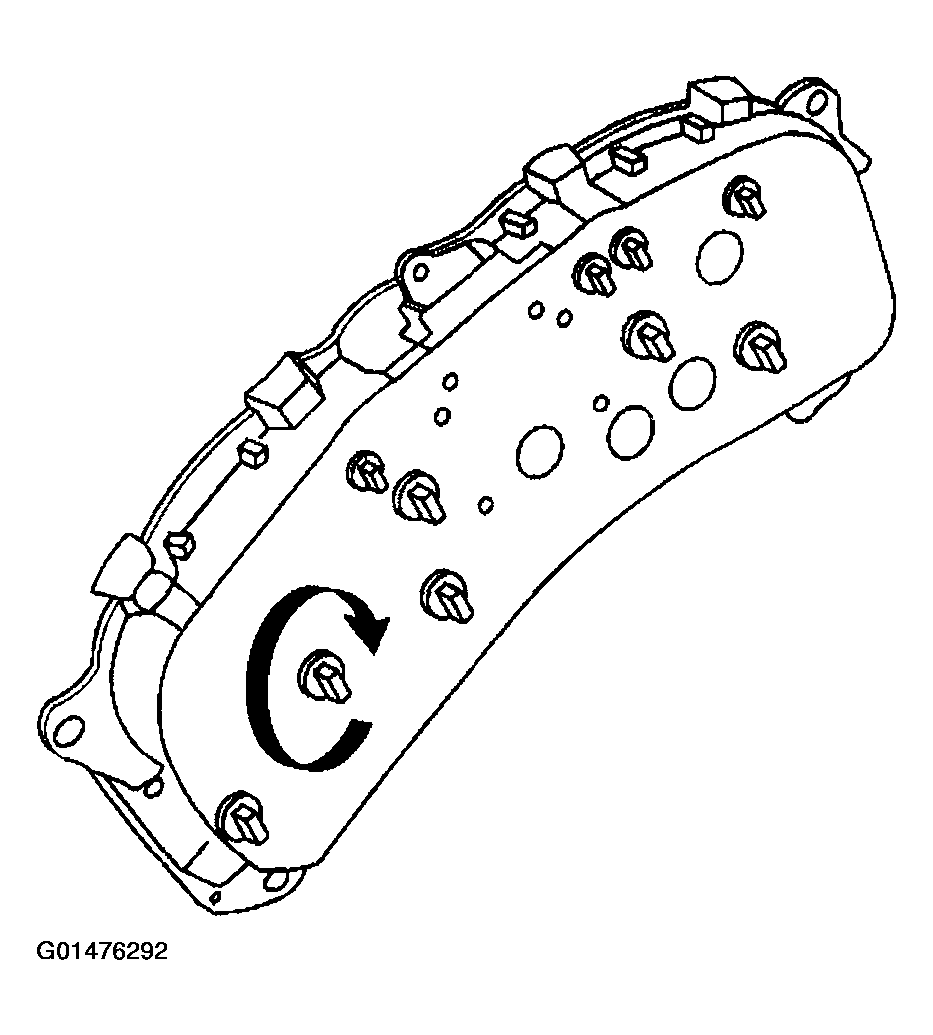

Fig 1: Installing Bulb & Base Assembly By Turning 1/2 Turn Clockwise
Courtesy of GENERAL MOTORS CORP.
Carefully snap the rear cover plate to the IPC.
Install the IPC. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages and Console.
Connect the negative battery cable.

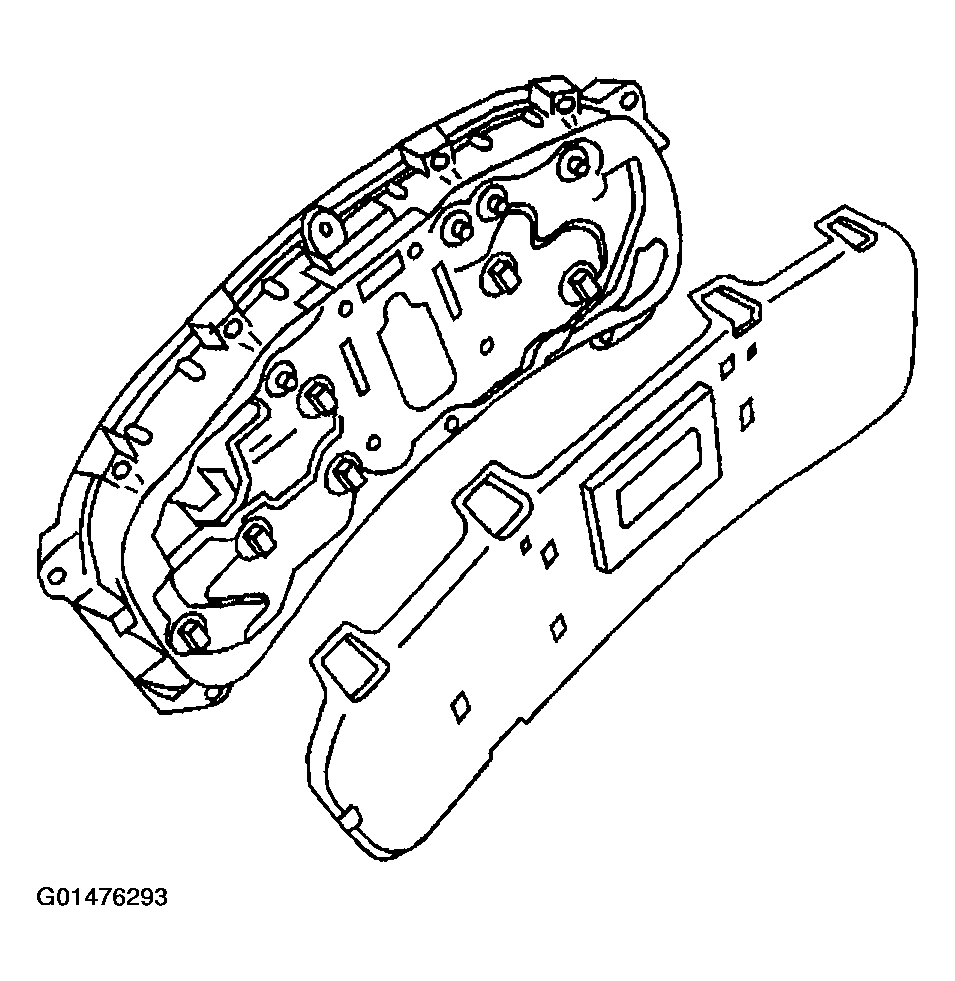

Fig 2: Installing Rear Cover Plate To Instrument Panel Cluster
Courtesy of GENERAL MOTORS CORP.
