Power Seat Systems Connector End Views
Power Seat Systems Connector End Views

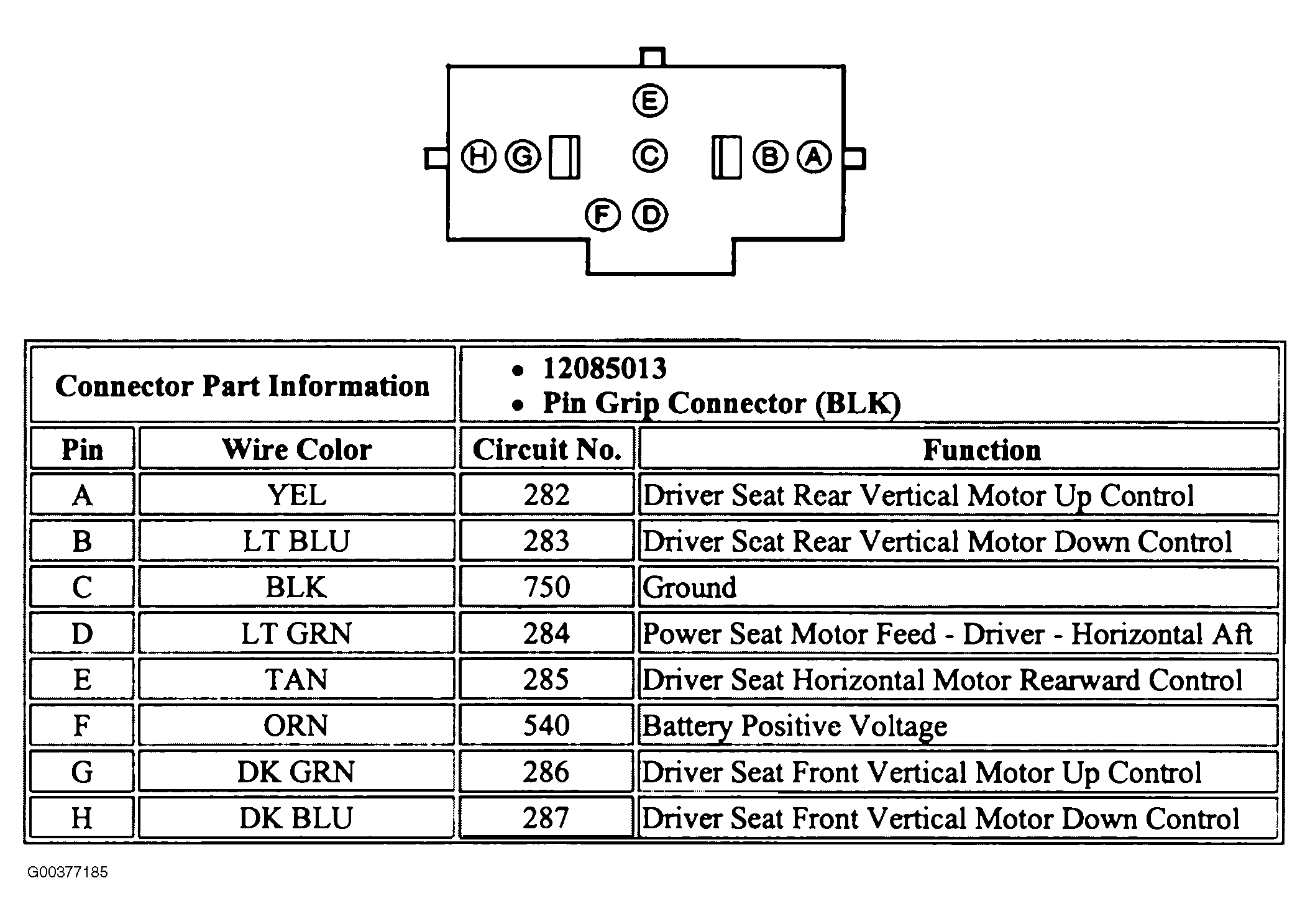

Fig 1: Seat Adjuster Switch - Driver Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
