Fuel Injection Line Routing Diagram

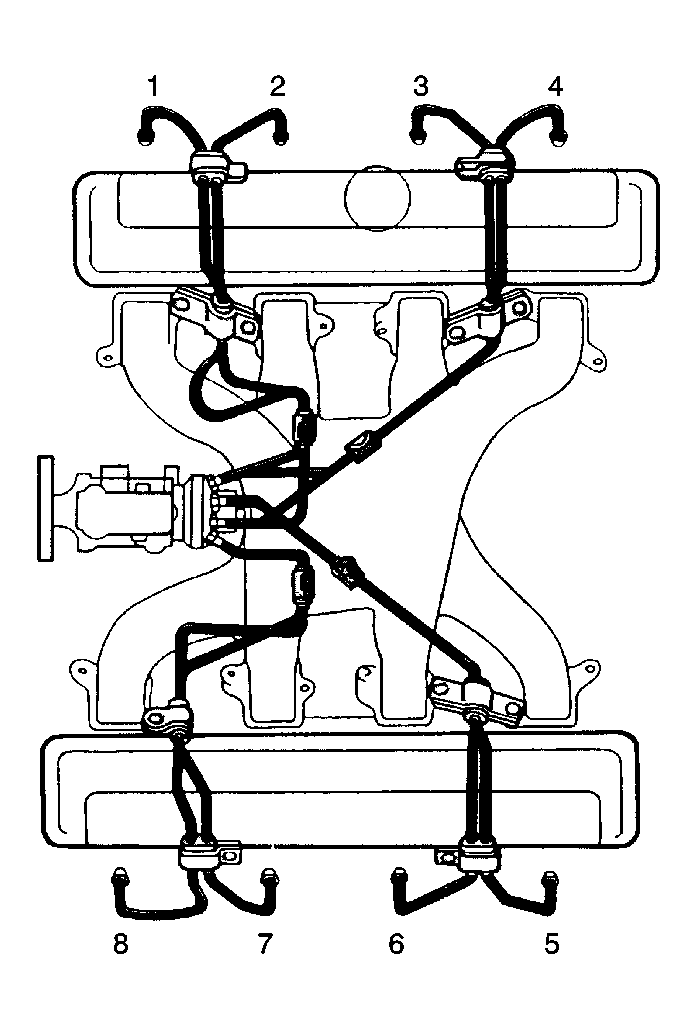

Fig 1: Fuel Injection Line Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cylinder 2
2	Cylinder 4
3	Cylinder 6
4	Cylinder 8
5	Cylinder 7
6	Cylinder 5
7	Cylinder 3
8	Cylinder 1
