Section 139 (Lighting Systems)
›
Component Locator
›
Lighting Systems Component Views
Lighting Systems Component Views
WARNING:
This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

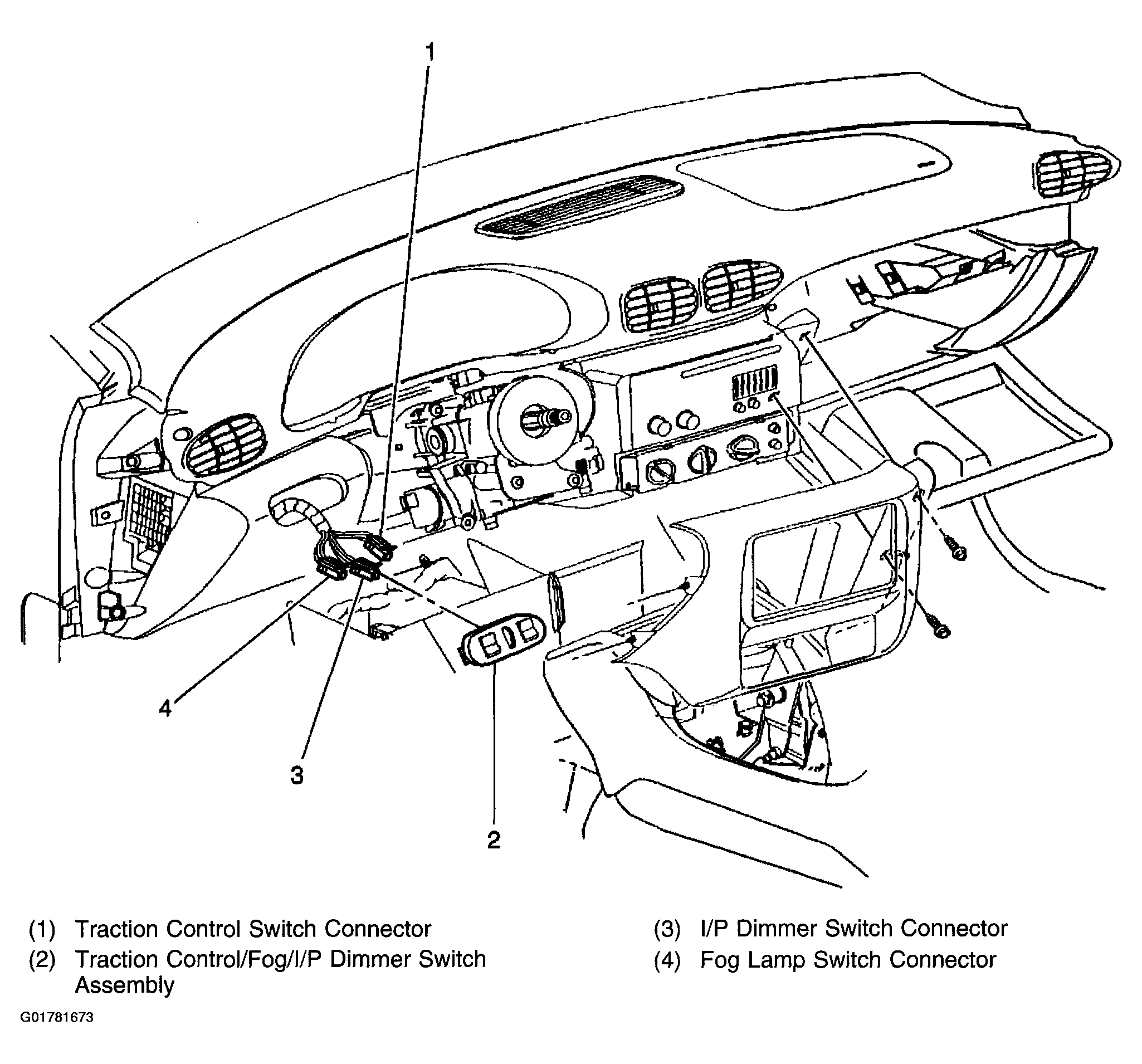

Fig 1: Locating Traction Control, Dimmer & Foglight Switch (Pontiac)
Courtesy of GENERAL MOTORS CORP.

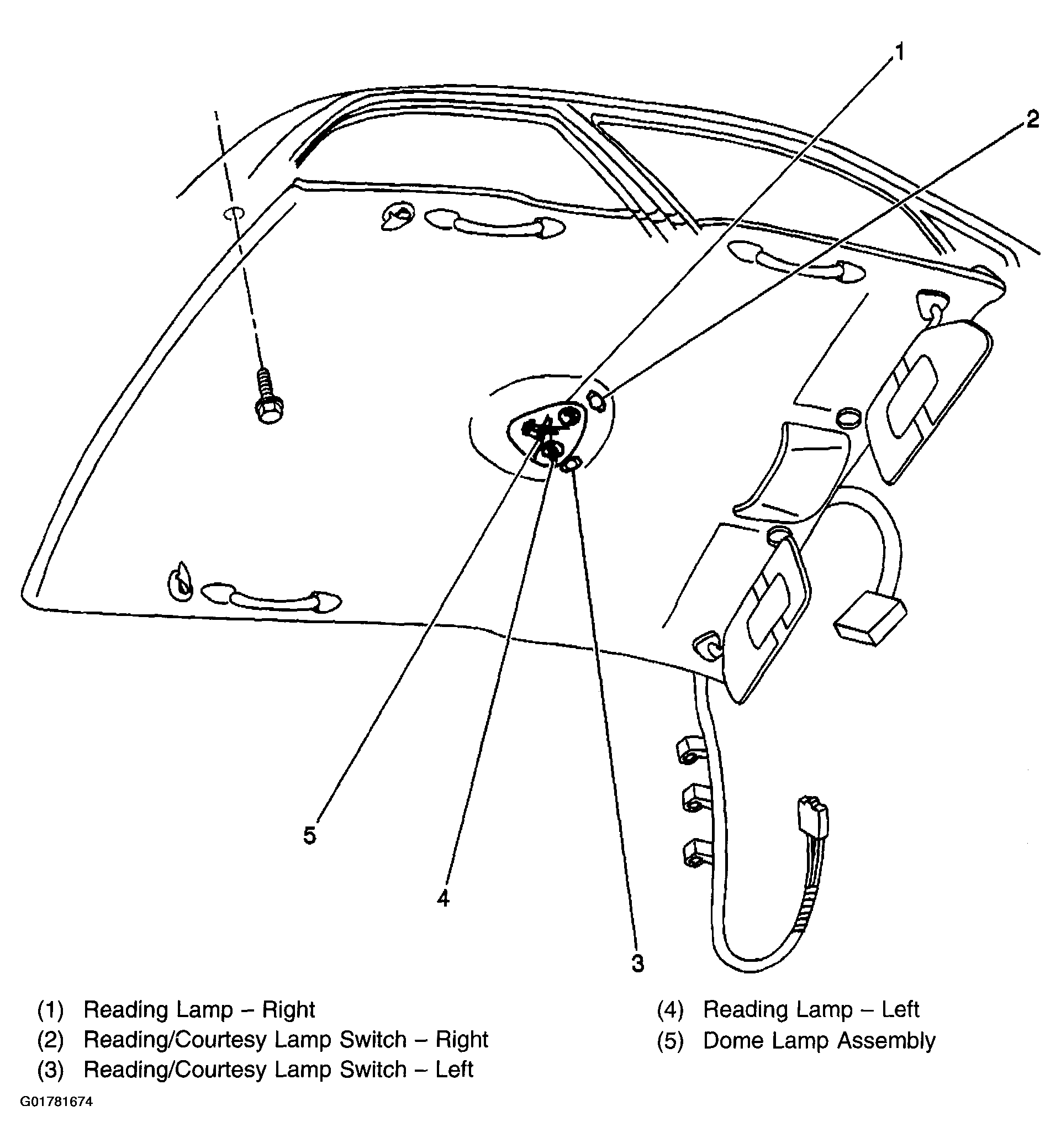

Fig 2: Locating Interior Light
Courtesy of GENERAL MOTORS CORP.

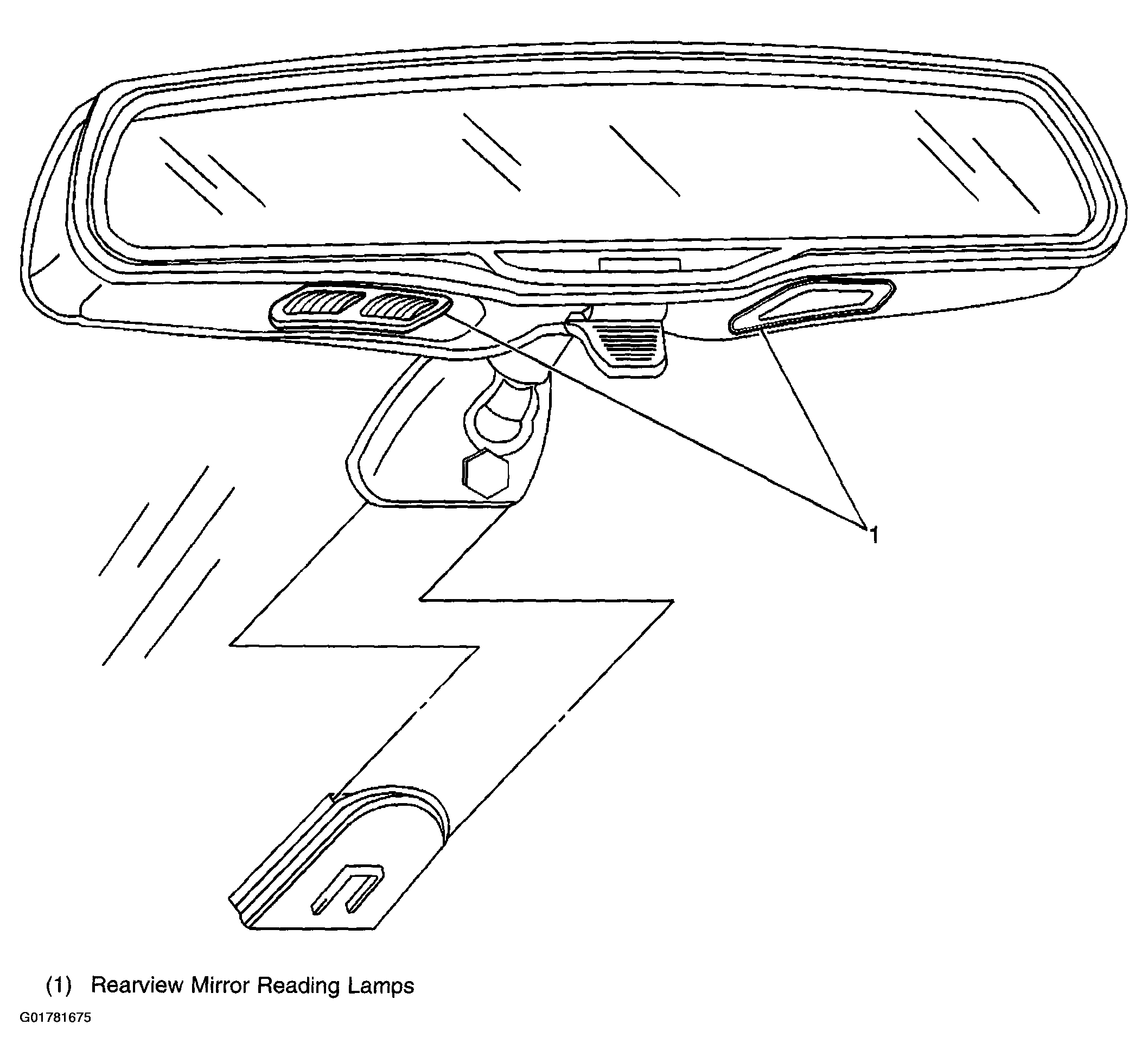

Fig 3: Locating Rearview Mirror Lamps
Courtesy of GENERAL MOTORS CORP.

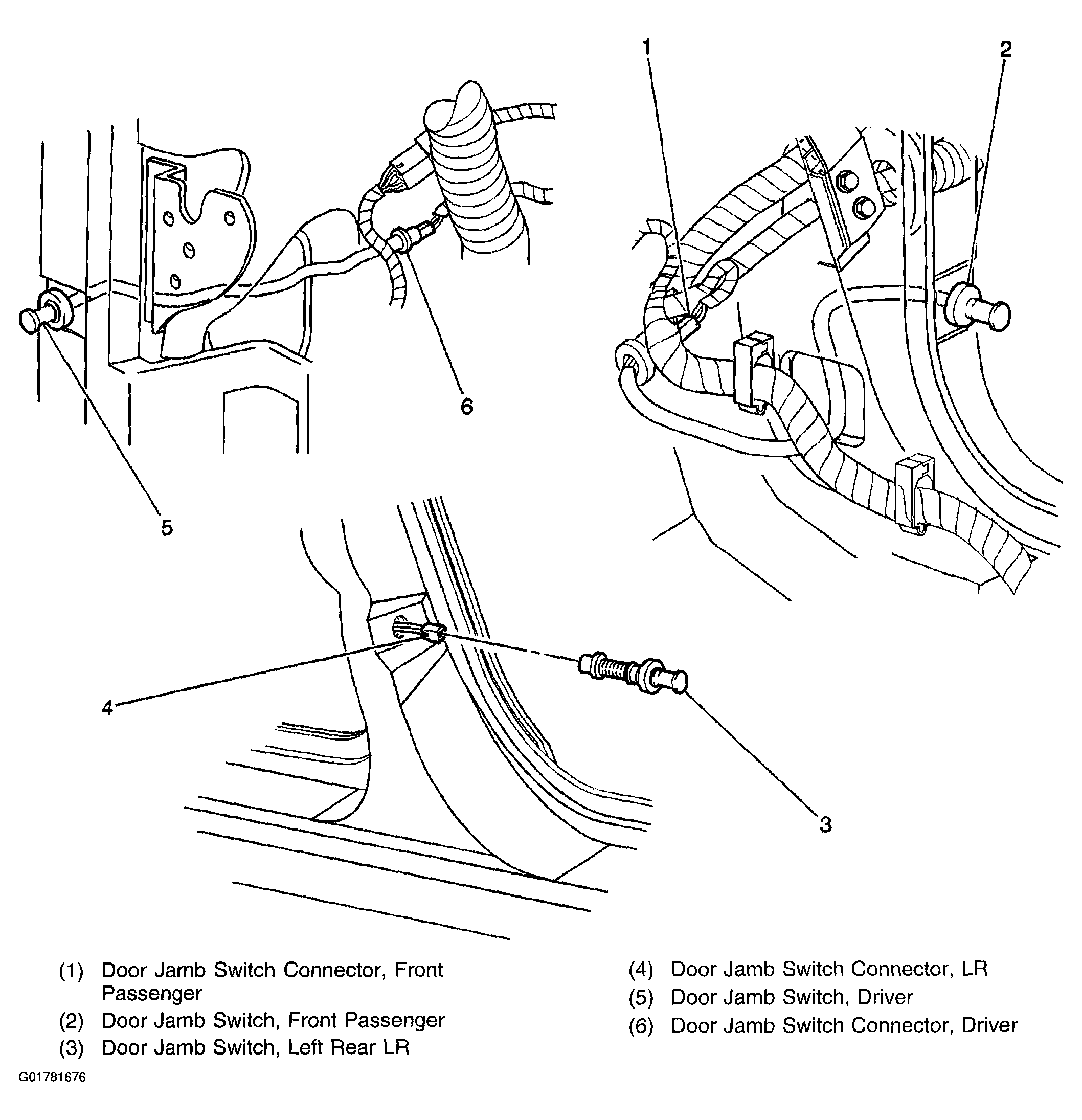

Fig 4: Locating RF, LR & LF Door Jamb Switch & Connector
Courtesy of GENERAL MOTORS CORP.

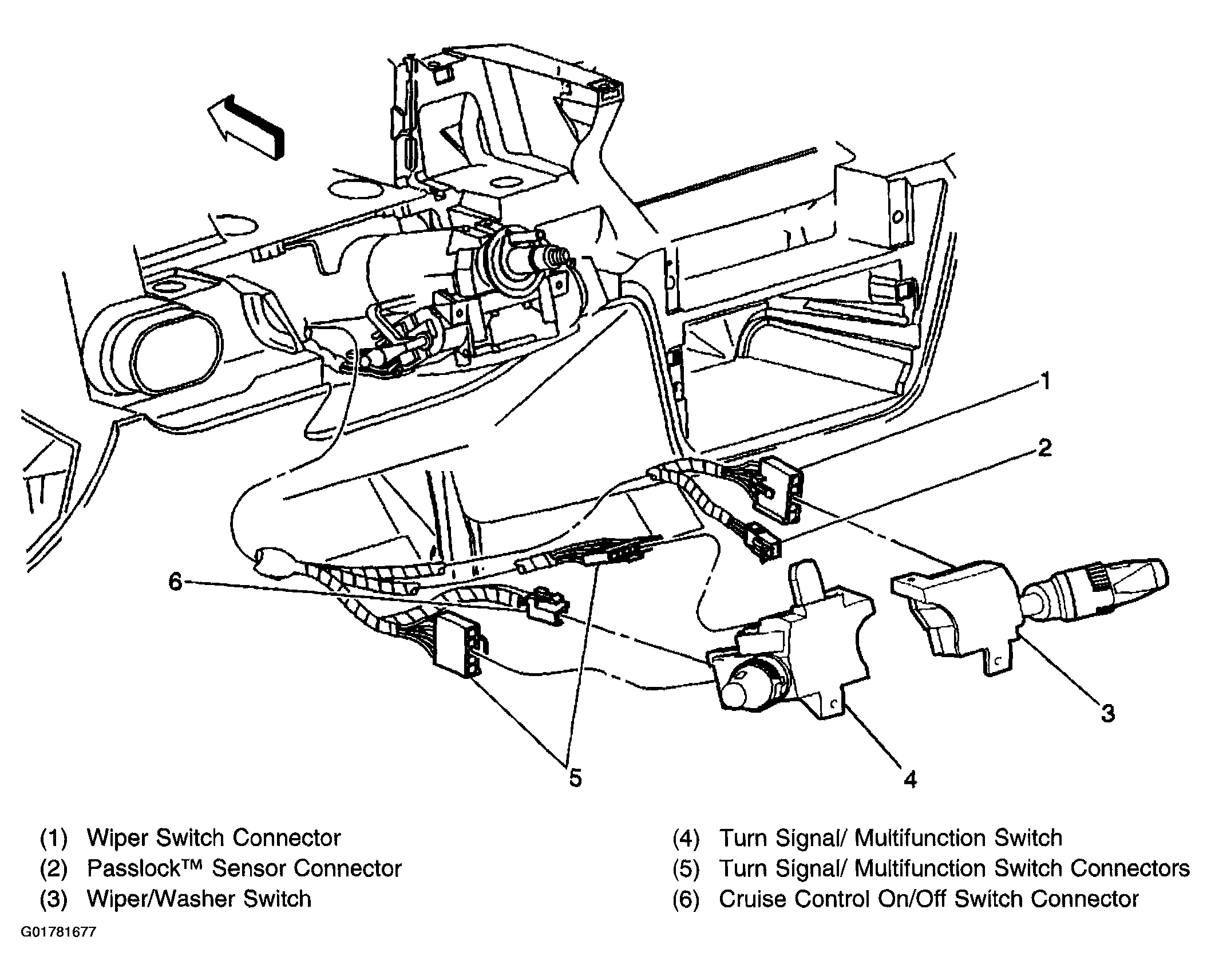

Fig 5: Locating Multi-Function Switch Components
Courtesy of GENERAL MOTORS CORP.

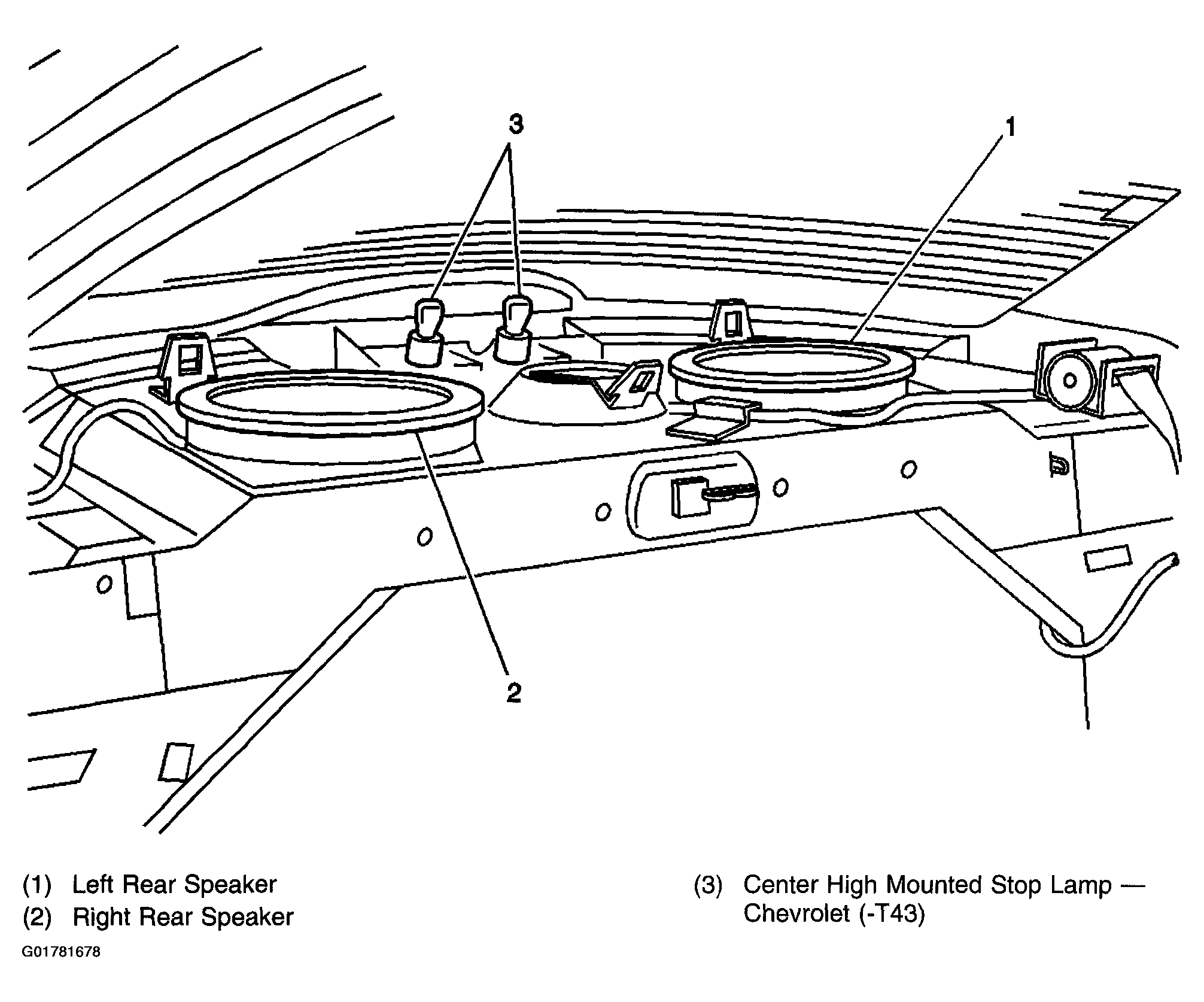

Fig 6: Locating Rear Package Shelf Speakers & CHMSL
Courtesy of GENERAL MOTORS CORP.

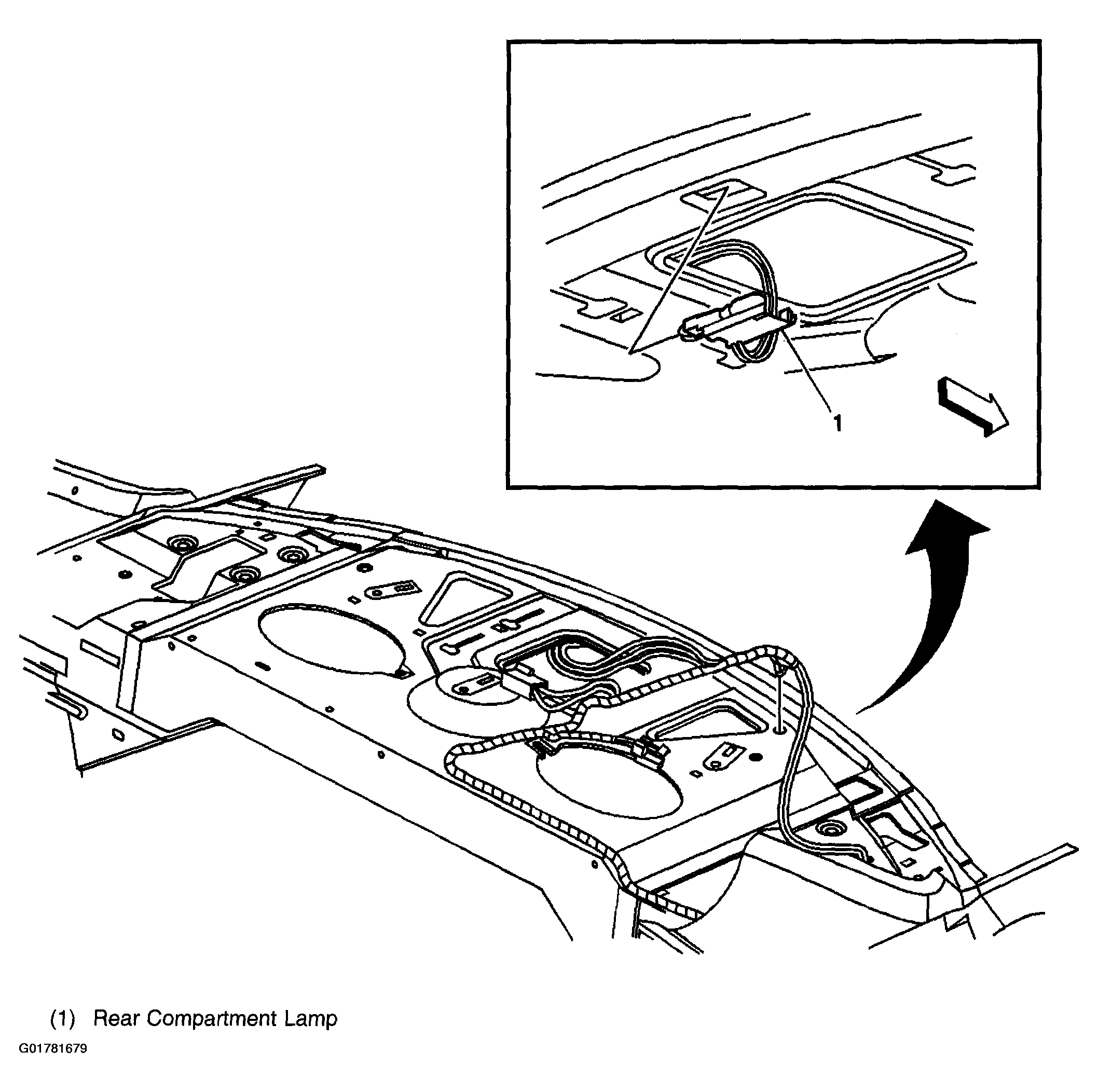

Fig 7: Locating Rear Compartment Lamp
Courtesy of GENERAL MOTORS CORP.

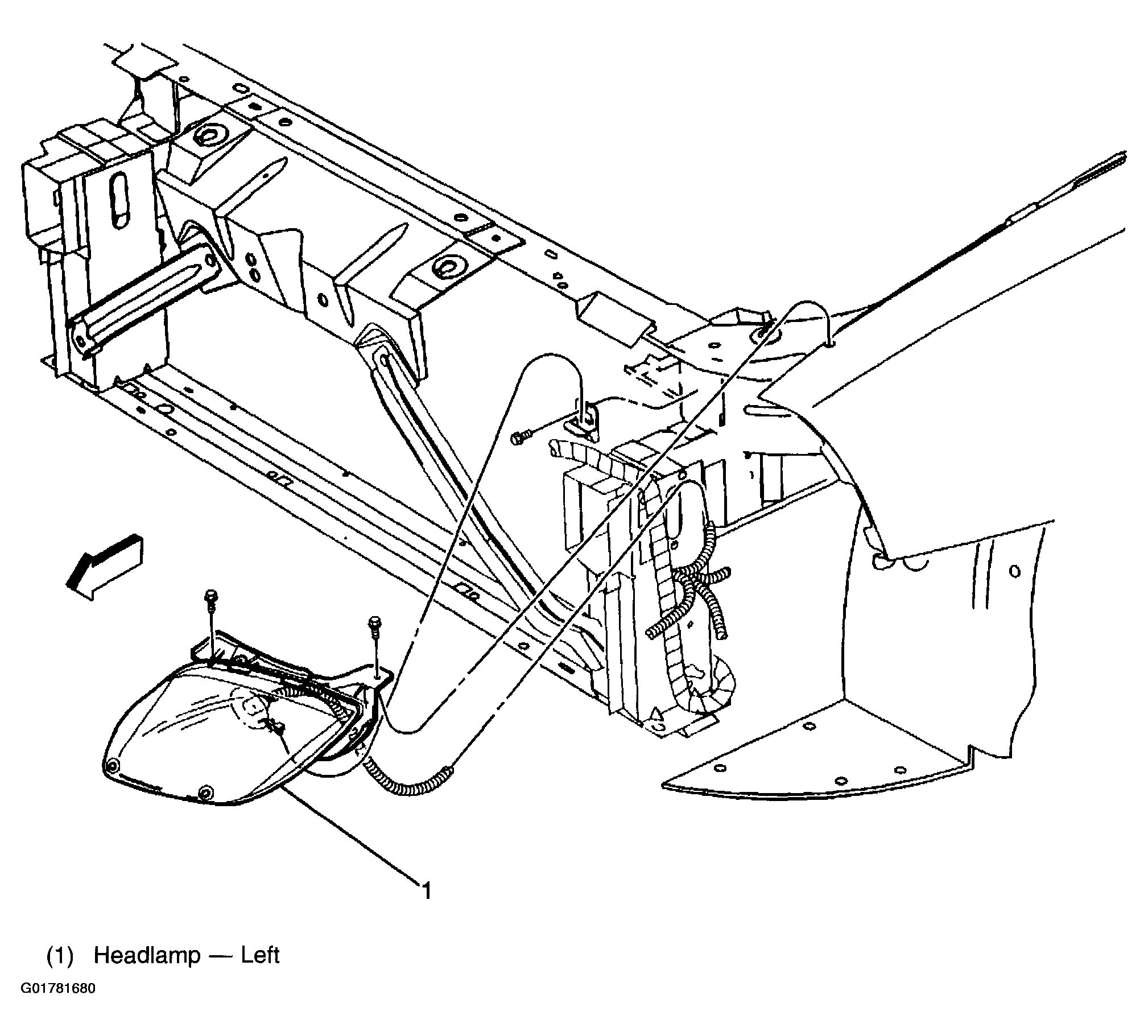

Fig 8: Locating LF Headlight
Courtesy of GENERAL MOTORS CORP.

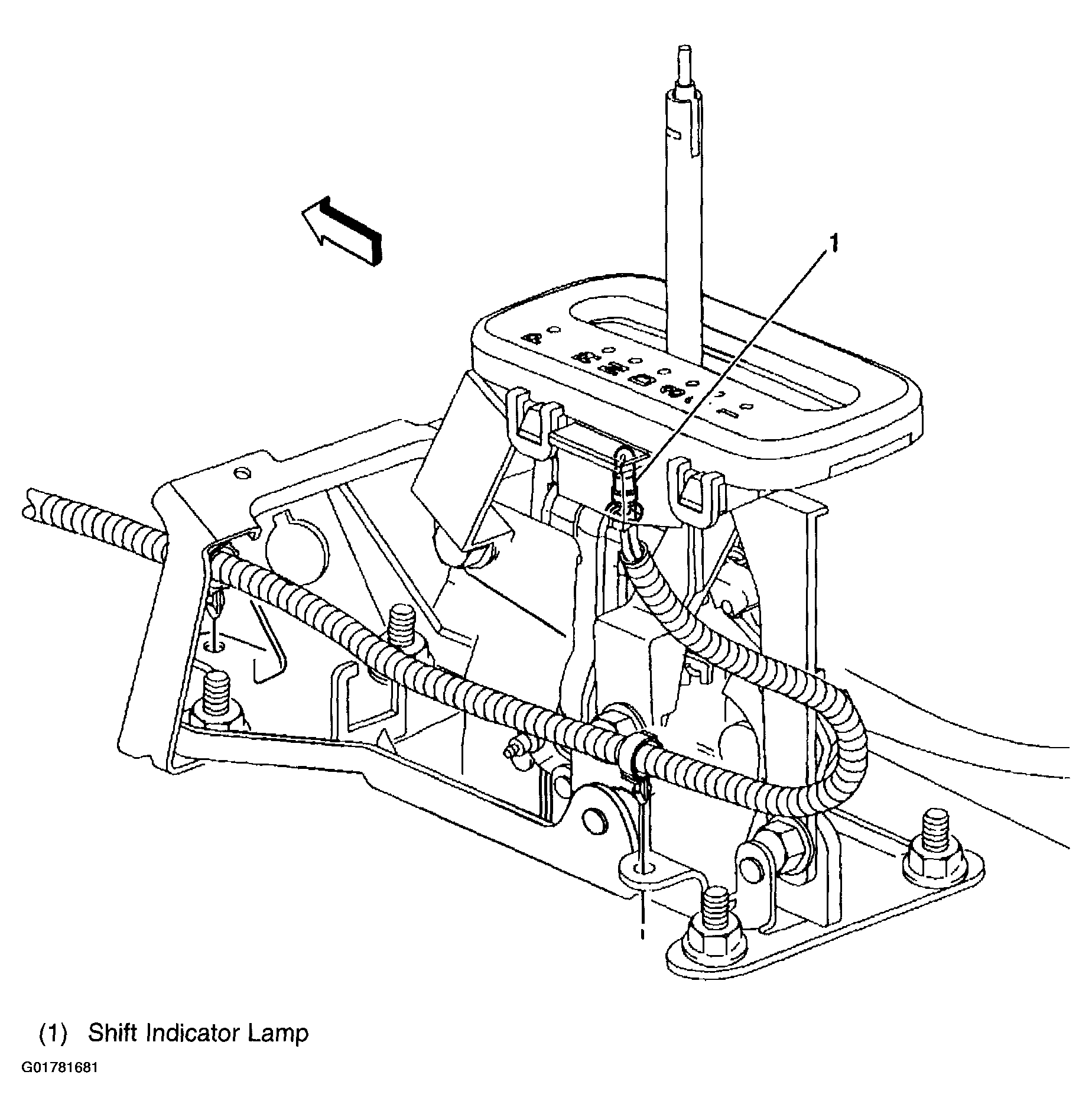

Fig 9: Locating Indicator Light Under Center Console
Courtesy of GENERAL MOTORS CORP.

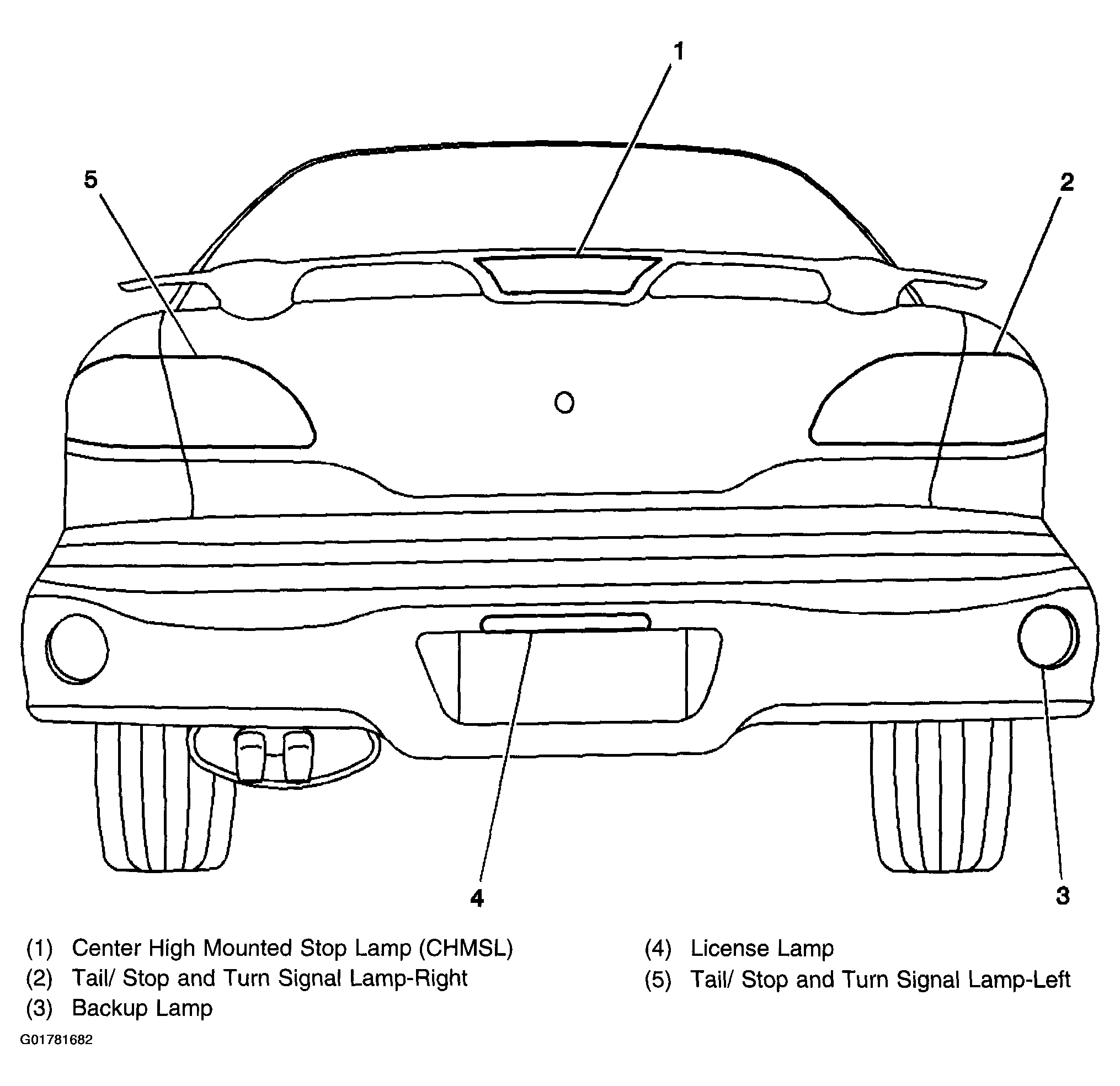

Fig 10: Locating Rear Lamps - Pontiac
Courtesy of GENERAL MOTORS CORP.
