Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Applique Lamp-Left Terminals (Pontiac Sedan)

G01781683

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Applique Lamp-Right Terminals (Pontiac Sedan)

G01781684

Courtesy of GENERAL MOTORS CORP.

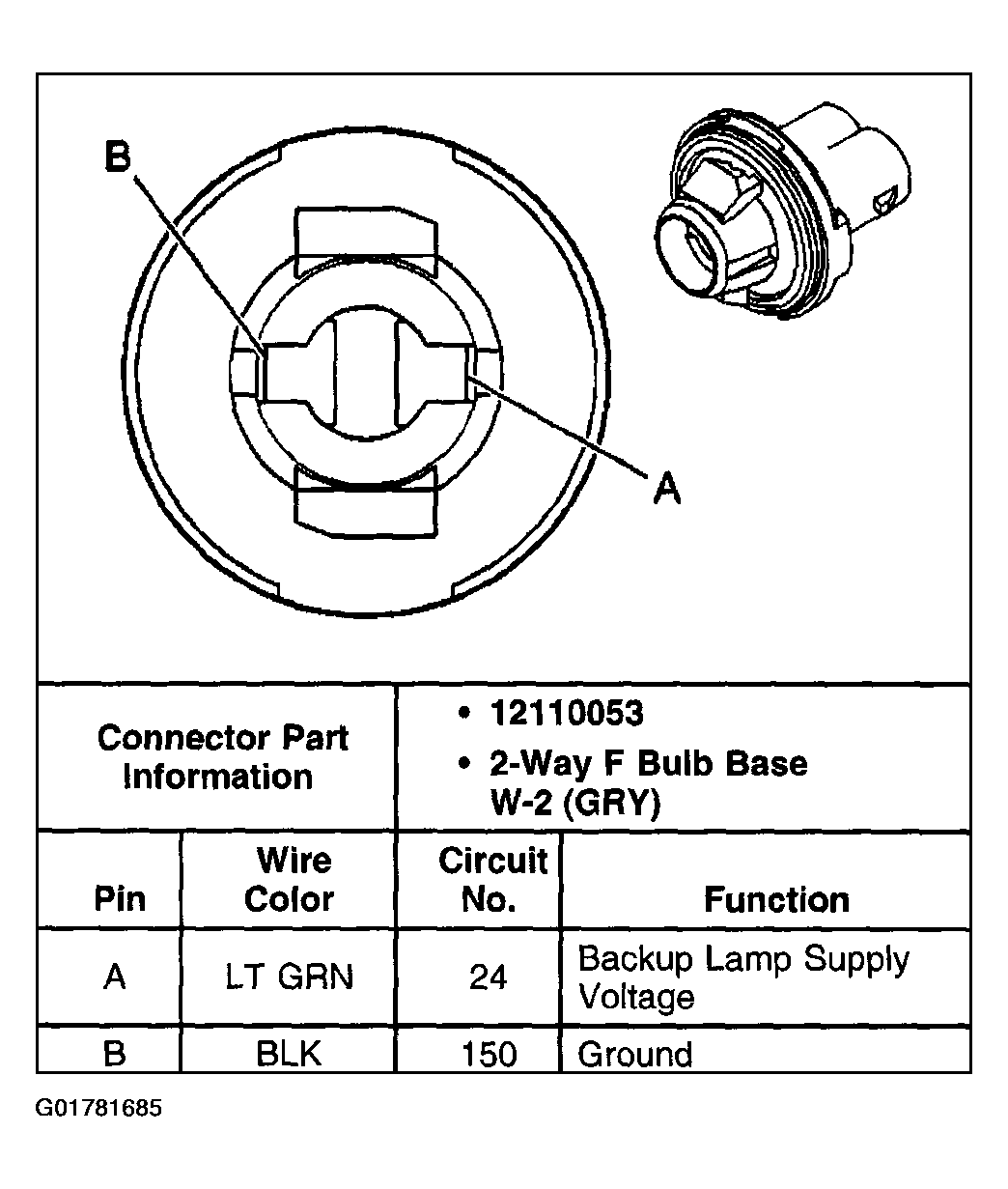

Fig 3: Identifying Backup Lamp-Left Terminals

G01781685

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Backup Lamp-Right Terminals

G01781686

Courtesy of GENERAL MOTORS CORP.

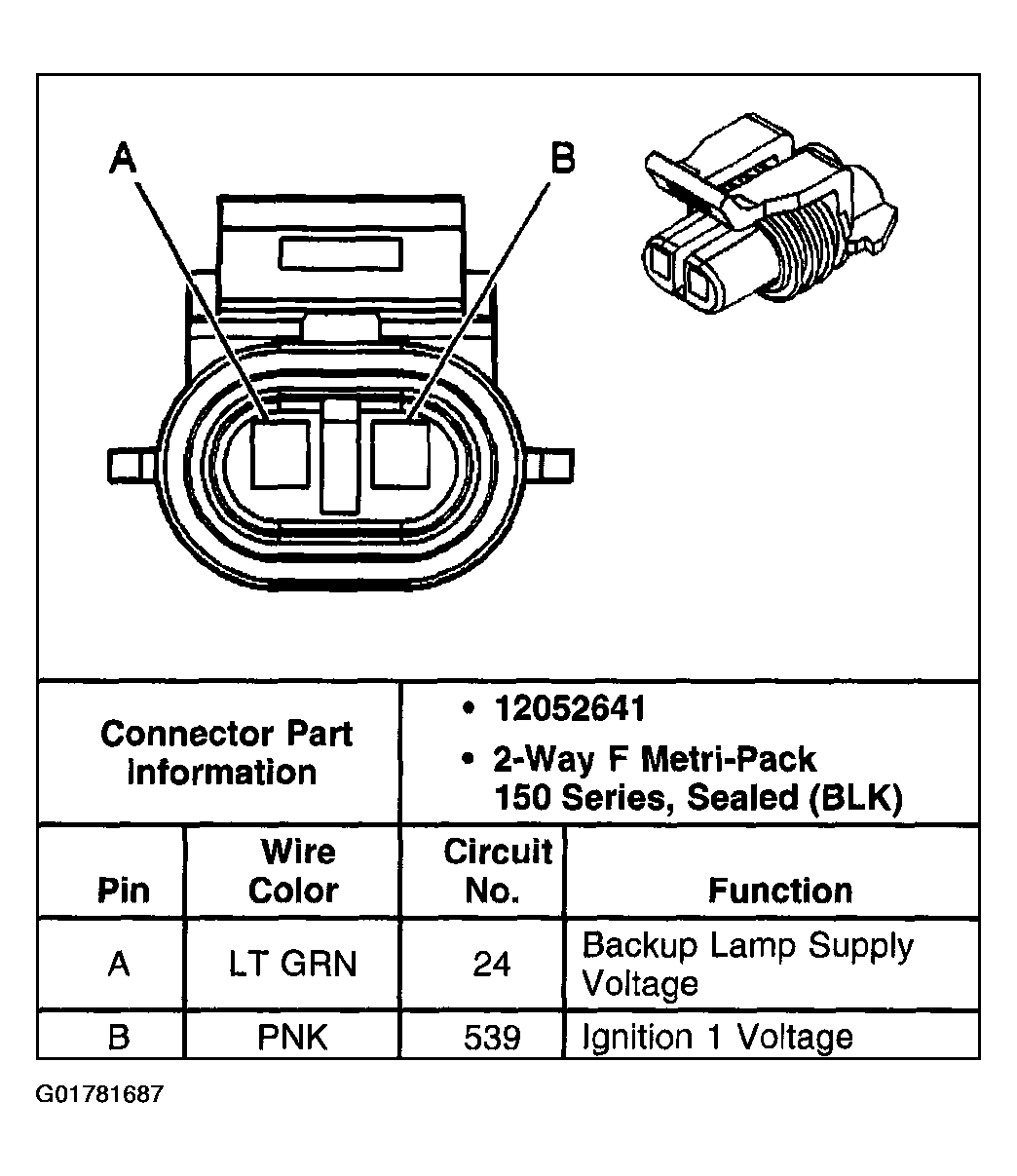

Fig 5: Identifying Backup Lamp Switch (MM5) Terminals

G01781687

Courtesy of GENERAL MOTORS CORP.

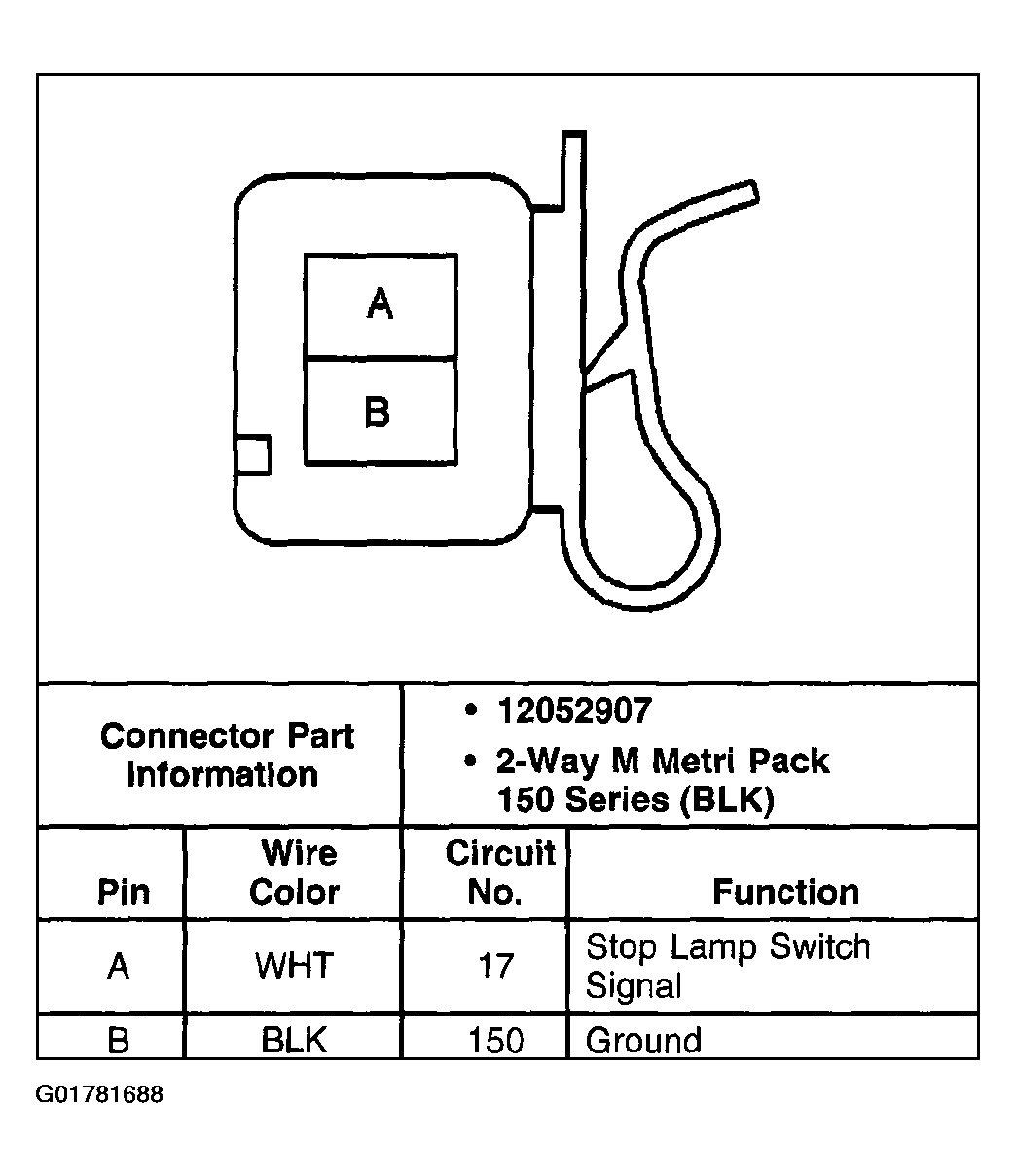

Fig 6: Identifying Center High Mounted Stop Lamp (CHMSL) Assembly Terminals (Pontiac Sedan/Chevrolet Coupe & Sedan w/T43)

G01781688

Courtesy of GENERAL MOTORS CORP.

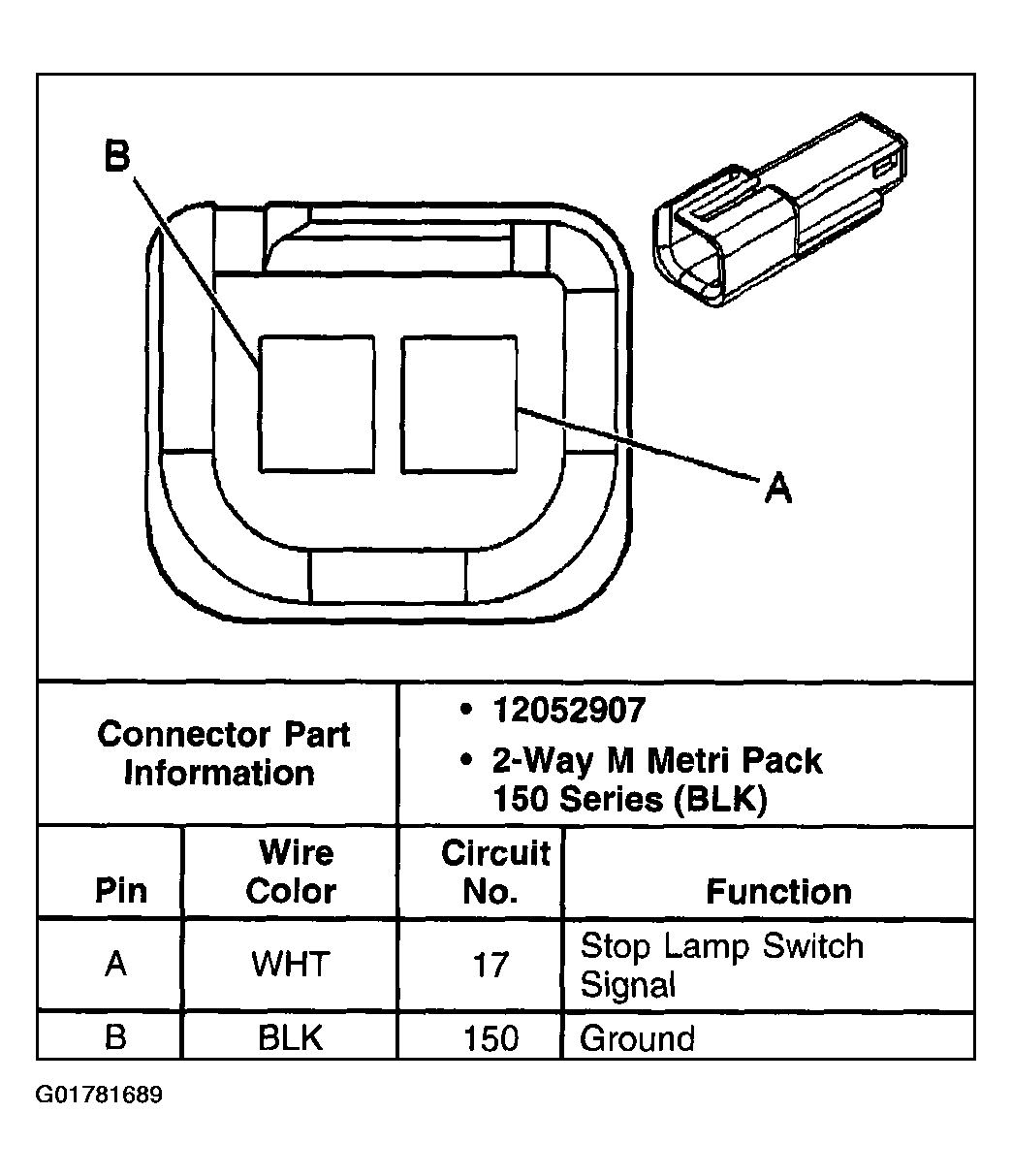

Fig 7: Identifying Center High Mounted Stop Lamp (CHMSL) Assembly Terminals (Pontiac Coupe/Chevrolet Z24 w/ T43)

G01781689

Courtesy of GENERAL MOTORS CORP.

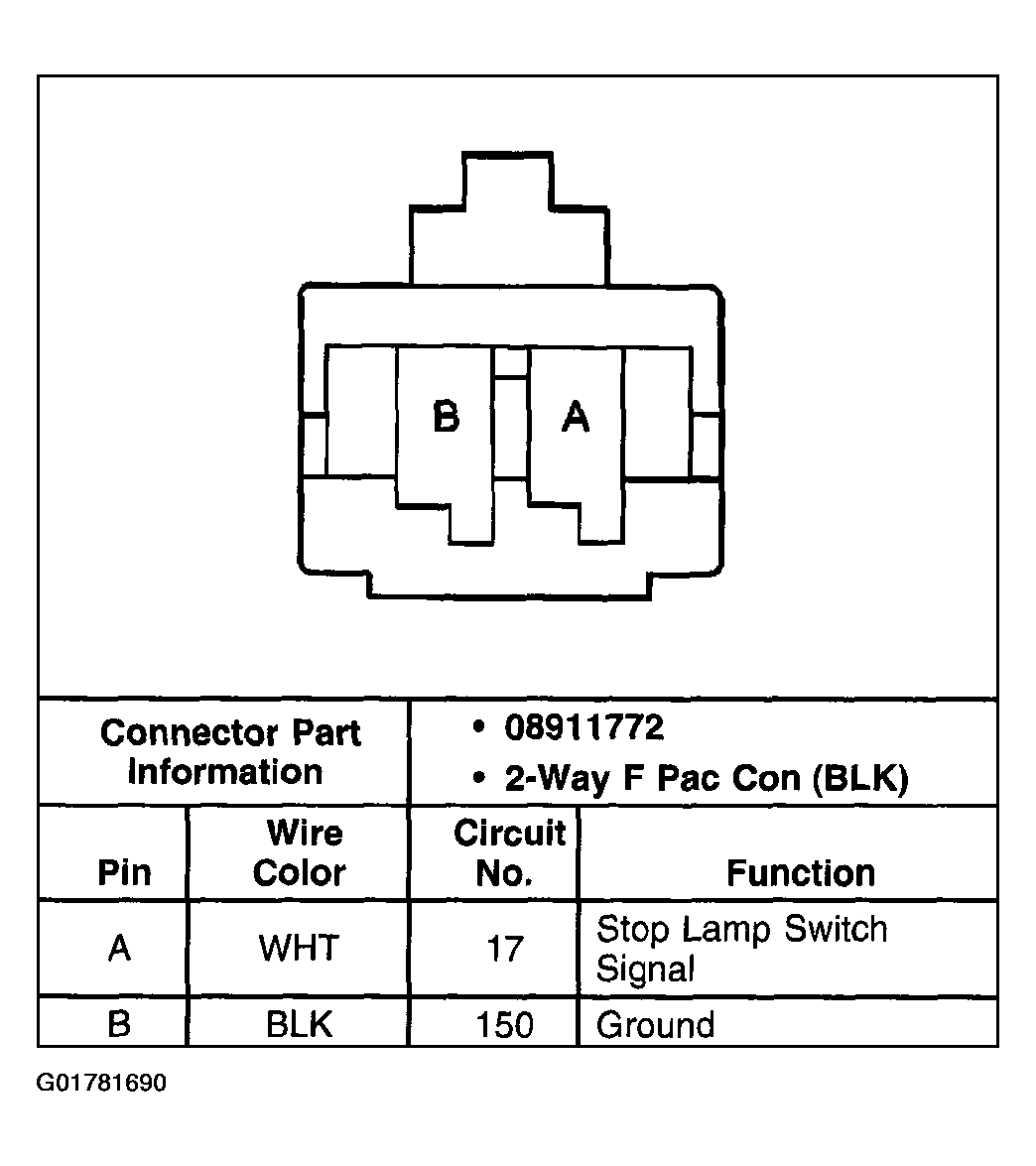

Fig 8: Identifying Center High Mounted Stop Lamp (CHMSL) Terminals - Left (w/o T43)

G01781690

Courtesy of GENERAL MOTORS CORP.

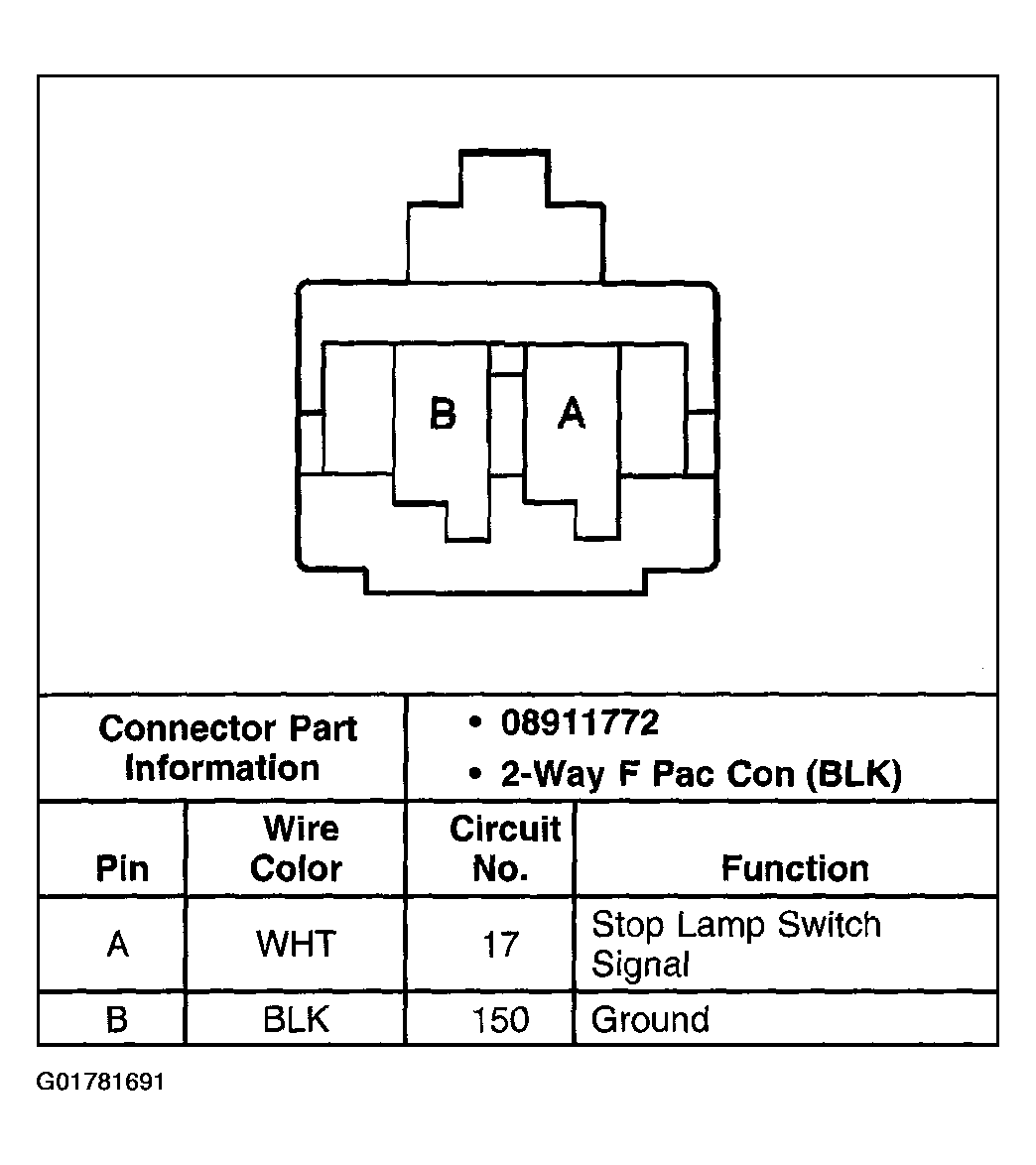

Fig 9: Identifying Center High Mounted Stop Lamp (CHMSL) Terminals - Right (w/o T43)

G01781691

Courtesy of GENERAL MOTORS CORP.

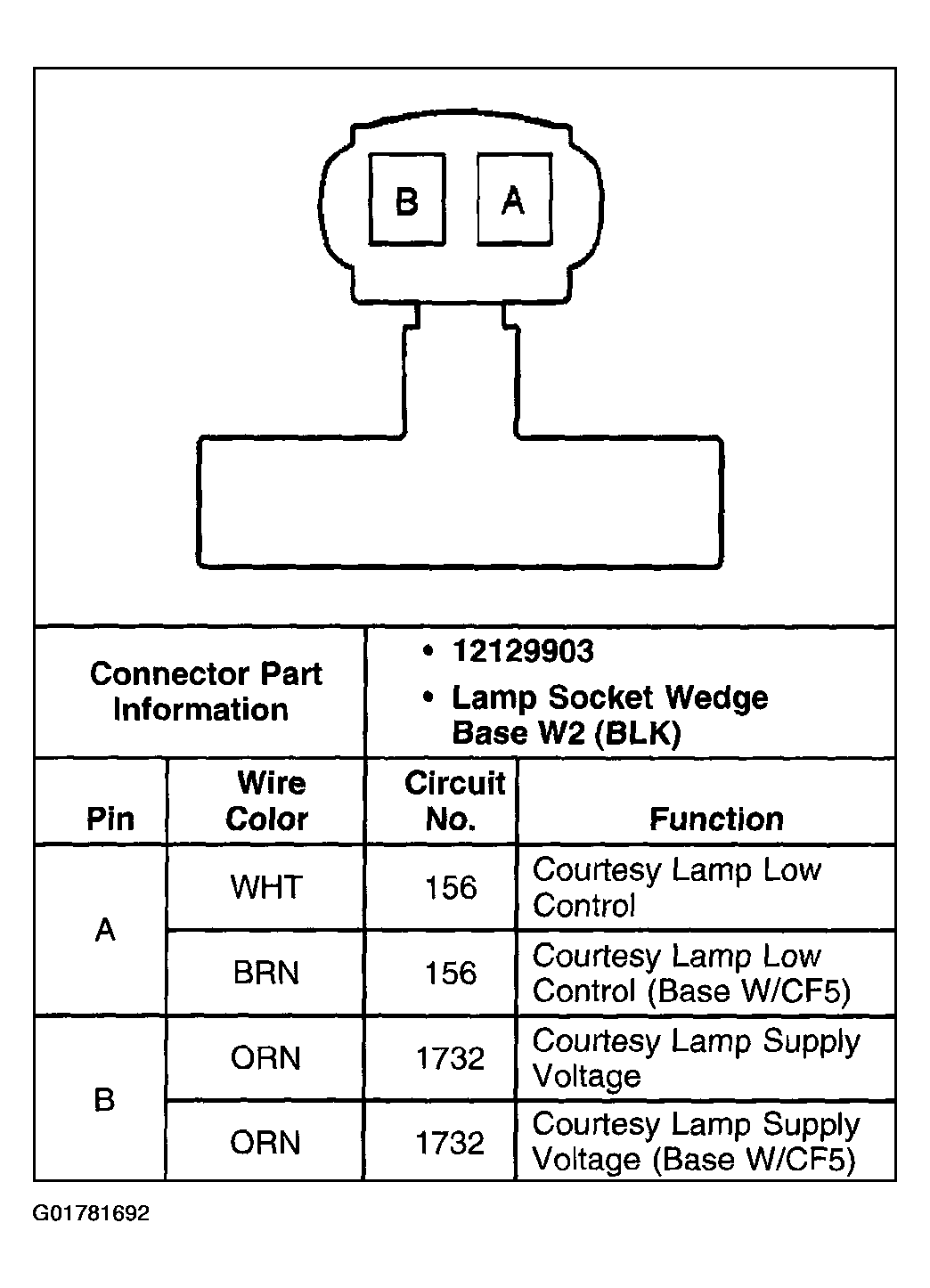

Fig 10: Identifying Dome Lamp Terminals

G01781692

Courtesy of GENERAL MOTORS CORP.

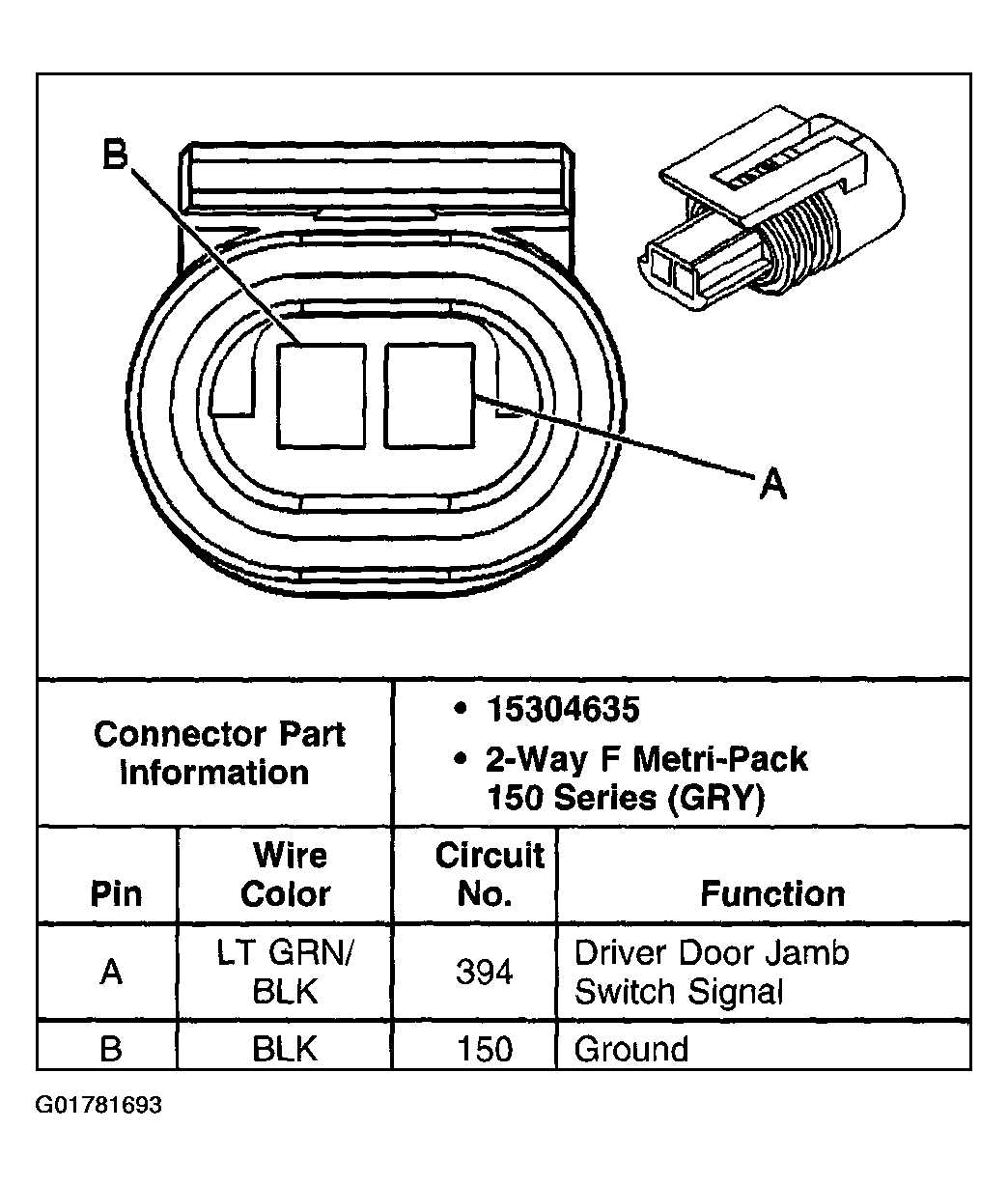

Fig 11: Identifying Door Jamb Switch Terminals - Driver Side

G01781693

Courtesy of GENERAL MOTORS CORP.

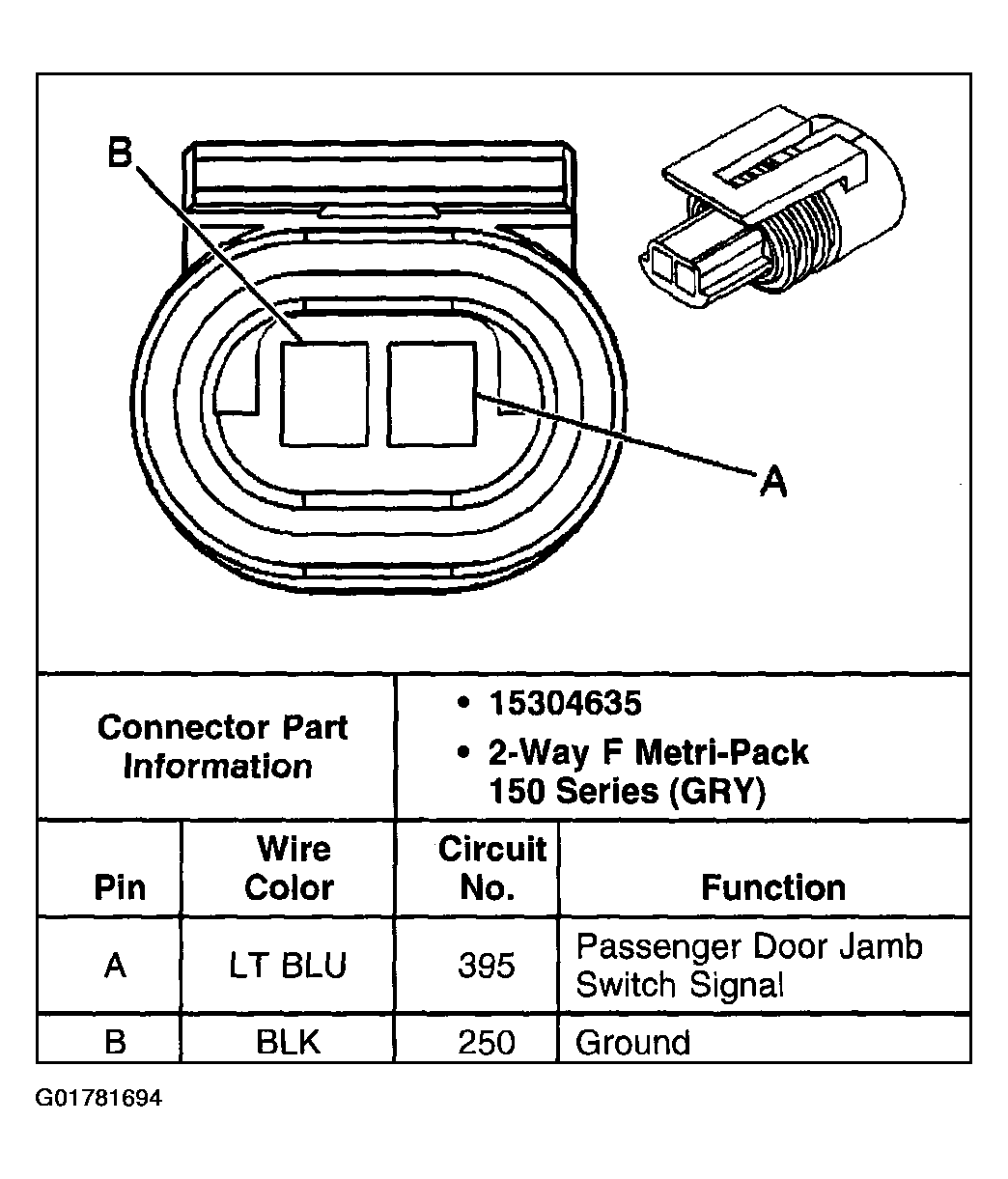

Fig 12: Identifying Door Jamb Switch Terminals - Front Passenger Side

G01781694

Courtesy of GENERAL MOTORS CORP.

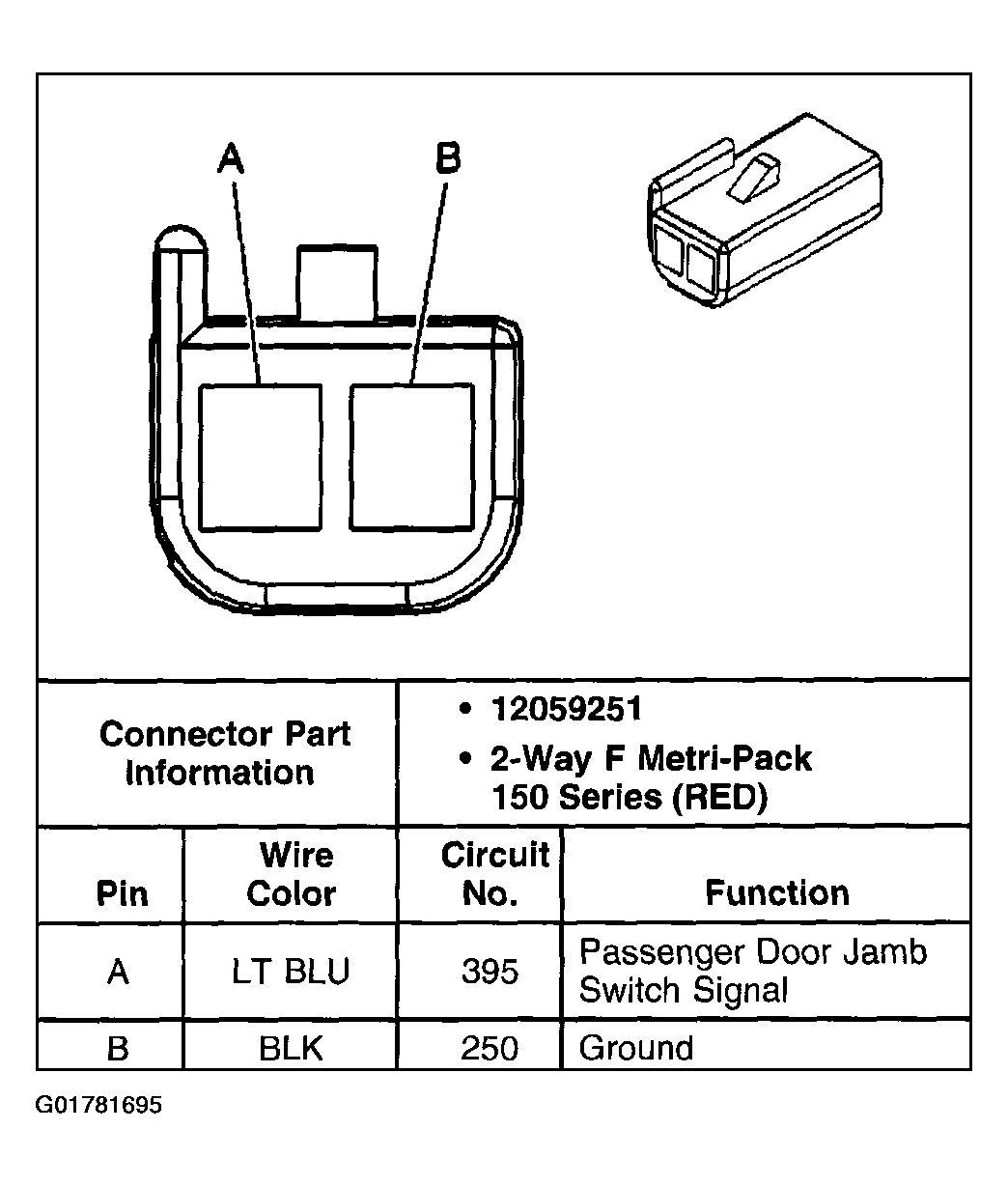

Fig 13: Identifying Door Jamb Switch Terminals - RR (Sedan)

G01781695

Courtesy of GENERAL MOTORS CORP.

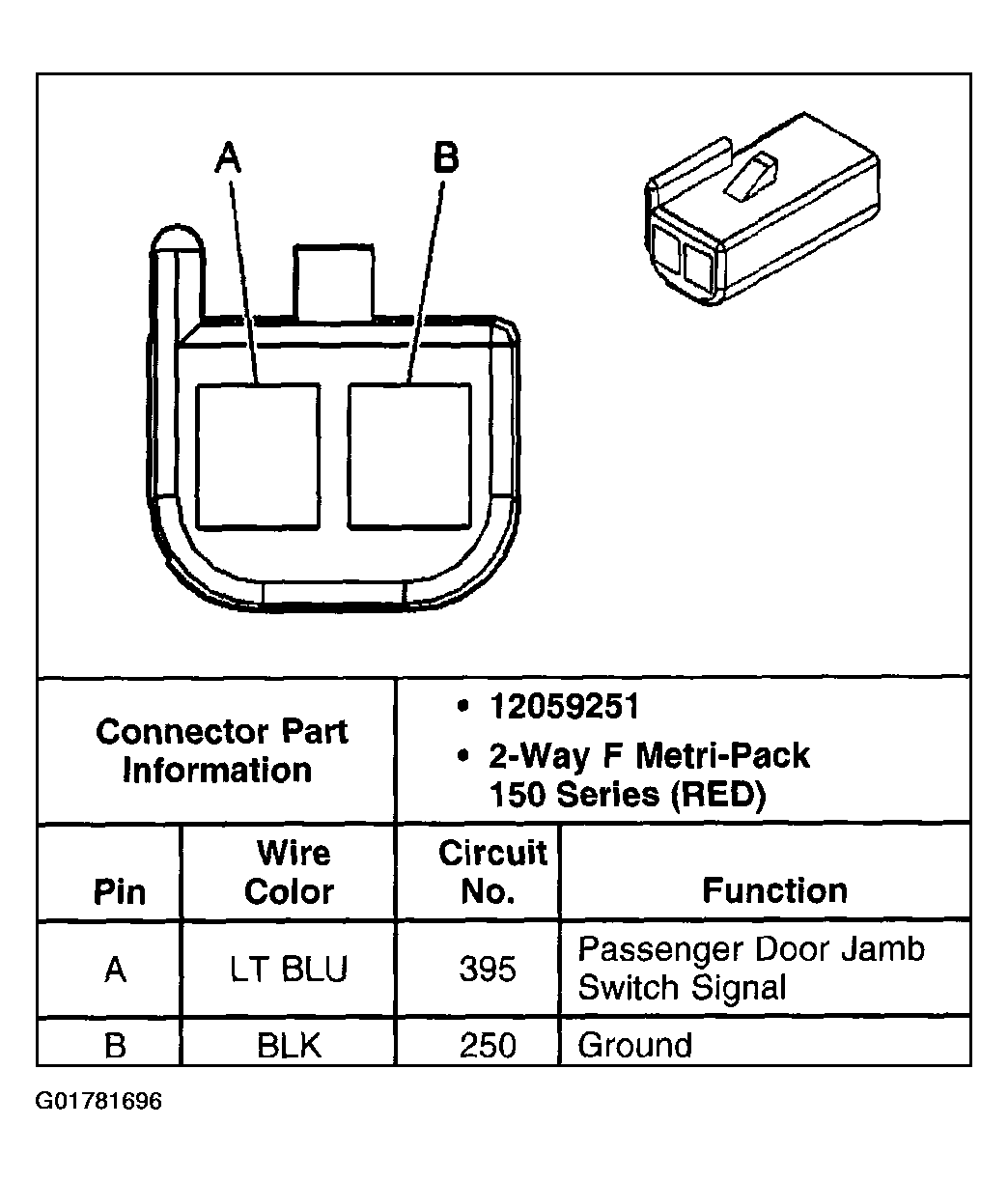

Fig 14: Identifying Door Jamb Switch Terminals - LR (Sedan)

G01781696

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Fog Lamp Terminals - LF (Domestic)

G01781697

Courtesy of GENERAL MOTORS CORP.

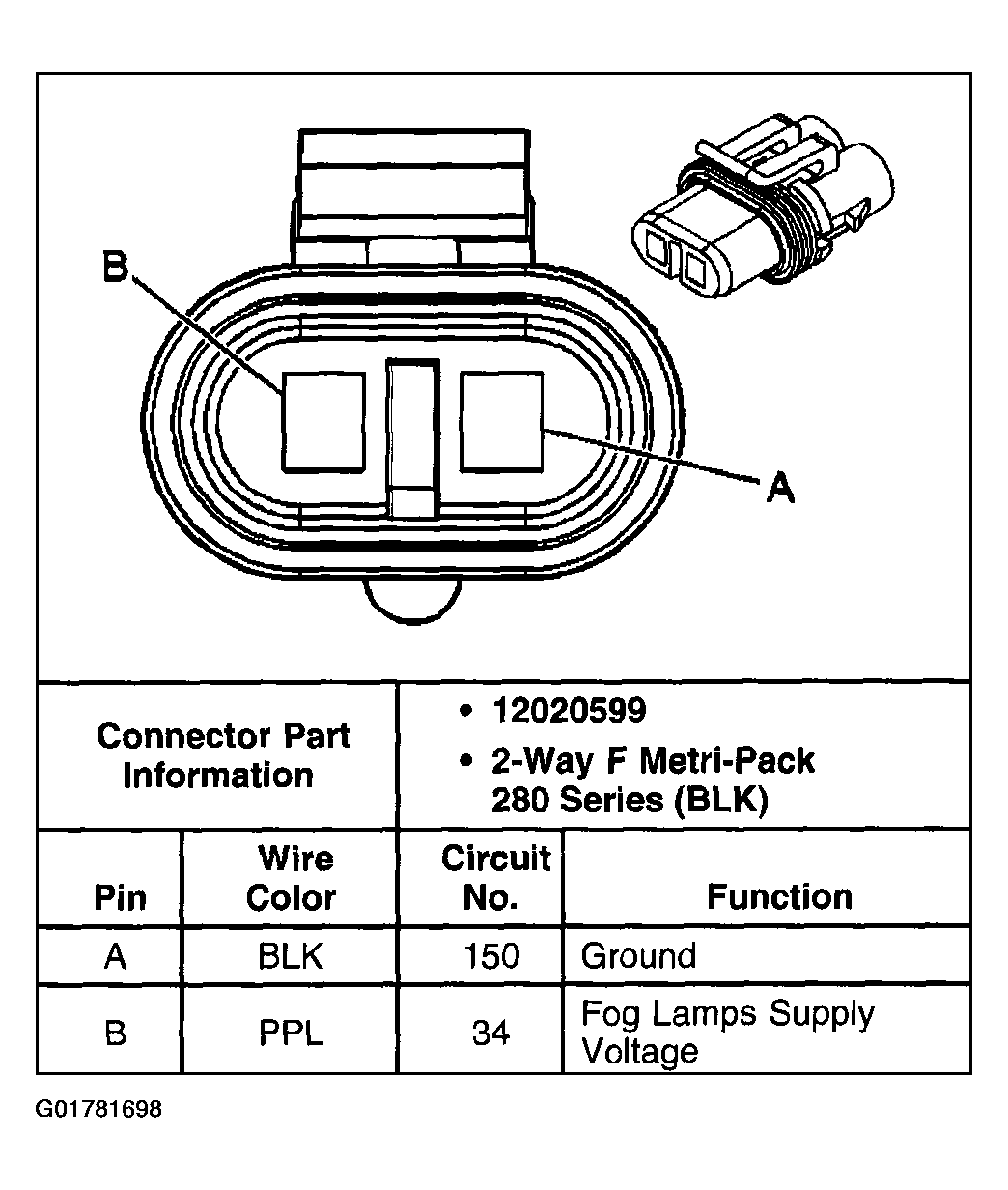

Fig 16: Identifying Fog Lamp Terminals - RF (Domestic)

G01781698

Courtesy of GENERAL MOTORS CORP.

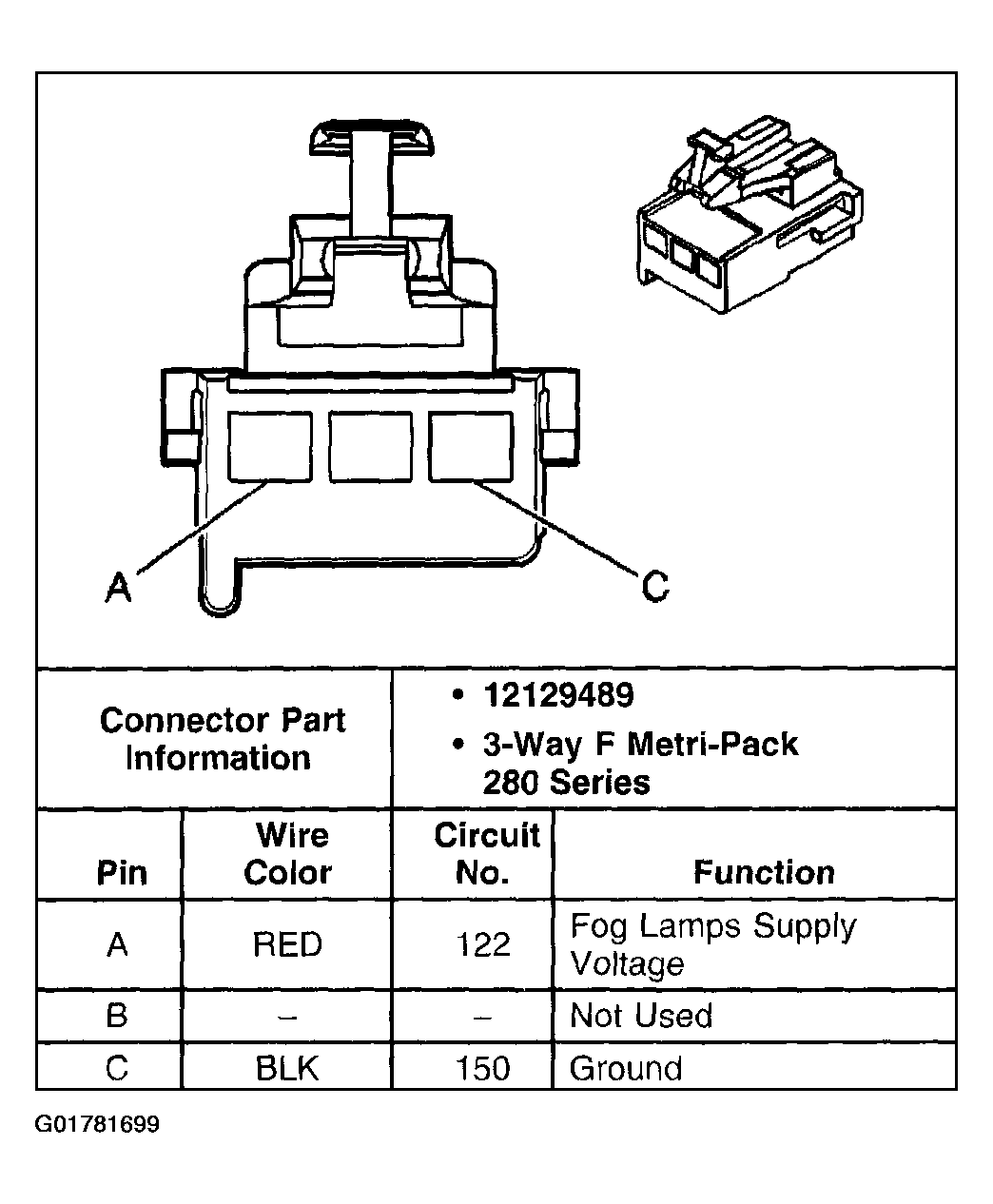

Fig 17: Identifying Fog Lamp Terminals - Rear (Export)

G01781699

Courtesy of GENERAL MOTORS CORP.

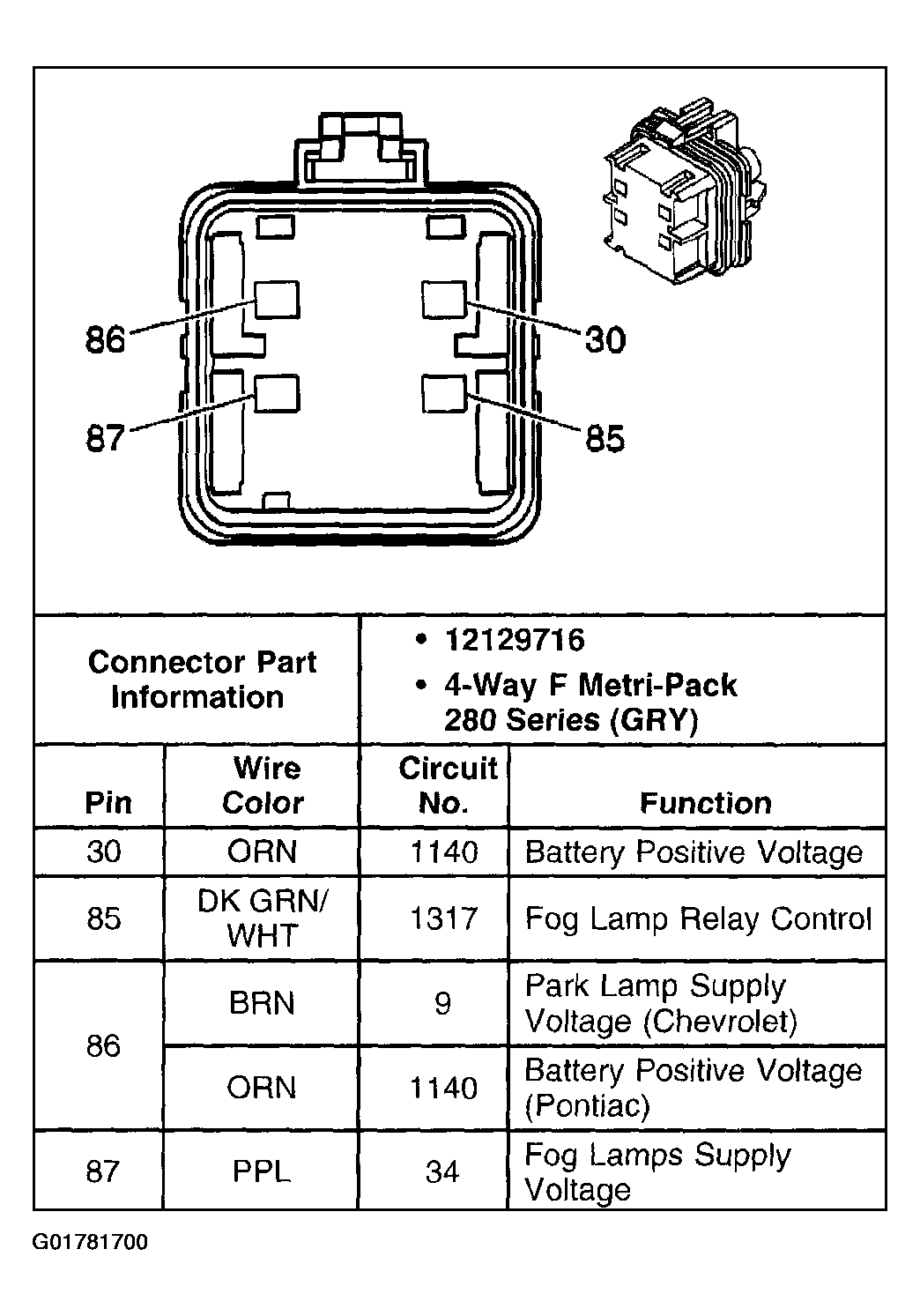

Fig 18: Identifying Fog Lamp Relay Terminals (Domestic)

G01781700

Courtesy of GENERAL MOTORS CORP.

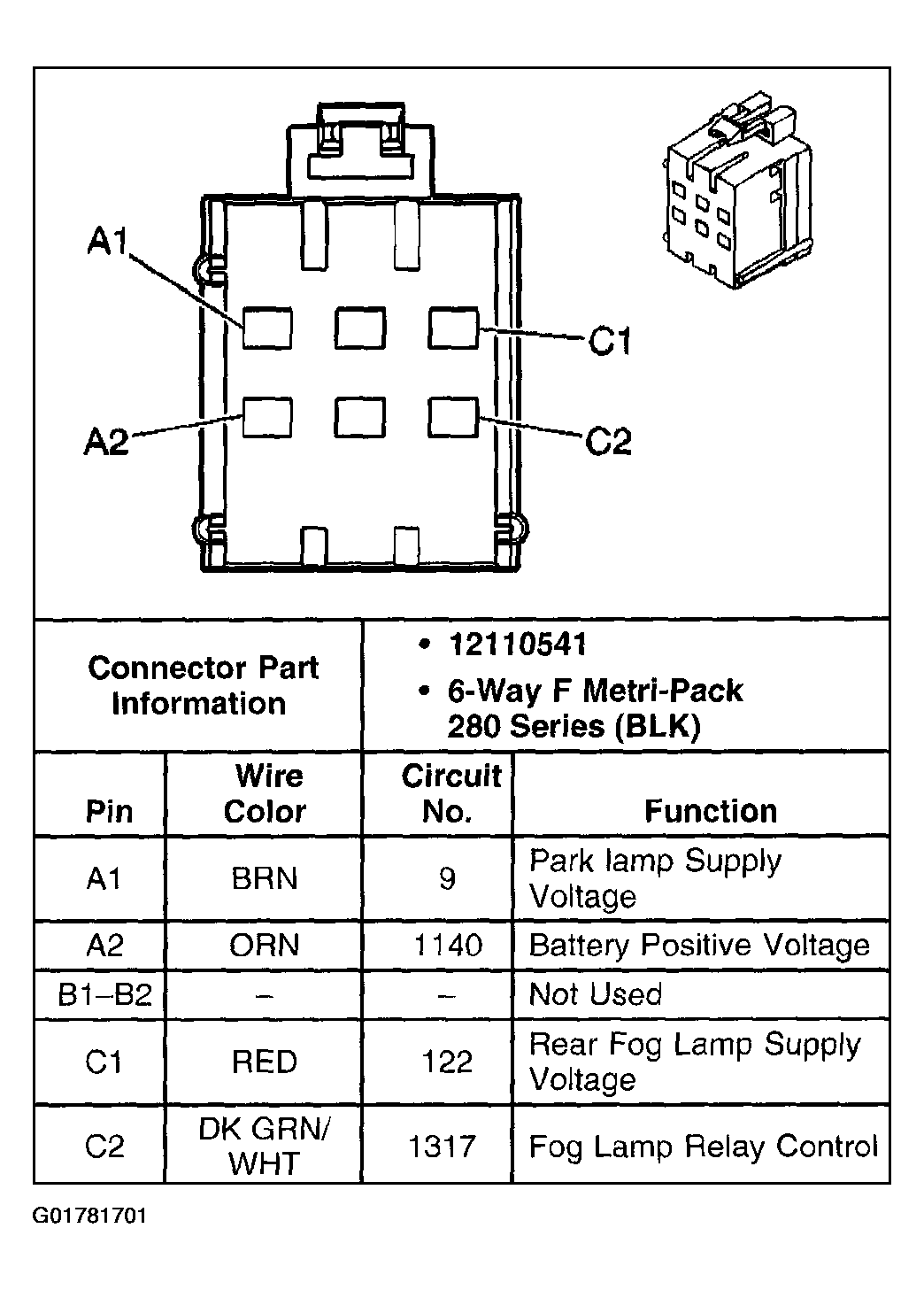

Fig 19: Identifying Fog Lamp Relay Terminals (Export)

G01781701

Courtesy of GENERAL MOTORS CORP.

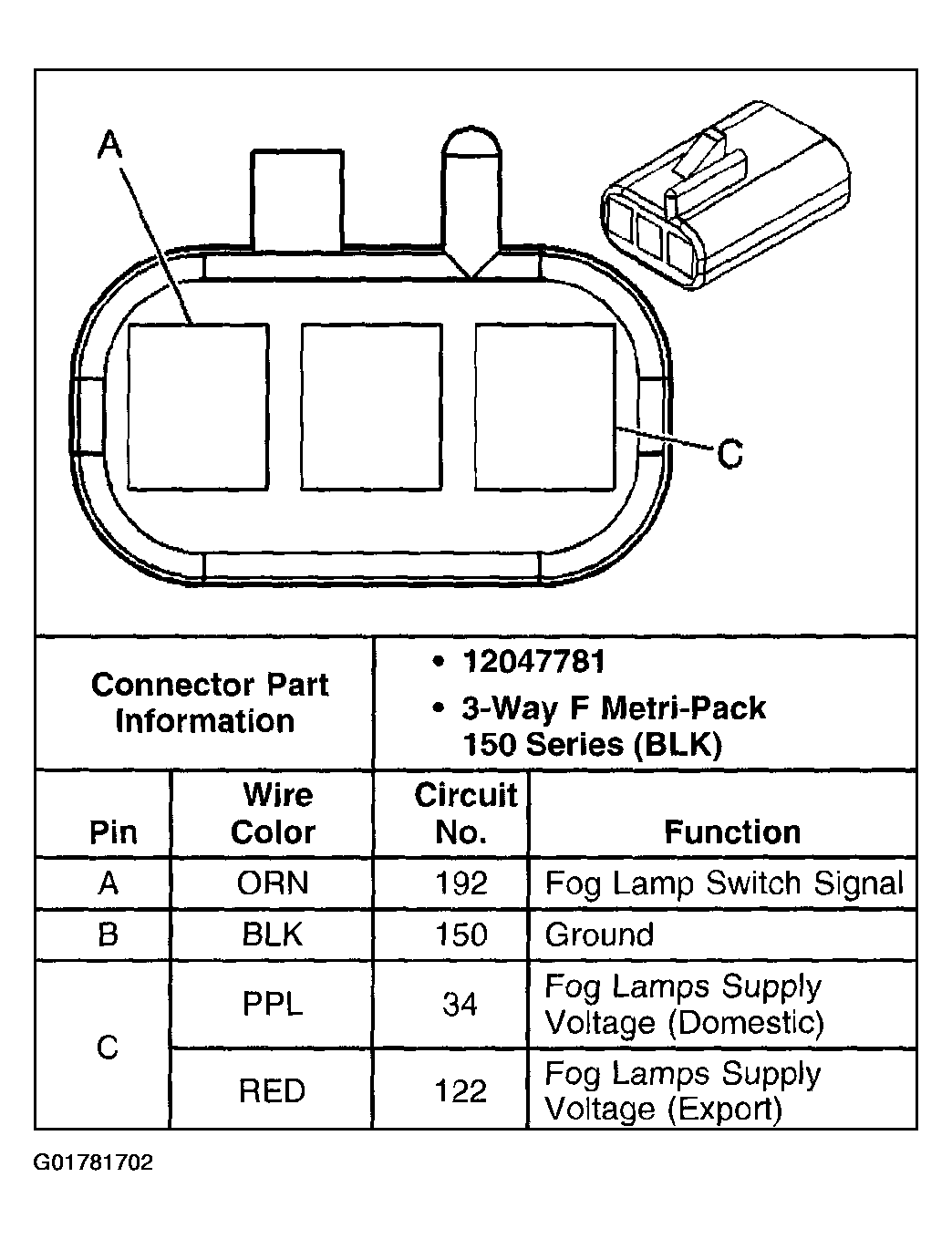

Fig 20: Fog Lamp Switch Terminals

G01781702

Courtesy of GENERAL MOTORS CORP.

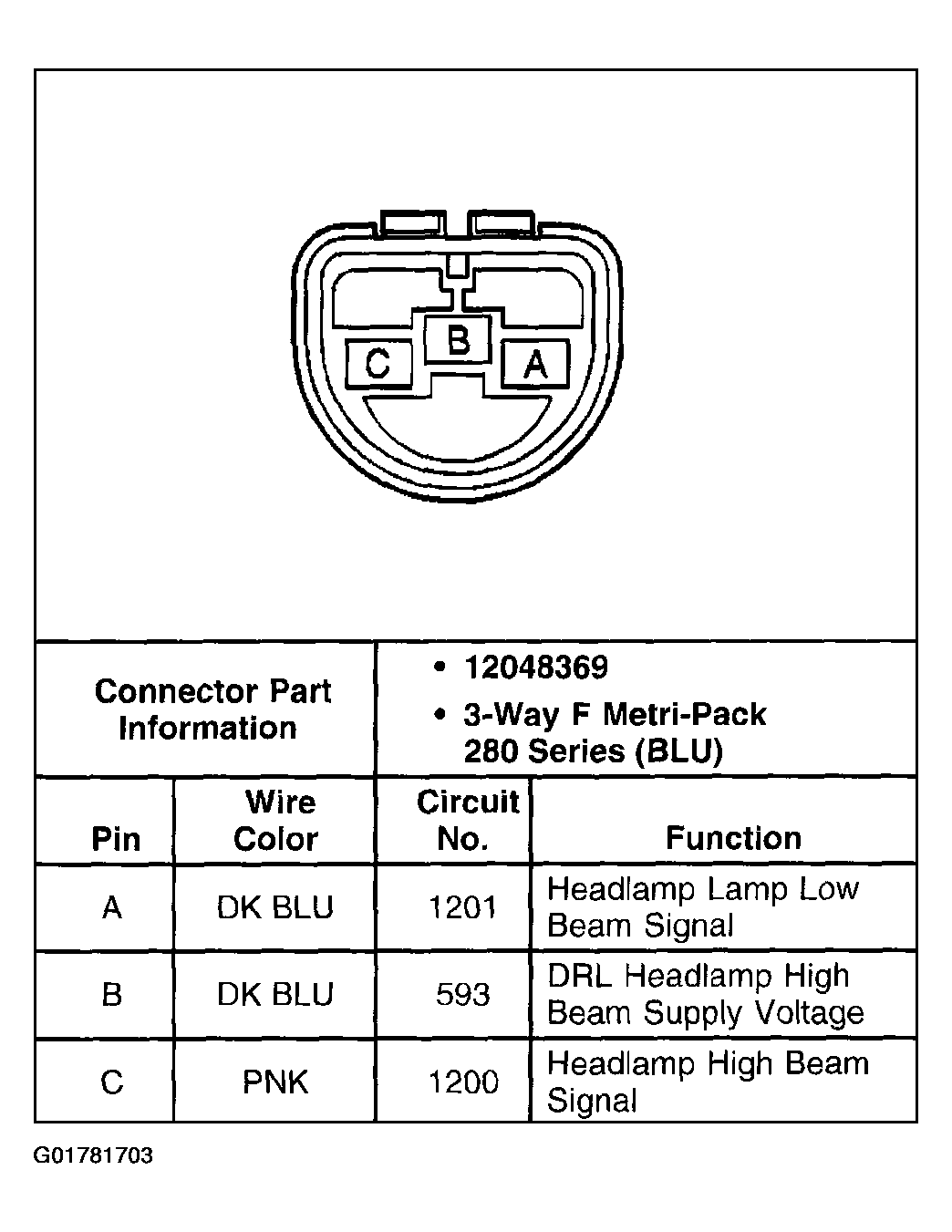

Fig 21: Identifying Headlamp Terminals - Left (Domestic)

G01781703

Courtesy of GENERAL MOTORS CORP.

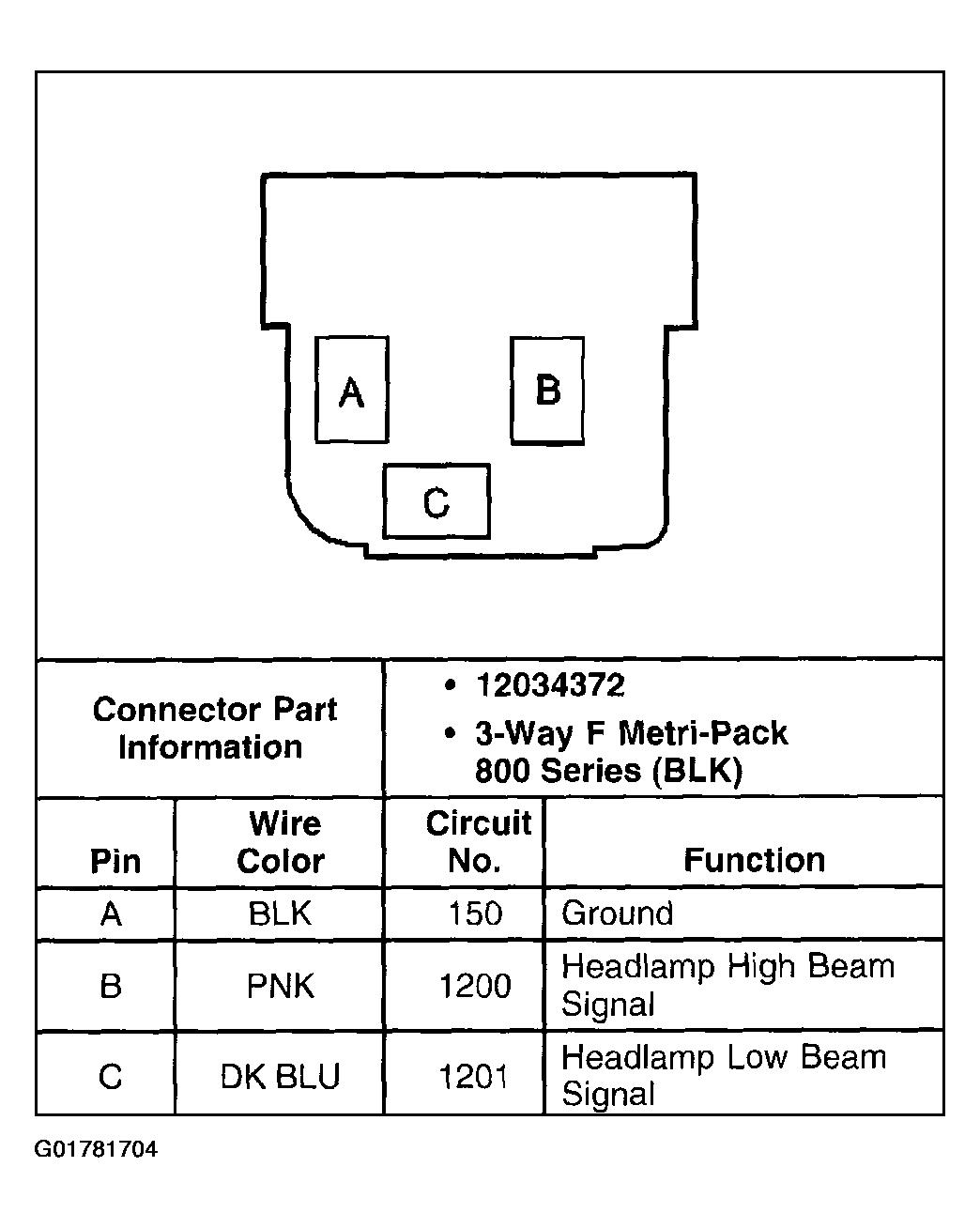

Fig 22: Identifying Headlamp Terminals - Left (Export)

G01781704

Courtesy of GENERAL MOTORS CORP.

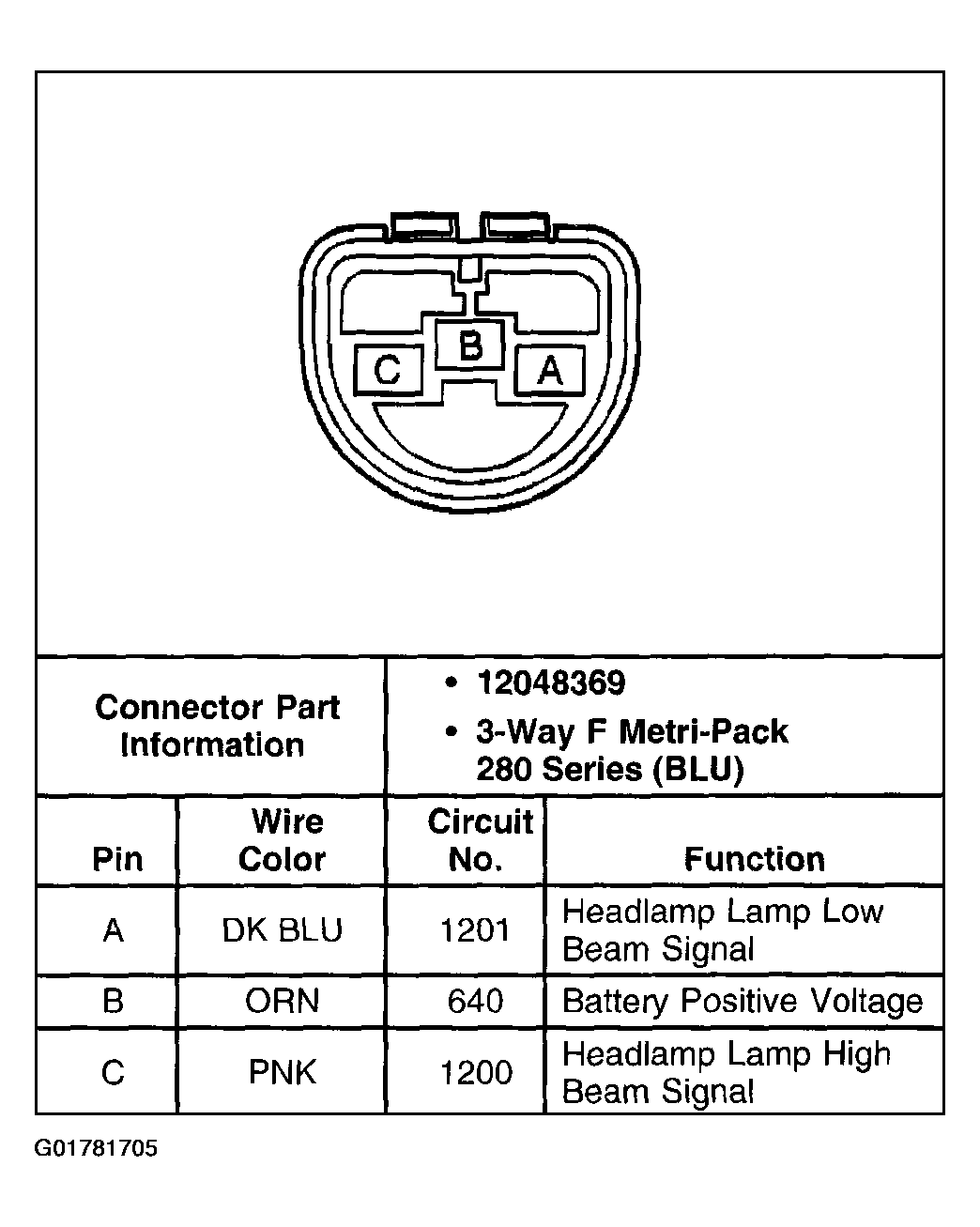

Fig 23: Identifying Headlamp Terminals - Right (Domestic)

G01781705

Courtesy of GENERAL MOTORS CORP.

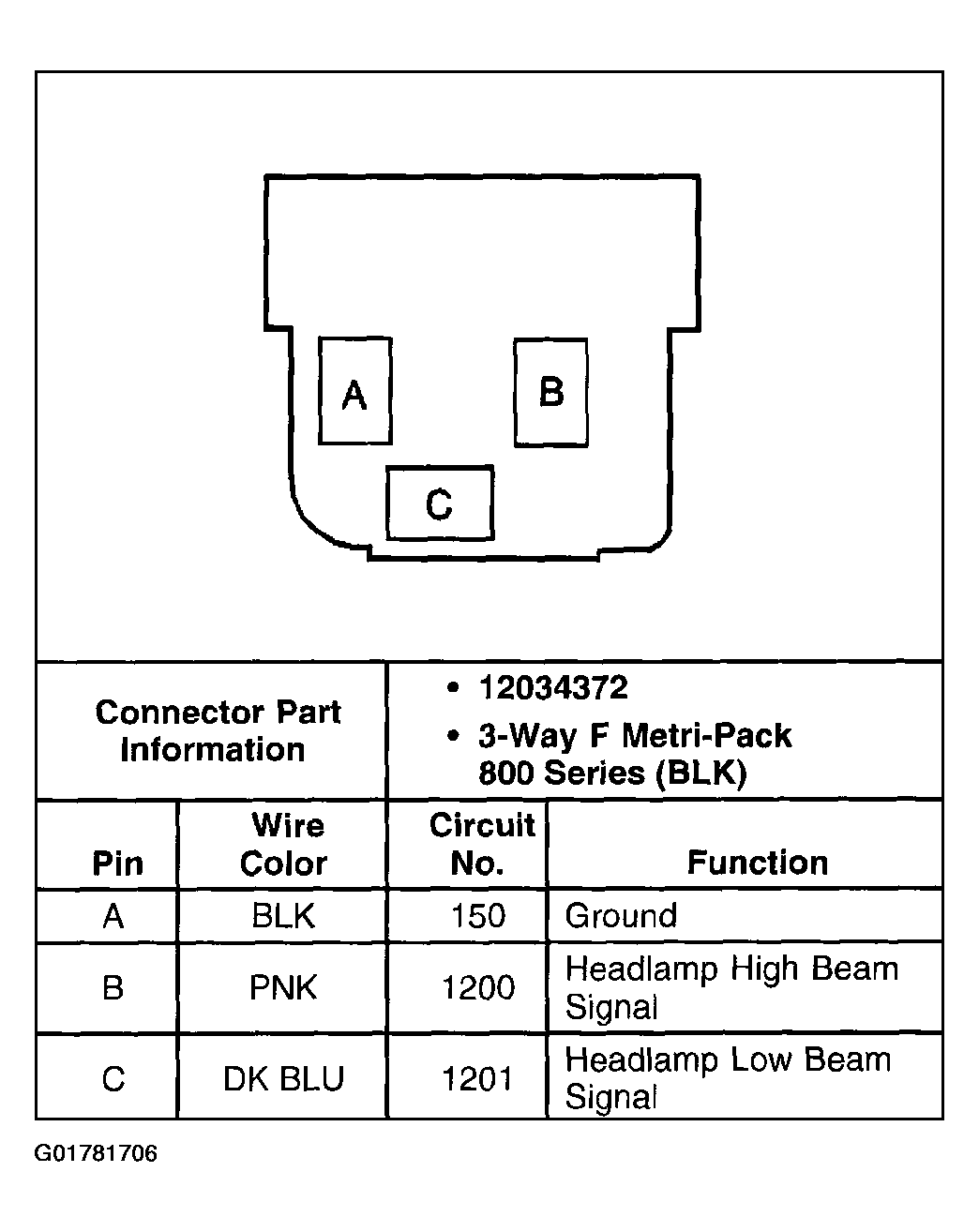

Fig 24: Identifying Headlamp Terminals - Right (Export)

G01781706

Courtesy of GENERAL MOTORS CORP.

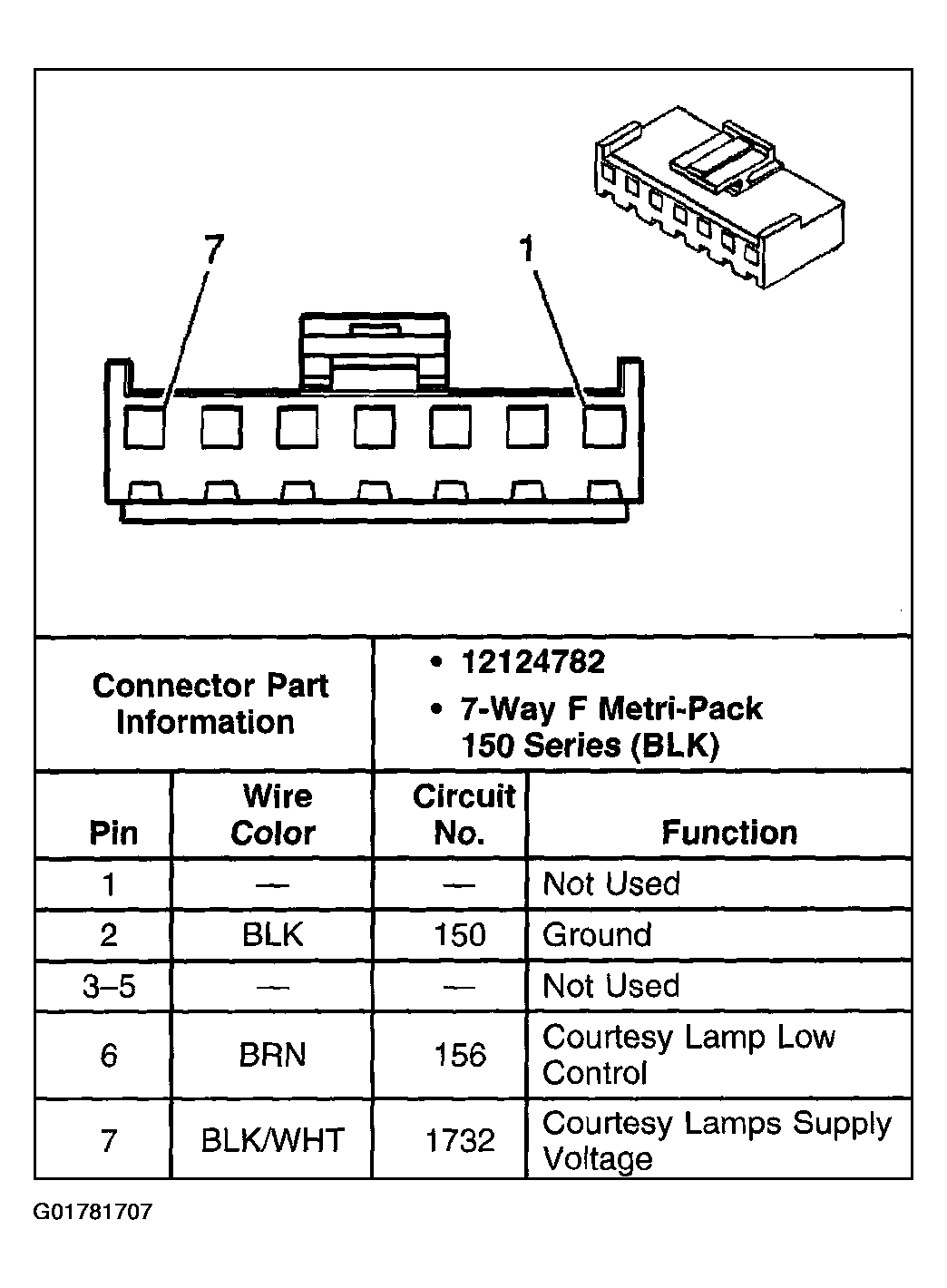

Fig 25: Identifying Rearview Mirror Reading Lamps Terminals (Base w/ CF5)

G01781707

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Inverter Module Terminals - Left (Export)

G01781708

Courtesy of GENERAL MOTORS CORP.

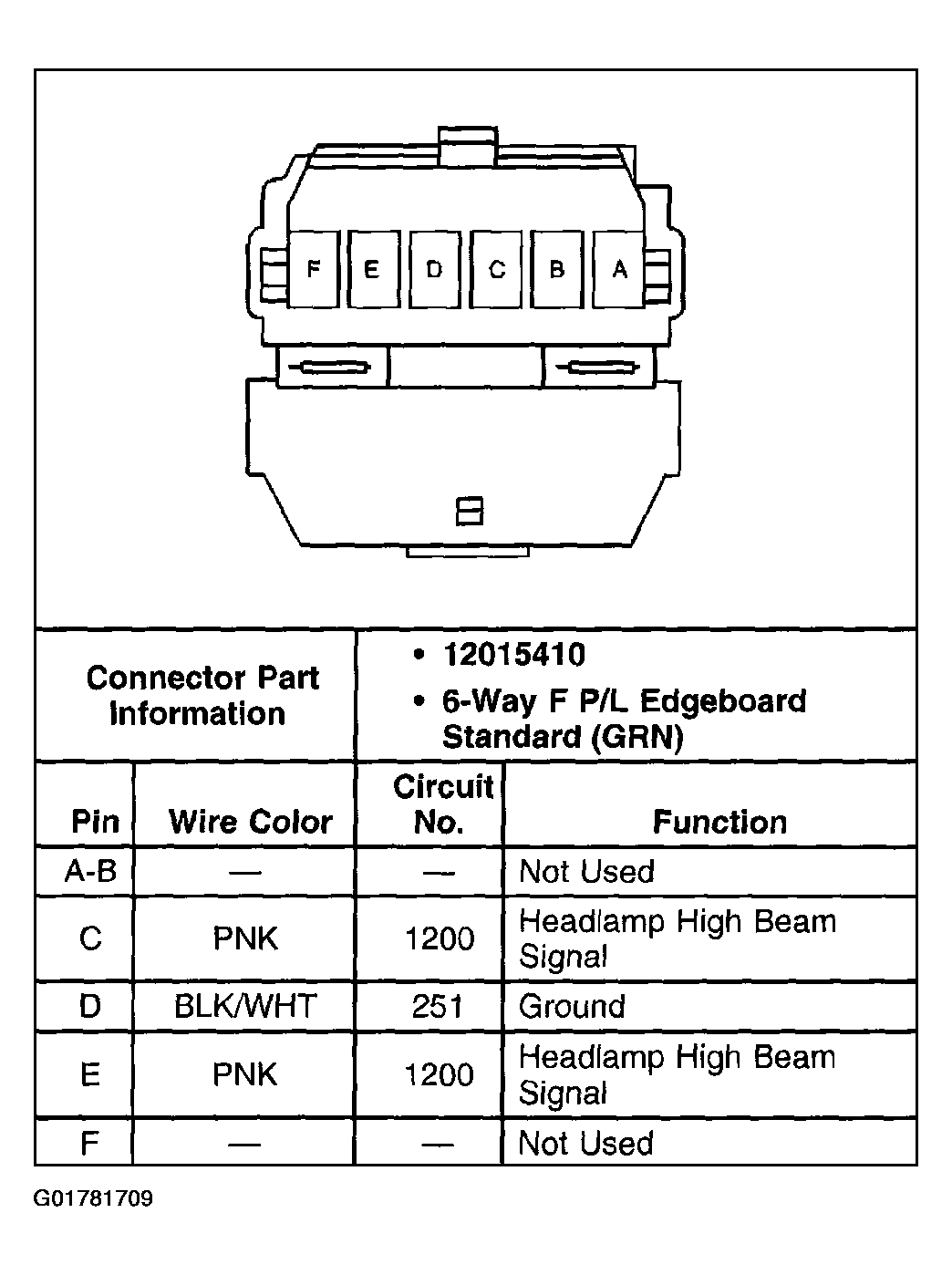

Fig 27: Identifying Inverter Module Terminals - Right (Export)

G01781709

Courtesy of GENERAL MOTORS CORP.

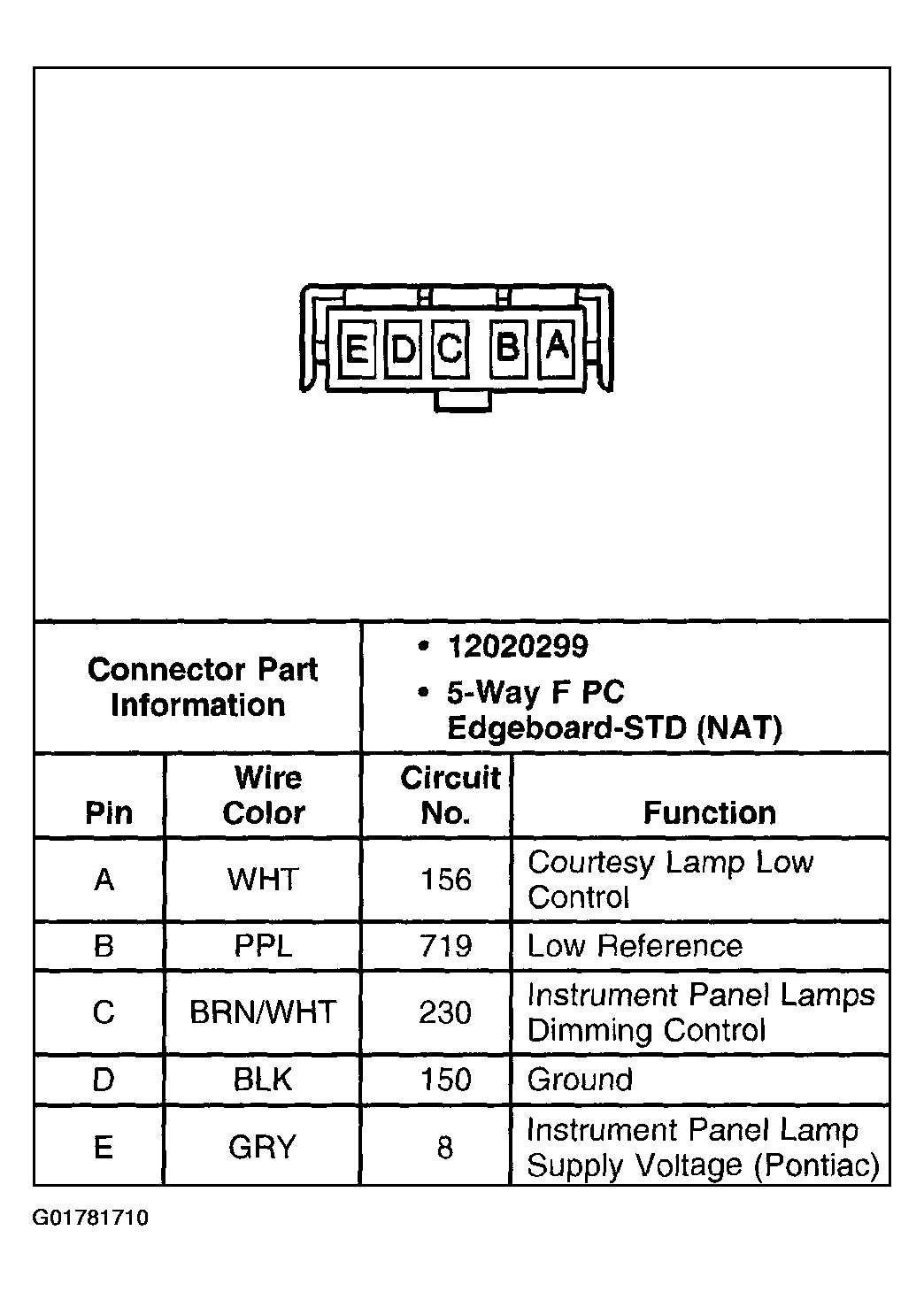

Fig 28: Identifying I/P Dimmer Switch Terminals

G01781710

Courtesy of GENERAL MOTORS CORP.

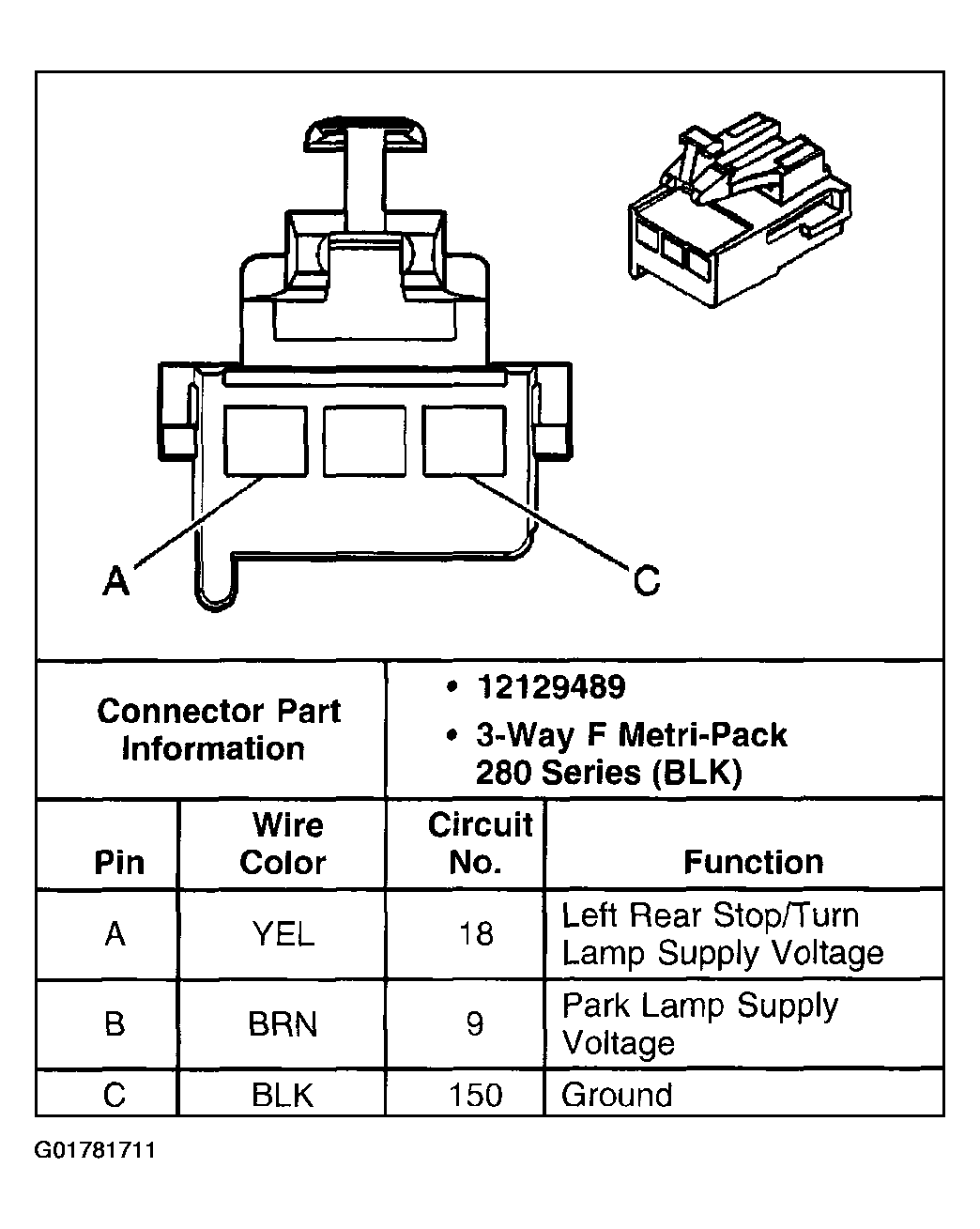

Fig 29: Identifying Tail/ Stop & Turn Signal Lamp Terminals - Left

G01781711

Courtesy of GENERAL MOTORS CORP.

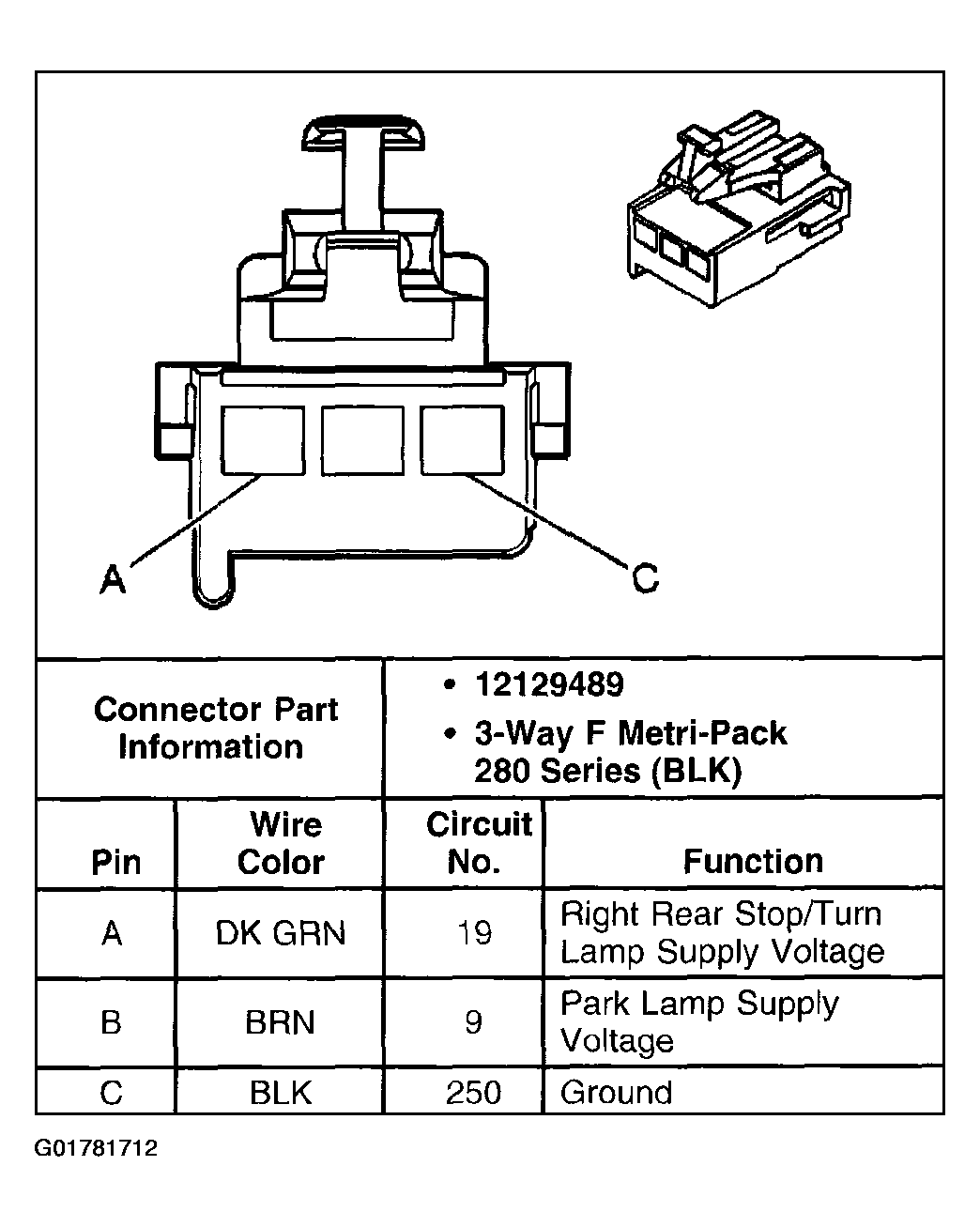

Fig 30: Identifying Tail/ Stop & Turn Signal Lamp Terminals - Right

G01781712

Courtesy of GENERAL MOTORS CORP.

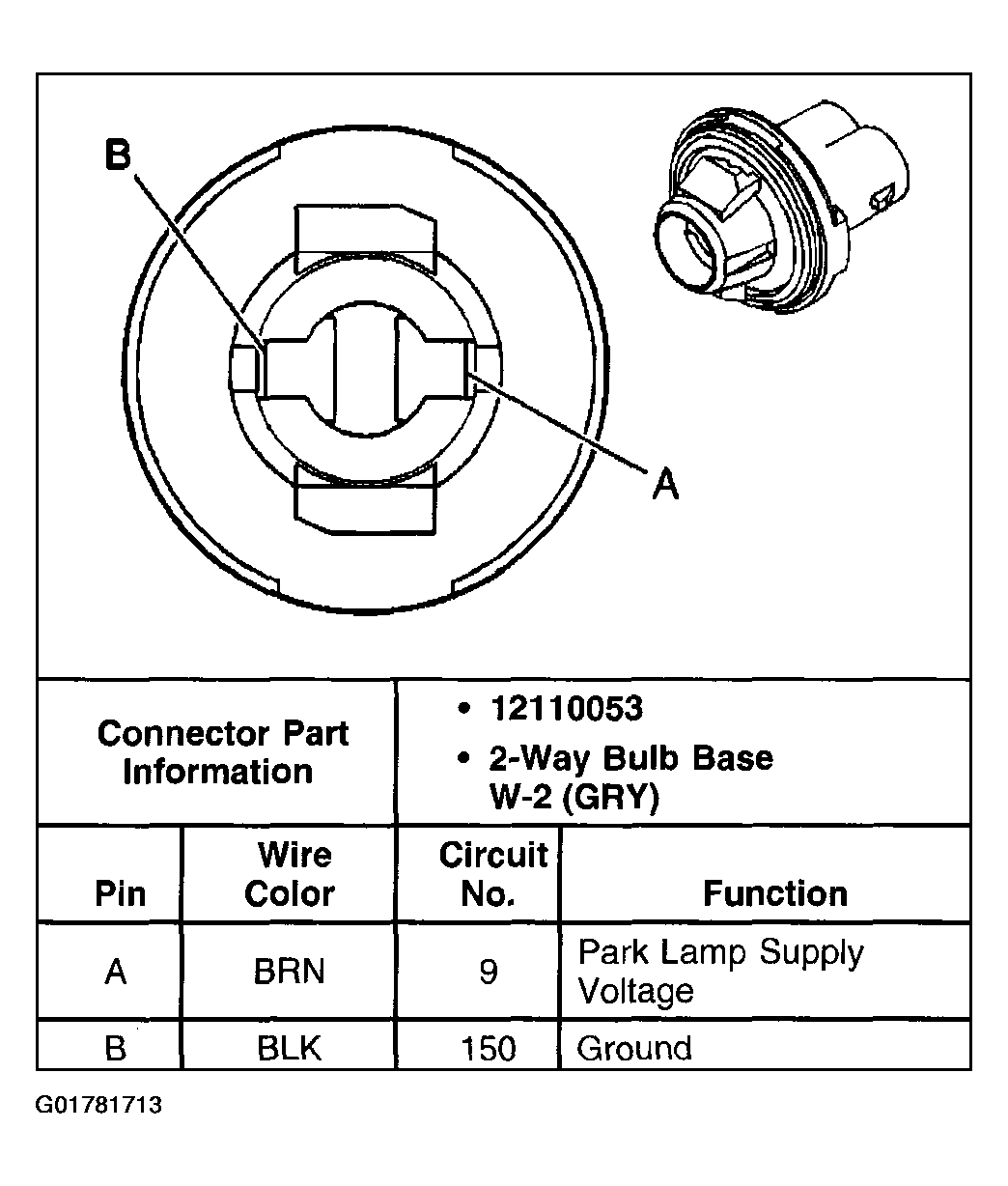

Fig 31: Identifying License Lamp Terminals (Chevrolet/Pontiac Sedan)

G01781713

Courtesy of GENERAL MOTORS CORP.

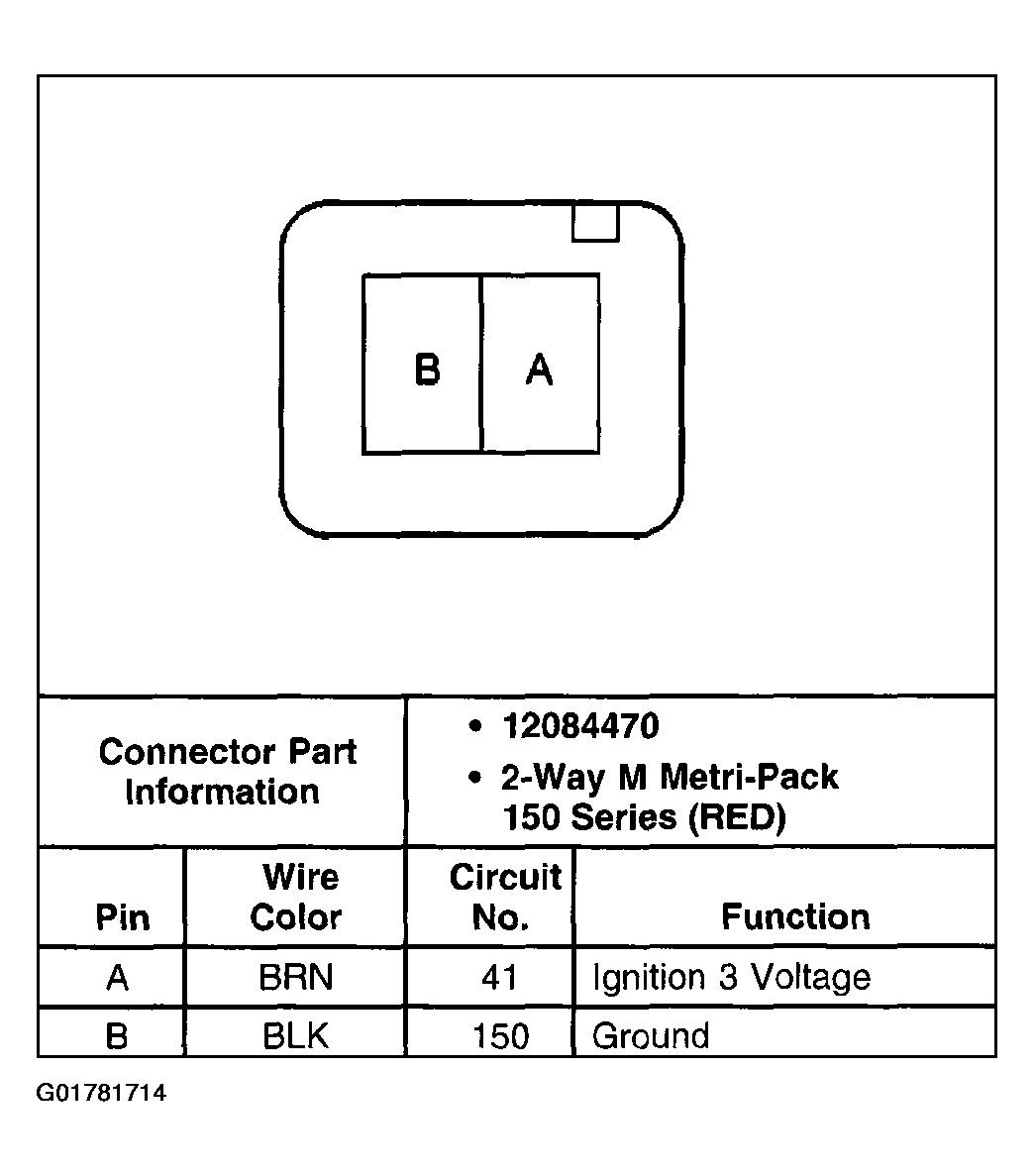

Fig 32: Identifying License Lamp Assembly Terminals (Pontiac Coupe)

G01781714

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Marker Lamp Terminals - LF (Pontiac)

G01781715

Courtesy of GENERAL MOTORS CORP.

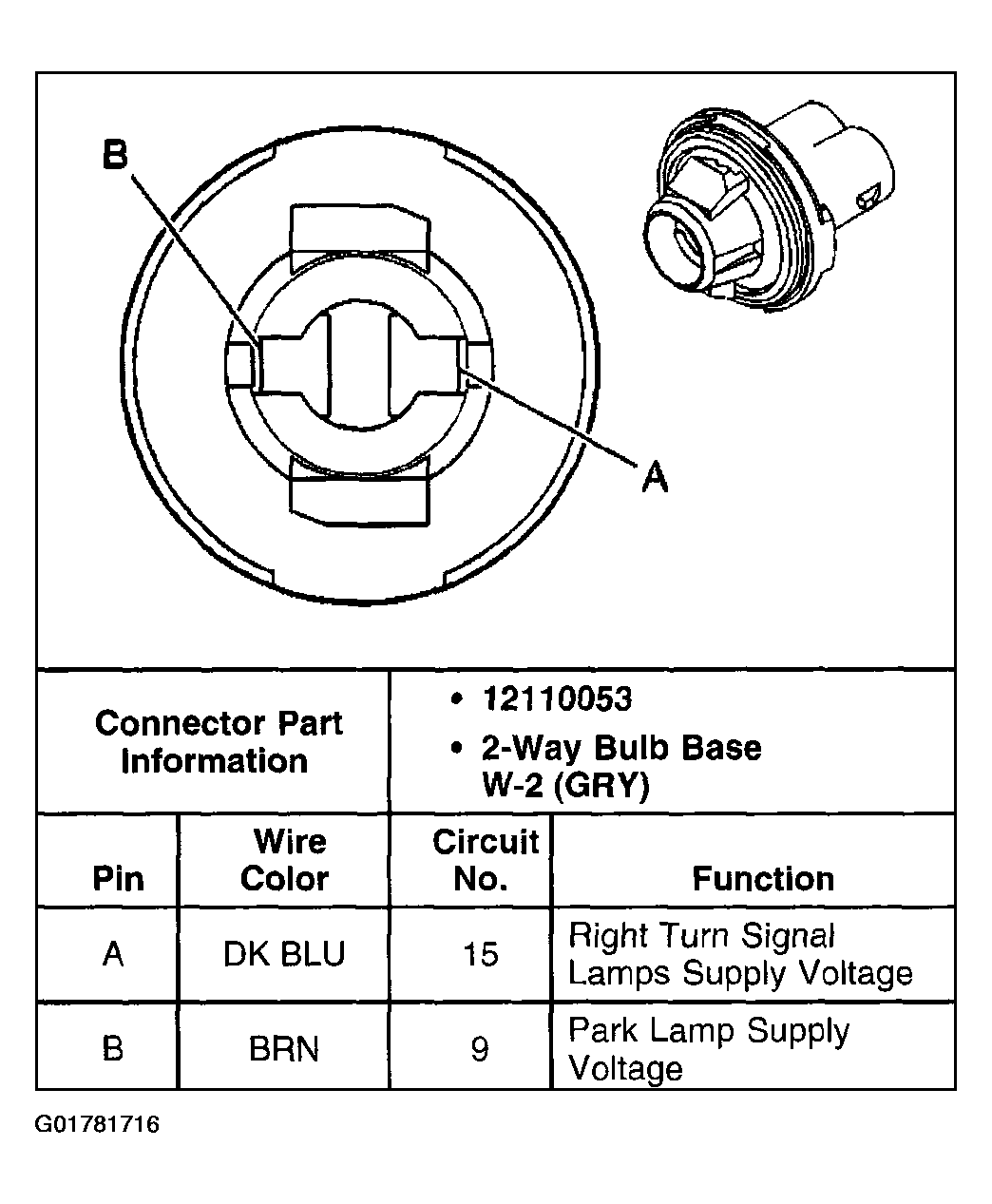

Fig 34: Identifying Marker Lamp Terminals - RF (Pontiac)

G01781716

Courtesy of GENERAL MOTORS CORP.

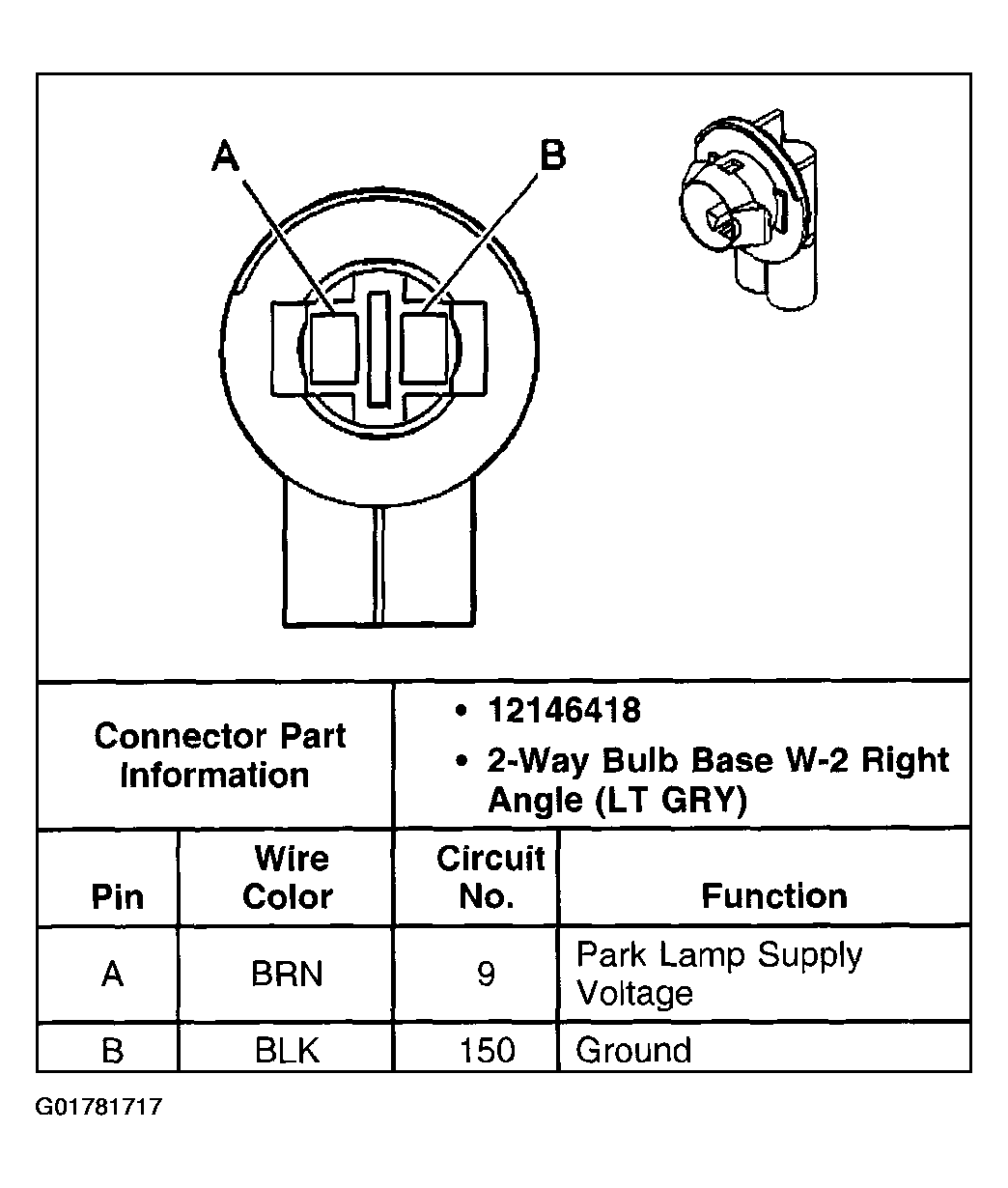

Fig 35: Identifying Marker Lamp Terminals - LR (Pontiac Coupe)

G01781717

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying Marker Lamp Terminals - RR (Pontiac Coupe)

G01781718

Courtesy of GENERAL MOTORS CORP.

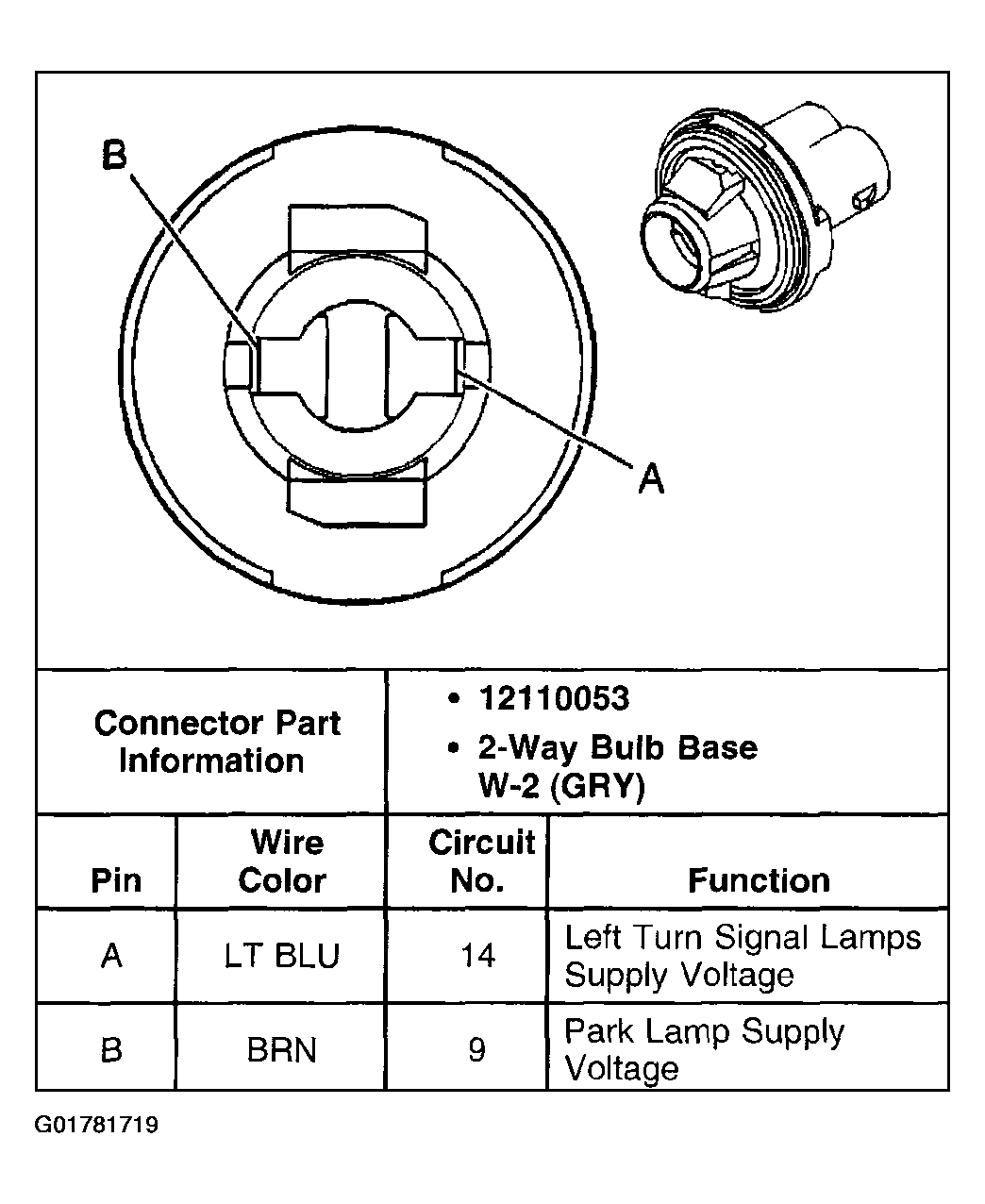

Fig 37: Identifying Repeater Lamp Terminals - LF (Chevrolet Export)

G01781719

Courtesy of GENERAL MOTORS CORP.

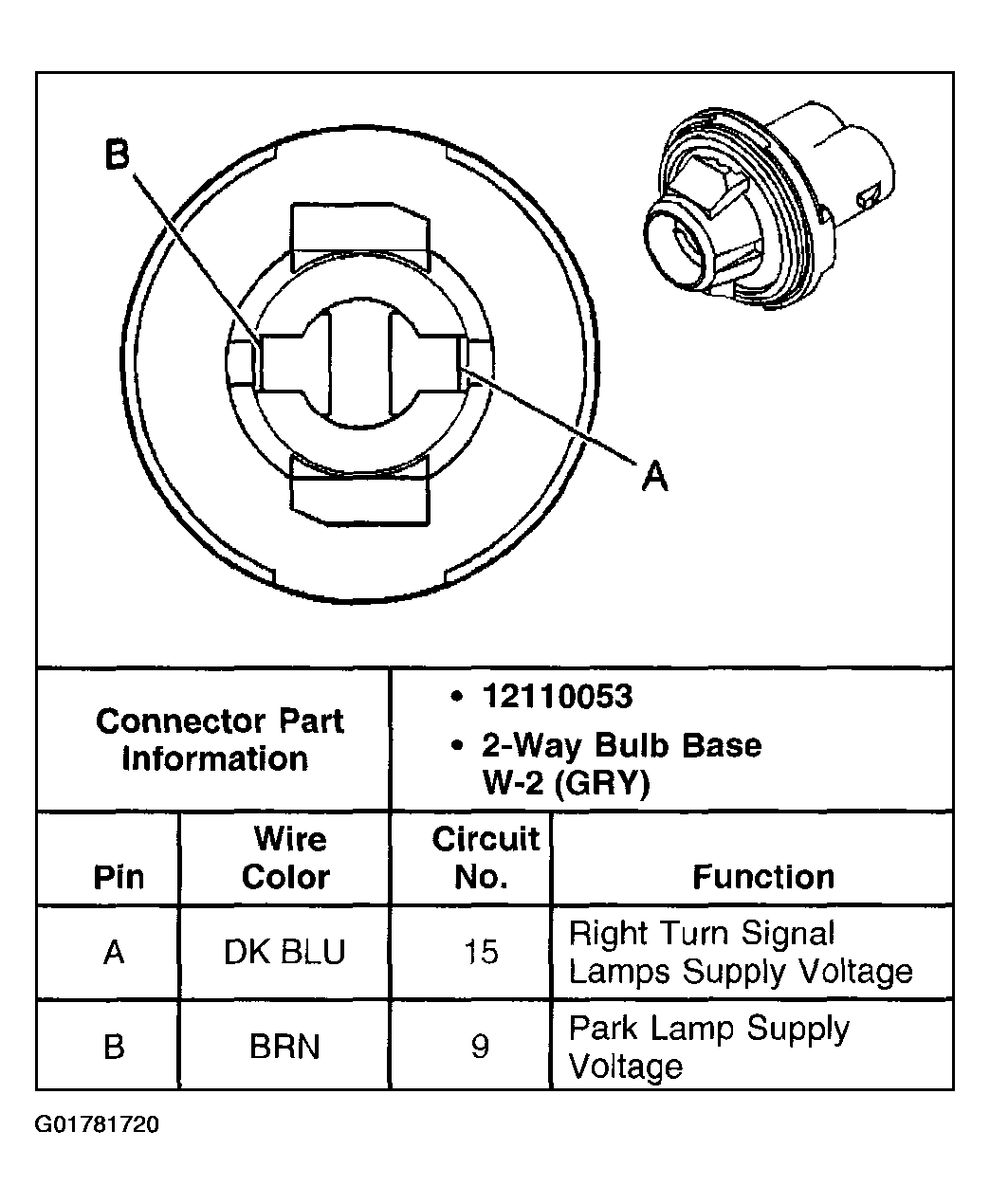

Fig 38: Identifying Repeater Lamp Terminals - RF (Chevrolet Export)

G01781720

Courtesy of GENERAL MOTORS CORP.

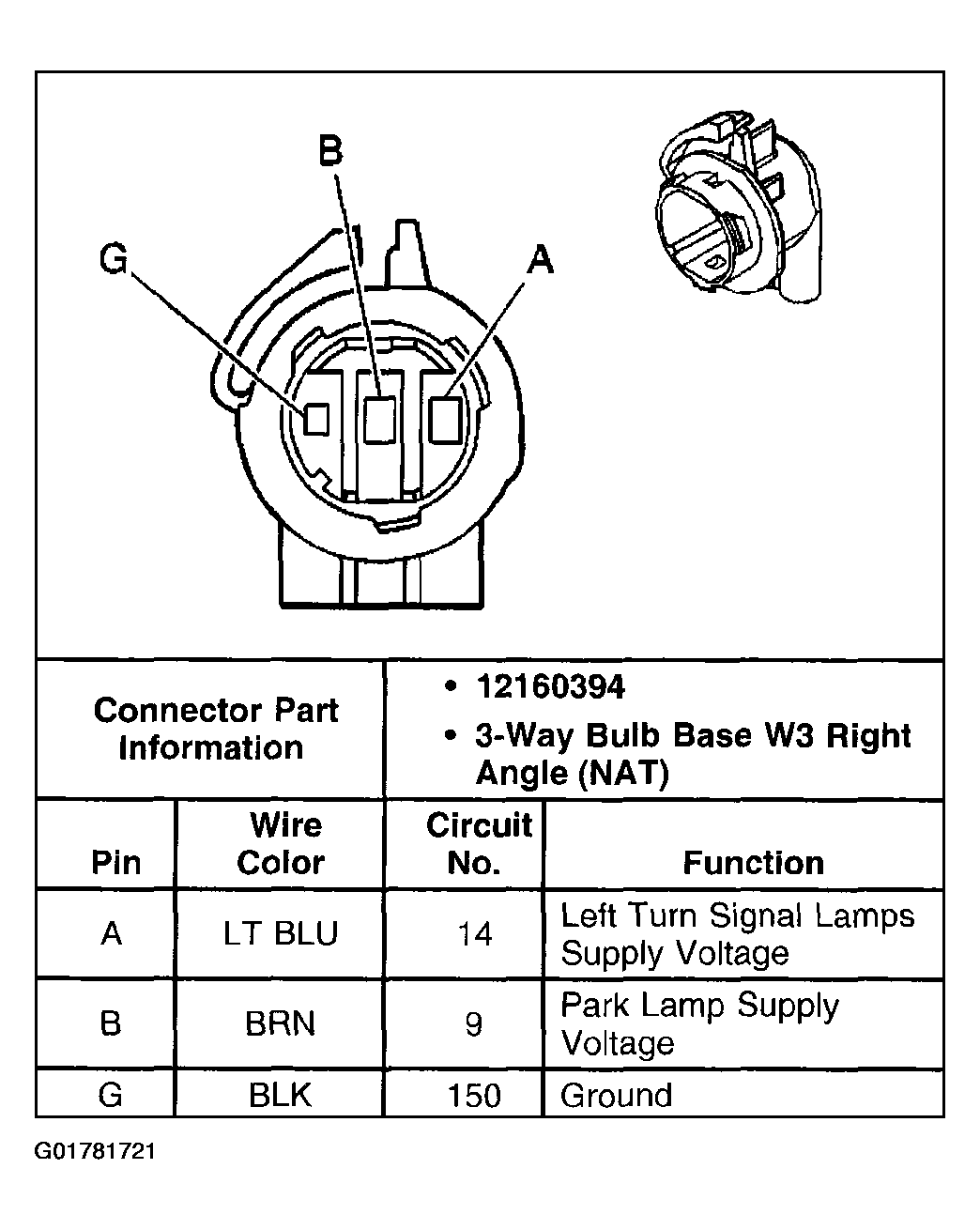

Fig 39: Identifying Park/Turn Signal Lamp Terminals - LF

G01781721

Courtesy of GENERAL MOTORS CORP.

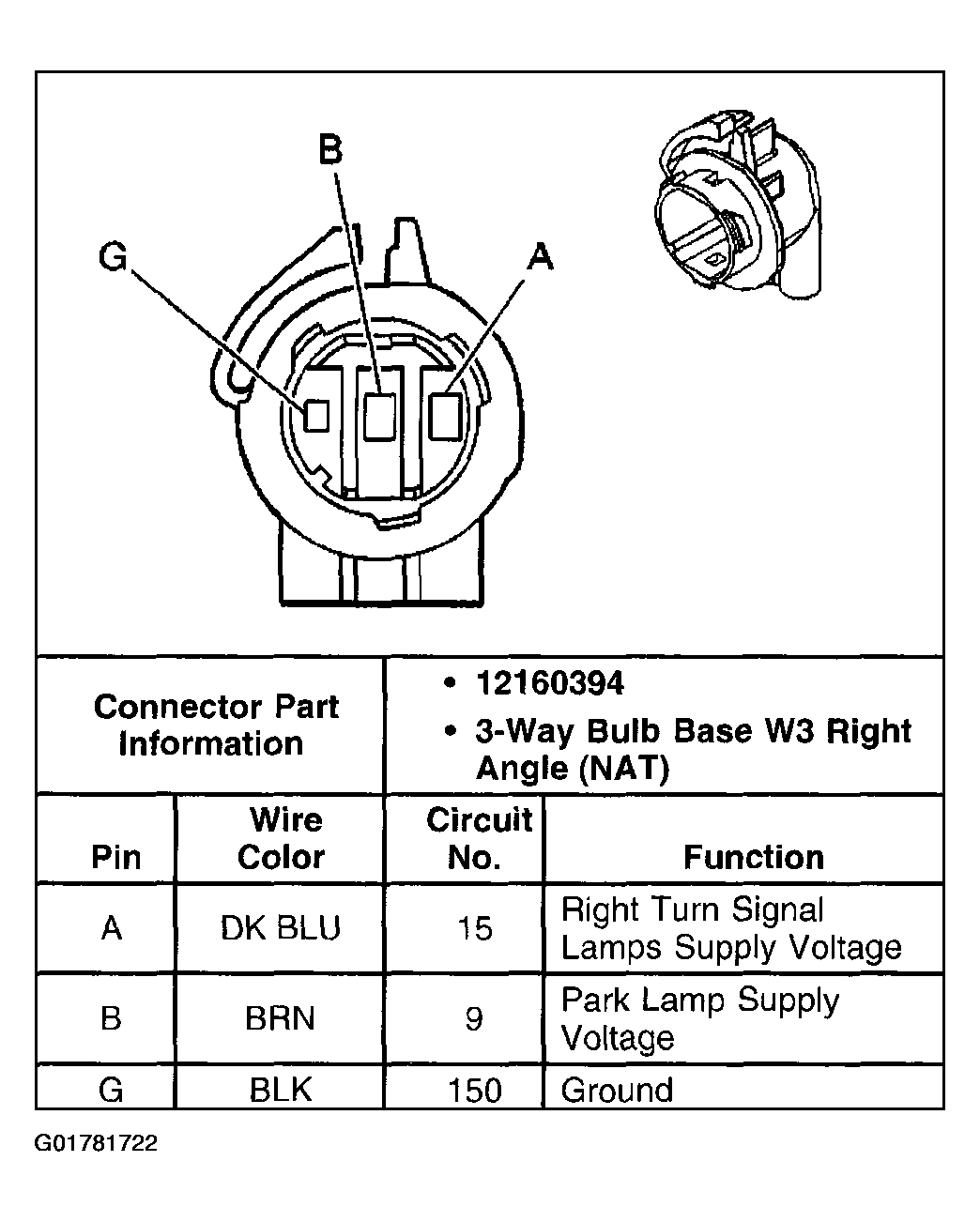

Fig 40: Identifying Park/Turn Signal Lamp Terminals - RF

G01781722

Courtesy of GENERAL MOTORS CORP.

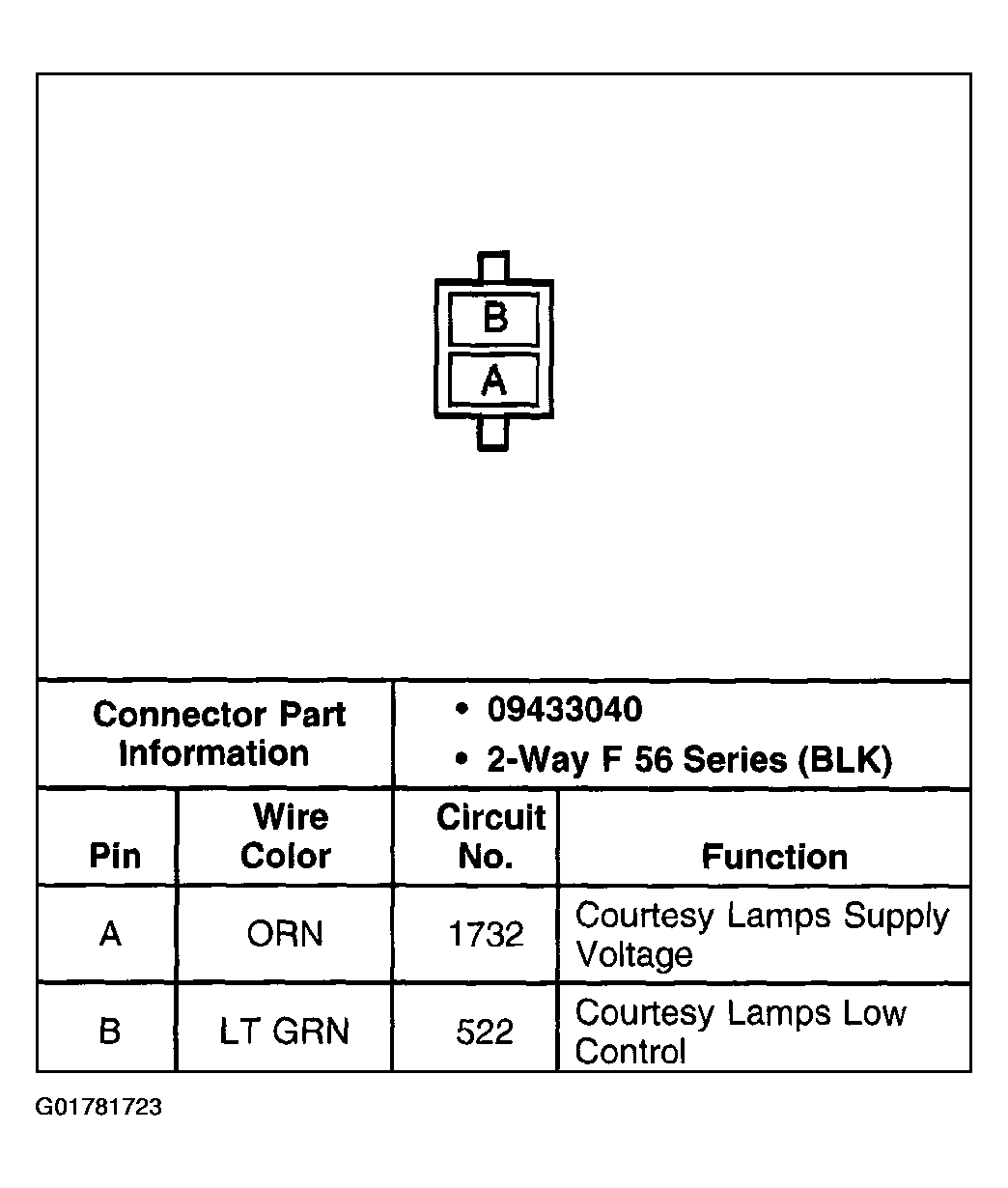

Fig 41: Identifying Reading Lamp Terminals - Left (Uplevel)

G01781723

Courtesy of GENERAL MOTORS CORP.

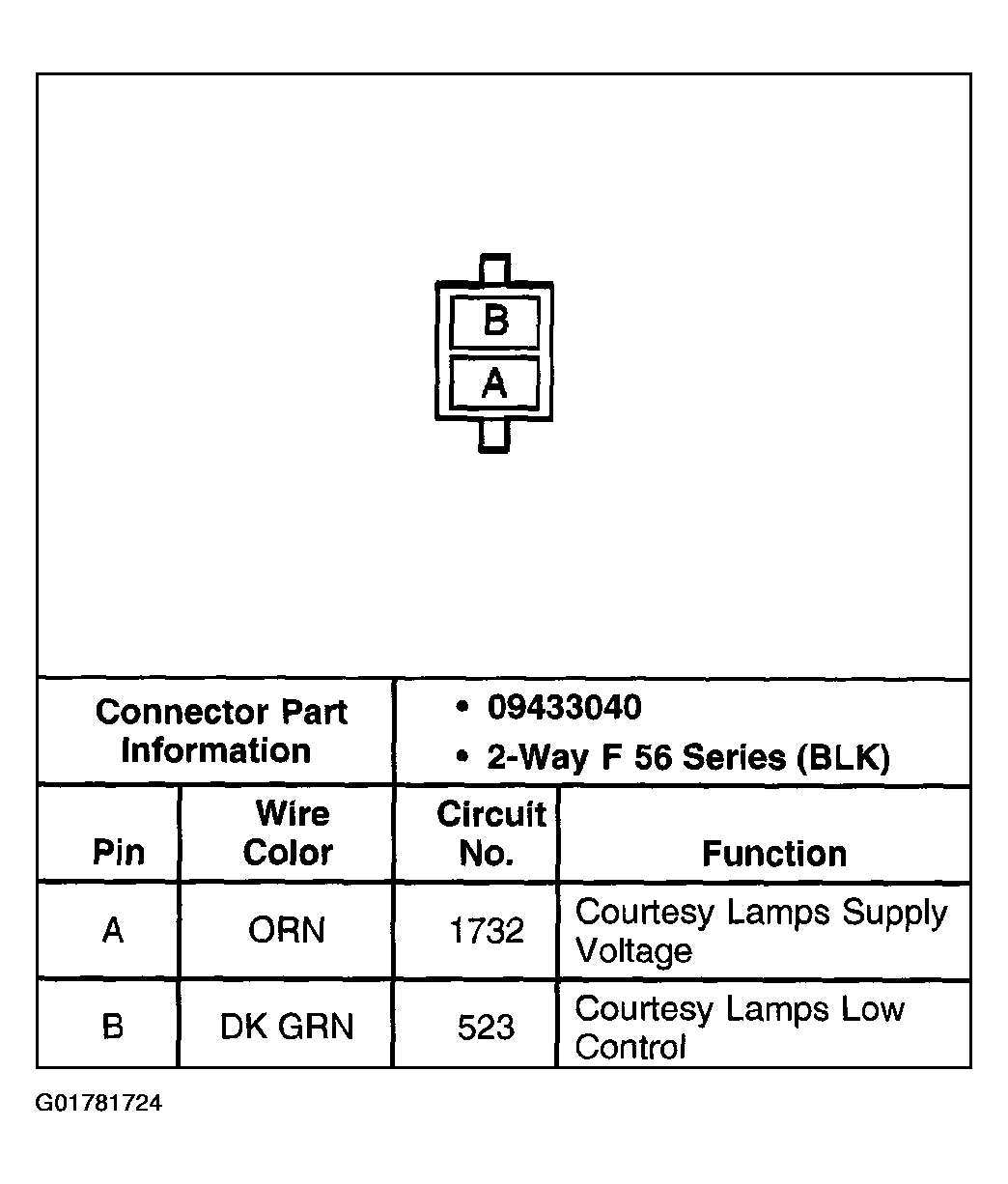

Fig 42: Identifying Reading Lamp Terminals - Right (Uplevel)

G01781724

Courtesy of GENERAL MOTORS CORP.

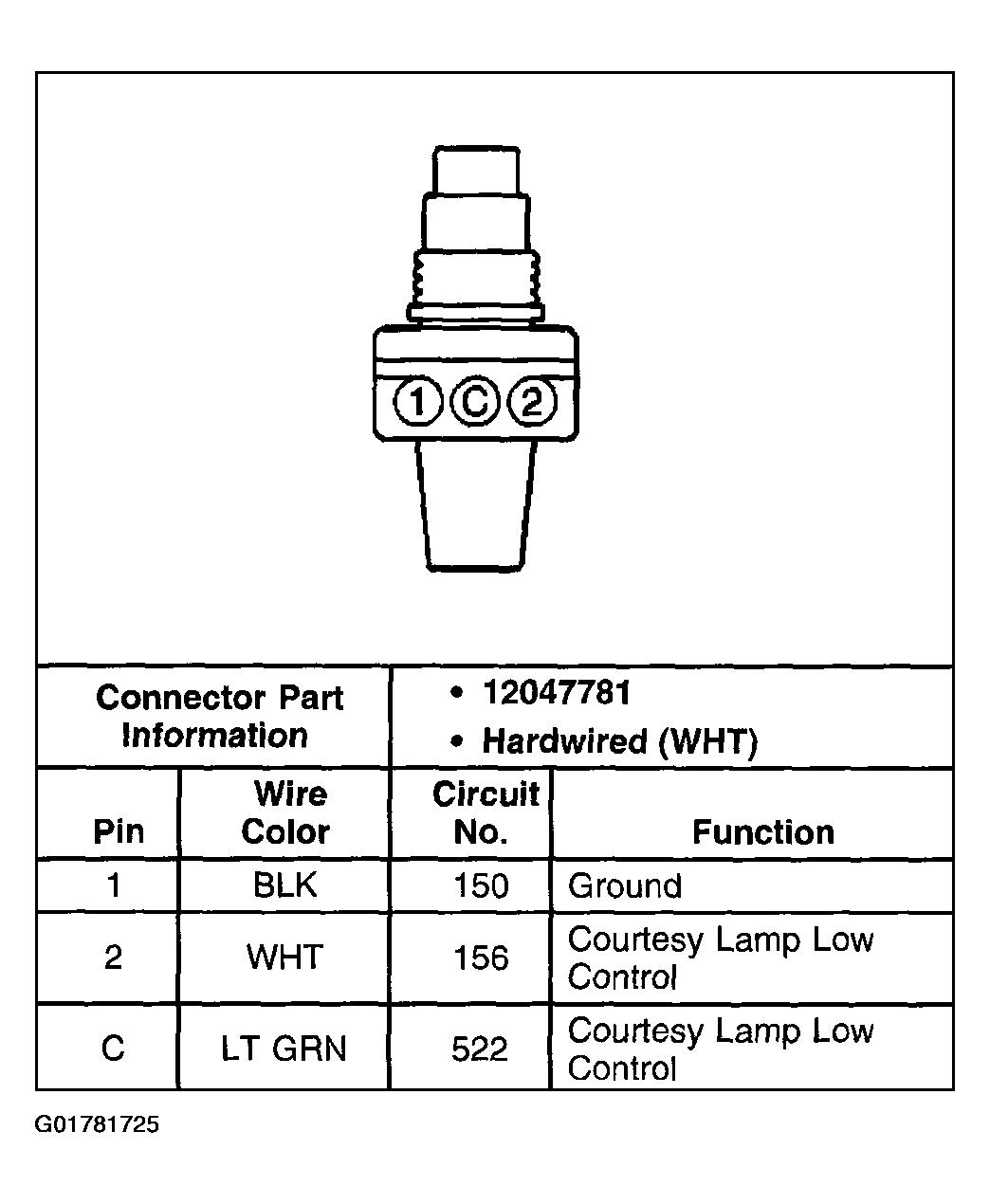

Fig 43: Identifying Reading/Courtesy Lamp Switch Terminals - Left (Uplevel)

G01781725

Courtesy of GENERAL MOTORS CORP.

Fig 44: Identifying Reading/Courtesy Lamp Switch Terminals - Right (Uplevel)

G01781726

Courtesy of GENERAL MOTORS CORP.

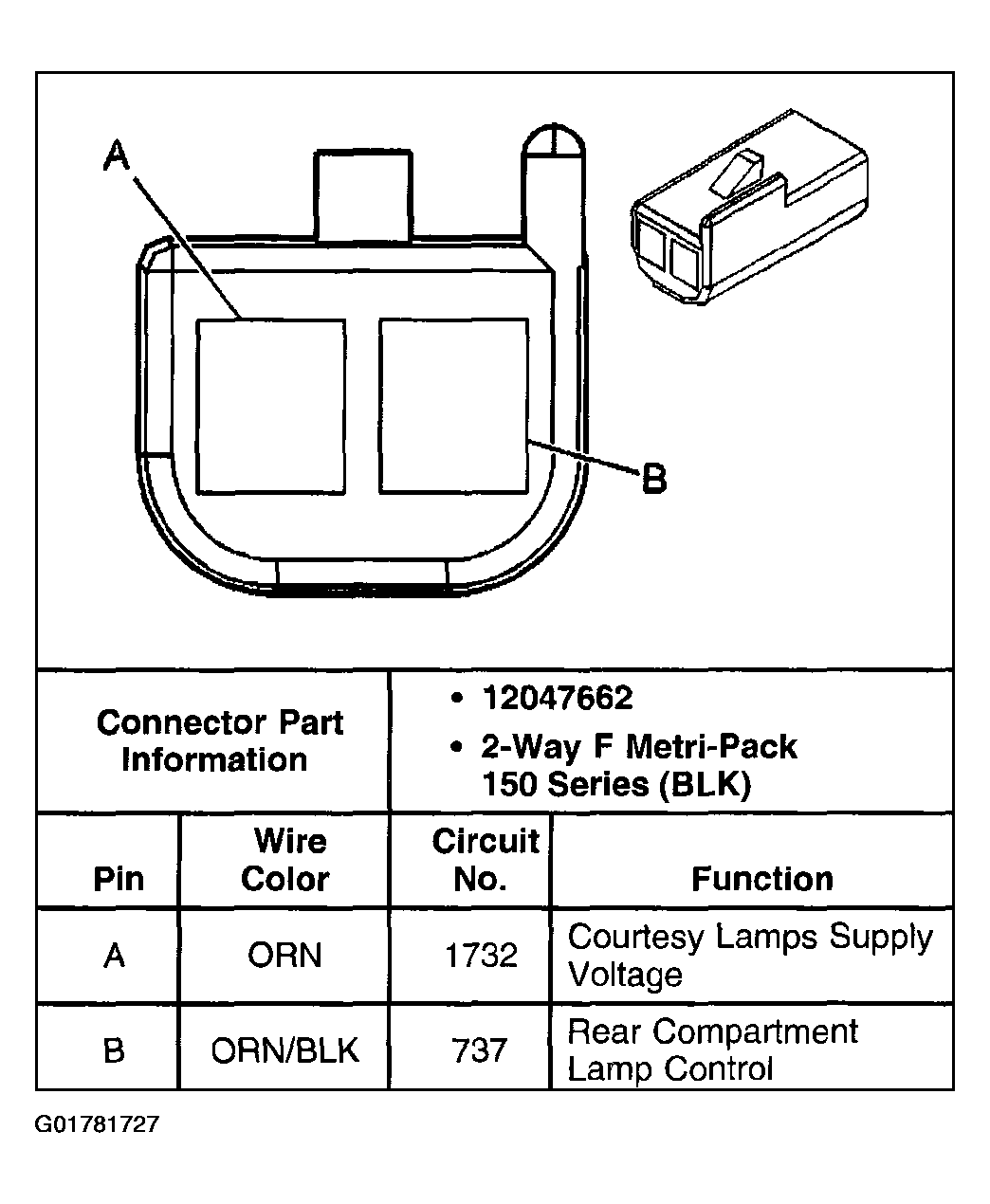

Fig 45: Identifying Rear Compartment Lamp Terminals

G01781727

Courtesy of GENERAL MOTORS CORP.

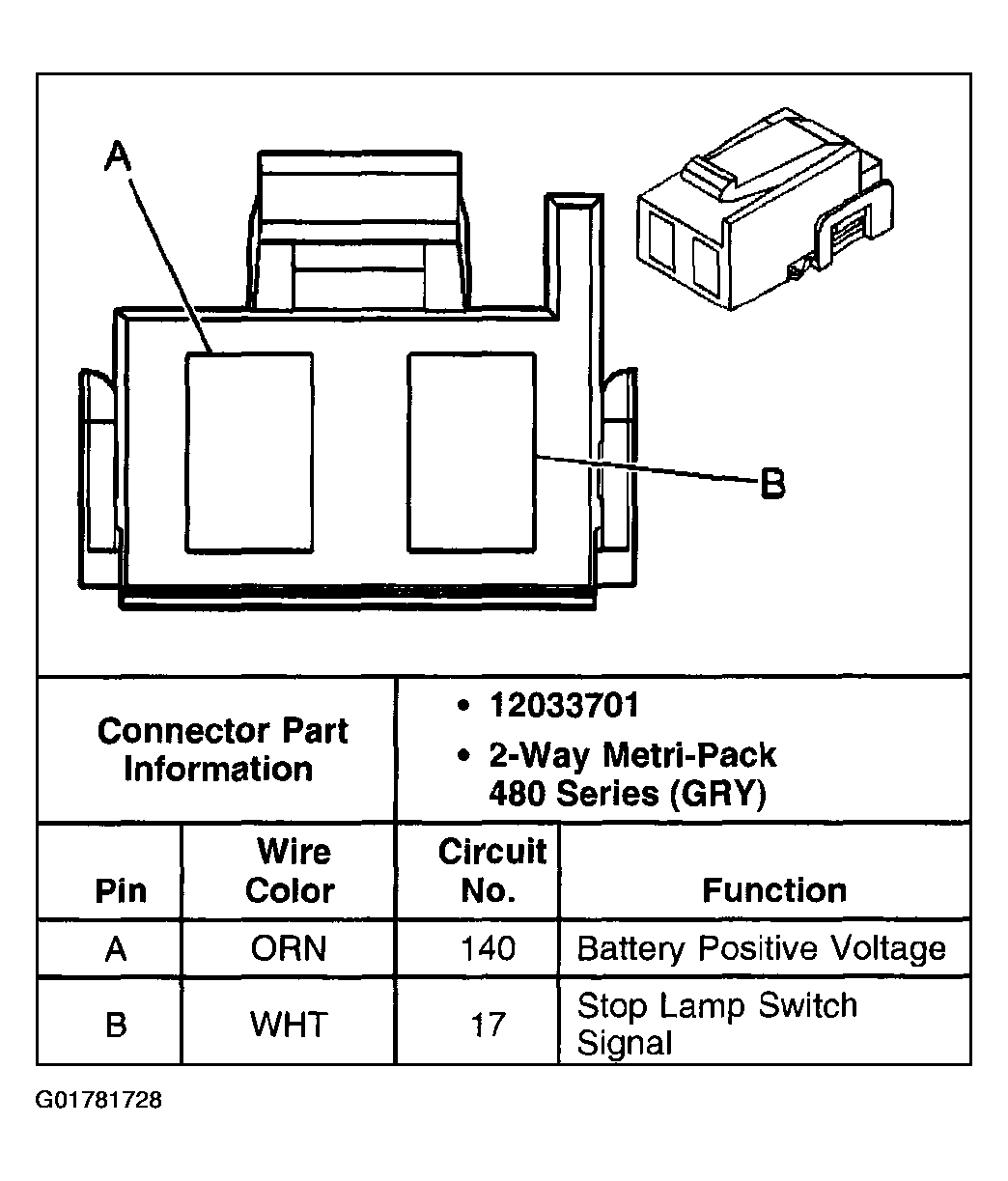

Fig 46: Identifying Stop Lamp Switch C1 Terminals

G01781728

Courtesy of GENERAL MOTORS CORP.

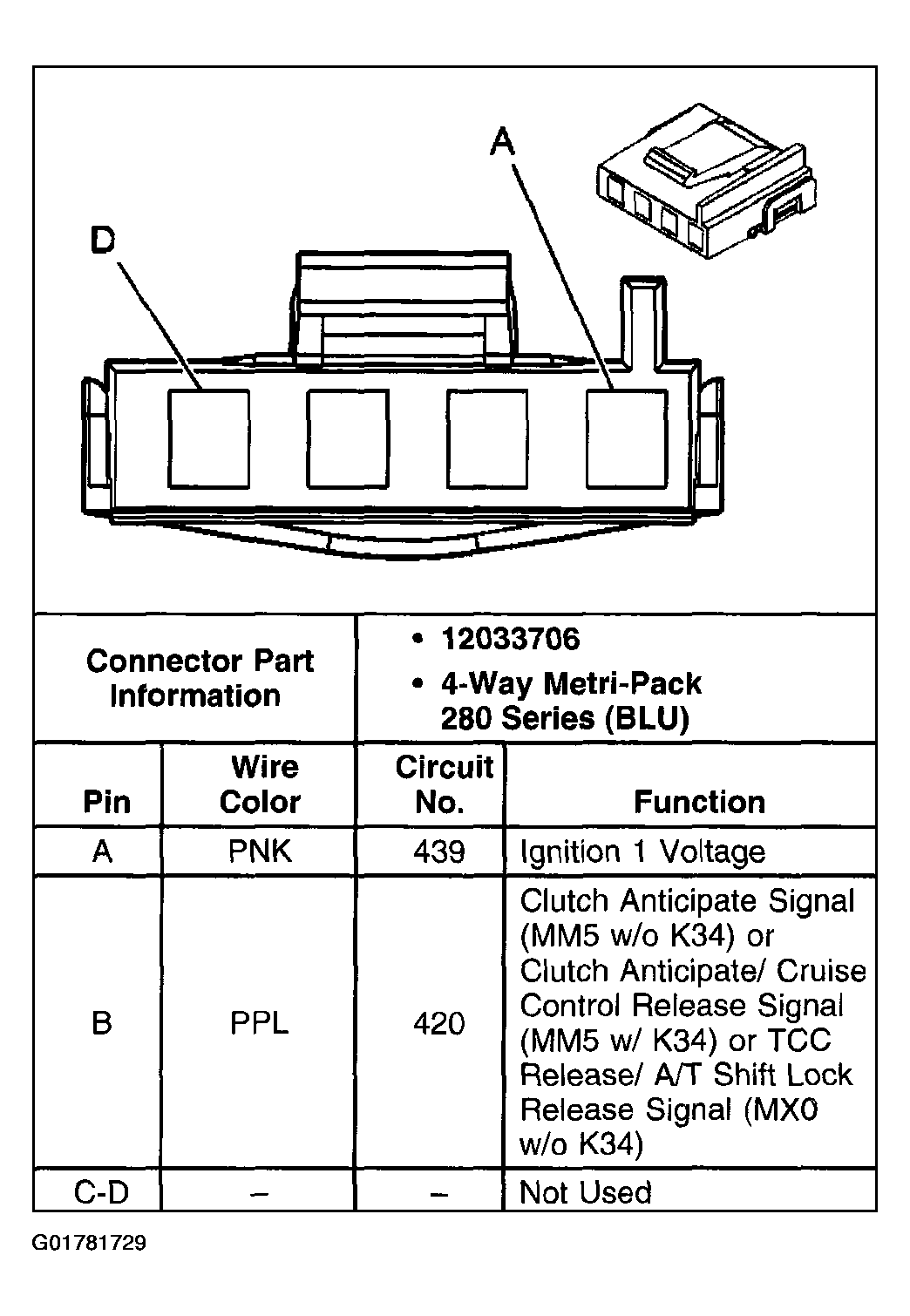

Fig 47: Identifying Stop Lamp Switch C2 Terminals

G01781729

Courtesy of GENERAL MOTORS CORP.

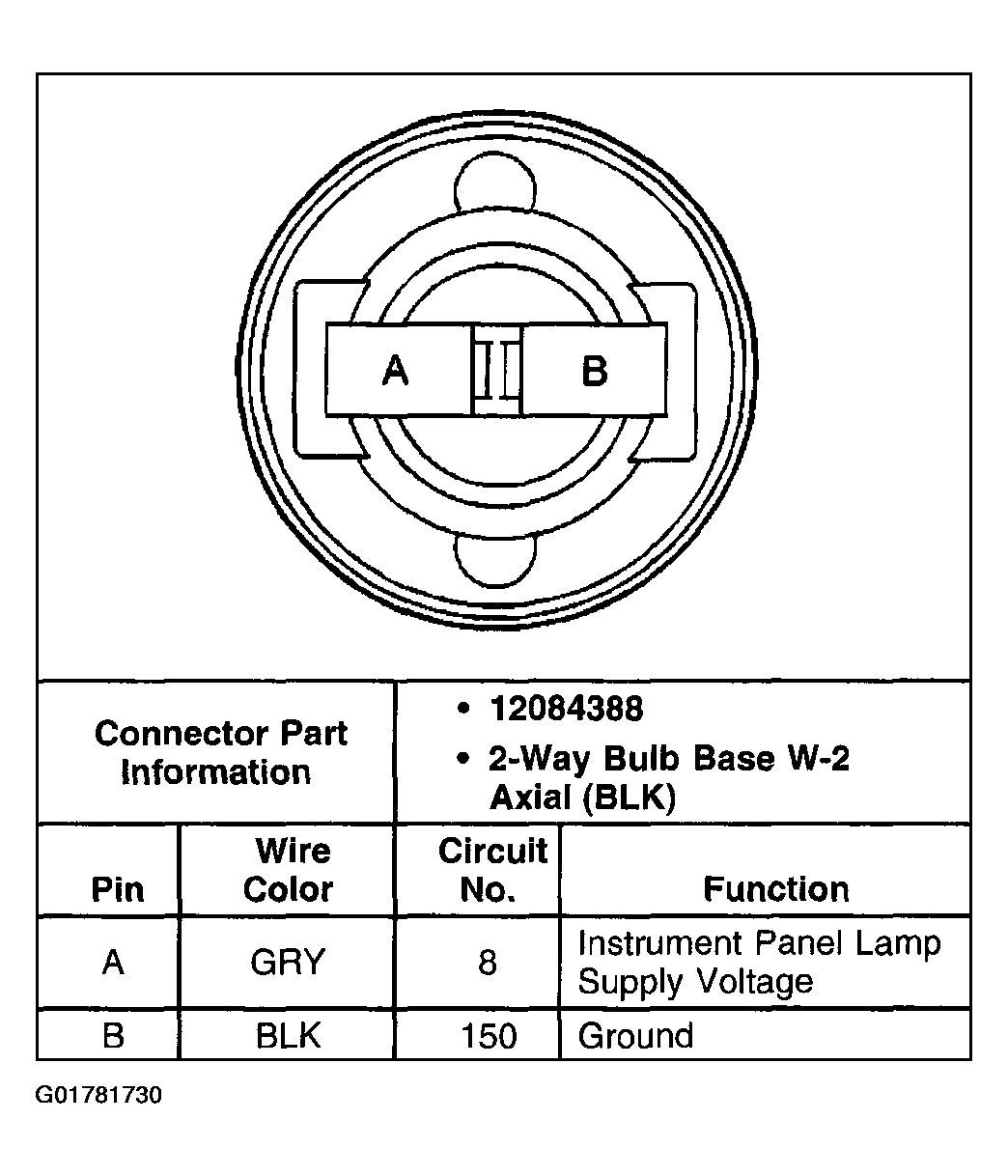

Fig 48: Identifying Shift Indicator Lamp Terminals

G01781730

Courtesy of GENERAL MOTORS CORP.

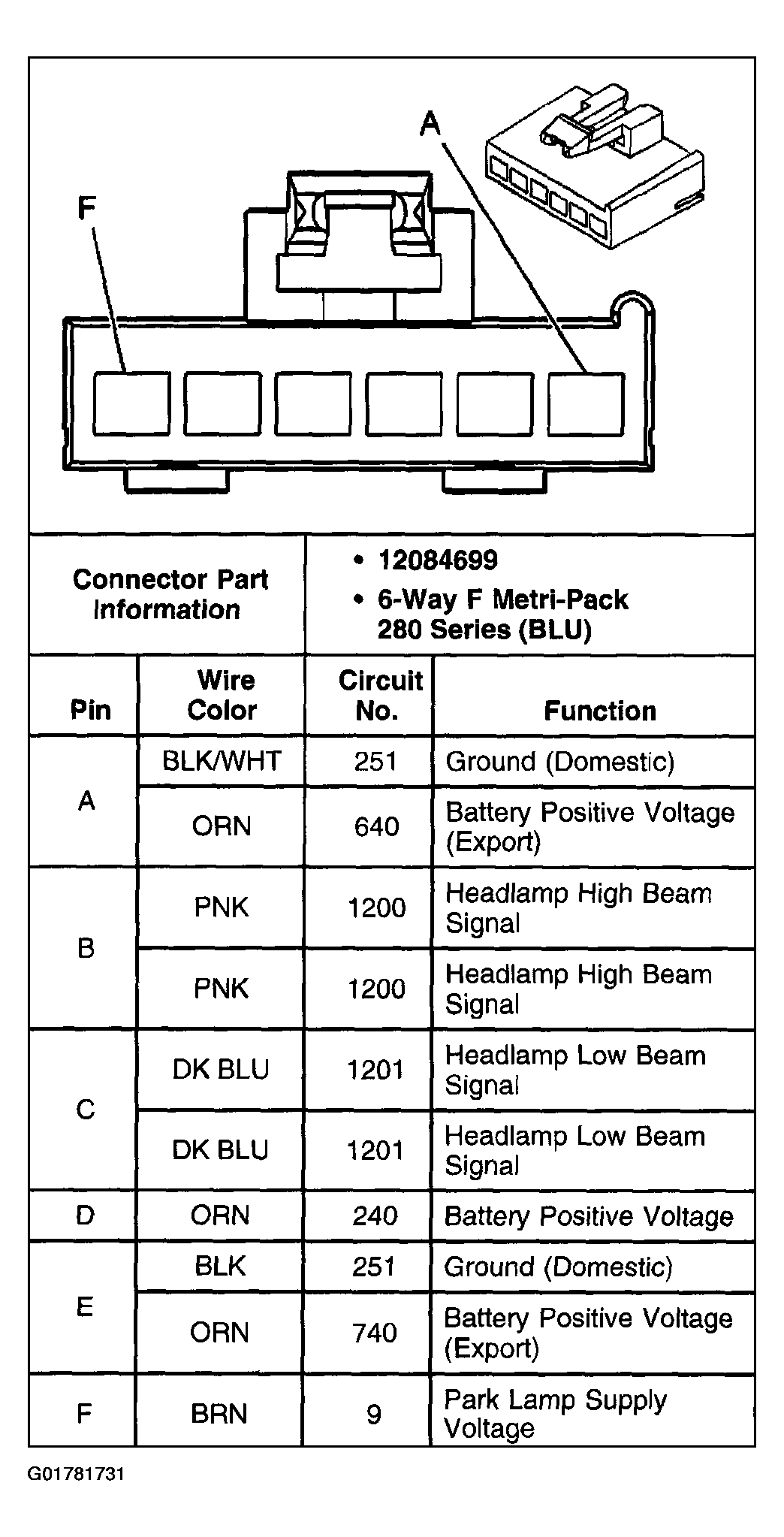

Fig 49: Identifying Turn Signal/Multifunction Switch C1 Terminals

G01781731

Courtesy of GENERAL MOTORS CORP.

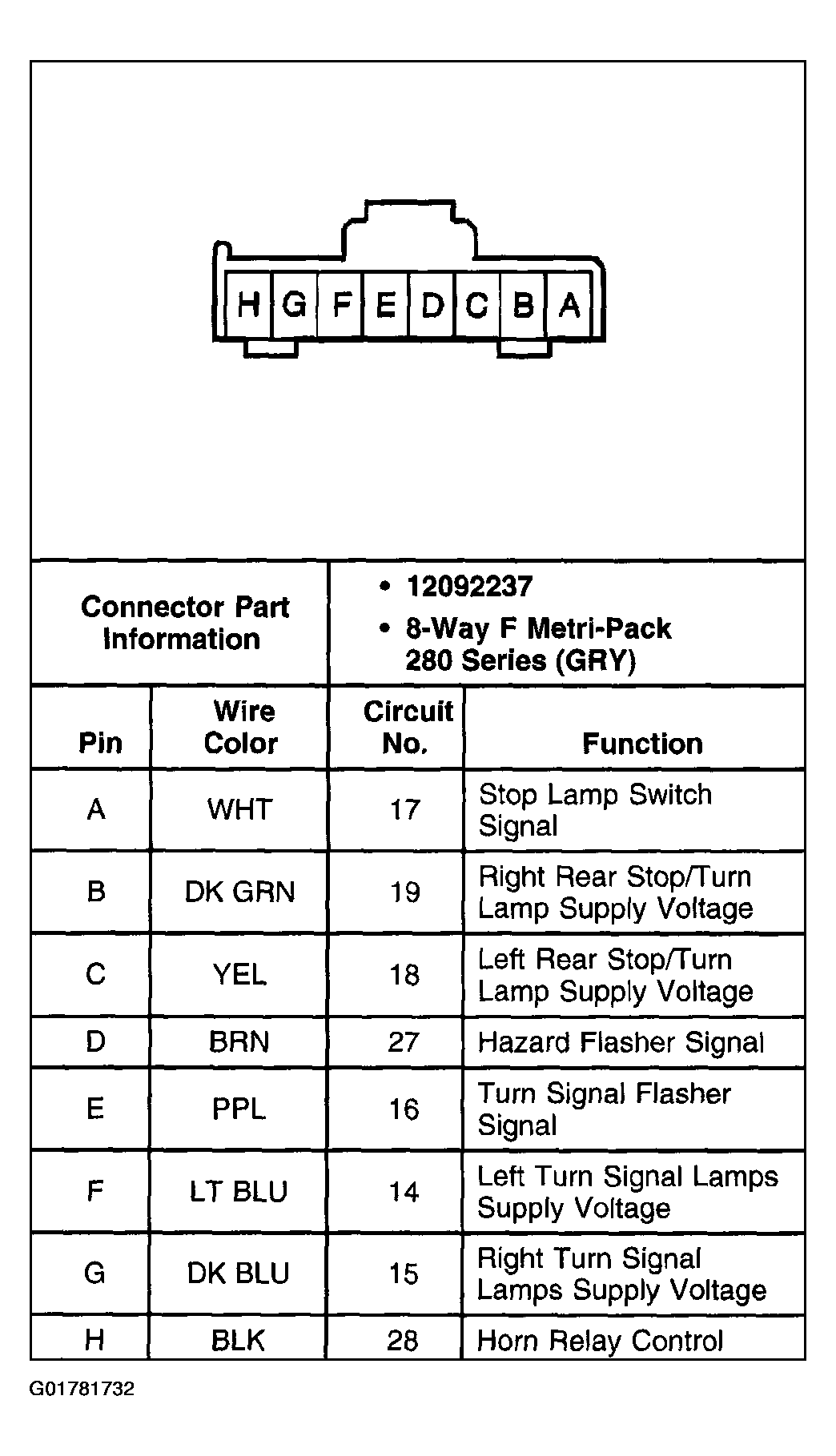

Fig 50: Identifying Turn Signal/Multifunction Switch C2 Terminals

G01781732

Courtesy of GENERAL MOTORS CORP.

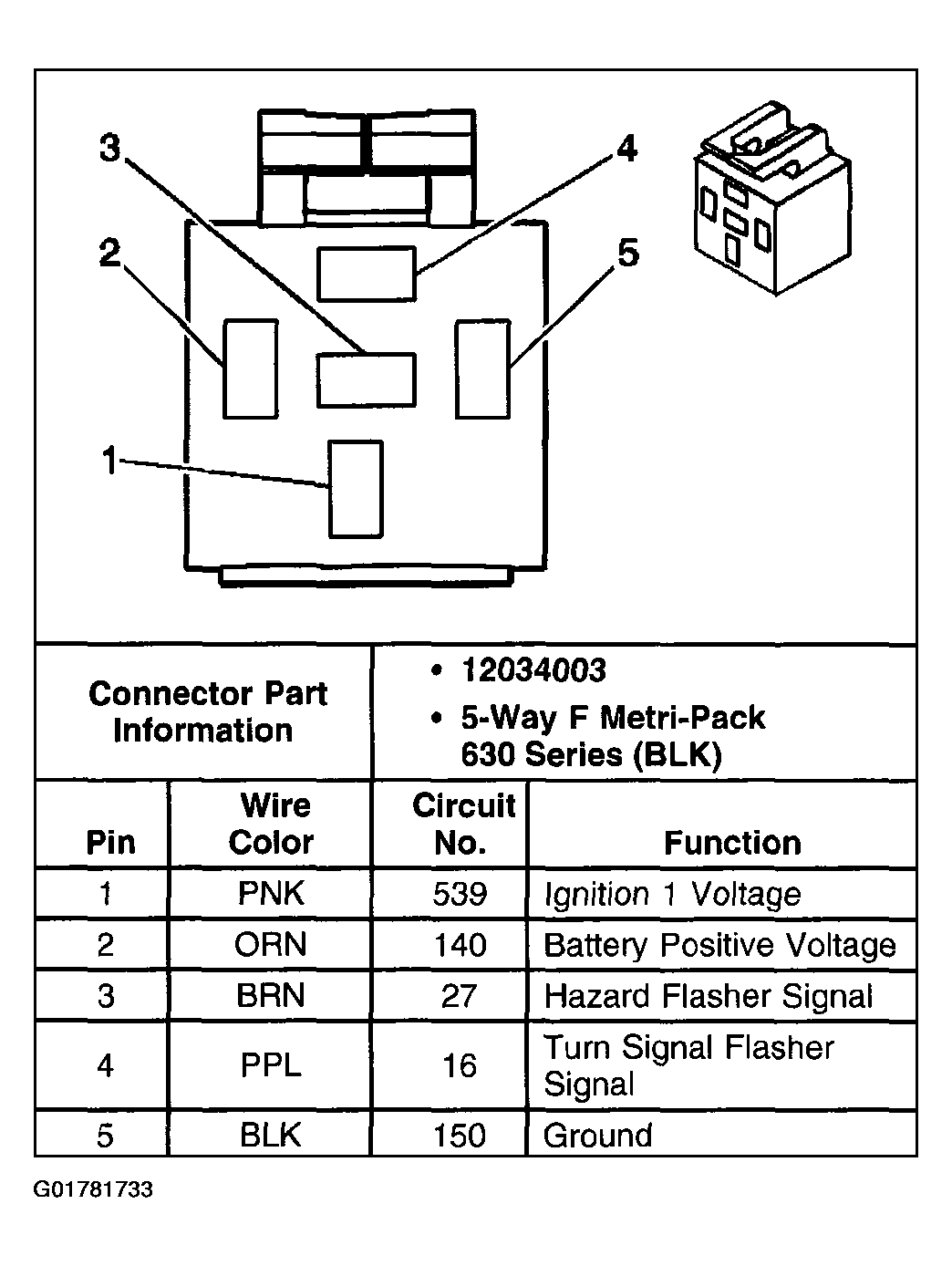

Fig 51: Identifying Turn Signal/Hazard Flasher Module Terminals

G01781733

Courtesy of GENERAL MOTORS CORP.
