Body Rear End Component Views
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

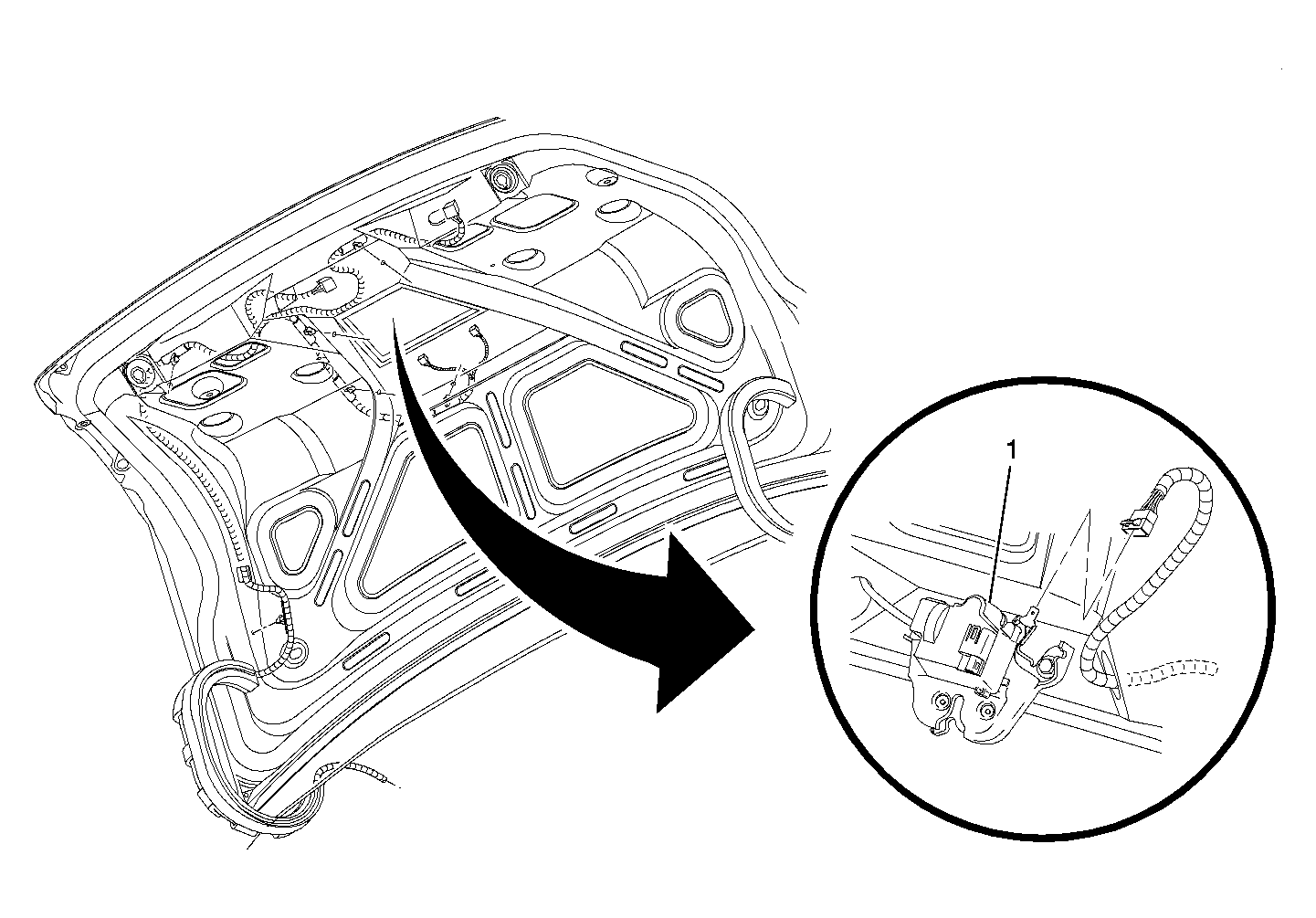

| Callout |
Component Name |
| 1 |
Rear Compartment Lid Ajar/ Release Actuator |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ambient Light Sensor |
| 2 |
Windshield Wiper/Washer Switch |
| 3 |
Left Heated Seat/Fog Lamp Switch |
| 4 |
Hazard Switch |
| 5 |
Right Heated Seat/Traction Switch |
| 6 |
Radio |
| 7 |
HVAC Control Module |
| 8 |
Headlamp/Turn Signal Switch |
| 9 |
Dimmer/Rear Compartment Lid Release Switch |
| 10 |
Instrument Panel Cluster (IPC) |
| 11 |
Ignition Lock Cylinder Solenoid |
