Installation (Front)

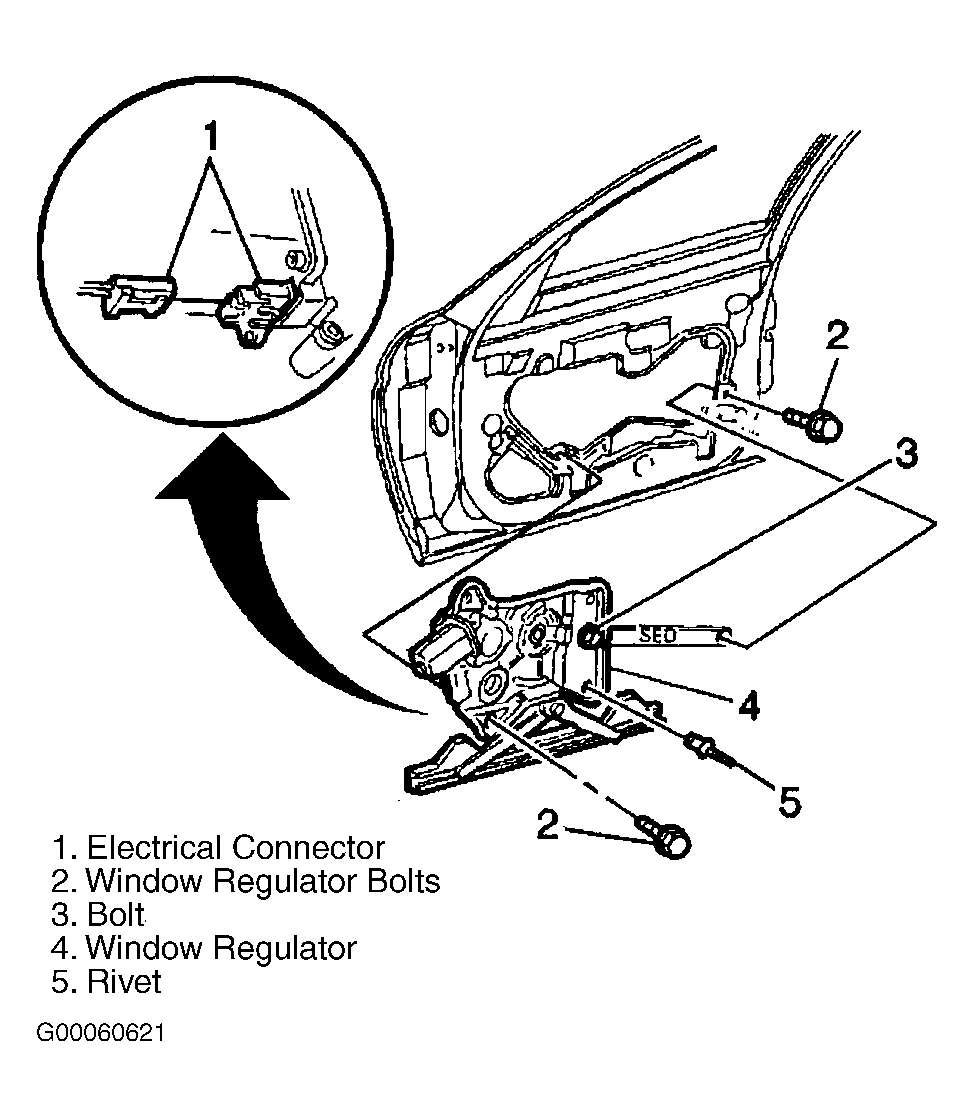

  1. Position regulator (4) by inserting bottom through access opening. See Figure .
  2. Rotate top through opening while lowering regulator to clear top of access opening.
  3. Align holes in door inner panel.
  4. Install door window regulator bolts (2). Tighten bolts to 89 INCH lbs. (10 N.m).
  5. Install upper left rivet.
  6. Install lower right rivet.
  7. Install door window regulator cam bolt. Tighten nut to 89 INCH lbs. (10 N.m).
  8. Connect electrical connector (1).
  9. Install window.
  10. Install water deflector.
  11. Install trim panel.
