Connector Identification

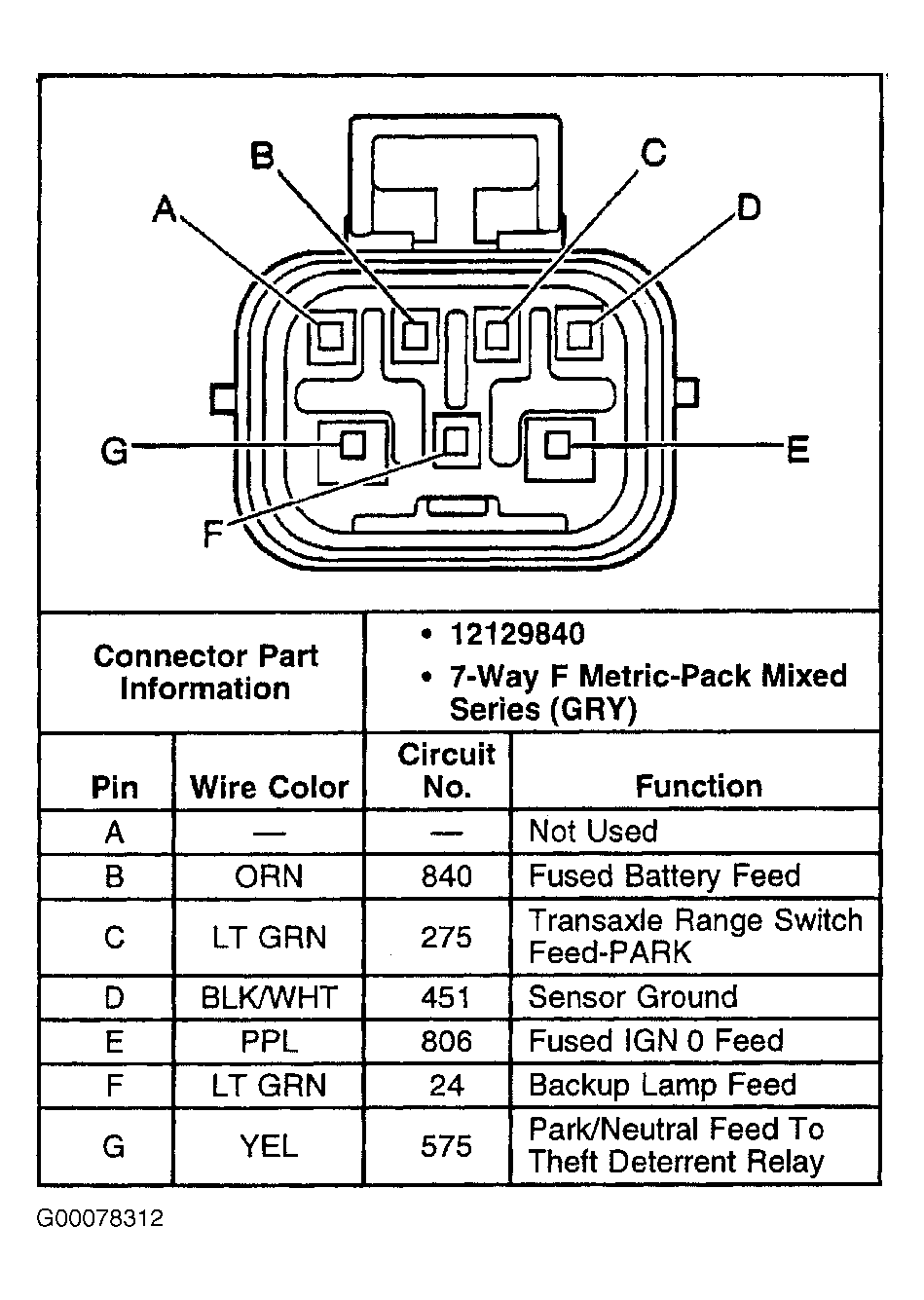

Fig 1: Identifying PNP Switch Harness Connector (C2) Terminals
G00078312Courtesy of GENERAL MOTORS CORP.

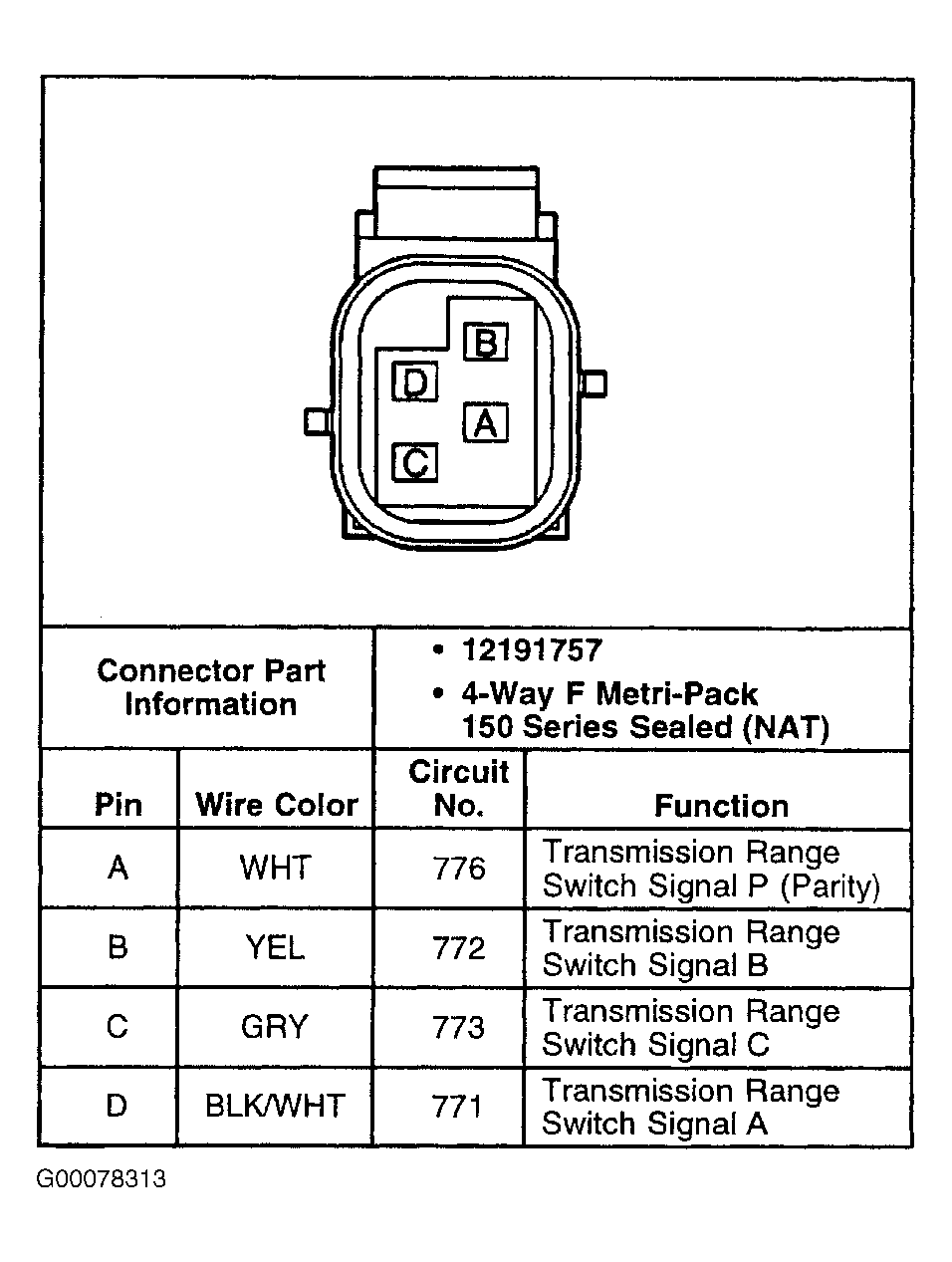

Fig 2: Identifying PNP Switch Harness Connector (C2) Terminals
G00078313Courtesy of GENERAL MOTORS CORP.

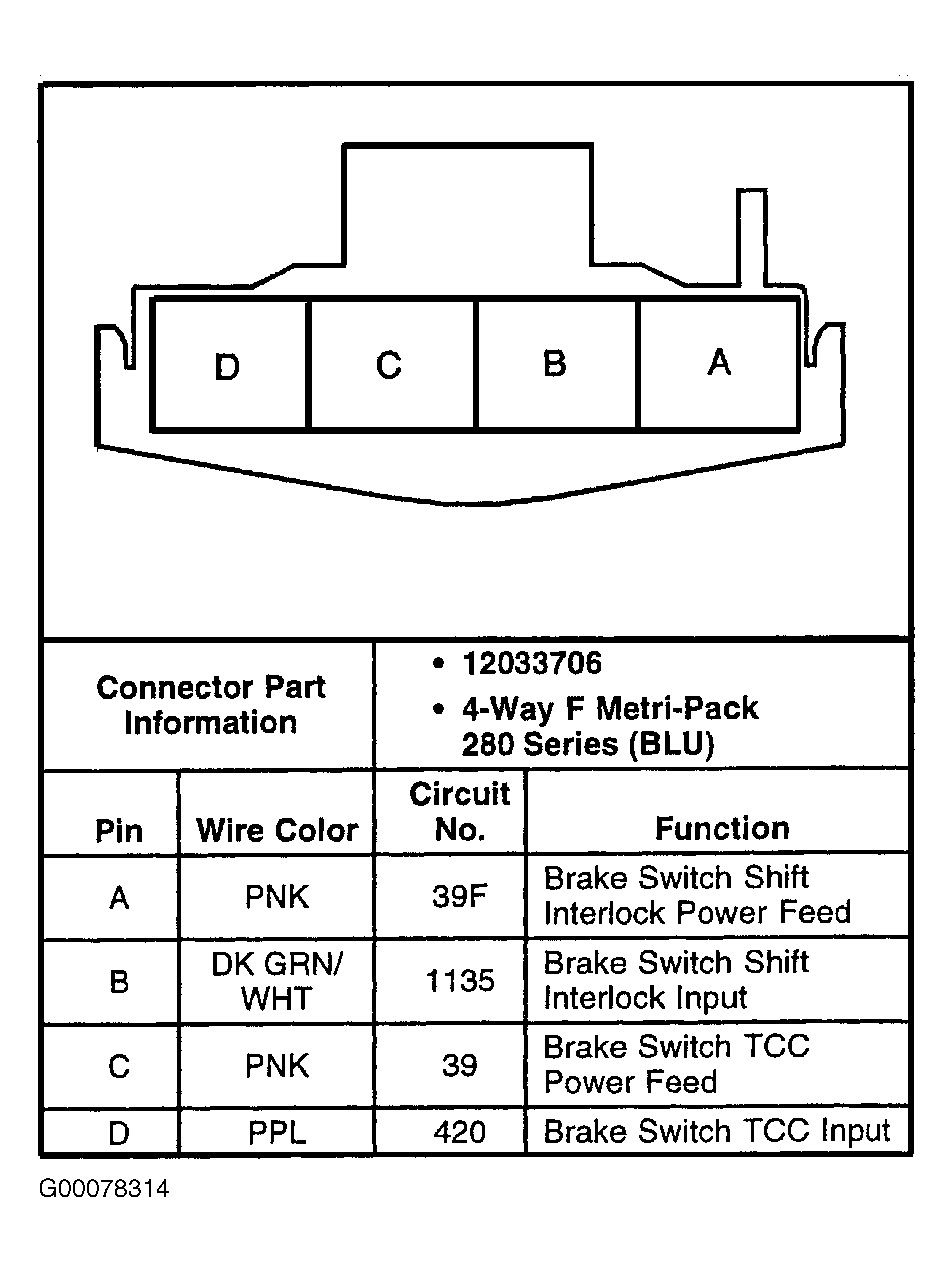

Fig 3: Identifying Stoplamp Switch Harness Connector Terminals
G00078314Courtesy of GENERAL MOTORS CORP.
