Component Locations
NOTE:

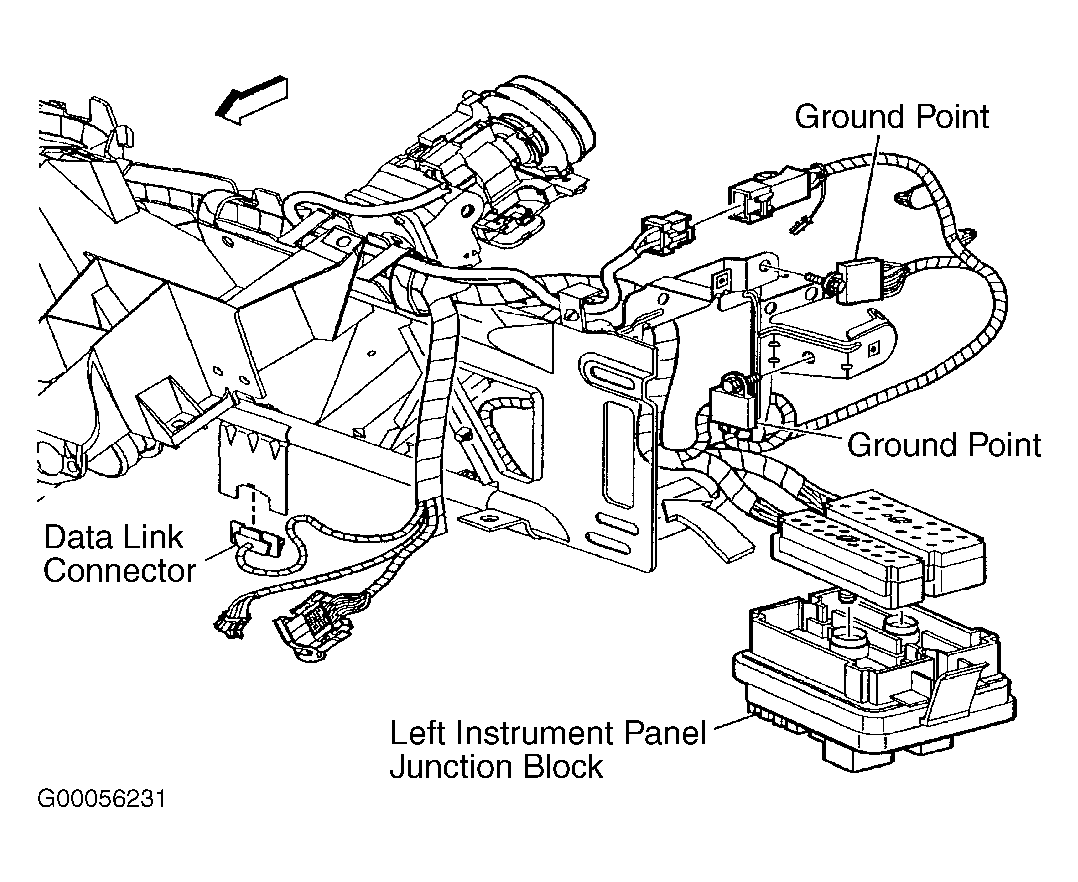

For component locations, refer to illustrations. See Fig 1
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Forward/Back Motor | Under Respective Front Seat |
| Front & Rear Height Motors | Under Respective Front Seat |
| Left Instrument Panel Fuse Block | Behind Left End Of Instrument Panel |
| PWR SEAT Circuit Breaker | Left Instrument Panel Fuse Block |
| Power Seat Switch | On Driver's Seat Cushion |
